GSST, Niigata University, T. Kiryu Design of Wearable Units for Personal Fitting Process in Wellness Environment Tohru Kiryu 1 , Takao Moriya 2 , and Yasufumi Mizuno 2 1 Graduate School of Science and Technology, Niigata University, Japan 2 Yamaha

slide-1
SLIDE 1

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

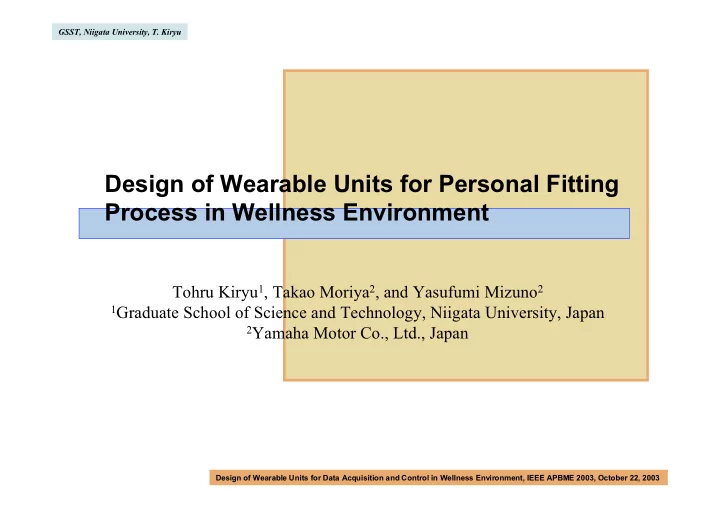

Design of Wearable Units for Personal Fitting Process in Wellness Environment

Tohru Kiryu1, Takao Moriya2, and Yasufumi Mizuno2

1Graduate School of Science and Technology, Niigata University, Japan 2Yamaha Motor Co., Ltd., Japan

slide-2
SLIDE 2

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003 ❈❑❊ ❝❥❝❛r♣♠❜❝q ❝❥❝❛r♣♠❜❝q

❊✇❦❧❴❡❣s❦

❜❴r❴

❯❝❥❥❧❝qq✣❅❣✐❝

♥❝❜❴❥✣q❝❧q♠♣ ❋P✣q❝❧q♠♣ ✣q❝❧q♠♣

❋♠❦❝ ❋❝❴❥r❢✣◆♣♠❦♠r❣♠❧ ❆❝❧r❝♣ ❆❝❧r❝♣

  • amp. network

୞দ

phase 1 phase 2 phase 3 phase 4 phase 5 phase 6

time AT workload

Several Types of Web Sites for Providing Exercise Program

Network Attached Storage Data Warehouse by History Database

Internet

Data Management for Individual Users

Rehabilitation Program Fitness Program treadmill Pedometer

Web-Based Health Promotion Supporting System

Several Types of IP-connected Units

slide-3
SLIDE 3

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Comparison between Conventional & Ongoing Approaches

  • 1. Embedded Units for Measurement

Wearable Units for Measurement & Control

  • 2. Stand-Alone System for Measurement, Analysis, and Control➳

Distributed System for Functions

  • 3. History Database

Discrimination of Individual Differences by Data mining

  • 4. General Exercise Program

Personal Fitting Exercise Program

  • 5. Limitation of Measurement for Objective Data

Fusion of Objective and Subjective Data

  • 6. Specific Biosignal Processing

Bio-Functional Signal Processing (Multi-Time Scale, Multivariate Analysis, and Snapshot Evaluation)

slide-4
SLIDE 4

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

estimation of total fatigue index δ

SEMG, HR

WL WL WL

n 1 n

∆ δ ⋅ − =

+

Recursive Workload Control WLn : workload at n-th frame ∆WL: incremental step of workload δ: fatigue index Workload Control

  • fuzzy rules
  • membership functions

Surface EMG(SEMG)

  • amplitude info
  • frequency-related info.

Heart Rate (HR) Fuzzy control

Control by Objective Indices

time workload controlled workload AT

Workload Control for Cycle Ergometer

  • T. Kiryu, K. Yamaguchi, K. Tanaka, and A. Shionoya, Internet Based System

For Adjusting Cycle Ergometer Workload To Moderate Exercise, in Proc. 21th

  • Annu. Int. Conf. IEEE/EMBS, Atlanta, GA, 6.2.2.54, 1999.
slide-5
SLIDE 5

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Targets for Web-based Health Promotion Supporting System

  • 1. IP-connected Wearable Units for measuring

physical activity and controlling workload

  • wearable unit
  • IP-connection for distributed system
  • estimation of physical activity and workload control
  • 2. Personally fitted control by matching the

specification of machine and the functional activity

  • f each user to establish continuous support
  • 3. Several types of Web-sites for providing health

promotion programs

  • 4. Data access & browsing under personal

identification

  • 5. Establishment of history database and

discrimination of individuals by data mining

slide-6
SLIDE 6

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

temporary increasing workload

phase 1 phase 2 phase 3 phase 4 phase 5 phase 6

time workload WLmin WLmax

T1 T2 T3

AT

adjusting

  • level
  • timing

a little bit hard exercise under perception of workload changes

AT max AT min

WL % 130 WL WL % 70 WL = =

AT: Anaerobic Threshold

Workload Design for Personal Fitting

time workload controlled workload AT

conventional workload control

Personal Fitting

  • T. Kiryu, I. Sasaki, K. Shibai, and K. Tanaka, Providing Appropriate Exercise

Levels for the Elderly, IEEE EMB Magazine, Vol. 20, No. 6, 125-132, 2001.

slide-7
SLIDE 7

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Personal Fitting of Workload Control

To accomplish the personal fitting process, the followings are required:

  • 1. data acquisition and workload control during exercise
  • 2. handling a history database at any time and at any

location

  • 3. updating the control parameters of wellness machines

based on acquired data and a history database.

time workload

AT controlled workload

Key point IP connected wearable unit

slide-8
SLIDE 8

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

For conventional wearable units, the following factors were considered:

  • 1. size and weight
  • 2. number of channels and electrical characteristics of amplifiers
  • 3. time for storage
  • 4. active time
  • 5. storing process of acquired data

The function of the wearable units for next generation should be emphasized in transforming physical activities into electrical signals for customizing the properties of human factor related machines in real-time.

Function of Wearable Units for Next Generation

slide-9
SLIDE 9

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Internet

Wireless LAN

measurement control

Notebook PC

history database

Infra-red

Wireless LAN Wearable Unit under BAN (BAN: Body Area Network) Embedded Units

From Embedded Unit to Wearable Unit

slide-10
SLIDE 10

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Application for Power-Assisted Bicycle

Infra-red

Wearable Unit under BAN (BAN: Body Area Network)

Infra-red

Wearable Unit under BAN (BAN: Body Area Network) history database

Internet

slide-11
SLIDE 11

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Components of Wearable Unit

WLn + 1 = WL n – δn ∆WLn

every 5 cycle

ă ăworkload at (n+1)-frame ăworkload at n-frame ăcontrol coefficient at n-frame

step-size of workload

WLn + 1 WLn ∆WLn δn

HR: Heart Rtae ME: Myoelectric Signal (EMG) RPE: Rating of Perceived Exertion

HR ME indices amplifier fuzzy control communi cation data transmission workload control control parameters RPE AD convertor

numerical processing module

around 60 rpm

measurement calculation of control parameters

time-sequence

workload control

trigger sensor

500 ms 500 ms

slide-12
SLIDE 12

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Prototype of Potable Unit

Communication by Infra-red

ECG EMG

OS: Linux Digitizing:

  • 5 kHz
  • 12-bit
  • 6-channel

On-board AD converter, the PCMCIA and the compact flash type slots for memory cards or wireless LAN cards, and the IP address via wire and wireless.

wellness machine

slide-13
SLIDE 13

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Browser Utility for Designing Personally Fitted Workload Pattern

Database Browser Time-Series Browser Scatter Graph Browser made by Java

slide-14
SLIDE 14

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

From Indoor to Outdoor Sports

Several types of Websites for Providing Exercise Programs

Network Attached Storage Data Warehouse

Internet

Data Management

  • Info. on exercise program

Wellness for Exercise

Program to crease refreshment personal fitting based on history database

IP-connected wearableunit for measurement & control

slide-15
SLIDE 15

GSST, Niigata University, T. Kiryu

Design of Wearable Units for Data Acquisition and Control in Wellness Environment, IEEE APBME 2003, October 22, 2003

Conclusions

  • 1. The new type of wearable units is now necessary for developing

the personal fitting process in the wellness environment.

  • 2. We have produced a prototype of the wearable unit for cycling

both indoor and outdoor exercise. By the wearable unit, the appropriate workload pattern customized by cycle ergometor indoor exercise can be applied to a torque-assisted bicycle in the field.

  • 3. Many opportunities and combinations will be open for users.
  • 4. This approach will benefit for other fields where customization of

workload is required.

  • 5. Distribution of functions promote potential makers easy to join in

this field.
