Depth Perception, part II Lecture 12 (Chapter 6) Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325) Spring 2019 1 nice illusions video - car ad (2013) (anamorphosis, linear perspective, accidental viewpoints, shadows,

slide-1
SLIDE 1

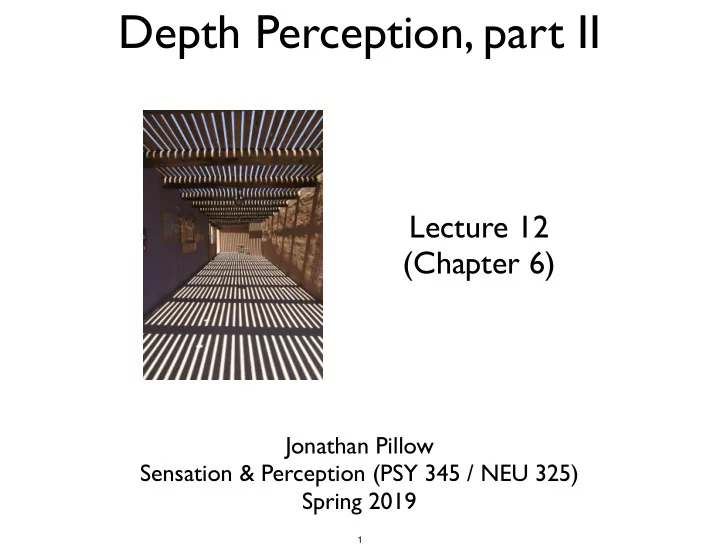

Depth Perception, part II

Lecture 12 (Chapter 6)

Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325)
 Spring 2019

1

slide-2
SLIDE 2

nice illusions video - car ad (2013)

(anamorphosis, linear perspective, accidental viewpoints, shadows, depth/size illusions) https://www.youtube.com/watch?v=dNC0X76-QRI

2

slide-3
SLIDE 3

Accommodation - “depth from focus”

near far

3

slide-4
SLIDE 4

Depth and scale estimation from accommodation

“tilt shift photography”

4

slide-5
SLIDE 5

Depth and scale estimation from accommodation

“tilt shift photography”

5

slide-6
SLIDE 6

Depth and scale estimation from accommodation

“tilt shift photography”

6

slide-7
SLIDE 7

Depth and scale estimation from accommodation

“tilt shift photography”

7

slide-8
SLIDE 8

Depth and scale estimation from accommodation

“tilt shift photography”

8

slide-9
SLIDE 9

more on tilt shift: Van Gogh


http://www.mymodernmet.com/profiles/blogs/van-goghs-paintings-get

9

slide-10
SLIDE 10

Tilt shift on Van Gogh paintings

http://www.mymodernmet.com/profiles/blogs/van-goghs-paintings-get

10

slide-11
SLIDE 11

11

slide-12
SLIDE 12

12

slide-13
SLIDE 13

countering the depth-from-focus cue

13

slide-14
SLIDE 14

Pictorial Non-Pictorial

  • occlusion
  • relative size
  • shadow
  • texture gradient
  • height in plane
  • linear perspective
  • motion parallax

Monocular depth cues:

  • accommodation

(“depth from focus”)

14

slide-15
SLIDE 15
  • Binocular depth cue: A depth cue that

relies on information from both eyes

15

slide-16
SLIDE 16

Two Retinas Capture Different images

16

slide-17
SLIDE 17

Finger-Sausage Illusion:

17

slide-18
SLIDE 18

Pen Test:

Hold a pen out at half arm’s length With the other hand, see how rapidly you can place the cap on the pen. First using two eyes, then with one eye closed

18

slide-19
SLIDE 19

Binocular depth cues:

  • 1. Vergence angle - angle between the eyes

If you know the angles, you can deduce the distance convergence divergence

19

slide-20
SLIDE 20
  • 2. Binocular Disparity - difference between two retinal images

Stereopsis - depth perception that results from binocular disparity information (This is what they’re offering in 3D movies…)

Binocular depth cues:

20

slide-21
SLIDE 21

21

slide-22
SLIDE 22

Retinal images in left & right eyes

Figuring out the depth from these two images is a challenging computational problem. (Can you reason it out?)

22

slide-23
SLIDE 23

Disparity: difference between points in L and R eye images

23

slide-24
SLIDE 24

Horopter: circle of points that fall at zero disparity (i.e., they land on corresponding parts of the two retinas) A bit of geometric reasoning will convince you that this surface is a circle containing the fixation point and the two eyes

24

slide-25
SLIDE 25

25

slide-26
SLIDE 26

point with crossed disparity appears closer point with uncrossed disparity appears further

26

slide-27
SLIDE 27

Is this a simple picture or a complicated computational problem?

27

slide-28
SLIDE 28

Interpreting the visual information from three circles

Known as the “correspondence problem” - which points in the left eye go with which points in the right eye?

This one requires an accidental viewpoint

28

slide-29
SLIDE 29

Wheatstone’s stereoscope

  • device for presenting one different images to the two eyes

29

slide-30
SLIDE 30

Free fusing - focusing the eyes either nearer or farther than this image so that each eye sees a different image

30

slide-31
SLIDE 31

Free fusing - focusing the eyes either nearer or farther than this image so that each eye sees a different image “Crossed-fusion”

L retina R retina

31

slide-32
SLIDE 32

Free fusing - focusing the eyes either nearer or farther than this image so that each eye sees a different image “uncrossed fusion”

L retina R retina

32

slide-33
SLIDE 33

Random Dot Stereogram - same concept, but no detectable “features” in either image. Details of dot pattern allow brain to solve the correspondence problem

33

slide-34
SLIDE 34

“Magic Eye” images use same principle

34

slide-35
SLIDE 35

If you were designing a visual system, how might you go about designing neurons tuned for different disparity?

35

slide-36
SLIDE 36

The brain solves this problem with disparity-tuned neurons

36

slide-37
SLIDE 37

Binocular Vision and Stereopsis How is stereopsis implemented in the human brain?

  • Input from two eyes must converge onto the same cell
  • Many neurons: respond best when the same image falls on

corresponding points in the two retinas
 (this is the neural basis for the horopter)

  • However: many neurons respond best when similar images
  • ccupy slightly different positions on the two retinas
  • i.e., these neurons are “tuned to a particular disparity”

37

slide-38
SLIDE 38

Panum’s fusional area: only certain range of disparities that the brain can fuse

  • comes from distribution of disparity-tuned neurons

Panum’s fusional area

38

slide-39
SLIDE 39

Depth Illusions

Müller-Lyer Illusion

http://www.michaelbach.de/ot/sze_muelue/index.html

39

slide-40
SLIDE 40

In which image are the two horizontal lines the same length?

(Ans: second from left)

40

slide-41
SLIDE 41

Two figures are the same size

41

slide-42
SLIDE 42

“Terror Subterra”

42

slide-43
SLIDE 43

“Terror Subterra”

43

slide-44
SLIDE 44

red lines are all the same length

44

slide-45
SLIDE 45

Depth / Size illusion

  • all 3 cars take up the same space in the image + on your retina!

45

slide-46
SLIDE 46

Strabismus

  • eyes are not aligned,

so different images fall

  • n the fovea
  • If not corrected at an

early age, stereopsis will not develop stereoblindness: inability to use binocular disparity as a depth cue.

Defects in Stereopsis

46

slide-47
SLIDE 47

Binocular Rivalry

47

slide-48
SLIDE 48

Two stimuli battle for dominance of the percept

48

slide-49
SLIDE 49
  • monocular depth cues
  • binocular depth cues (vergence, disparity)
  • horopter
  • crossed / uncrossed disparities
  • free fusing
  • random dot stereogram
  • stereoscope
  • “correspondence problem”
  • panum’s fusional area
  • strabismus / stereoblindness
  • binocular rivalry (in book)

Chapter 6 Summary:

49
