Company private

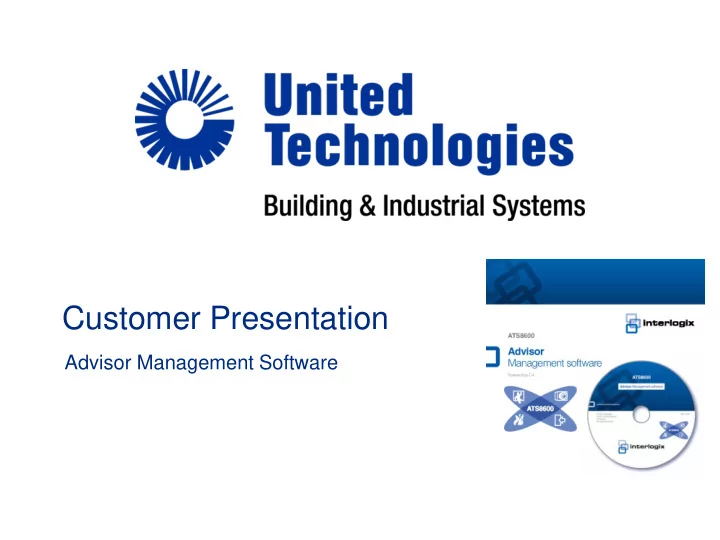

Customer Presentation

Advisor Management Software

Company private 1

• Advisor Management Software
• Integration of Security systems
• Security Management Functionalities

Advisor Management

• Commercial

Characteristics, Concept, Features & Benefits Intrusion, Access, Video, Fire User-,Alarm- and Visitor Management Product Editions, License, ..

Company private 2

Management software enabling seamless integration of different security systems from one user interface.

Knowing who is in the building, verification & control of events, managing users & visitors, one database for all functions linked to events, provide access rights to visitors and monitor by video, create reports on the fly, graphical floor plans,…

Advisor Management

Optimizing Security Process Reducing Operational Costs Control Multiple dev., sites Monitoring

• f Events

User Management Visitor Management Intrusion Fire Video Access

Driving Simplicity & Operational Efficiency

Company private

• One user Friendly Interface
• Integrates all aspects of security (Intrusion, Video, Access

and Fire) providing new functionalities:

Switch outputs on fire alarms Show video on alarm Disarm areas on door openings Proposing dynamic floor plans Reports following events

• System Simplification

Thin client Installation ( IIS,..) Management (One interface, hist. data, control of regions, persons, visits) Minimum training requirements Reporting on the Fly

Simplification

Advisor Management

Company private

• Internet Information Services (IIS Server)
• MS SQL server 2008 R2

(express, standard or Enterprise, 32 or 64 bit)

• Windows Vista, 7 or 8 (32 or 64 bit)
• Windows Server 2008/2012

Server Client Components

• Interaction with IIS Server
• Secure Sockets Layer (SSL)
• Device Manager (DM) – Manages the connections with the different

security devices. And stores the events in the SQL server

• Message Brokers (MB), Coordinates the messages between the different

units Operating System

Advisor Management

Company private 5

Intrusion & Access Control Integration ATS Advanced, ATS Master (Future - Verex, Guardall) Fire integration FP1200/2000 (Future - 2010-2)

E-mail Alarm Notificati tion User management Security ty Operati tions ns Monitoring & Control Server services es IIS IIS Device manager Message Broker SQL Server (+ mirror)

Video integration TVR1x, 41, 60 TVN2x, 50 All New DVRs & NVRs

Advisor Management

Product Concept

Company private

Features Benefits

Seamless integration of Access, Video, Intrusion and Fire with user and visitor administration. No compatibility issues from different systems; Managing different systems through one interface. Overview of interactions between different security disciplines (floor plan, control map,..), all controlled logically Reduction of training costs with a common look and feel One uniform way, one interface to set up users, visitors,.. overviewing multiple tasks. Cost benefit by managing users, cardholders,… remotely in multiple locations; Restrict access based on function and rights,.. Control the traffic of visitors will enhance safety Removal of rights for non-used cards (visitor, user management) Available in different modules (entrance; extended module) Modular and scaling up acc. needs of the end user without needing to replace hardware. Cost effective solution; scalable on the entrance solution,.. Reporting capabilities User can create / export own reports on demand or after event, providing support to manage different tasks; look into history Dynamic floor plans Floor plan linking to events results in faster event management (clearing alarms, action buttons..) 64 bit and 32 bit supported operating system Windows 7; MS SQL server 2008 R2 ;…. Intuitive user configuration; Installed in a broad range and most common environment; Guard / Patrol Tour Conduct and view secure guard tours, saving time, whilst increasing security Multiple language user interface Ability to operate integrated security in native language

Advisor Management Features & Benefits

Company private 7

Management software enabling seamless integration of different security systems from one user interface.

Knowing who is in the building, verification & control of events, managing users & visitors, one database for all functions linked to events, provide access rights to visitors and monitor by video, create reports on the fly, graphical floor plans,…

Advisor Management Integration

Monitoring

• f Events

User Management Visitor Management Optimizing Security Process Reducing Operational Costs Control Multiple dev., sites Intrusion Fire Video Access

Driving simplicity & Operational Efficiency

Company private

Product Inputs Areas Doors Alliance ATS Master ATS2xxx (E) 64 4 16+48*  ATS3xxx (E) 128 8 16+48*  ATS4xxx (E) 256 16 16+48*  Advisor Advanced ATS2000A 64 8 16*  ATS1000A 32 4 16* 

• ATS Master & ATS Advanced (Verex, Guardall)
• Output control (Light, doors,...)
• System activation; partial or full
• Alarm handling
• Number of users is limited by hardware

* Access Control(48) / door control (16)

Intrusion & Access

Advisor Management

Company private

DVRs Advisor Man Alliance NVRs Advisor Man Alliance TVR10   TVN20   TVR11   TVN21   TVR40   TVN50   TVR41   TVR60   Video Functionality Advisor Man Alliance Video Live   Video Playback   Live Video Alarm popup   Preset control on Live*   Preset control on Alarm*  

Video

* Automatic actions for defined pre-sets

Advisor Management

Company private

• Output control
• Floor plans (presence, absence)
• Evacuation (who is still in the building)
• Verification

Fire

Fire panels Advisor Man Alliance FP1200   FP2000   2010-2 Platform Ziton ZP2   Aritech 2X   Kilsen KFA  

Advisor Management

Company private 11

Management software enabling seamless integration of different security systems from one user interface.

Knowing who is in the building, verification & control of events, managing users & visitors, one database for all functions linked to events, provide access rights to visitors and monitor by video, create reports on the fly, graphical floor plans,…

Advisor Management Functionalities

Intrusion Fire Video Monitoring

• f Events

User Management Visitor Management Optimizing Security Process Reducing Operational Costs Control Multiple dev., sites Access

Driving simplicity & Operational Efficiency

Company private

Simplification through Inheritance (rights, Permission)

• Configuration of user details
• ATS8600 operators
• Credential holders (card, Pin, …)
• Access rights
• Permissions in application
• Create clear Structure
• Company
• Division
• Department
• User
• Center
• Department
• User
• Group
• User
• Import from Excel or Titan:
• Devices,
• Persons and credentials

User Management

Advisor Management

Adding and managing credentials in the Professional View

• Application users
• System users
• Devices
• Regions

Company private

Centralized configuration providing clear structure

• Configure connection
• Setup communication
• Import from Titan
• Configure device control & event

management

• Configure access rights
• Print (access) details
• Shows device status & events

Configuration Devices

Advisor Management

Configure Devices and rights from the Professional View

• Application users
• System users
• Devices
• Regions

Company private

Create visualization through regions

• Used for logical grouping of

devices

• Used for tracking persons

(in/out of region)

• Used for person count

(notification only)

Configuration Regions

Advisor Management

Configure Regions from the Professional View

• Application users
• System users
• Devices
• Regions

Company private

Multiple event views on one screen

• guide alarm handling through

event filters

• Events&Maps in 1 Real-time view
• Setup through Drag and drop
• Maps follow region organization
• Ability to create specific views for

event handling

• Click alarm view to show device
• n map
• Option to show camera on event

when linked

• Show persons present (regions)
• Print from view

Alarm Management

Advisor Management

Monitoring and Visualization from Monitoring View

• View and manage events
• View relevant information
• Control devices
• Control Regions
• Manage Patrol Tours

Company private

Facilitation of visitors management

• Administer visitors and

access cards handed out

• Provides view of handed
• ut cards
• Only administration, no

card configuration

Visitor Administration

Advisor Management

• register visitors and cards handed out to visitors

Visitors administration

Company private

Flexible Reporting

• For every event* reports can

be created on the fly

• Reporting: Select views and

filters, then print

Creating Reports

Advisor Management

* Everything happening in the system, not only incidents, but also configuration changes, operator behaviour,..

Company private

Some more new features

• Patrol tours (ATS8610 only)

The ability to schedule guard tour within the building, with a specific timing to perform a number of security checks (doors, readers,…)

• PTZ functionality: pan–tilt–zoom camera

The ability to start automatic actions when specified event occurs. For example: Sending pre –set to video camera

• User and data import through Titan and Excel

Or back-up and restore in proprietary format.

• Action buttons on maps

Example: Create button on map to arm areas within one region

• Event filters

Create filters based on specific criteria

Company private

Function of the number of devices, number of clients is unlimited Only UTC products Activation based on MAC address Licensing process to be followed Licenses edition:

• Type of Devices
• Number of Devices
• ATS8600: Advisor management Starter Edition
• ATS8610: Advisor management Business Edition

License

Advisor Management Commercial

Company private

ATS8610: Advisor management Business Edition

• Baseline commercial management level
• Maximum of 25 devices for each: Intrusion/Access,Video and Fire
• Patrol tours
• Visitor management
• Unlimited clients

ATS8611: Upgrade starter to business edition ATS8690: Annual update for starter edition ATS8691: Annual update for business edition ATS8600: Advisor management Starter Edition

• Baseline management level
• Maximum of two devices for each: Intrusion/Access,Video and Fire
• Incl SQL Express database
• Unlimited clients

Upgrades are related to the addition of new features in the software

Editions

Advisor Management Commercial

Company private

ATS8600 ATS 8610

Server op system Windowspro/Win XP pro Windowspro/Win XP pro Licencing 2 devices 25 Devices Database MS SQL MS SQL Multi-user Yes Yes Panel Control Yes Yes Video support All current All current Fire support FP, (2010-2) FP, (2010-2) User management Visual, automatic Visual, automatic Guard tours No Yes Visitor administration No Yes Dynamic Alarm monitoring Yes Yes

Advisor Management Commercial

Company private 22

Standard Mediakit DVD Packaging

Front Inlay Back Inlay

Advisor Management Commercial

Packaging

Company private

Advisor Management Summary

23

• Only player to deliver a complete integrated security management solution in this

market segment: Intrusion, Access, Video and Fire

• Supporting Key UTC panels:

Advisor Advanced + Advisor Master (Verex & Guardall) Current Fire panels (2010-2 upcoming) Stream from current video products

• Operational efficiency for key functions of Security manager
• Using only one interface for multiple tasks: access control, digital

video, intrusion and fire detection

• The ability to register and track visitors in the building
• Allowing users to create reports on the fly
• Scalable to multiple sites, multiple languages and multiple users
• Efficient alarm handling
• you can move, control or share resources across multiple locations

simply through one interface
