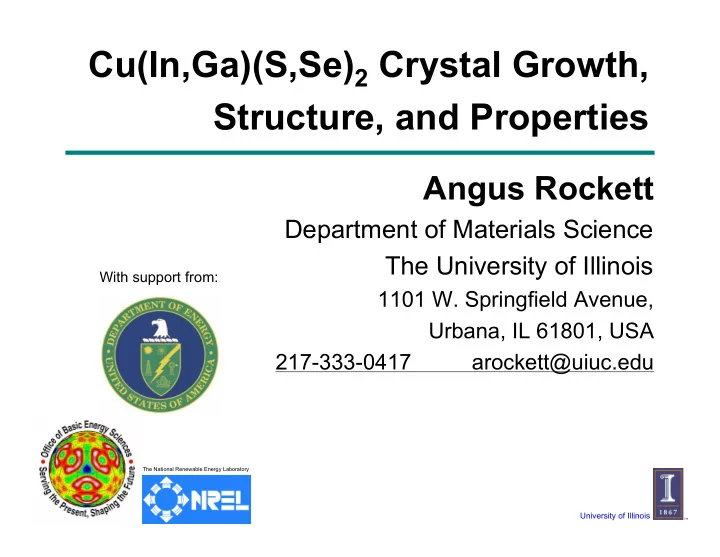

Cu(In,Ga)(S,Se)2 Crystal Growth, Structure, and Properties

Angus Rockett

Department of Materials Science The University of Illinois

1101 W. Springfield Avenue, Urbana, IL 61801, USA 217-333-0417 arockett@uiuc.edu

With support from:

The National Renewable Energy Laboratory
slide-2
SLIDE 2

College of Engineering University of Illinois

CIGS

  • Chalcopyrites have been proposed as

spin-polarized electron emitters.

  • They are also interesting for other

applications including thin film transistors.

  • Primary application -- solar cells
slide-3
SLIDE 3

College of Engineering University of Illinois

Useful Properties

  • Engineerable energy gap in useful range

(< 1eV to >2 eV).

  • Very high optical absorption coefficient.
  • Usable as polycrystals.
  • Native defects “harmless” (all shallow).
  • Few observable problems with impurities.
slide-4
SLIDE 4

College of Engineering University of Illinois

Basic crystallography and thermodynamics

slide-5
SLIDE 5

College of Engineering University of Illinois

Disordering energy is low so there are many point defects A polar compound so charged surfaces could be a problem c a Cu In or Ga S or Se c/2a ratio varies from >1 (high In) to <1 (high Ga)

Chalcopyrite Cu(In,Ga)(S,Se)2

slide-6
SLIDE 6

College of Engineering University of Illinois

Chalcopyrite Cu(In,Ga)(S,Se)2

Polar Metal Metal Chalcogen Chalcogen Polar Non-polar

slide-7
SLIDE 7

College of Engineering University of Illinois

Ternary Phase Diagram

…and right away we know we are in trouble.

Cu2Se In2Se3 CuInSe3

Pseudobinary

…is valence compensating

What is observed:

γ: CuIn5Se8 β: ~CuIn3Se5

slide-8
SLIDE 8

College of Engineering University of Illinois

Pseudobinary Phase Diagram

Note: extended solubility in α phase. Low-temperature chalcopyrite- sphalerite transition suggests low cation

  • rdering energy.
slide-9
SLIDE 9

College of Engineering University of Illinois

Deposition Methods

slide-10
SLIDE 10

College of Engineering University of Illinois

Evaporation

  • Multisource Evaporation
  • High rate

High rate

  • Easy control

Easy control

  • Difficult to scale

Difficult to scale

  • High temperature

High temperature process process

Most epitaxy by MBE Most solar cells this way

slide-11
SLIDE 11

College of Engineering University of Illinois

+Se

Selenization

  • Deposit metals separately
  • React with a Se source (Se vapor or H2Se).
  • Similar processes with sulfides
  • Sequential, easy to control
  • High film stress
  • Reaction of metal layers & phases formed are critical,

processes complex.

Heating lamps

Metal sources

slide-12
SLIDE 12

College of Engineering University of Illinois

MOCVD

Scrubber Pumps Valve Load Lock Reactor Buffer Volume Computer Control Flow Controllers & Vents Source Gases Safety Enclosure Toxic Gas Alarm System

Hydrogen selenide Trimethyl Ga or trimethyl In Complex Cu compound: use bubbler source. Low rate. Best growth: Cu-rich films 500-550°C

Epitaxy by MOCVD at Hahn Meitner Institute

slide-13
SLIDE 13

College of Engineering University of Illinois

Growth rate ~ 1µm/hr. Substrate temperature: 550-725°C Cu-Ga target for Cu(In,Ga)Se2 Cu target for pure CuInSe2 Cu and Ga targets for CuGaSe2

Typical hole mobility ~280 cm2/V-sec

  • Typ. Carrier Lifetime:

~ 0.4 nsec

Hybrid Method

Growth Process:

  • Similar to MBE
  • Evaporate Se
  • Sputter metals
  • Optional rf coil for

ionization Epitaxy on GaAs:

slide-14
SLIDE 14

College of Engineering University of Illinois

Band Structure

slide-15
SLIDE 15

College of Engineering University of Illinois

Band Structure - Theory

Se-S alloys mostly affect valence band edge. In-Ga alloys mostly affect conduction band. Cu-Ag alloys have minor effects on both bands. Gaps are low because

  • f Se-p : Cu-d

repulsion.

slide-16
SLIDE 16

College of Engineering University of Illinois

Experimental UPS

  • Se capped surface (112)Se cleaned

thermally shows Ef - EV ~ 0.47 eV.

  • Agrees

well with data from

  • ther labs

Cu 3d

slide-17
SLIDE 17

College of Engineering University of Illinois

Optoelectronic Properties

slide-18
SLIDE 18

College of Engineering University of Illinois

Photoluminescence Data

Data: S. Siebentritt et.al. Hahn Meitner Institute

Cu-rich films show sharp emissions: Donor-acceptor emissions Weak band-band emission Group-III rich films show broad emissions. Polycrystals same as epilayers

slide-19
SLIDE 19

College of Engineering University of Illinois

Photoluminescence Lifetime

10 100 1000 10000 100000 0.E+00 1.E-09 2.E-09 3.E-09 4.E-09 5.E-09 6.E-09 NREL SSI GSE EPV ISET UI261B UI261A UI291 UI286

Lifetimes 0.2-4 nsec Consistent with direct- gap band structure Microsecond decay (not shown shows deep state) Epilayers have short lifetimes. Suggests minority carrier traps.

slide-20
SLIDE 20

College of Engineering University of Illinois

Defect-to-defect, not band-to-band recombination. Photon energy does not track the gap change with Ga. Similar to CIS PL data.

1 10 100 1000 104 900 1000 1100 1200 1300 1400 1500

Emission Intensity (Arb. Units) Wavelength (Å)

Red: 283 K Yellow: 238 K Blue: 171 K Purple: 110 K Increasing Current At least 4 fixed peaks

Electroluminescence

slide-21
SLIDE 21

College of Engineering University of Illinois

Defect 1 Defect 2 Defect 1 Defect 2 Energy above VBE 0.8 0.9 0.8 1 E(gap) 1.22 Width 0.13 0.15 0.13 0.15 Band Tail width 0.022 Concentration 1.00E+14 3.50E+14 1.00E+14 1.10E+15 Band Tail DOS 1.00E+18 IEC Device UIUC Epilayer Device Both Layers

Experimental Data for deep levels

Thermophotocapacitance Cathodoluminescence

1E+12 1E+13 1E+14 1E+15 1E+16 1E+17 1E+18 0.5 0.8 1.1 1.4 Energy Above Valence Band (eV) Fit based on data from Temperature Photocapacitance

(J. Heath and D. Cohen,

  • U. Orgegon)

Quantitative estimate of defect state densities. Subgap states produce clear CL emission spectra

Data from Y. Strzhemechny and L. Brillson, Ohio State U.

slide-22
SLIDE 22

College of Engineering University of Illinois

1012 1013 1014 1015 1016 1017 1018 1019 1020 10 20 30 40 50

Hole Concentration (cm

  • 3)

1000/T [K

  • 1]

300 100 50 30 20

Temperature, T [K]

CIGS x=.20 CIGS x=.56 CIGS x=.11 CGS, x=1.00

Carrier Concentration: Hole Mobility:

100 1000 10 100

Temperature, T [K] Hole Mobility (cm 2/Vs)

Hall Effect

slide-23
SLIDE 23

College of Engineering University of Illinois

No change in electrically-active defects with Cu/III composition.

1012 1013 1014 1015 1016 1017 1018 1019 0.9 0.95 1 1.1 1.1 1.1 1.2

State Concentration (cm

  • 3)

Cu/In Ratio

0.7 0.75 0.8 0.85 0.9 0.95 1

Cu/(In+Ga) Ratio

NA1 NA2 ND 1012 1013 1014 1015 1016 1017 1018 1019

Hall Effect -- vs. composition

slide-24
SLIDE 24

College of Engineering University of Illinois

1014 1015 1016 1017 1018 1019 1020 1021 1022 0.2 0.4 0.6 0.8 1

Acceptor State Density [cm -3] Ga/(In+Ga)

…except for Ga, which increases p at high Ga contents.

Open points: Ga gradient Closed points: uniform Ga

Hall-effect -- vs. composition

Deep acceptor (135 meV) Shallow acceptor (40 meV)

slide-25
SLIDE 25

College of Engineering University of Illinois

  • (112) and (002) very similar, phonon scattering for (112) and (002)
  • p (220) 20x lower, mobility lower, defect limited

10 100 1000 100 150 200 250 300

Temperature, T (K) Hall Mobility (cm2/V-sec)

Film Orientation (112) (002) (220)

3 3.5 4 4.5 5 5.5 6 6.5 7

Inverse Temperature, 1000/T [K-1] Hole Concentration, p (cm -3)

1017 1016 1015 1014 1013

Growth Orientation Effects

slide-26
SLIDE 26

College of Engineering University of Illinois

Low dose Se implant -- mostly reversible changes.

70 80 100 200 0.1 1 10 100 1000

Mobility, µ (cm 2/Vs) Temperature T (K)

300

as deposited as implanted annealed

1011 1013 1015 1017 1019 2 4 6 8 10 12

Hole Concentration (cm

  • 3)

1000/T (K )

Implant damage Implant damage

Implant Changes

Cr implant similar

slide-27
SLIDE 27

College of Engineering University of Illinois

Point Defects Summary

Conduction Band Valence Band 0.9 eV 0.7 eV 0.3 0.13 0.04 Ef CuIn

  • 2

CuIn

  • 1

VCu

  • 1

InCu

+1 or Vse +1 ?

InCu

+2 or Vse +2 ?

  • Shallow acceptor: Cu vacancy
  • Deep acceptor: CuIn (divalent)
  • Defects 0.8 and 1.0 eV above

valence band: probably Se vacancy

  • Above do not shift with

Ga/(In+Ga)

  • Additional deep states?
slide-28
SLIDE 28

College of Engineering University of Illinois

Surface Energy & Growth Mechanisms

slide-29
SLIDE 29

College of Engineering University of Illinois

Surface Morphology

Summary:

Best epitaxy on GaAs (111). Rough surfaces on GaAs (110). Epitaxial temperatures: Ts = 540 ° C (220); 640 ° C (100); and 700 ° C (112) Pure CuInSe2: Ga diffuses from the substrate Kirkendall voids form at the interface in the GaAs substrate.

(100)/(002) surface Elongated ripples with asymmetric rectangular pits sometimes present. (220)/(204) surface Facets to (112) planes,

  • ne smooth, one rough.

(112) close-packed Very low angle (<1°) pyramidal facets.

Contrast enhanced

slide-30
SLIDE 30

College of Engineering University of Illinois

(112)Se Close Packed Surface

Very triangular facets, strong step

  • rientation

5 5 µ µm x 5 m x 5 µ µm AFM image m AFM image Steps: 1-3 ML high

  • Growth by step nucleation and

propagation

  • Very flat
  • 180° growth twins ~40 µm apart

Electron Channeling Patterns

slide-31
SLIDE 31

College of Engineering University of Illinois

(112)Metal Close Packed Surface

Steps: 1-2 ML high

  • Growth by step nucleation and

propagation

  • Very flat
  • No growth twins over the entire

surface! Very triangular facets, strong step

  • rientation

5 5 µ µm x 5 m x 5 µ µm AFM image m AFM image

slide-32
SLIDE 32

College of Engineering University of Illinois

(112) Surface Steps Compared

  • Both surfaces show triangular pyramids -- very similar

Metal-terminated Se-terminated

One type of step dominates More preference on Se-terminated surface

Inside corners! Layers nucleate near terrace edges!

slide-33
SLIDE 33

College of Engineering University of Illinois

Implications for Steps

Island Perimeter 3 edges with one dangling bond per edge atom 3 edges with two dangling bonds per edge atom Same behavior for both metal and Se surfaces One step type dominates

1µm

Almost no single dangling bond steps observed! Step-edge reconstruction implied

slide-34
SLIDE 34

College of Engineering University of Illinois

Layer Nucleation

Nucleation at step edges implies a barrier to atoms crossing downward over steps or binding to the upper step edge. Nuclei

slide-35
SLIDE 35

College of Engineering University of Illinois

(220)/(204) Oriented CIGS

Layers facet spontaneously into polar (112) type planes. Smooth facets alternate with rough facets.

(220)/(204) epitaxial layer AFM image

Red: metal terminated Blue: Se terminated (112)A (112)B Indexing surface planes shows smooth planes are metal terminated

slide-36
SLIDE 36

College of Engineering University of Illinois

(220)/(204) Oriented CIGS

  • Implication of the smooth/rough

surfaces:

(110) epitaxial layer AFM image

Diffusion transfers atoms to Se-terminated facets Nucleation and growth on Se- terminated surface.

slide-37
SLIDE 37

College of Engineering University of Illinois

slide-38
SLIDE 38

College of Engineering University of Illinois

Composition Variations

  • EDS:
  • Probe size

~ 1nm

  • Noisy data
  • No obvious grain boundary change
  • Data generally follows the tie line
slide-39
SLIDE 39

College of Engineering University of Illinois

CIS/GaAs Epitaxy

Kirkendal Voids w (112)Se facets GaAs CuInSe2

Angular Dark Field Image

Stacking faults & twins at interface

slide-40
SLIDE 40

College of Engineering University of Illinois

Voids

  • From surface data

we know faceting is common.

  • Voids between

grains in polycrystals.

  • Voids within grains

at twin terminations and dislocations.

Nanovoids!

slide-41
SLIDE 41

College of Engineering University of Illinois

Surface Chemistry

slide-42
SLIDE 42

College of Engineering University of Illinois

CIGS Surface Chemistry

  • Use very smooth (112) surfaces to

study chemistry by angle-resolved photoelectron spectroscopy.

Angle θ controls probe depth θ

Photon in Photoelectron

  • ut

d d/cos(θ)

θ

X-ray/UV light source Photoelectron energy analyzer sample

slide-43
SLIDE 43

College of Engineering University of Illinois

Angle-resolved Measurements

  • No chemical shift

between (112)metal and (112)Se.

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 442 444 446 448 450

Binding Energy (eV)

  • No chemical shifts with

photoelectron take-off angle Oxidized surface is (In,Ga) oxide

slide-44
SLIDE 44

College of Engineering University of Illinois

Angle-resolved Measurements

  • Results show Cu-deficient Ga-rich

surface

Modelling suggests 1-2 monolayers with altered Cu-poor composition

Cu In Ga Se O 28 6 66 37 63 18 16 6 60 24 16 10 50 24 16 10 50

Best fit by monolayer, at.%

Air-exposed

slide-45
SLIDE 45

College of Engineering University of Illinois

The CdS Heterojuction

  • The best CIGS solar cells have a heterojunction

made by dip-coating CdS onto the CIGS.

  • Plan: Use AR-PES to study the effect of the dip-

coating bath on the surface. CdS Dip HCl Etch

Control: HCl Etch w/o dip CdS-coated sample etched samples

CIGS

θ

slide-46
SLIDE 46

College of Engineering University of Illinois

CdS Dip Coating Results

  • Results show ~0.7 cation monolayers of Cd atoms in

the first one (or two) atomic layers of the surface after etching.

  • Fermi-edge shifts but core levels similar to sputtered

& Se-capped samples.

slide-47
SLIDE 47

College of Engineering University of Illinois

CdS Dip Coating Results

  • Comparison of

valence bands

  • Metal-terminated

has ~0.2 eV higher binding energy

  • Dip & etch samples

have component with ~1eV edge. He I

The oxidized surfaces have a minority component (1%) consistent with the sputtered edge

slide-48
SLIDE 48

College of Engineering University of Illinois

Conclusions

  • Copper chalcogenides are fascinating and unique

materials.

  • Defects dominate the optoelectronic properties.
  • Growth mechanisms are unique and interesting.
  • Thanks again to everyone who helped with this

research, funded it, discussed results with me, and to you for listening!
