CSE 510 Web Data Engineering Introduction UB CSE 510 Web Data Engineering Staff Instructor: Dr. Michalis Petropoulos Office Hours: Mon & Wed @ 1-2pm Location: 210 Bell Hall TA: Demian Lessa Office Hours: Fri @ 1-3pm Location:


slide-1

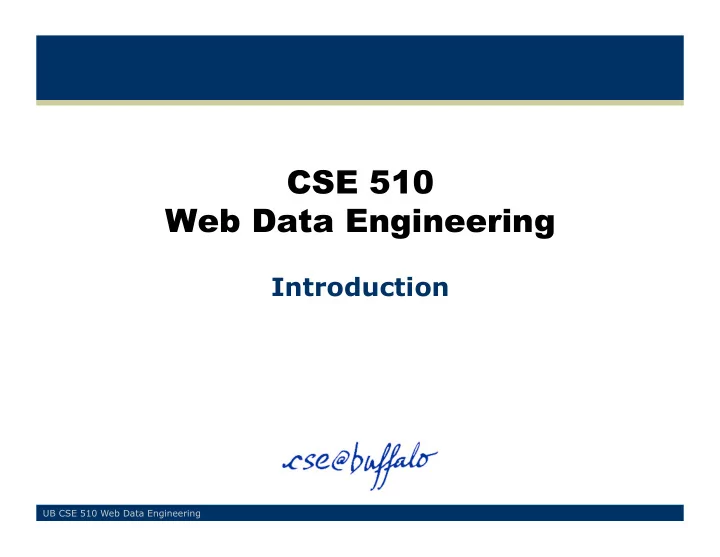

SLIDE 1

CSE 510 Web Data Engineering

Introduction

UB CSE 510 Web Data Engineering

slide-2
SLIDE 2

UB CSE 510 Web Data Engineering 2

Staff

  • Instructor: Dr. Michalis Petropoulos

Office Hours: Mon & Wed @ 1-2pm Location: 210 Bell Hall

  • TA: Demian Lessa

Office Hours: Fri @ 1-3pm Location: 329 Bell Hall

  • Web Page

http://www.cse.buffalo.edu/~mpetropo/CSE510-FA09/

  • Newsgroup

sunyab.cse.510

slide-3
SLIDE 3

UB CSE 510 Web Data Engineering 3

UB CSE Database Courses

CSE 562 Database Systems CSE 636 Data Integration CSE 7xx

  • Dr. Chomicki’s

Seminar CSE 7xx

  • Dr. Petropoulos’

Seminar CSE 462 Database Concepts CSE 510 Web Data Engineering

slide-4
SLIDE 4

UB CSE 510 Web Data Engineering 4

Prerequisites

  • CSE462 or equivalent undergrad database course
  • Good knowledge of Java is needed for the project
  • Curiosity! You should ask a lot of questions!
slide-5
SLIDE 5

UB CSE 510 Web Data Engineering 5

Relevant Material

Recommended Textbooks

  • For introduction, servlets, JSPs and database/application

server issues you may use Tomcat Kick Start, by Martin Bond and Debbie Law

  • For Struts you may use Struts in Action, by Ted Husted,

Cedric Dumoulin, George Fransiscus and David Winterfeldt

  • A combination of class notes and online resources is

probably better than textbooks since really nice online material on web programming can be found nowadays

slide-6
SLIDE 6

UB CSE 510 Web Data Engineering 6

Grade Computation

  • Project: 70%

– Teams of 2 – Consists of three phases (at least)

  • Final: 30% (in class)
slide-7
SLIDE 7

UB CSE 510 Web Data Engineering 7

Content and Organization

  • f the Course
slide-8
SLIDE 8

UB CSE 510 Web Data Engineering 8

Course Focus: Web Apps Providing Dynamic Content

  • Web initially served static content

– Pages are constructed in advance as html files and communicated with the http protocol

  • Then most web sites served dynamic content

– E-commerce, online banking, online auctions – Content typically comes from one or more databases

slide-9
SLIDE 9

UB CSE 510 Web Data Engineering 9

Course Focus: Web Apps Providing Dynamic Content

  • We will learn how to build

server-side applications that interact with their users and provide dynamic content

  • Using the Java

programming language and SQL-based databases

  • Key ingredient:

Application servers (Tomcat) that support Java-based server-side programs

App Server Java Servlet Browser

HTTP Request HTML Response

Database

JDBC/SQL

slide-10
SLIDE 10

UB CSE 510 Web Data Engineering 10

Escalation of Java-Based Technologies for Server-Side Programming

  • Discussion of network-level HTTP requests and

responses

  • Java Servlets are Java programs running inside

the application server

  • Servlet invoked using HTTP by client

– App server provides HTTP request object that encodes the request information

slide-11
SLIDE 11

UB CSE 510 Web Data Engineering 11

Escalation of Java-Based Technologies for Server-Side Programming

  • Servlet typically (but not necessarily) returns

HTML to client

– Unfortunately, HTML response is created with many println() statements – Very hard to separate static HTML content from dynamic content and control flow

  • Taught for educational purposes – nobody codes

servlets directly

slide-12
SLIDE 12

UB CSE 510 Web Data Engineering 12

Next Technology: Java Server Pages (JSPs) & Java Beans

  • HTML with embedded Java code

– Easy to understand how the produced HTML looks

  • Compiled into a Java Servlet
  • Unfortunately, the business logic of the

application (encoded in Java) is hard to understand and modify

  • Java Beans provide a little remedy

– Self-contained Java components (classes) with a bunch

  • f restrictions
slide-13
SLIDE 13

UB CSE 510 Web Data Engineering 13

Next: Model-View-Controller (MVC) Programming, using Struts

  • Emerging

Development “Best Practice”

  • Model: Access to

Underlying Databases and Info Sources

  • Controller: Control

Flow of Web App

  • View: Look-and-Feel
slide-14
SLIDE 14

UB CSE 510 Web Data Engineering 14

Next: AJAX and the Component-Based Page

  • A new paradigm: Web

applications providing the feel of desktop applications

  • Essentially page

consists of components

  • Individually refresh

themselves via XHR calls

slide-15
SLIDE 15

UB CSE 510 Web Data Engineering 15

Since Java, HTML and SQL Are Central To Examples & Project

  • Database programming “fast track” course

– Practical database design techniques – SQL programming – Use of JDBC in web applications

  • Brief discussion of HTML of the examples
slide-16
SLIDE 16

UB CSE 510 Web Data Engineering 16

Project

  • Think of the instructor and the TA as customers
  • Go from our problem statement…

to a web app specification… to a functional web application

  • Project: Graduate Admissions Application
  • Build using Struts framework
slide-17
SLIDE 17

UB CSE 510 Web Data Engineering 17

Many Dynamic Content Server-Side Technologies will NOT be Covered

  • Common Gateway Interface (CGI)

– Slow performance – No standard scripting language (Perl, PHP, …)

  • Microsoft’s Active Server Pages (ASPs)

– Very similar in principle to JSPs – Runs on Windows platforms only

  • Other MVC frameworks

– Spring, PureMVC

  • AJAX architecture will be covered
slide-18
SLIDE 18

UB CSE 510 Web Data Engineering 18

Java Servlets vs. Java Applets

  • Servlet runs on web

application server

  • Can access the

(server-side) database and other resources

  • Can only return data

to browser

– Interaction is based on user making HTTP requests and the servlet returning an HTML page

  • Applet is downloaded
  • n web client
  • Accesses client-side

resources

– Due to security reasons resources are typically unavailable

  • Better in some cases

for interaction with user

slide-19
SLIDE 19

UB CSE 510 Web Data Engineering 19

Application Servers: The Essential Tool

  • f Server-Side Programming
  • Java servlet containers, responsible for:

– facilitating HTTP communication – providing web application context – …

  • May also (but not necessarily) operate as web

servers, that is, serve static pages

  • Tomcat is an app server and the reference

implementation of the Java Servlet and JSP specifications

– Also serves static pages – The statement “Tomcat is a Web server” is not accurate
