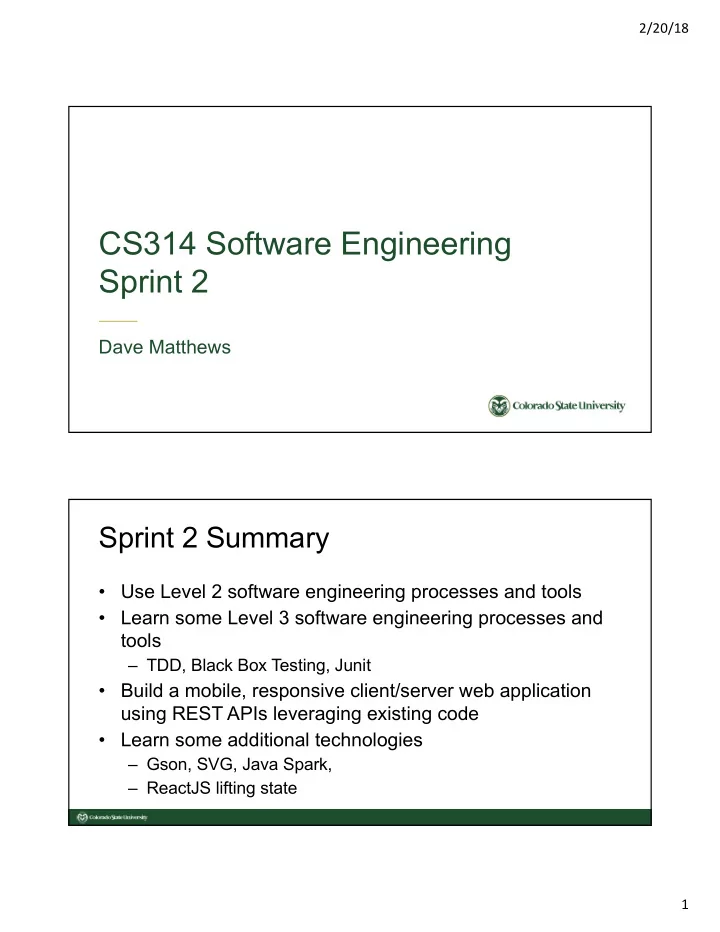

CS314 Software Engineering Sprint 2

Dave Matthews

Sprint 2 Summary

• Use Level 2 software engineering processes and tools
• Learn some Level 3 software engineering processes and

tools

– TDD, Black Box Testing, Junit

• Build a mobile, responsive client/server web application

using REST APIs leveraging existing code

• Learn some additional technologies

– Gson, SVG, Java Spark, – ReactJS lifting state

2/20/18 2

Build process maturity to level 3

Maturity Organization Project Engineering Support

5

• Organizational Performance

Management

• Causal Analysis

and Resolution

4

• Organizational

Process Performance

• Quantitative Project

Management

3

• Organizational

Process Definition

• Organizational

Process Focus

• Organizational

Training

• Integrated Project

Management

• Risk Management
• Requirements

Development

• Technical Solution
• Product Integration
• Verification
• Validation
• Decision Analysis

and Resolution

2

• Requirements

Management

• Project Planning
• Project Monitoring

and Control

• Supplier Agreement

Management

• Configuration

Management

• Process and Product

Quality Assurance

• Measurement

and Analysis http://cmmiinstitute.com/sites/default/files/documents/CMMI-DEV_Quick_Ref-2014.pdf

Scrum, Zenhub GitHub, Maven, Travis, WebPack Sprint 2! Scrum

Internship Plan

Sprint Processes Tools Technology TripCo Epics

1

• Configuration Management
• Project Management
• Scrum, Planning Poker
• GitHub
• ZenHub
• CodePen
• Bootstrap 4
• HTML
• JavaScript
• ReactJS
• Make a mobile resume
• Calculate geographic

distances

2

• Continuous Integration
• Test Driven Development
• Black Box Testing
• Maven, Travis-CI
• Webpack, Node.js
• JUnit
• Java Spark
• REST API/HTTP
• JSON, SVG
• Accept destination file
• Show map and

itinerary

3

• Clean Code
• Code Coverage
• White Box Testing
• Code Climate
• Emma, Jacoco, …
• SQL
• MariaDB
• Plan shorter trips
• Modify destination list
• Show useful

information

4

• Code Smells
• Refactoring
• KML
• Plan shorter trips
• Add more information
• Map operations

5

• Peer Reviews
• Inspections
• Metrics
• Concurrency
• Plan shorter trips
• Plan trips faster
• Finalize your resume

2/20/18 3

Sprint 2 Starter Kit

Client Components LOC Server Classes LOC App.js 23 Application.js 44 Greeting 6 Destinations.js 31 HTTP 29 entry.js 16 MicroServer 44 Footer.js 18 MyServer 22 Header.js 34 Option 5 index.js 4 Place 7 Itinerary.js 40 Plan 23 Map.js 20 Trip 32 Options.js 35 Trip.js 70 Total 348 Total 168

Sprint 2 Architecture

2/20/18 4

JSON - JavaScript Object Notation

www.json.org

• Lightweight data

interchange format

• text format that is

language independent

• built on two structures

– name/value pairs (object) – ordered list (array)

JSON - JavaScript Object Notation

Object Text

var obj = { "title":"text", "values":[1,2,3,4,5,6] }; to var str JSON.stringify(obj); var obj = JSON.parse(str); from var str = '{ "title":"text", "values":[1,2,3,4,5,6] }';

2/20/18 5

Trip Format For Interchange (TFFI)

{ "type" : "trip", "title" : "", "options" : {}, "places" : [], "distances" : [], "map" : "" }

Trip Format For Interchange (TFFI)

{ "type" : "trip", "title" : "Shopping loop", "options" : { "distance":"miles", "optimization":"none" }, "places" : [ {"id":"dnvr", "name":"Denver", "latitude":"39.73°N", "longitude":"104.99°W"}, {"id":"bldr", "name":"Boulder", "latitude":"40.014", "longitude":"-105.27"}, {"id":"foco", "name":"Fort Collins", "latitude":"40°35'6.92\"N", "longitude":"105°5'3.90\"W"} ], "distances" : [29,58,65], "map" : "<svg> ... </svg>" }

2/20/18 6

Sprint 2 Component Hierarchy ReactJS - Add local state to a class

class Application extends Component { constructor(props){ super(props); this.state = { trip: { // default TFFI type: "trip", title: "",

• ptions : {distance: "miles"},

places: [], distances: [], map: "<svg width=\"1920\" height=\"20\" xmlns=\"http://www.w3.org/2000/svg\ " xmlns:svg=\"http://www.w3.org/2000/svg\"><g></g></svg>" } }

2/20/18 7

ReactJS - Passing Properties

render() { return( <div id="application" className="container"> <div className="row"> <div className="col-12"> <Options options={this.state.trip.options} /> </div> <div className="col-12"> <Destinations trip={this.state.trip} /> </div> <div className="col-12"> <Trip trip={this.state.trip} /> </div> </div> </div> ) }

ReactJS - Using Properties

class Trip extends Component { constructor(props) { super(props); } // . . . render() { return( <div> <h3>{this.props.trip.title}</h3> <Map trip={this.props.trip} /> <Itinerary trip={this.props.trip} /> </div> ) } }

2/20/18 8

ReactJS - Preparing to lift state

class Application extends Component { constructor(props){ super(props); this.state = {trip: { . . . } }; // bind the update to this object this.updateTrip = this.updateTrip.bind(this); } // routine to allow other classes to lift state updateTrip(tffi) this.setState({trip: tffi}); } render() { return( // send the state and the update routine to other objects <Trip trip={this.state.trip} updateTrip={this.updateTrip} /> ) }

ReactJS - Lifting state

class Trip extends Component { constructor(props){ super(props); this.plan= this.plan.bind(this); } . . . aync plan() { try { let serverResponse = await this.fetchResponse(); let tffi = await serverResponse.json(); this.props.updateTrip(tffi); } catch(err) { consle.error(err); } } . . . <button className="btn" onClick={this.plan} type="button">Plan</button> . . .

2/20/18 9

Sprint 2 Web Environment Client send request

// converts the TFFI JavaScript object to a string, // sends a request to a REST API on the server // and returns the response string from the server fetchResponse(){ const serverURL = "http://" + location.host; const restAPI = '/plan'; const tffi = JSON.stringify(this.props.trip); const request = { method: "POST", body: tffi; }; return fetch(serverURL+restAPI, request); }

2/20/18 10

Server REST API handling

public class MicroServer{ MicroServer(int port, String, name) { . . . post("/plan", this::plan); } . . . private String plan(Request request, Response response) { response.type("application/json"); return (new Plan(request)).response(); } }

Server JSON conversions

public class Plan{ private Trip trip; public Plan(Request request) { JSONParser parser = new JsonParser(); JSONElement request = parser.parse(request.body()); Gson gson = new Gson(); trip = gson.fromJson(request, Trip.class); trip.plan(); } public String response() { Gson gson = new Gson; return gson.toJson(trip); } }

2/20/18 11

Client process response

// receives the TFFI response string from the server, // converts it to a TFFI JavaScript object, // and updates the state in the Application object. async plan(){ try { let serverResponse = await this.fetchResponse(); let tffi = await serverResponse.json(); this.props.updateTrip(tffi); } catch(err) { console.error(err); } }

Sprint 2 SVG
