University of Alabama in Huntsville

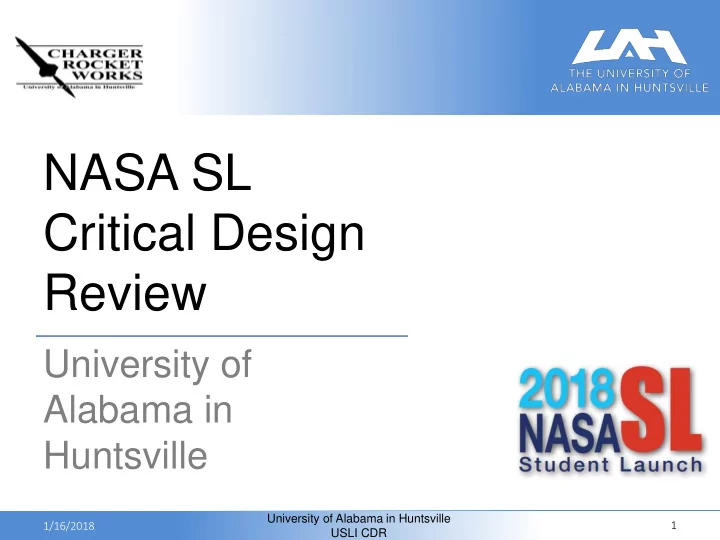

NASA SL Critical Design Review

University of Alabama in Huntsville USLI CDR 1 1/16/2018

LAUNCH VEHICLE

University of Alabama in Huntsville USLI CDR 2 1/16/2018

University of Alabama in Huntsville USLI CDR 3 1/16/2018

Vehicle Summary ry

• Launch Vehicle Dimensions

– Fairing Diameter: 6 in. – Body Tube Diameter: 4 in. – Mass at lift off: 43.8 lbm. – Length: 103 in.

• Concept

– L-Class Solid Commercial Motor – Rover Delivery – Electronic Dual Deployment – Fiberglass Airframe

Vehicle CONOPS

11/3/2017 University of Alabama in Huntsville USLI PDR 4

Powered Ascent: 0 – 3.3 seconds 0 – 1,190 ft. Deploy Drogue: 19 seconds 5,429 ft. Deploy Main: 62 seconds 600 ft. Landing: 121 seconds 0 ft. Deploy Rover: Team Command

University of Alabama in Huntsville USLI CDR 5 1/16/2018

Vehicle Summary ry

Rover Piston Main Parachute Drogue Parachute Coupler 12 in. Tracking/Rover Deployment Avionics Fins (x4) Recovery Avionics Forward Airframe 30 in. Aft Airframe 42 in. Payload Fairing 36 in. CG 56 in. CP 69 in.

• Upper Airframe houses the rover, piston

ejection system, and GPS tracker

Upper Air irframe Overview

University of Alabama in Huntsville USLI CDR 6 1/16/2018

• 6 in. elliptical shape; 6.17 in. OD;
• ABS Plastic; 3-D printed in-house
• 1.75 in. shoulder; shear pinned to fairing
• 0.25 in. Aluminum bulkhead

Nose Cone

University of Alabama in Huntsville USLI CDR 7 1/16/2018

• Houses payload and deployment device
• Fiberglass; 6.17 in. OD, 6 in. ID
• Shear pinned to nose cone; 10-32 bolt

connection to transition

Fairing

University of Alabama in Huntsville USLI CDR 8 1/14/2018

Transition

University of Alabama in Huntsville USLI CDR 9

• Three piece design, two 3D printed ABS

plastic, one 0.5 in. thick aluminum bulkhead

• Each piece has holes for threaded inserts
• Held together using ¼-20 and 10-32 bolts

Forward Insert Aft

1/16/2018

Transition

University of Alabama in Huntsville USLI CDR 10

• Three piece design allows for a 57% reduction in

weight

• Max stress on aluminum bulkhead: 0.712 ksi
• Yield stress: 42 ksi

1/16/2018

• Connects 4 in. body tube to the 6 in. fairing
• U-bolt for recovery harness attachment point
• Shear pins connect to 4 in. body tube
• Threaded rod with hex nuts for connection to

fairing

Transition Coupler

University of Alabama in Huntsville USLI CDR 11 1/16/2018

• CO2 Powered – 12 gram cartridge
• Spring driven spike used to release stored gas
• 60 lbf. test monofilament fishing line used as

arming tether for spring

• Hot wire cuts tether to release spring
• Two main components: piston head and CO2

housing

Piston Overview

University of Alabama in Huntsville USLI CDR 12 1/16/2018

• Ejects rover and nose cone
• Fiberglass coupler with aluminum bulkhead

Piston Head

University of Alabama in Huntsville USLI CDR 13 1/16/2018

• Houses CO2 cartridge and release mechanism
• 3D printed ABS Plastic
• Allows for easy and quick modification upon

testing results

CO CO2 Housing

University of Alabama in Huntsville USLI CDR 14 1/16/2018

• CO2 housing positioned in transition shoulder
• Mounted to side using 3-D printed brackets

and 4-40 bolts

• Keeps housing fixed during flight

Piston Configuration

University of Alabama in Huntsville USLI CDR 15 1/16/2018

• Aft Subsystem Components

Aft ft Subsystem Overview

University of Alabama in Huntsville USLI CDR 16

Recovery Bulkhead & U-Bolt Fin(s) Fin Can Thrust Plate Motor Retention Ring Motor/Motor Case

1/16/2018

• Trapezoidal Fin Set (4)

– Maintain stability

• G10 Fiberglass

– Great strength/weight ratio – 3/16” thickness

• Flutter Speed

– Calculated to be Mach 1.947 (2191.57 ft./sec)

Fins

University of Alabama in Huntsville USLI CDR 17 1/16/2018

• 4 bolts perpendicular to fin face
• 6 bolts normal to body tube to hold shape

– Also used to hold fin can in vehicle

• Entire assembly can

be removed

Fin In Interface

University of Alabama in Huntsville USLI CDR 18 1/16/2018

Fin in Can Assembly Overview

• Consists of: Fin Can,

Motor Retention Ring, Thrust Plate, and Rail Button Press fit nut

University of Alabama in Huntsville USLI CDR 19 1/16/2018

Exploded Vie iew of f the Fin in Can Assembly

University of Alabama in Huntsville USLI CDR 20 1/16/2018

Fin Can

• 3D Printed in house
• Material: ABS plastic
• Purpose: Fin retention

and centering of the motor

• Attached to the body

tube using 4-40 bolts which maintain the shape of the Body tube

University of Alabama in Huntsville USLI CDR 21 1/16/2018

Fin Can Dimensions

University of Alabama in Huntsville USLI CDR 22 1/16/2018

Thrust Plate

• Machined in house
• Material: 6061 Aluminum
• Purpose: Transfer motor

thrust to the airframe

• Attached to the fin can

using the motor retention bolts

• Part was added due to

concern of shearing the Fin Can while during motor burn

University of Alabama in Huntsville USLI CDR 23 1/16/2018

Thrust Pla late Dim imensions

University of Alabama in Huntsville USLI CDR 24 1/16/2018

Motor Retention Ring

• 3D printed in house
• Material: ABS plastic
• Purpose: Motor retention
• Attached to the fin can

using the motor retention bolts

• Aft retention was chosen

due to the difficulty of disassembling the forward retention system

University of Alabama in Huntsville USLI CDR 25 1/16/2018

Motor Retention Rin ing Dim imensions

University of Alabama in Huntsville USLI CDR 26 1/16/2018

• Aerotech L1420R-PS

– Best met altitude target

• Avg. Thrust: 326.18 lbf.
• Burn Time: 3.2 sec

Motor Selection

27

Motor Altitude Aerotech L2200 6107 ft. Aerotech L1420 5429 ft. Aerotech L1520 4329 ft.

1/16/2018 University of Alabama in Huntsville USLI CDR

• Dimensions

– Total length – 103 in. – Wet mass – 43.80 lbm. – CP location – 68.93 in. – CG location – 55.60 in.

OpenRocket Fli light Sim imulation

28 55.60 inches 68.93 inches 1/16/2018 University of Alabama in Huntsville USLI CDR

Stability Margin

29 Motor Burnout (3.28 cal.) Initial Stability (2.22 cal.) Apogee 1/16/2018 University of Alabama in Huntsville USLI CDR

OpenRocket Fli light Sim imulation

11/3/2017 University of Alabama in Huntsville USLI PDR 30

Attribute Value Apogee (ft.) 5429 Length (in.) 103

• Max. Mach Number

0.60 Rail Exit Velocity (ft./s) 60.6 Static Stability (cal.) 2.22 Motor Designation AT L1420R – P Thrust-to-Weight Ratio 8.7 CG 56 in. CP 69 in.

OpenRocket Fli light Sim imulation

31 Motor Burnout (3.27 sec.) Apogee (18.62 sec.) Main Deploy (62.39 sec.) 1/16/2018 University of Alabama in Huntsville USLI CDR

• 1-D method used to verify OpenRocket sim

– Goal: Determine uncertainty in projected altitude – Randomly varies conditions by a percentage

▪ drag coeff., vehicle mass, propellant mass, case mass ▪ Varied between ±6.25% and ±2.5%

– Use drag coefficient from subscale flight

▪ 𝐷𝑒 = 0.56

– 10,000 flights per simulation

Full ll Scale Monte Carl rlo Sim imulation

32 1/16/2018 University of Alabama in Huntsville USLI CDR

Full ll Scale Monte Carl rlo Sim imulation

33

Mean: 5626.31 feet Median: 5617.45 feet

• Std. Deviation: 192.29 feet

Max Altitude: 6463.91 feet

• Min. Altitude: 5010.83 feet

1/16/2018 University of Alabama in Huntsville USLI CDR

• Central Subsystem responsibilities:

– Coupler between airframes – Flight Avionics – Ejection System – Tracking and Ground Station – Recovery System

Central Subsystem Overview

34 1/16/2018 University of Alabama in Huntsville USLI CDR

Drift Analysis

Vwind

35

• Monte Carlo Drift Model

– Assumes:

• Apogee is directly above the launch rail
• The parachute does not open immediately
• The drift distance stops once a component

lands

• Horizontal acceleration is solely based on

relative velocity

• Drogue parachute is negligible once the

main is fully deployed

Vrelative Wind Speed (mph) 5 10 15 20 OpenRocket Drift Distance (ft) 17.6 465.8 946.7 1461.9 1995.7 CRW Model Drift Distance (ft) 573.19 1148.9 1741.9 2311.8

1/16/2018 University of Alabama in Huntsville USLI CDR

• Requirement: No individual section will have a kinetic

energy greater than 75 ft.-lbf. upon landing

• Terminal velocity under drogue: 112.7 ft./sec.
• Terminal velocity under main: 17.45 ft./sec.

Recovery ry System Calc lculations

36

Vehicle Section Mass (lbm.) KE (ft.-lbf.) Fairing 14.35 67.85 Coupler 11.15 52.72 Aft 9.89 46.76

1/16/2018 University of Alabama in Huntsville USLI CDR

• Drogue Parachute Deployment:

– Deployment at apogee – Fruity Chute CFC-18 (Cd = 1.5) – Shock Cords: 1 inch Nylon (50 ft) – Connected between forward motor retention bulkhead in lower airframe and avionics bay housing. – Descent speed under drogue: 112.7 ft/s

• Main Parachute Deployment:

– Deployment at 600 ft above ground level – Fruity Chute 96” Iris Ultra (Cd = 2.2) – Shock Cords: 1 inch Nylon (50 ft) – Connected between fairing bulkhead and avionics bay housing. – Descent speed under main: 17.45 ft/s

Recovery ry System

37 1/16/2018 University of Alabama in Huntsville USLI CDR

Recovery Avio ionics Subsystem

• 2 PerfectFlite StratoLoggerCF altimeters; each

with an independent 9V battery and pull pin + SPDT momentary activation switch

• 4 Safe Touch terminals, e-matches, and black

powder charges

• Full

ll re redundancy in in avionics and ig igniti tion

Avionics

38 1/16/2018 University of Alabama in Huntsville USLI CDR

Coupler

39 1/16/2018 University of Alabama in Huntsville USLI CDR

Charge Well U-Bolt Screw Terminal Strip Flight Computer Batteries RBF Switches 12 in.

Recovery ry Deployment Avio ionics

40

• Normally Closed SPDT Pull Pin

Microswitch – Prevents ignition during assembly – Helps preserve battery life

• Primary Drogue charge fired at apogee

– Secondary fired one second after

• Primary Main charge fired at 600 ft.

– Secondary fired at 550 ft.

• Primary charges contain 4 g. of black

powder

• Secondary charges are 2 g. larger

than primary

1/16/2018 University of Alabama in Huntsville USLI CDR

GPS Tracking & Rover Deployment Subsystem

41

System

• CRW will use a custom PCB that contains an Xbee Pro-PRO

900HP RF module, Teensy LC, and MTK3339 GPS Chip

• Xbee transmits GPS coordinates to a receiver connected to the

ground station laptop

• GPS sentences are parsed and written to file for flight data
• Rover Deployment Electronics operated via XBee

Str Structure In Integration

• 3D printed mount to secure tracker and deployment

electronics PCB within transition section of the rocket

• Three axis security and battery retention to ensure

components are kept intact

1/16/2018 University of Alabama in Huntsville USLI CDR

Subscale Design

42

Scaling Factors:

• Geometry of the design
• Average Thrust of Motor and Thrust Curve
• Kinetic Energy

1/16/2018 University of Alabama in Huntsville USLI CDR

• Successful recovery of all three subscale flights
• Altimeters ignited the black powder charges at

the correct altitudes

Subscale Flig light Results

43 1/16/2018 University of Alabama in Huntsville USLI CDR

• Flight 1- Apogee 2884 ft., some weathercocking
• Flight 2- Apogee 2323 ft., severe coning
• Flight 3- Apogee 3165 ft., vertical flight

Subscale Flig light Results

44 1/16/2018 University of Alabama in Huntsville USLI CDR

• Using data gathered from

the altimeters, the drag force and coefficient for the vehicle were found

• Using a weight of 6.33 lbs,

an acceleration of 60.128 ft/s, an A of 0.0533 ft2, a 𝜍

• f 0.0751 lb/ft3, and a

velocity of 396.55 ft/s: – Cd = 0.56

Subscale Drag Coefficient

45 1/16/2018 University of Alabama in Huntsville USLI CDR

▪ A = Area of the exposed section, ft2 ▪ 𝜍 = density of the air, lbm/ft3 ▪ Cd = Coefficient of Drag ▪ u = Velocity, ft/s ▪ m = mass, lbm ▪ A = acceleration of the vehicle, ft/s2 ▪ g = acceleration of gravity, ft/s2

• Diameter: Deployed 16.2 in., Integrated 5.7 in.
• Rover Length: 14.6 in., Chassis Length: 12 in.

Payload

46 1/16/2018 University of Alabama in Huntsville USLI CDR

• Rover fits inside the piston, which ejects it from the fairing
• CO2 cannister pushes rover through nose cone

Payload In Integration

47 1/16/2018 University of Alabama in Huntsville USLI CDR

• 1. The rover is ejected from the rocket
• 2. Wheels deploy and rover moves 10 ft.
• 3. Rover stops and deploys solar panels

Payload CONOPS

48 1/16/2018 University of Alabama in Huntsville USLI CDR

1 3 2

• Stores and protects tray of rover electronics
• 12 in. x 4 in. x 3 in., Aluminum 6061-T6
• Machined from single Aluminum block
• Connects to motors, electronics tray, and solar panel lid

Chassis

49 1/16/2018 University of Alabama in Huntsville USLI CDR

• Spokes pulled by springs to expand wheel
• Wheel hub and spokes CNC milled aluminum
• Integrated Diameter: 5.7 in.
• Deployed Diameter: 16.2 in.
• Spoke 6 in. x 0.5 in. x 0.25 in.

Wheel

50 1/16/2018 University of Alabama in Huntsville USLI CDR

• Used to keep chassis upright during deployment
• 3D printed ABS
• 11 in. x 0.25 in. x 0.5 in.
• Mounts to chassis using a hinge
• Torsion spring pushes out after deployment

Stabilizing Arm

51 1/16/2018 University of Alabama in Huntsville USLI CDR

• This table details the normal load cases for each structural

component

• The wheel hub is the weakest component but can withstand a

73% load increase

Strength Check Notes

52

Part Load Case Safety Margin Chassis 210 lbf (sidewall) +2.45 Chassis 210 lbf (base) +1.37 Wheel Hub 210 lbf (sidewall) +0.73 Wheel Hinge 105 lbf (each) +5.11 Spoke 210 lbf (lengthwise force) +11.98 Spoke 7 lbf (Drive force) +6.42

1/16/2018 University of Alabama in Huntsville USLI CDR

• Rover electronics contained inside chassis
• Tray designed to wire and organize electronics outside chassis
• Tray lowered into top of chassis once assembled

Electronics Tray

53 1/16/2018 University of Alabama in Huntsville USLI CDR

• Designed to avoid interference with motors
• Tray Assembly: 11.6 in. x 3.8 in. x 2 in.

Electronics Tray

54 1/16/2018 University of Alabama in Huntsville USLI CDR

• Lid is closed during rover travel for protection
• Gear slides top lid out to reveal solar panel in chassis
• 3D printed ABS lid, gear bought from McMaster-Carr
• 12 in. x 4 in. x 0.375 in. when closed
• 12 in. x 7.25 in. x 0.5 in. when open

Rover Lid id wit ith Mechanism

55 1/16/2018 University of Alabama in Huntsville USLI CDR

• The mass of all components totaled 6.6 lbm.
• A 6% margin was added to the total weight to

account for fasteners and adhesives

Rover Mass Budget

56

Component Mass (lbm.) Chassis 2.0 Wheel Assembly 2.4 Lid/Solar Deployment 0.7 Tail 0.2 Electronics 1.3 6% Margin 0.4 Total 7.0

1/16/2018 University of Alabama in Huntsville USLI CDR

Payload Power Budget

57 1/16/2018 University of Alabama in Huntsville USLI CDR Part t Name me Current nt (mA) Voltage e (V) Adj Current nt Duty Cycle e (%) (%) Time me (hr) Tota tal (mWh Wh) Arduino Mega 0.17 5 0.0787 100 2.5 0.984 Camera 350 5 162.037 10 2.5 202.546 GPS 53 3.3 16.194 20 2.5 26.721 IMU 0.35 3 0.0972 100 2.5 0.729 Pressure/Temp 0.36 3.3 0.11 17 2.5 0.154 Wheel Motors 650 12 722.222 20 2.5 4333.333 Lid Motors 360 5 166.667 5 2.5 104.167 Radio transmit 229 3.3 69.972 10 2.5 57.727 Radio idle 44 3.3 13.444 90 2.5 99.825 Datalogger 100 3 27.778 10 2.5 20.833 Power required 4847.01 Part t Name me Current nt (mA) Voltage e (V) Adj Current nt Duty Cycle e (%) (%) Time me (hr) Tota tal (mWh Wh) Li-Ion Battery 2600 10.8 N/A 100 1 28080 Power Supplied 28080 Power er Supplied ed 28080 mHr Power er requi uired ed 28080 mHr Factor tor of Safety ety 5.793 mHr

Ele lectronics Blo lock Dia iagram

58 1/16/2018 University of Alabama in Huntsville USLI CDR

Ele lectronics Fail ilure Path

59

• Emphasizes dependence of each lower level component
• n the component above it

1/16/2018 University of Alabama in Huntsville USLI CDR

SAFETY

60 1/16/2018 University of Alabama in Huntsville USLI CDR

• Training and communication are key to maintain

safety and avoid mishaps

• Priorities in CRW safety program (in order of

importance):

1. Safety to personnel 2. Safety to facilities & permanent systems 3. Safety to flight hardware & objective success

• Established SOP and regulations to maintain

safety practices

• Team is transitioning from designing to

manufacturing and testing

Safety Overview

61 1/16/2018 University of Alabama in Huntsville USLI CDR

• CRW team meets twice weekly
• Safety briefings are held to update the team

with pertinent information

• All conducted tests have documentation of

results and lessons learned

• Documents and test results are recorded to

the team’s server for ease of access

Communication

62 1/16/2018 University of Alabama in Huntsville USLI CDR

• Philosophy

– Standardization of processes – Address risks and hazards with proper method

• Creation

– Based on previous versions – In collaboration with team leads to adapt SOP steps to the features and mission needs of the Vehicle and Payload

• Approval

– Reviewed and approved by Red team members and faculty advisor

• Implementation:

– Use latest version – Safety Monitor to ensure strict adherence to steps and safety aspects

Standard Operating Procedures

63 1/16/2018 University of Alabama in Huntsville USLI CDR

Launch and Assembly Procedures

• Final rocket assembly procedures for the Full

Scale have been developed to fit the design concept

• Minimum assembly or modification of

airframe at field

• Field operations are limited to subsystem

integration and loading of energetics

• Simulated runs of launch procedures will take

place at least one week prior to any launch

64 1/16/2018 University of Alabama in Huntsville USLI CDR

• Factors affecting launch vehicle and payload

– Sudden high winds – Humidity – Extreme temperatures – Terrain

• Mitigations established:

– Minimum exposure to environment – Constant monitor of the weather

Environmental Factors

65 1/16/2018 University of Alabama in Huntsville USLI CDR

• Factors affecting the Environment and Local

communities

– Hot exhaust – Landing in trees, difficult terrains – Landing on infrastructure and private properties – Waste from manufacturing and launches

• Mitigations Established:

– Inspection and understanding of launch field – Waste collection and proper disposal – Constant monitor of wind conditions

Environmental Factors

66 1/16/2018 University of Alabama in Huntsville USLI CDR

Training Activity Date Red Cross First Aid CPR/AED/FA Completed Basic Emergency Procedures Completed Process Hazard Analysis Completed Safe Testing Procedures Completed Root-Cause Analysis Completed Outreach Safety Procedures Completed Sub-scale Launch Safety Procedures Completed Hazardous Material Handling/Disposal Completed Fire Extinguisher training Completed Workshop Safety Briefings 1/23/2018 System Ground Tests Briefings 1/30/2018 TBD TBD

Upcoming Trainings

67

Safety Briefings are held based to relevant safety topics.

1/16/2018 University of Alabama in Huntsville USLI CDR

• Test Plan changes since PDR

– Completed tests includes the subscale launch and subscale charge test. – New tests planned for Rover and Launch Vehicle fairing systems. – GPS test is on going to ensure constant compatibility.

Test Plan

68 1/16/2018 University of Alabama in Huntsville USLI CDR

Test Plan

69

Test Number Test Type Test Status T1 Subscale Ejection Charge Test ➢ Test has been conducted prior to the subscale flight on 11-19- 2017 ➢ Test shows that rocket has to go drogue-less and use only

• ne shear pin on both main and

drogue for successful recovery. T2 Subscale Flight ➢ Successful launch and recovery ➢ Vehicle did not reach initial altitude prediction T3 GPS tracker range and capability/Telemetry ➢ Tracker currently Exhibit poor performances. ➢ Team is currently learning how to trouble shoot issues with tracker. ➢ Telemetry test is planned for Feb 10-11 T4 Fin Can Load Test ➢ Test will be planned for the end

• f January to the early February

before the full scale launch.

1/16/2018 University of Alabama in Huntsville USLI CDR

T5 Rover Piston Deployment test ➢ Test will be scheduled in February when the piston is manufactured. T6 Fairing Vibration Test ➢ Test is planned for middle to end

• f February once test articles

arrive T7 Faring Drop Test ➢ Test is planned for middle to end

• f February once test articles

arrive T8 Fairing Transition Compression test ➢ Test will be conducted once FEA results shows doubts in the structures. T9 Rover Operational Test ➢ Test will be planned and carried

• ut when rover is constructed.

T10 Full Scale Charge Test ➢ Test will be conducted approximately one week before the first full scale launch date T11 Full Scale Flight ➢ Flight will be held on Feb 17 and 18

Test Plan

70 1/16/2018 University of Alabama in Huntsville USLI CDR

TESTING AND REQUIREMENTS VERIFICATION

71 1/16/2018 University of Alabama in Huntsville USLI CDR

• Document template for tracking requirements

verification

• Allows for all 4 methods to be tracked
• Place to record test procedures, personnel,

and results

• Template is in Critical Design Review Appendix

Verification Reports

72 1/16/2018 University of Alabama in Huntsville USLI CDR

• Expected/In-Progress Verification Reports

– Review of project plan and procedures – Review of all submitted documents, website, and teleconference setup – Review of Educational Outreach Reports – Demonstration of reusability through full-scale flight

General Requirements Verification

73 1/16/2018 University of Alabama in Huntsville USLI CDR

Test Number Test Type Description Test Status T1 GPS tracker range and capability

• The GPS tracker of the launch vehicle and the

payload will be tested inside of their respective fairing/compartment. This is to ensure that the GPS can reliable transmit and receive signals.

• The test will also be conducted in obstacles such as

trees and buildings to reveal the limits of the GPS.

• The full test of GPS system performance and

reliability will be the subscale launch

• Single component tests (radio, GPS receiver), can

be done by a team member without supervision.

• Subscale launch tests will adhere to SOP.

➢ Tracker currently Exhibit poor performances. ➢ Team is currently learning how to trouble shoot issues with tracker. T2 Electrical Charge

• n E-matches
• Spectrum analysis will be conducted to determine if

transmission waves will enter into the avionics coupler and affect the electronic components

• The tracker can be placed inside the coupler to

determine how much transmission power exits. The idea is if excessive power exits the coupler, an excessive amount can enter.

• Shielding can then be implemented based on the

results.

• This test will require more than one team member.

However, Red team members and the mentor will not be required for this type of test. ➢ Test is has not been planned.

Test Plan

74 1/16/2018 University of Alabama in Huntsville USLI CDR

T3 Altimeter Test

• The functionality of the altimeter will be evaluated with

the Charger Rocket Works’ altimeter testing container.

• Only applied for in-house made altimeters. Third party

altimeters like Statologger will not require testing. ➢ Test will be scheduled when altimeter has been created. T4 Ejection Charge Test

• This is to experimentally verify the correct

amount of black powder to be used in the ejection of the drogue and main parachutes.

• An SOP has to be developed for this test
• This test is dangerous and only Red Team

with the presence of the mentor can conduct the test. ➢ Test has been conducted prior to the subscale flight on 11- 19-2017 ➢ Test shows that rocket has to go drogue-less and use only one shear pin on both main and drogue for successful recovery. T5 Rover Piston Deployment test

• Experimentally verify the functionality of the

rover deployment mechanism.

• The test requires no pyrotechnics so anyone

in CRW can conduct the test. ➢ Test will be scheduled in February when the piston is manufactured. T6 Fairing Transition Compression test

• Experimentally verify the compression strength of the

fairing transition

• Only the section in doubt from the FEA results shall

printed for test.

• Currently planned to be a destructive test

➢ Test will be conducted

• nce

FEA results shows doubts in the structures. T7 Rover Terrain Test

• The Rover, once constructed, shall be put through its

paces in different terrain conditions (except water and mud).

• Test is to verify the spoke wheel design.

➢ Test will be planned and carried out when rover is constructed.

Test Plan

75 1/16/2018 University of Alabama in Huntsville USLI CDR

Full Scale Budget

Budget Summary Airframe $ 1763.11 Electronics $ 334.89 Recovery $ 899.09 Motors $ 1589.96 Rover Structure $ 438.97 Rover Electronics $ 682.34 Total Cost $ 5708.36

76 1/16/2018 University of Alabama in Huntsville USLI CDR

On the Pad Budget

Launch Vehicle Airframe $ 997.81 Electronics $ 167.45 Recovery $ 621.09 Motor $ 259.99 Rover $ 621.00 Total $ 2046.34

77 1/16/2018 University of Alabama in Huntsville USLI CDR

11/3/2017 University of Alabama in Huntsville USLI PDR 78
