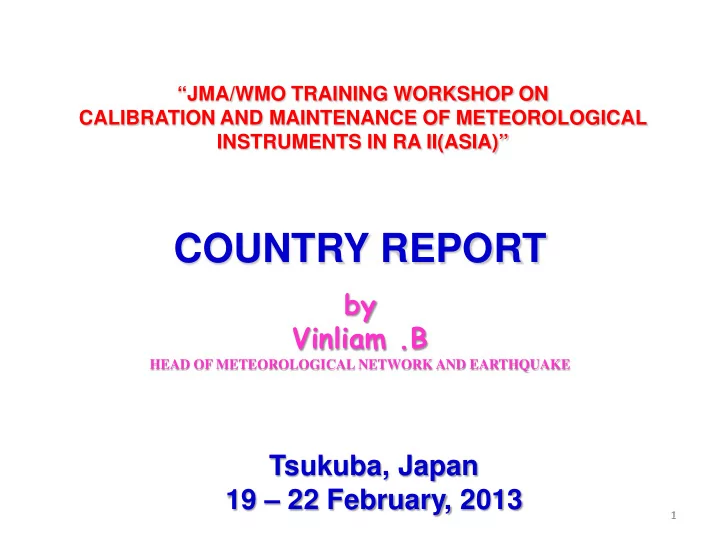

JMA/WMO TRAINING WORKSHOP ON CALIBRATION AND MAINTENANCE OF METEOROLOGICAL INSTRUMENTS IN RA II(ASIA) COUNTRY REPORT by Vinliam .B HEAD OF METEOROLOGICAL NETWORK AND EARTHQUAKE Tsukuba, Japan 19 22 February, 2013 1 1 Outline :

slide-1
SLIDE 1

1 1

COUNTRY REPORT

Tsukuba, Japan 19 – 22 February, 2013

“JMA/WMO TRAINING WORKSHOP ON CALIBRATION AND MAINTENANCE OF METEOROLOGICAL INSTRUMENTS IN RA II(ASIA)’’

by Vinliam .B

HEAD OF METEOROLOGICAL NETWORK AND EARTHQUAKE

slide-2
SLIDE 2

Outline :

  • 1. Organizational Structure
  • 2. Strategic Functions
  • 3. Current Status of Facilities
  • 4. Roadmap & Action Plan 2011 – 2015
  • 5. Conclusion
slide-3
SLIDE 3

1.Organizational Structure DMH Headquarters in Vientiane Lao PDR.

Doppler RADAR by Japanese Grant

Department of Meteorology and Hydrology(DMH)

slide-4
SLIDE 4

 DMH Lao PDR is one of government Departments under Ministry of Natural Resources and Environment (MONRE).  Organizational Structure of DMH composes of Divisions at Headquarters and Hydro-Met Services and stations at Provincial and District level.

slide-5
SLIDE 5

 Organizational Chart of DMH

Director General

Deputy Director General Deputy Director General Administrative- Planing Division Legal & IT Division Hydro-Met Services & Stations at Provincial and District Level Weather Forecast and Aeronautical Division Meteorological Network and Earthquake Division Hydrological Division Climatological and Agro-Met Division Deputy Director General

slide-6
SLIDE 6

6

MONRE’s Strategy 2011-2015

(10 program)

Water Resources and Disaster Management Cluster

(3. IWRM, 4. MHDRM)

National Water Resources Policy and Strategy

National Integrated Water Resources Management Program (National IWRMP)

slide-7
SLIDE 7

7

  • 2. Strategic Functions :
  • The Meteorology-Hydrology and Disaster Risk

Management is a part of the National IWRM Program 2011-2015

  • Department of Meteorology and Hydrology

(DMH) is committed to implementing this National IWRM Program consistently with the declaration of the 1st MRC Summit and implementation of the Prime Minister’s Decree No19/PM, dated July 2010 on disaster risk management and early warning system

slide-8
SLIDE 8

8

DMH’s Main Functions for 2011-2015

 Identify framework of Weather, Climate and Water related disaster risk management  Establishment the early warning systems  Providing meteorological and hydrological services  Providing earthquake related data and information  International and Regional commitments implementation

slide-9
SLIDE 9

9

3.Current Status of Facilities

slide-10
SLIDE 10

10

Regional Network for Data Sharing

slide-11
SLIDE 11

11

Vientiane Baghdad Doha Kuwait Bahrain Dhaka Yangon Kathmandu Kabul Karachi Colombo Male Hanoi Phnom Penh PyongYang Ashgabad Macao

64K

Dushanbe Almaty

NI NI NI

Seoul

NI NI

64K

9.6-26.4K (V.34) 14.4-28.8K (V.34)

64K 64K 50 50 50 50 200 64K 64K 100 75 1200 50 100 9.6K

Offenbach Offenbach Cairo Algiers Moscow Kuala Lumpur

Tashkent Novosibirsk Khabarovsk Bangkok

F/R CIR <16/16K> F/R CIR <16/16K>

Washington

NI NI 19.2-24K(V.34) 24-19.2K (V.34) 19.2-24K (V.34)

Bishkek

64K

Singapore

RTH in Region II NMC in Region II Centre in other region MTN circuit Regional circuit Interregional circuit Additional circuit Non-IP link IP link Internet E-mail transmission NI No implementation

Tehran

Sanaa

200

Hong Kong Moscow

NI F/R CIR <32/32K>

Tokyo

IMTN-MDCN CIR<32/768K>

Manila

Internet

Jeddah

Muscat

64K 64K 64K

Washington

ISDN 128K 28.8-9.6K (V.34)

via Moscow

14.4-28.8K (V.34)

64K 64K

Thimpu

New Delhi

NI

768K 64K 2.4K 75 64K via Moscow 64K 100

Ulaanbaatar

14.4K

Abu-Dhabi

1200 64K

9.6-26.4K (V.34) 9.6-26.4K (V.34)

Melbourne Melbourne

IMTN-MDCN CIR<16/32K>

32K

CMA PCVSAT

64K 75

CMA PCVSAT CMA PCVSAT

512K

MPLS IMTN MDCN MPLS IMTN MDCN MPLS IMTN MDCN MPLS IMTN MDCN MPLS IMTN MDCN MPLS MPLS

Internet Internet

Beijing

2M 2M 128K 1M 2M 1M 128K 512K 2M 2M 128K 512K 2M

MPLS

2M 128K

MPLS

2M Internet Internet Internet Internet Internet

F/R CIR <16/16K> F/R CIR <16/16K> F/R CIR <16/16K> F/R CIR <16/16K>

Internet Internet Internet Internet Internet

EUMETSAT

MPLS 2M

2M

Toulouse

Internet

Lao P D R Facilities for regional involvement, GTS network

slide-12
SLIDE 12

12

Communications and Dissemination

DMH’s Data Collection and Dissemination Center

http://dmhlao.etllao.com ADSL Internet

128/ 256kbps WMO’s

GTS

RTH

Bangkok

FTP (TCP/IP) 64kbps

MTSAT

Satellite Ground Receiving Station

FENGYUN Cast

Satellite Receiving Station

C Band Doppler RADAR

RBSN & RBCN + Secondary Climatic Sts. 50 Hydrological Stations 85 Earthquake Stations 2 Weather Forecast Center Flood Forecast Center Government; Public; End Users = Disaster Risk Management & EWS

HF Radio

VSAT

slide-13
SLIDE 13

13

Hydro-met Data, information dissemination network Department of Meteorology and Hydrology (DMH)

http://dmhlao.etllao.com

Prime Minister’s

Office

Local Governor’s Office

District & Village level NDMC + Line ministries NDMO PDMC DDMO Village DM Unit Radio TVs Newspapers Hydro-met. Offices at Provinces PAFEO

Local Disaster risk Areas

Hydropower dams WREOP

WREA

  • LNMC
  • MRC

Aviation

slide-14
SLIDE 14

14

Data Flow to Users and Archiving

Secondary Climatic Stations RBSN & RBCN Stations

Telecommunications Center at DMH’s HQ

Weather Forecast and Flood Forecast End Users & Public

Logbooks

Climate and Agro-Met. Division Hard Copies Storage Archived Digitized Devices Concerned End Users

  • n demands

RTH Bang Kok

slide-15
SLIDE 15

3.1 Surface observation station

  • Manned surface observation station
  • Main Synoptic Meteorological station = 17 .
  • Climatologically and/or Agro

meteorological Stations = 33.

  • Automated surface observation station = 1

Test using

slide-16
SLIDE 16

16

RBSN = 17

Climate St. = 33 Automated St.= 1

Typical Manned surfaces observation station with Conventional instruments

Typical automated surfaces observation station with Conventional instruments

Meteorological Network in Lao PDR

slide-17
SLIDE 17

17

3.2 INSTRUMENTS IN OPERATIONAL USE

Classical manual type rain gauge

Rain Gauge stations in Lao PDR = 93

Rainfall instrument

Manual measurement Automatically recorded

slide-18
SLIDE 18

18

Automatic recorded rainfall stations = 11 stations Hydrological Cycle Observation Stations (MRC - HYCOS) Automated data acquisition and telemetry communication

Mekong = 2 stations

  • 1. Vientiane (km4)
  • 2. Pakse

Tributaries = 9 st.

  • 3. Muang Ngoy (Nam Ou)
  • 4. Muang Nan (Nam Khan)
  • 5. Phou Kout (Nam Ngum)
  • 6. Napae (Nam Phao)
  • 7. Xebangfai (Nam Xebangfai)
  • 8. Mahaxai (Nam Xebangfai)
  • 9. Sobnam (Nam Xebanghieng)
  • 10. Kengdone (Nam Xebanghieng)
  • 11. Veunkhen (Nam Xekong)

1 11 10 9 8 7 6 5 4 3 2

slide-19
SLIDE 19

19 19

Real time data from HYCOS Stations

HYCOS Station on Mekong & tributaries

Telemetry Mobile phone Telemetry Satellite

National DataTerminal/Hydmet at DMH Internet MRC / FMMP FTP server MRC FTP server NMCs data terminal

GPRS Every 15mn

slide-20
SLIDE 20

20

Automatic data logger station

Acquisition of data from sensors & upload into GPRS network OTT Equipment. All systems (OTT CBS, OTT DuoSens, TB3, Battery and Solar panel is in good condition Rainfall instrument in

  • perational use

Manufactured by Hydrological services PTY. LMD. Tipping Bucket Rain gauge Model TB3

slide-21
SLIDE 21

21

Pressure Instrument in operational use

Manufactured by societe précis – Mecanique , 95870 Bezons, France OPERATIONAL USE Manufactured by LAMBBECHT GERMANY CALIBRATION Measurement pressure Recorded pressure

slide-22
SLIDE 22

22

Temperature Instrument in operational use

Manufactured by LAMBRECHT GERMANY OPERATIONAL USE Measurement Temperature Maximum Minimum Measurement Temperature Surface temperature Underground temperature

slide-23
SLIDE 23

23

Huminity Instrument in operational use

OPERATIONAL USE Manufactured by LAMBRECHT GERMANY CALIBRATION

slide-24
SLIDE 24

24

Wind Instrument in operational use

Manufactured by LAMBRECHT GERMANY OPERATIONAL USE properties Manufactured by LAMBRECHT GERMANY OPERATIONAL USE properties

  • wind direction
  • wind speed
slide-25
SLIDE 25

25

Sunshine duration Instrument in operational use

Manufactured by LAMBRECHT GERMANY CALIBRATION Measurement sunshine duration

slide-26
SLIDE 26

26

Recording Instrument

Manufactured by LAMBRECHT GERMANY CALIBRATION Test run battery is not sufficient

slide-27
SLIDE 27

27

3.3 Standards and equipments for calibration Standard and equipments for calibration,

before up to now ours service does not have them.

slide-28
SLIDE 28

28

  • 4. Problem in observation and

instrument

  • Capacity is low
  • Lack of Knowledge of maintenace
  • Instruments for hydro-met data collection &

dissemination network are old

slide-29
SLIDE 29

4 .1 Action Plan 2011-2015

A. Policy, strategy, Decree and law related to Meteorological-Hydrological and Earthquake B. Establishment Early Warning Systems for flood, drought and multi-natural hazards C. Projects contributing to regional commitments on data sharing and exchanges D. Strengthening the capacity of DMH for disaster risk management & Services of weather, Climate and hydrological products to aviation, agriculture and other sectors related to the water resources management and linked to Food Security.

29

slide-30
SLIDE 30
  • 5. Conclusion
  • In fulfilling mandate and functions, DMH

has been encountering various challenges.

  • DMH has been striving for its improvement
  • n both capability of human resources and

technical facilities (Instrument for operating use, standard and equipment for calibration)

  • External supports are the most key reliable

resources, DMH has to request for transfer

  • f knowledge, funds, expertise, technical

assistance, consultancy to be provided by development partners and government.
