Controlling the Orientation of Cylinder Forming Block Copolymers David Statti, Matthew Hammond (Mentor), Professor Edward J. Kramer Department of Materials, UCSB Funded by the National Science Foundation, Department of Materials Research

slide-1
SLIDE 1

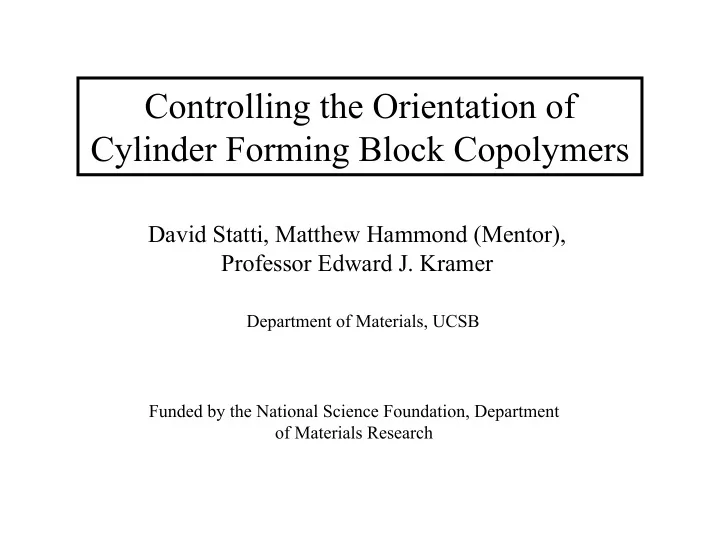

Controlling the Orientation of Cylinder Forming Block Copolymers

David Statti, Matthew Hammond (Mentor), Professor Edward J. Kramer

Department of Materials, UCSB Funded by the National Science Foundation, Department

  • f Materials Research
slide-2
SLIDE 2

Cylinder Forming Block Copolymers

PS Polystyrene (A) 185 monomers AAAAAAAA-BBBB

  • Cylinders (PVP),

surrounded by PS.

PVP Poly(2Vinylpyridine) (B) 63 monomers

slide-3
SLIDE 3

Silicon Substrate

Island and Hole Formation

slide-4
SLIDE 4

Cross Section of Patterned Silicon Substrate

Silicon Substrate

Layer of Copolymer SiO2 Mesa Mesa Mesa Well Well Well Mesa Mesa

slide-5
SLIDE 5

Atomic force Microscopy (AFM)

Detector Laser Cantilever

Silicon substrate

  • Cantilever taps on sample surface.
  • Laser deflects off cantilever and into detector,

measuring changes in amplitude.

  • Computer translates into topographical image.
slide-6
SLIDE 6

1 2 3 4 5 6 7 8 8 minutes 21 hours 195 minutes 67.5 hours

slide-7
SLIDE 7

Cylinder Forming Block Copolymer

1 2 3 4 5 6 7 8

MH10 Polymer (Hole Area)

  • 2

2 4 6 8 10 12 1000 2000 3000 4000 5000 Time (minutes) A re a (m ic ro n s ^ 2 ) 1 2 3 4 5 6 7 8

slide-8
SLIDE 8

µm

mesa well mesa Cylinders Aligning in Well
