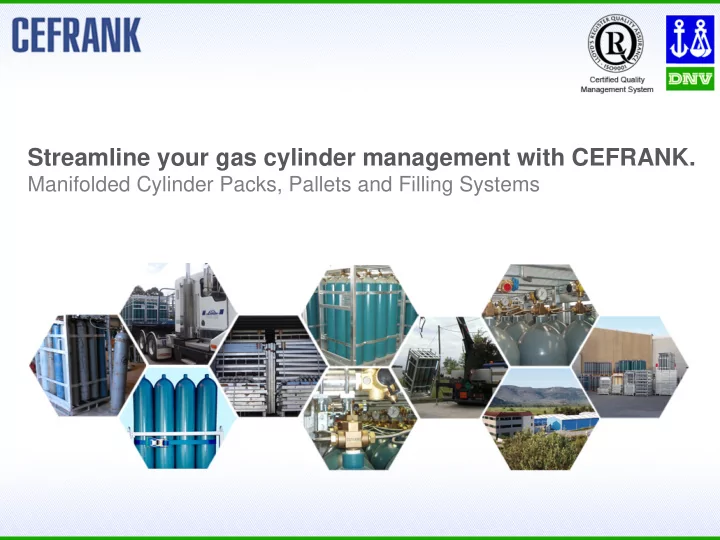

Streamline your gas cylinder management with CEFRANK.

Manifolded Cylinder Packs, Pallets and Filling Systems

Over 30 years experience…

 Began in 1979 as CEFRANK Contractors  In 1981 developed into CEFRANK Engineering Pty Ltd  In 1996 CEFRANK became independently designed and manufactured brand of gas cylinder equipment  Utilising emerging technologies, materials and manufacturing techniques CEFRANK remains one step ahead.

Our Clients

Our clients range from all over Asia, across Europe, Australia and the US.

Major gas companies: BOC Linde Messer Air Liquide Independent companies: Spectra Gases Scott Gases UTP SKS Griesmaier Coregas Agas SIAD

Stay ahead with CEFRANK…

 Modular, bolted design, massive reductions in handling, transport, storage and repair costs  Introduction of 300 bar designs and integration systems well before most major companies had made the switch.  Utilising Nicorros-Alloy 400 UNS No. 4400 for all gas traffic and pressures, reducing chance of ignition.  Streamline design to transport 17 fully assembled 12 cylinder MCPs in 20 foot container.

The 6, 12 and 16 cylinder MCPs have been certified by DNV since 2004 for the following:  European Agreement Concerning the International Carriage of Dangerous goods by Road (ADR)  Regulations Concerning the International Carriage of Dangerous Goods by Rail (RID)  EN 13769 Transportable Gas Cylinders, Cylinder Bundles

The Manifolded Cylinder Pack - MCP

Manifolded Cylinder Pack

Working Pressure: up to 30 Mpa

• No. of Cylinders: 4,6,8,9,12, 15, 16 and 20

Gas Traffic: Hydrogen, Helium, Oxygen, Carbon Dioxide, Nitrogen, Argon, Acetylene & Special Mixed Gases Frame: Suits 50L cylinder (from Ø219-232m), Hot Dipped galvanised (thickness 70m), All sided forklift access Manifold: Stainless steel (304), Nicorros Alloy (400) or Copper (only up to 20 Mpa), to suit customer valve, pressure tested to twice working pressure, cleaned to O2 standard Options: Fully assembled, assembly assistance, unassembled

The Manifolded Cylinder Pack - MCP

Typical ‘Daisy Chain’ Manifold 16 Cylinder MCP Typical ‘Floating’ Manifold 12 Cylinder MCP Typical ‘MT Type’ Manifold 16 Cylinder MCP

The Manifolds

CEFRANK Transport Concepts

17 Fully Assembled MCPs per 20 Foot Container

 10 Year Guarantee on parts and labour  Certified with DNV to ADR, RID and EN 3769  Certified with Lloyd’s Register for ISO 9001:2000 Quality Management System

Certification and Safety

 Web grate flooring allowing full drainage in rain and snow

 Loading ramp for easy loading (optional)  Safety Arm for securing a full pallet (optional)  Ratchet strapping for securing partially full pallet (optional)  Modular frame, hot dipped galvanised (to 70micron)  Double-sided forklift access  Designed to accommodate most cylinder sizes and shapes.

The Cylinder Pallet

Working Pressure: up to 30 Mpa Gas Traffic: Mixed gases, argon, nitrogen & industrial gases. Frame: One (1) modular filling frame Painted colour of choice Manifold: Two (2) standard manifolds 304 Stainless Steel construction Designed and tested at 60MPa Allows filling pressure of up to 30 Mpa Features: Two springs to ease manifold movement All connections to suit customer’s cylinder valves One (1) set of filling instructions One control panel to suit customer’s mixed gas supply Mixed Gas Systems include one Gravimetric Scale, to allow accurate dispersion of mixed gas A test cylinder will be supplied & attached to system. Installation: This unit is designed for installation at your premises, service lines will be connected to the Filling System All internal gas pipes will be of stainless steel. All stop valves, non‐return valves, blow down valves & gauges will be to your required national standard. All parts will be fully degreased & internally cleaned to oxygen standard.

Filling Systems
