Cylinder Solutions Oil & Gas Automotive Machine Power Renewable Metal Tools Generation Energy Fabrication We have one priorityYOU. Locations / People > Cylinders > Cylinder Solutions Oil & Gas Automotive Machine

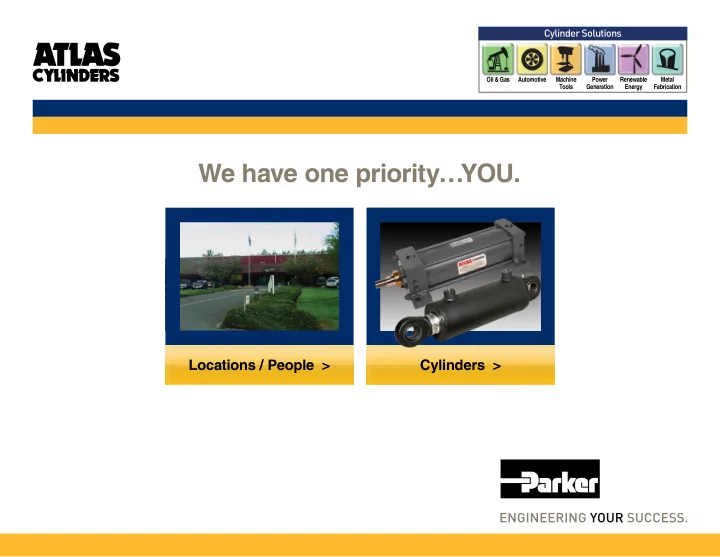

slide-1
SLIDE 1

We have one priority…YOU.

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People > Cylinders >

slide-2
SLIDE 2

We have one priority…YOU.

Locations / People

MISSISSIPPI NEBRASKA NORTH DAKOTA SOUTH DAKOTA DELAWARE CONNECTICUT LOUISIANA MARYLAND MASSACHUSETTS NEW HAMPSHIRE NEW JERSEY RHODE ISLAND VERMONT FLORIDA ALABAMA TENNESSEE INDIANA IOWA KANSAS OKLAHOMA ARKANSAS MISSOURI KENTUCKY VIRGINIA TEXAS NEW MEXICO ARIZONA CALIFORNIA NEVADA UTAH COLORADO WYOMING MONTANA IDAHO WASHINGTON OREGON ALASKA HAWAII

Corona/Eugene Corona Atlanta Enfield Goodland Plymouth Plymouth/Enfield/Goodland Des Plaines

MAINE NEW YORK PENNSYLVANIA WEST VIRGINIA OHIO MICHIGAN ILLINOIS WISCONSIN MINNESOTA NORTH CAROLINA SOUTH CAROLINA GEORGIA

Tel.: (951) 280-3800 Fax: (800) 869-9886 Tel.: (541) 689-9111 Fax: (800) 624-7996 Tel.: (734) 455-1700 Fax: (734) 455-1007 Tel.: (860) 749-2215 Fax: (800) 323-0105 Tel.: (847) 298-2400 Fax: (847) 294-2655 Tel.: (219) 297-3182 Fax: (800) 328-8120 Tel.: (770) 819-3400 Fax: (800) 437-3498

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Our customer service team is ready to help you. Click on the star that serves your location. Cylinders

Plymouth, Michigan Eugene, Oregon

Enfield, Connecticut

  

Des Plaines, Illinois

Goodland, Indiana Corona, California

 

Lithia Springs, Georgia

slide-3
SLIDE 3

We have one priority…YOU.

Cylinders

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Series H

  • Heavy duty hydraulic service with industrial tie

rod construction – ANSI (NFPA) T3.6.7R3-2009

  • Nominal pressures up to 3000 psi (207 bar)
  • Standard bore sizes 1.50" – 20.00"
  • Piston rod diameters 0.625" – 10.000"
  • Strokes available in any practical length
  • 16 standard mounting styles
  • Bolt-On Rod Gland with Tri-Lip Rod Seal
  • Stepped Floating Cushion for increased performance

and productivity

  • Rod ends: five standard choices, specials to order

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-4
SLIDE 4

We have one priority…YOU.

Cylinders

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Series L

  • Medium duty hydraulic service with industrial tie

rod construction – ANSI (NFPA) T3.6.7R3-2009

  • Nominal pressure up to 1000 psi (70 bar)
  • Standard bore sizes 1.50" – 8.00"
  • Piston rod diameters 0.625" – 2.500"
  • Strokes available in any practical length
  • 14 standard mounting styles
  • Bolt-On Rod Gland with “Tuffseal” Rod Seal
  • Optional Stepped Floating Cushion for increased

performance and productivity

  • Rod ends: five standard choices, specials to order

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-5
SLIDE 5

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Series CHE / CHD

  • Compact Hydraulic Cylinder
  • Repairable construction, aluminum alloy extruded or

steel body design

  • Bore sizes from 20mm – 100mm
  • Strokes in 1mm increments up to 150mm dependent
  • n bore size
  • Piston rod diameters 12mm – 56mm
  • Single and double rod designs
  • Up to 13 standard mounting styles
  • Nominal CHD pressures up to 207 bar (3000 psi)
  • Nominal CHE pressures to 150 bar (2175 psi)

dependent on bore size

  • Four standard rod end styles with special ends

available

  • Available with SAE, NPTF and BSPP ports
  • Manifold ports available on foot mounting
  • Magnetic piston and position sensing switches

available

We have one priority…YOU.

Cylinders

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-6
SLIDE 6

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

AHM Series

  • Metric hydraulic cylinders with bore sizes

25mm – 200mm

  • Nominal pressures up to 210 bar (3045 psi)
  • ISO 6020/2 mounting interchangeable
  • Up to three rod sizes per bore
  • Wide range of mounting accessories
  • Up to three male and three female rod end threads

per bore

  • Strokes available in any practical length
  • Piston rod diameters 12mm – 140mm
  • Single and double rod designs
  • 12 standard mounting styles
  • Removable Rod Gland with “Tuffseal” Rod Seal
  • Seal types to suit a wide variety of operating

environments

  • Stepped Floating Cushion for increased

performance and productivity

We have one priority…YOU.

Cylinders

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-7
SLIDE 7

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Series RDH

  • Heavy Duty Hydraulic Roundline Cylinder
  • Standard threaded head and welded cap construction
  • Nominal pressures up to 3000 psi (207 Bar)
  • Bore sizes from 1.50" – 8.00"
  • Piston rod diameters 0.625" – 5.500"
  • WearGardTM piston wear rings and rod bearing
  • Strokes available in any practical length
  • Rod ends: five standard choices, specials to order
  • 9 standard mounting styles
  • Mates with NFPA mounting accessories

We have one priority…YOU.

Cylinders

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-8
SLIDE 8

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Series MH

  • Meets All NFPA Mounting Dimensions
  • Heavy Duty Service – Mill Type Construction
  • Nominal Pressure – 2000 PSI
  • Standard Bore Sizes – 1.50" through 14.00"
  • Piston Rod Diameters – 0.625" through 10.000"
  • Chrome-plated, induction hardened piston rods
  • Heads retained with ASTM A-574 socket head

cap screws

  • Floating cushions with float-check action and positive

metal-to-metal seal

  • Stepped Cushion for faster cycle time, reduced

hydraulic shock and machine noise, lower machine maintenance

We have one priority…YOU.

Cylinders

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-9
SLIDE 9

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

A Series

  • Heavy Duty Service – ANSI/(NFPA) T3.6.7R3-2009

Specifications and Mounting Dimension Standards

  • Standard Construction – Square Head –

Tie Rod Design

  • Nominal Pressure – Up to 250 PSI Air Service
  • Standard Fluid – Filtered Air
  • Standard Temperature – -10°F to +165°F
  • Bore Sizes – 1.50" through 14.00"
  • Piston Rod Diameters – 0.625" through 4.000"
  • Mounting Styles – 14 standard styles at various

application ratings

  • Strokes – Available in any practical stroke length
  • Cushions – Optional at either end or both ends of
  • stroke. “Float Check” at cap end.
  • Rod Ends – Four Standard Choices – Specials

to Order

We have one priority…YOU.

Cylinders

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-10
SLIDE 10

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Cylinders

Series VE

  • Bore diameters – 2.00" to 24.00"
  • Maximum Working Pressure – 150 psi Pneumatic
  • Piston Rod Diameters – 0.625" to 3.500"
  • Stroke Lengths – Bore Diameter Dependent
  • Single and Double Piston Rod Construction Available
  • Spring Extend or Retract
  • Double Acting
  • Cylinder body material options include steel with

chrome plated I.D., aluminum and composite

  • Magnetic piston sensing option relays piston

position in all stroke lengths

  • Solid state or reed switches are available with quick

disconnect or flying lead terminations

We have one priority…YOU.

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-11
SLIDE 11

We have one priority…YOU.

Cylinders

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

Position Indicating Switches

  • Bore diameters – 1.50" to 6.00"
  • Strokes – up to 120" (Contact factory for

longer strokes)

  • Piston rod diameters – 0.625" to 4.000"
  • Temperature range – -10°F (-23°C) to +250°F

(+121°C) (depending on seal class)

  • Switch position may be restricted on mounting

style TM3

  • Working pressure – series and tube material

dependent Series H – 3000 psi with either carbon steel or stainless steel tube Series L – 1000 psi nominal (dependent on bore size) with either carbon steel or stainless steel tube; reduced pressure with aluminum tube Series A – 250 psi regardless of tube material

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-12
SLIDE 12

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

We have one priority…YOU.

Cylinders

Mounting Accessories

  • Traditional mounting attachments
  • Available in inch or metric sizes

– Rod clevis – Eye bracket (cast iron or forged steel) – Pivot pin – Knuckle – Clevis bracket (cast iron or fabricated steel)

  • Spherical bearing
  • Alignment aids

– Dual axis knuckle – Alignment coupler – Split fmange coupler – Weld plate

  • Stainless steel attachments

– Rod clevis – Eye bracket – Pivot pin – Knuckle – Clevis bracket

Cylinder Solutions

Automotive Machine Tools Metal Fabrication Power Generation Oil & Gas Renewable Energy

Locations / People

slide-13
SLIDE 13

SERIES H SERIES L SERIES CHE / CHD AHM SERIES SERIES RDH SERIES MH A SERIES SERIES VE POSITION INDICATING SWITCHES MOUNTING ACCESSORIES CUSTOM CYLINDERS

We have one priority…YOU.

Cylinders

Custom Cylinders

  • Custom Cylinders are uniquely designed to the customer’s

application and specifications

  • Bores to 48" (1219 mm)
  • Strokes to 876" (22250 mm)
  • Operating pressures to 15,000 psi (1034 bar)

Intensifier pressures to 60,000 psi (4138 bar)

  • Any construction style: tie rod, extruded, bolted, mill-type,

welded, telescopic, crimped, intensifier

  • Many construction materials: carbon steels, stainless

steels, exotic steels, aluminum, composite

  • Wide variety of rod coatings: hard chrome, nickel-chrome,

Nano Shield Technology, nitrotec/nitriding, ceramic and laser clad

  • Common options include submersible service, counter-

balance valves, epoxy paint, continuous feedback devices, low friction seals, external supports and many more

  • Available third party approvals and certifications include

ABS, DNV, BV, USCG, Lloyd’s Register, ASME, Nuclear (NUPIC) and MIL-I-45208
