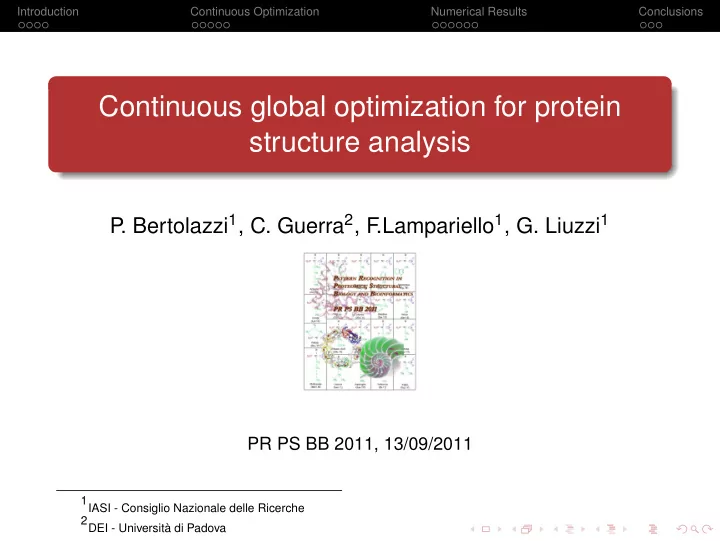

Continuous global optimization for protein structure analysis

P . Bertolazzi1, C. Guerra2, F .Lampariello1, G. Liuzzi1

PR PS BB 2011, 13/09/2011

1IASI - Consiglio Nazionale delle Ricerche 2DEI - Università di Padova

Introduction Continuous Optimization Numerical Results Conclusions

Outline

Continuous global optimization for protein structure analysis

1

Introduction

2

Continuous Optimization

3

Numerical Results

4

Conclusions
