SLIDE 1
Conductivity and Semi-Conductors
1
2
Conductivity and Semi-Conductors J = current density = I/A E = - - PowerPoint PPT Presentation
Conductivity and Semi-Conductors J = current density = I/A E = - - PowerPoint PPT Presentation

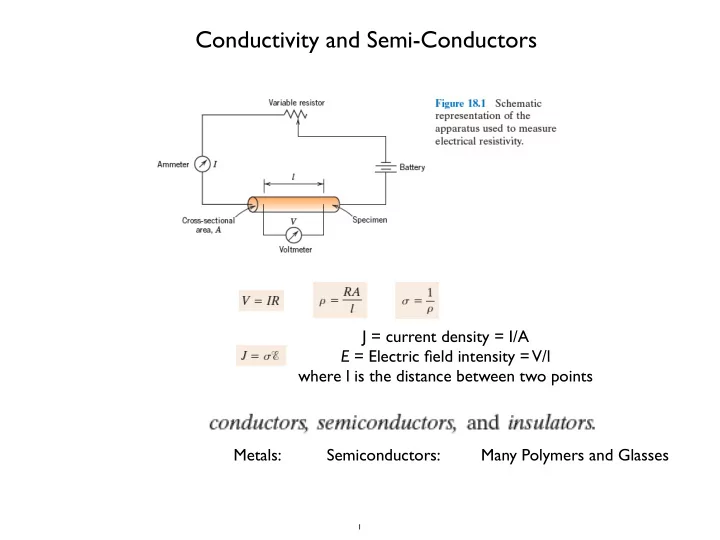

Conductivity and Semi-Conductors J = current density = I/A E = Electric field intensity = V/l where l is the distance between two points Metals: Semiconductors: Many Polymers and Glasses 1 Electrical Conduction (motion of
SLIDE 2
SLIDE 3
3
SLIDE 4
4
SLIDE 5
5
Free Electron Model
Drude-Sommerfeld Model Drude Model (kinetic theory of gasses) Include quantum mechanics (wave nature of electron) For AC
SLIDE 6
6
4 Quantum Numbers: Size, Shape, Spatial Orientation, Magnetically Determined Energy State Principle Quantum Number = n = Distance from Nucleus (Bohr number) K, L, M, N or 1, 2, 3, 4 Second quantum number = l = Shape s, p, d, f n restricts the number of these Third quantum number = ml = magnetically distinguishable energy states Fourth quantum number = ms = spin moment +1/2 or - 1/2 = up or down orientation
SLIDE 7
7
SLIDE 8
8
SLIDE 9
9
Primary quantum numbers distinguished by energy Different primary quantum number states can have overlapping energy levels.
SLIDE 10
10
SLIDE 11
11
Density of States Z(E)
SLIDE 12
12
SLIDE 13
13
SLIDE 14
14
Fermi Energy = EF
SLIDE 15
15
Fermi Energy = EF
Drude Model
Quantum Mechanics Model Fermi drift velocity vF
SLIDE 16
16
SLIDE 17
17
SLIDE 18
18
Semiconductors
Number of Electrons in the Conduction Band
SLIDE 19
19
Semiconductors
Holes left in the valence band are positive charge carriers Intrinsic Conduction in an Intrinsic Semiconductor
SLIDE 20
20
Silicon has 4 valence electrons, Group V elements have 5 For Phosphorous the binding energy for the donor electron is 0.045 eV (small/weakly bound) 0.0001 % P
n-Type Semiconductors
SLIDE 21
21
Extra conducting electrons contributed by P
n-Type Semiconductors
SLIDE 22
22
Group III impurities (B, Al, Ga, In) are deficient in one electron Acceptor Impurities Positive Charge Carriers (Holes) in the valence band
p-Type Semiconductors
At room temperature only the majority carriers need be considered (intrinsic effects are ignored)
SLIDE 23
23
IV III V Compound Semiconductors GaAs VI II III & V II & VI ZnO ZnS ZnSe CdTe For LED’s Solar Cells
SLIDE 24
24
Hall Effect
Are the Charge Carriers Positive or Negative? Metals Negative RH = Hall Coefficient
SLIDE 25
25
Rectifier or Diode
SLIDE 26
26
Rectifier or Diode
SLIDE 27
27
Rectifier or Diode
SLIDE 28
28
Rectifier or Diode
On contact a potential is setup between p and n materials due to flow of electrons from n to p and holes from p to n This barrier potential opposes flow of electrons. If electrons are added to the p side the potential barrier drops (Forward Bias). If electrons are added to n the potential barrier increases (Reverse Bias). So current can only flow from p to n under normal circumstances. A slight time lag occurs due to motion of minority carriers in a p-n junction and there is energy loss due to this motion.
SLIDE 29
29
Rectifier or Diode
SLIDE 30
30
Rectifier or Diode
SLIDE 31
31
Solar Cell
SLIDE 32
32
Solar Cell
Photo Detector Photo-Diode Solar Cell
SLIDE 33
33
Solar Cell
SLIDE 34
34
Solar Cell
SLIDE 35
35
Schottky Diode
Work Function of a metal in vacuum Energy qΦm is required to remove an electron at the Fermi level to the vacuum 4.3 V for Al, 4.8 V for Au if negative charges (n-Si) is brought near the metal surface the work function is reduced due to induced positive charges: Schottky Effect. Semi-conductor work function qΦs Charge transfer leads to adjustment of Fermi levels A positive depletion layer occurs in the semiconductor if the metal work function is larger than the semiconductor work function.
SLIDE 36
36
Schottky Diode
SLIDE 37
37
Schottky Diode
Metal work function is less than p-semiconductor for a p-type
SLIDE 38
38
Ohmic Contact
For an n-type semiconductor if Φm < Φs the electrons (majority carriers) from the metal flow to the semiconductor For a p-type semiconductor if Φm > Φs the electrons from the semiconductor flow to the metal So Ohmic contacts, needed for normal electrical connections, involve the
- pposite condition as a Schottky contact
SLIDE 39
39
Hetero-Junctions
Image of a nanoscale heterojunction between iron oxide (Fe3O4 — sphere) and cadmium sulfide (CdS — rod) taken with aTEM. This staggered gap (type II) offset junction was synthesized by Hunter McDaniel and Dr. Moonsub Shim at the University
- f Illinois in Urbana-Champaign in 2007.
SLIDE 40
40
Transistor
Three terminal device in which current through two terminals is controlled by a small current or voltage through the third terminal Transistors are used for Amplification and Switching Transistor is a control device
SLIDE 41
41
Bipolar Junction Transistor
Emitter (E) Base (B) Collector (C)
SLIDE 42
42
Bipolar Junction Transistor
Acts like a valve. You have a gate controlled by a small voltage That controls a large current. It can act as an amplifier or as a switch. Base more positive than the Emitter Collector more positive than Base Number of electrons in base control flow Emitter more positive than the Base Base more positive than Collector Number of holes in base control flow PNP NPN
SLIDE 43
43
Bipolar Junction Transistor
SLIDE 44
44
Metal Oxide Semiconductor Field Effect Transistor MOSFET
SLIDE 45
45
SLIDE 46
46
SLIDE 47
47
SLIDE 48
48
Indirect versus Direct Band Gap Semiconductors
Energy vs. crystal momentum for a semiconductor with an indirect band gap, showing that an electron cannot shift from the lowest-energy state in the conduction band (green) to the highest-energy state in the valence band (red) without a change in momentum. Here, almost all of the energy comes from a photon (vertical arrow), while almost all of the momentum comes from a phonon (horizontal arrow). Energy vs. crystal momentum for a semiconductor with a direct band gap, showing that an electron can shift from the lowest-energy state in the conduction band (green) to the highest-energy state in the valence band (red) without a change in crystal momentum. Depicted is a transition in which a photon excites an electron from the valence band to the conduction band.
Silicon or Germanium GaAs, InP , CdTe Photovoltaics LEDs
SLIDE 49
49
Light Emitting Diode (LED)
When a hole meets an electron the electron falls into a lower energy level releasing a photon with energy related to the band gap This can be IR, visible or near UV
SLIDE 50
50
Light Emitting Diode (LED)
SLIDE 51
51
Laser Diode
Stimulated Emission Optical Cavity formed by parallel sided crystal that forms a waveguide with reflective ends
8.62 e-5 eV/K
SLIDE 52
52
Laser Diode
SLIDE 53
53
Laser Diode
SLIDE 54
54
Laser Diode
SLIDE 55
55
SLIDE 56
56
SLIDE 57
57
SLIDE 58
58
SLIDE 59
59
