Compositional Solution Space Quantification for Probabilistic Software Analysis Mateus Borges, Marcelo dAmorim (UFPE) Antonio Filieri (Stuttgart) Corina Pasareanu (CMU SV and NASA Ames) Willem Visser (Stellenbosch) Uncertain Environments

slide-1
SLIDE 1

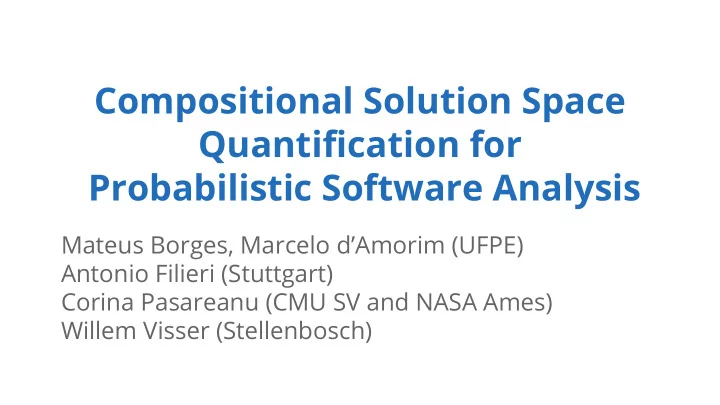

Compositional Solution Space Quantification for Probabilistic Software Analysis

Mateus Borges, Marcelo d’Amorim (UFPE) Antonio Filieri (Stuttgart) Corina Pasareanu (CMU SV and NASA Ames) Willem Visser (Stellenbosch)

slide-2
SLIDE 2

Uncertain Environments

slide-3
SLIDE 3

Uncertain Environments

slide-4
SLIDE 4

Quantitative Properties

Not restricted to boolean values Establish non-functional requirements ➔ Reliability, performance...

slide-5
SLIDE 5

Probabilistic Model Checking

PMC Engine

(e.g. PRISM...)

Probabilistic Model + Property Specification Violation Probability

slide-6
SLIDE 6

Probabilistic Model Checking

Problem: can be expensive!

➔ You need to learn a new modelling language ➔ You need to model the system

We would like to analyze code

slide-7
SLIDE 7

Probabilistic Software Analysis

Analysis Engine

Target Event + Program + Input Profile Event Probability + Accuracy

slide-8
SLIDE 8

Probabilistic Software Analysis

PCs S

  • u

r c e C

  • d

e Input Profile Target Event Symbolic Execution Probabilistic Analysis Probability + Accuracy

slide-9
SLIDE 9

Probabilistic Software Analysis

PCs S

  • u

r c e C

  • d

e Input Profile Target Event Symbolic Execution Probabilistic Analysis Probability + Accuracy

Collect path conditions leading to target event

slide-10
SLIDE 10

Obstacle: Quantification

slide-11
SLIDE 11

Integration Methods

Symbolic

➔ very expensive, restricted

Numerical

➔ expensive with multi-dimensional domains

Statistical

➔ approximate results

slide-12
SLIDE 12

Challenge

Quantifying the solution space of complex mathematical functions

Example constraint from TSAFE module (Tactical Separation Assisted Flight Environment)

sqrt(pow(((x1 + (e1 * (cos(x4) – cos((x4 + (((1.0 * (((c1 * x5) * (e2/c2)) / x6)) * x2) / e1)))))) – (((e2/c2)) * (1.0 – cos((c1 * x5))))), 2.0)) > 999.0 & (c1 * x5) > 0.0 & x3 > 0.0 & x6 > 0.0 & c1 = 0.017… & c2 = 68443.0 & e1 = ((pow(x2,2.0) / tan((c1*x3)))/c2) & e2 = pow(x6,2.0) / tan (c1*x3)

slide-13
SLIDE 13

Contribution

qCORAL Supports arbitrarily complex constraints Computes accurate estimates efficiently Path Conditions + Input Profile Event Probability + Accuracy

slide-14
SLIDE 14

High Level View: Divide

Path Conditions PC1 PC2 PC3 Input Profile

slide-15
SLIDE 15

High Level View: Divide

Path Conditions PC1 PC2 PC3

pt1 pt2 pt3 pt7 pt4 pt5 pt6

Input Profile

slide-16
SLIDE 16

High Level View: Divide

Path Conditions PC1 PC2 PC3

pt1 pt2 pt3 pt7 pt4 pt5 pt6 e_pt1 e_pt2 e_pt3 e_pt7 e_pt4 e_pt5 e_pt6 Monte Carlo

Input Profile

slide-17
SLIDE 17

High Level View: Conquer

e_pt1 e_pt2 e_pt3 e_pt7 e_pt4 e_pt5 e_pt6

slide-18
SLIDE 18

High Level View: Conquer

e_pt1 e_pt2 e_pt3 e_pt7 e_pt4 e_pt5 e_pt6

e_PC1 e_PC2 e_PC3

slide-19
SLIDE 19

High Level View: Conquer

e_pt1 e_pt2 e_pt3 e_pt7 e_pt4 e_pt5 e_pt6

e_PC1 e_PC2 e_PC3 Probability Estimate

slide-20
SLIDE 20

PCT

Working With Disjunctions

All elements in PCT are disjoint Estimates can be computed individually PC1 ... PC3 PC2

slide-21
SLIDE 21

Working With Conjunctions

... c1 c2 c2 c3 c4 c3

PC1 PC2 PC3

slide-22
SLIDE 22

Working With Conjunctions

... c1 c2 c2 c3 c4 c3

PC1 PC2 PC3

slide-23
SLIDE 23

Working With Conjunctions

... c1 c2 c2 c3 c4 c3

PC1 PC2 PC3

pt1: c1 pt2: c2 pt3: c3 pt4: c3 && c4

Contains dependent variables

slide-24
SLIDE 24

Working With Conjunctions

... c1 c2 c2 c3 c4 c3 Partitions can be analyzed faster Estimates can be efficiently re-used

PC1 PC2 PC3 Contains dependent variables

pt1: c1 pt2: c2 pt3: c3 pt4: c3 && c4

slide-25
SLIDE 25

Quantifying Constraints

c2

slide-26
SLIDE 26

Quantifying Constraints

c2 Domain Solution Space

slide-27
SLIDE 27

Hit-or-Miss Monte Carlo

c2 E[X] = #hits / #samples

slide-28
SLIDE 28

Stratified Sampling

Remove infeasible areas with RealPaver c2 Domain c2 Solution Space Boxes returned by RealPaver

slide-29
SLIDE 29

Stratified Sampling

c2 Increase precision with Stratified Sampling Remove infeasible areas with RealPaver

slide-30
SLIDE 30

SPF Toolchain (with qCORAL)

qCORAL

slide-31
SLIDE 31

Illustrative Example

// 0 <= x,y,z <= 9 f(x,y,z): if x < 5: if y < 3: abort() elif z + y > 10: abort()

Probability that f(x,y,z) calls abort()?

slide-32
SLIDE 32

Illustrative Example

// 0 <= x,y,z <= 9 f(x,y,z): if x < 5: if y < 3: abort() elif z + y > 10: abort()

Probability that f(x,y,z) calls abort()?

pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10

slide-33
SLIDE 33

Illustrative Example

qCORAL

//0 <= x,y,z <= 9 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10

slide-34
SLIDE 34

Illustrative Example

x < 5 y < 3 x < 5 y >= 3 z + y > 10 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10

slide-35
SLIDE 35

Illustrative Example

x < 5 y < 3 x < 5 y >= 3 z + y > 10 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10

slide-36
SLIDE 36

Illustrative Example

x < 5 y < 3 x < 5 y >= 3 z + y > 10 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10 x < 5 y < 3 y >= 3 z + y > 10 pt1 pt2 pt3

slide-37
SLIDE 37

Illustrative Example

x < 5 y < 3 x < 5 y >= 3 z + y > 10 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10 x < 5 y < 3 y >= 3 z + y > 10 pt1 pt2 pt3 pt1: E = 0.5001 Var = 0.00008 pt2: E = 0.3000 Var = 0.00003 pt3: E = 0.3806 Var = 0.00009

slide-38
SLIDE 38

Illustrative Example

pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10 pt1: E = 0.5001 Var = 0.00008 pt2: E = 0.3000 Var = 0.00003 pt3: E = 0.3806 Var = 0.00009

slide-39
SLIDE 39

Illustrative Example

pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10 pt1: E = 0.5001 Var = 0.00008 pt2: E = 0.3000 Var = 0.00003 pt3: E = 0.3806 Var = 0.00009 pc1: E = 0.1501 Var = 0.00013 pc2: E = 0.1927 Var = 0.00022

slide-40
SLIDE 40

Illustrative Example

pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10 pt1: E = 0.5001 Var = 0.00008 pt2: E = 0.3000 Var = 0.00003 pt3: E = 0.3806 Var = 0.00009 pc1: E = 0.1501 Var = 0.00013 pc2: E = 0.1927 Var = 0.00022

Estimate: 0.3403 Variance: <= 0.0005

slide-41
SLIDE 41

Estimate: 0.3403 Variance: <= 0.0005

Illustrative Example

qCORAL

//0 <= x,y,z <= 9 pc1: x < 5 && y < 3 pc2: x < 5 && y >= 3 && z + y > 10

slide-42
SLIDE 42

RQ1: qCORAL is competitive with other tools? RQ2: qCORAL features help with complex constraints?

Evaluation

slide-43
SLIDE 43

RQ1: qCORAL is competitive?

VolComp Benchmark (PLDI’13) Techniques/Tools:

➔ Mathematica (NIntegrate) ➔ VolComp ➔ qCORAL

slide-44
SLIDE 44

RQ1: qCORAL is competitive?

VolComp Benchmark (PLDI’13) Techniques/Tools:

➔ Mathematica (NIntegrate) ➔ VolComp ➔ qCORAL Baseline

slide-45
SLIDE 45

RQ1: qCORAL is competitive?

NIntegrate VolComp qCORAL solution bounds

  • avg. est.
  • avg. σ

ARTRIAL 0.9350 [0.9340, 0.9364] 0.9352 1.63e-04 CART 0.9826 [0.9470, 1.0000] 0.9818 1.11e-02 CORONARY 0.0001 [0.0001, 0.0001] 0.0001 4.29e-07 EGFR-EPI 0.1264 [0.1264, 0.1264] 0.1262 3.29e-04 PACK 0.2462 [0.2522, 0.2800] 0.2663 2.72e-05 VOL 1.0005 [0.0000, 1.0000] 1.0001 5.18e-03

slide-46
SLIDE 46

RQ1: qCORAL is competitive?

NIntegrate VolComp qCORAL solution bounds

  • avg. est.
  • avg. σ

ARTRIAL 0.9350 [0.9340, 0.9364] 0.9352 1.63e-04 CART 0.9826 [0.9470, 1.0000] 0.9818 1.11e-02 CORONARY 0.0001 [0.0001, 0.0001] 0.0001 4.29e-07 EGFR-EPI 0.1264 [0.1264, 0.1264] 0.1262 3.29e-04 PACK 0.2462 [0.2522, 0.2800] 0.2663 2.72e-05 VOL 1.0005 [0.0000, 1.0000] 1.0001 5.18e-03

slide-47
SLIDE 47

RQ1: qCORAL is competitive?

NIntegrate VolComp qCORAL solution bounds

  • avg. est.
  • avg. σ

ARTRIAL 0.9350 [0.9340, 0.9364] 0.9352 1.63e-04 CART 0.9826 [0.9470, 1.0000] 0.9818 1.11e-02 CORONARY 0.0001 [0.0001, 0.0001] 0.0001 4.29e-07 EGFR-EPI 0.1264 [0.1264, 0.1264] 0.1262 3.29e-04 PACK 0.2462 [0.2522, 0.2800] 0.2663 2.72e-05 VOL 1.0005 [0.0000, 1.0000] 1.0001 5.18e-03

slide-48
SLIDE 48

RQ1: qCORAL is competitive?

NIntegrate VolComp qCORAL time time

  • avg. time

ARTRIAL 4,179.36 771.10 4.14 CART 7.66 33.74 4.39 CORONARY 0.86 1.99 0.57 EGFR EPI 1.98 0.60 1.61 PACK 5,066.20 104.80 68.79 VOL 1,245.30 3.76 821.11

slide-49
SLIDE 49

RQ1: Observations

qCORAL estimates: ➔ are very close to the results reported by NIntegrate ➔ almost always fall within the VolComp interval

slide-50
SLIDE 50

RQ2: Evaluation

➔ Subjects from the aerospace domain ➔ Picked 70% of the paths to avoid bias ➔ Reported results for 30 executions (avg. estimate and standard error)

slide-51
SLIDE 51

RQ2: Evaluated configurations

qCORAL {} qCORAL {STRAT} qCORAL {STRAT, PCACHE}

+ ICP Stratified Sampling + Partitioning Caching

slide-52
SLIDE 52

RQ2: Subjects Considered

Subject LOC #pcs analyzed (70%) complex functions Apollo ~2,600 5,779 sqrt TSAFE - Conflict ~50 23

cos,pow, sin, sqrt,tan

TSAFE - Turnlogic ~50 225 atan2

slide-53
SLIDE 53

RQ2: Conclusions

Impact of features depends on the subject {STRAT} can reduce variance (x50 in Conflict) ➔ There is a time overhead, however {PCACHE} can reduce time (x2 in Apollo)

➔ Savings increase with number of samples

slide-54
SLIDE 54

(Most Recent) Related Work

Sankaranarayanan et al. (PLDI’13) ➔ Supports only linear constraints Adje et al. (VSTTE’13) ➔ Supports only the four basic arithmetic

  • perations
slide-55
SLIDE 55

Conclusions

qCORAL

New approach to solution space quantification Acceleration procedure improves accuracy More details at pan.cin.ufpe.br/qcoral

slide-56
SLIDE 56

Extra Slides

slide-57
SLIDE 57

Probability of a Target Event P(event) = Sum of the probabilities of the

paths that lead to the event Ratio of the size of solution space by the size of domain

P(path) =

And if the number

  • f paths is infinite?

Bound the symbolic execution and measure the confidence!

(see Filieri et al, ICSE 2013)

slide-58
SLIDE 58

And the Variance?

Use Chebyshev’s inequality: “...at least 1 - 1/k2 of the distribution's values are within k standard deviations of the mean”

slide-59
SLIDE 59

Target application

Sometimes knowing only if an event happens is not very useful!

➔ randomized behavior ➔ probabilistic profile of the environment
