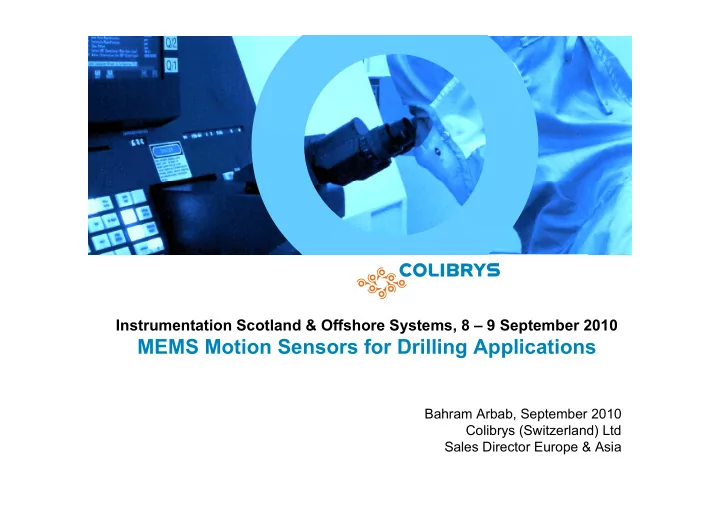

Company Presentation

Smarter sensing solutions

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010

MEMS Motion Sensors for Drilling Applications

Bahram Arbab, September 2010 Colibrys (Switzerland) Ltd Sales Director Europe & Asia

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 2

Contents

Purposes:

MEMS Capacitive Accelerometer used in Drilling Application

Colibrys presentation Our target markets Sensors used in Energy market What technology and product Target application in Energy & Industrial market

– Directional Drilling – Borehole Survey – Seismic Imaging

Why Colibrys product is successful for Drilling applications Our Success Stories in Energy and Industrial markets Conclusion

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 3

Who Are We?

Colibrys is a world-leading supplier of standard and customized

MEMS based motion sensors for Harsh environment and Safety Critical applications

Colibrys has the full breadth of MEMS capability, undertaking:

– sensor and systems design – sensor manufacture – packaging and test

• f MEMS components and subsystems

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 4

Colibrys’ target markets

Annual volume 1 K 10 K 100 K 1 M 100 M Low 10 M High Performance / Reliability Energy business and more precisely for Directional Drilling; Borehole

Survey and Measurement & Logging While Drilling are one of the strategic markets for Colibrys

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 5

What are the MEMS Sensors used in Energy market MEMS Accelerometers Gyroscopes MEMS pressure sensors Micro-fuel cells MEMS micro-valves Chemical injectors Mass flow controllers Chemical detection sensors

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 6

How are they manufactured?

Bulk silicon micromachining 3-wafer assembly by Fusion Bonding Wafer level test and dicing

Assembly in package with interface circuit

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 7

Colibrys accelerometer used for Energy & Industrial markets

Four modes of operation

– Tilt measurement

High resolution Robust / Harsh Environment

e.g. Directional Drilling &

Borehole Survey – Seismic measurement

Extreme low noise

e.g. Reservoir monitoring

– Inertial measurement

High long term stability

e.g. Navigation system (IMU)

– Vibration measurement

Large bandwidth

e.g. Data logging

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 8

Colibrys accelerometer for Energy & Industrial Market Applications

Directional drilling Borehole survey Measurement & Logging While Drilling (MWD & LWD) Sub-surface imaging & reservoir monitoring Geotechnical & mineral exploration Platform stabilization Structural monitoring for rigs or platforms

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 9

Directional Drilling

Directional Drilling advantages:

– Sidetracks – Multiple sidetracks – Spacing considerations – Multiple wells from single structure or pad – Inaccessible surface location – Directional drilling and sensors allow for less environmental impact.

What is Directional Drilling:

Any drill hole that the contractor attempts to change or alter the azimuth or inclination

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 10

To hit the geological target To avoid other wells To allow efficient drilling of a relief well

Advantages of accurate Downhole Survey in exploration, mining, tunnelling, site investigation are:

Increase your profits Reduce exploration time

Why do we need Downhole Surveying?

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 11

Typical sources of hole deviation in surface or underground drilling:

1 Incorrect marking and collaring 2 Faulty inclination and directional settings 3 Use of wrong drilling tools or parameters 4 Natural deviation due to geological conditions 5 Incorrect hole depth measurements 6 Under gauge, omitted, or lost holes

Diagram by courtesy of Sandvik Tamrock

Accurate drilling is your key to success

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 12

Inclination: Magnetic North Earth’s Gravitational Field Vertical

Directional Drilling: Inclination and Azimuth Measurement

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 13

Position monitor principle of operation

Probe Axis Accelerometer/gravity Magnetometer/ earth’s field Toolface alignment Inclination – Gx, Gy, Gz Azimuth – Bx, By, Bz Toolface – Gx, Gy or Bx, By

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 14

Accelerometer

What are the sensors required for Downhole Survey tooling Accelerometers for inclination, and accelerometers combined with magnetometers or gyros for azimuth

Components Library

Magnetometer Gyro Sensors

+ +

Measure Inclination Measure Azimuth

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 15

Directional Measurements Surveying & Steering

Measure tool’s orientation with respect to:

i Earth’s gravitational field

(triaxial accelerometers)

i Earth’s magnetic field

(triaxial magnetometers) Compute:

i Inclination i Azimuth i Toolface (highside, magnetic)

Inclination – Gx, Gy, Gz Azimuth – Bx, By, Bz Toolface – Gx, Gy or Bx, By

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 16

Why MEMS technology is suitable for Drilling application

Benefits of the MEMS technology are:

Reliable in Harsh Environment

– High shock up to 20’000 g shock survivability – High vibration resistance – High temperature resistance

Standard product -55°C to 125°C Customer development up to 150-175°C Under development up to 200°C

High resolution Small size Low power consumption Lower cost

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 17

Colibrys solutions for Energy market

MEMS capacitive accelerometers are ideal candidates:

High reliability Harsh environments

– shock survivability up to 20’000g – temperature up to 150°C

High stability

– Long term – Over temperature

Small footprint, small volume, small weight

15.55mm 14.22mm 8.9mm MS7000 MS8000 New MS9000 SiFlex

(Historical product) (Latest LCC product) (Low noise product)

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 18

Typical technical measurement -1 Raw bias over temperature range up to 95°C

9001 & 9002RS9003.D

2.45 2.46 2.47 2.48 2.49 2.5 2.51 2.52 2.53 2.54 2.55

• 60
• 40
• 20

20 40 60 80 100 temperature [°C] bias S0 [V]

9002 001 RS9002.D 9002 008 RS9002.D 9001 019 RS9002.D 9001 004 RS9002.D 9002 014 RS9002.D 9002 015 RS9002.D 9002 018 RS9002.D 9002 004 RS9002.D 9001 002 RS9002.D

Maximum bias temperature coefficient is < 75µg/°C on 2g

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 19

Typical technical measurement - 2 Bias aging data over temperature: an example

9001RS9003 #002 2.45 2.46 2.47 2.48 2.49 2.5 2.51 2.52 2.53 2.54 2.55

• 60
• 40
• 20

20 40 60 80 100

Temperature [°c] Bias [V]

initial repeat 1 repeat 2 after 10 days at 85°C after 6x1000g's 0.24 ms

9001RS9003 #002

• 0.002
• 0.0015
• 0.001
• 0.0005

0.0005 0.001 0.0015 0.002

• 60
• 40
• 20

20 40 60 80 100

Temperature [°c] Bias residues after 4th order correction [V]

initial repeat 1 repeat 2 after 10 days at 85°C after 6x1000g's 0.24ms

One year composite repeatability:

Residual error < 500µg

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 20

Typical technical measurement - 3 Scale factor ageing data over temperature: an example

9001RS9003 #002 0.45 0.47 0.49 0.51 0.53 0.55

• 60
• 40
• 20

20 40 60 80 100

Temperature [°c] Scale factor [V/g]

initial repeat 1 repeat 2 after 10 days at 85°C after 6x1000g's 0.24 ms

9001RS9003 #002

• 0.002
• 0.0015
• 0.001
• 0.0005

0.0005 0.001 0.0015 0.002

• 60
• 40
• 20

20 40 60 80 100

Temperature [°c] Scale factor residues after 2nd

• rder correction [V/g]

initial repeat 1 repeat 2 after 10 days at 85°C after 6x1000g's 0.24ms

One year composite repeatability:

Residual error < 300ppm (1σ)

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 21

Our Success Stories in Energy and Industrial Market

Schlumberger Baker Hughes ION Devico Sperry Sun Maxwell Dataflow Management Systems - DMS Corpro …

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 22

Conclusion – 1 Temperature range up to 150°C

Products are ideal for Harsh Environment and Drilling applications:

– Tilt measurements for Directional Drilling and Borehole Survey – Higher g ranges for vibration and shock + possible tilt redundancy and signal cross check

Excellent temperature performances between -55°C and 125°C

– Performances inherited form inertial grade products and harsh environment applications are beneficial to many drilling applications

Standard products are extremely robust and can be used up to 150°C

– The temperature behavior is impacted but remains very repeatable – Some extra qualifications are required to validate independently each product

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 23

Conclusion – 2 Temperature range up to 200°C

The MEMS technology is suitable for extreme temperature (typ 200°C)

– High temperature operation does not induce drift: Bias measured at 20°C remains stable within 1 mg. – At high temperature the electronics (temperature sensor and ASIC) does not work properly

Preliminary measurements indicate:

– MEMS sensor is not degraded by high temperature cycles (up to 200°C) – Current electronics is not designed for and does not operate properly at high temperature New dedicated electronic needs to be redesigned (SOI techno)

Instrumentation Scotland & Offshore Systems, 8 – 9 September 2010 MEMS Motion Sensors for Drilling Applications 24

Questions & Thank you for your attention
