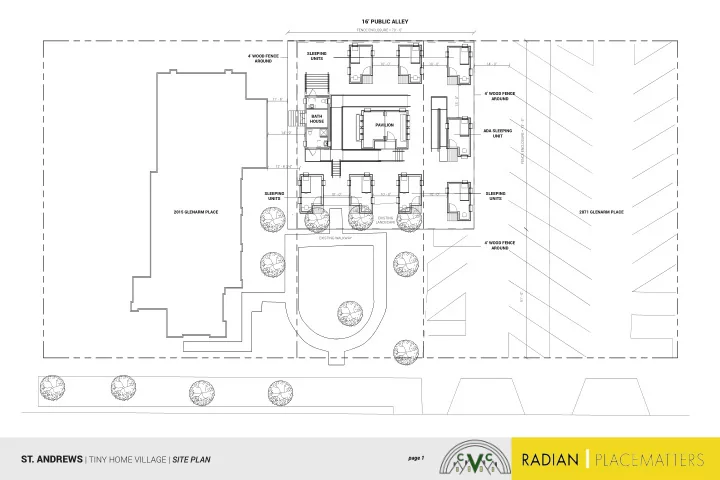

• ST. ANDREWS | TINY HOME VILLAGE | SITE PLAN

page 1

2015 GLENARM PLACE PAVILION BATH HOUSE SLEEPING UNITS SLEEPING UNITS 4’ WOOD FENCE AROUND 4’ WOOD FENCE AROUND 4’ WOOD FENCE AROUND SLEEPING UNITS ADA SLEEPING UNIT 2071 GLENARM PLACE

16’ PUBLIC ALLEY

FENCE ENCLOSURE = 70’ - 0” FENCE ENCLOSURE = 73’ - 5” 51’ - 0” 10’ - 0” 10’ - 0” 10’ - 0” 10’ - 0” 14’ - 9” 11’ - 6” 12’ - 8 3/4” 10’ - 0” 14’ - 0” 13’ - 0” EXISTING WALKWAY EXISTING LANDSCAPE

MATERIAL PALETTE SITE LAYOUT LIVING UNITS

• ST. ANDREWS | TINY HOME VILLAGE

page 2

WOOD LAP SIDING SCALLOPED SIDING (FRONT) ASHPHALT SHINGLES - BLACK BAY WINDOW

BATHING UNIT PAVILION LIVING UNITS 4’ FENCE

4” exposed wood lap siding foundation hardware

• RE. struct

4" / 12" 4" / 12" 1' - 4" TYP.

• ST. ANDREWS | TINY HOME VILLAGE | PAVILION

page 3

FRONT ELEVATION PLAN SECTION A-A REAR ELEVATION SIDE ELEVATION 1 SIDE ELEVATION 2 DETAIL B | TYPICAL FOUNDATION DETAIL DETAIL C & D | TYPICAL WINDOW HEAD AND SILL DETAIL

2X8 RAFTERS W/R38 BATT INSULATION CONTINOUS AIR SPACE INSULATION BAFFLE 2" BUTTON VENT 2X4 RAFTER TAILS 1X FRIEZE BOARD ASPHALT SHINGLES 3/4" SPACER BLOCK WITH VENT STRIP AS INSECT SCREEN 1/2" PLYWOOD SHEATHING TIES TAIL ASSEMBLY TO ROOF FRAMING 1X3.25 V GROOVE SOFFIT TO MATCH SIDING FINISH

• MIN. #30 FELT

UNDERLAYMENT METAL DRIP EDGE 1X4 TRIM TO MATCH SIDING FINISH WEATHER RESISTIVE BARRIER 2X BLOCKING WEATHER RESISTIVE BARRIER 4" EXPOSURE WOOD LAP SIDING

• MIN. R-19 BATT INSULATION

FLOOR JOISTS HANGER PREFINISHED METAL FLASHING SKIRT BOARD FOUNDATION HARDWARE FLOOR JOISTS RE: STRUCT

WEATHER RESISTIVE BARRIER SELF ADHERED MEMBRANE FLASHING 4" EXPOSURE WOOD LAP SIDING 1X10 WOOD FRAME L-BEAD AND SEALANT WINDOW HEAD FLASHING W/ DRIP EDGE SET IN SEALANT, END DAMS, SLOPE 1/4" MIN 3x3 CONTINOUS L BRACKET L-BEAD AND SEALANT BACKER ROD AND SEALANT 1X10 WOOD FRAME 3"X3" CONTINOUS L BRAKCET SELF ADHERED FLEXIBLE FLASHING SHIM SELF ADHERED FLEXIBLE FLASHING TURN UP JAMB 6" MIN

DETAIL A | ROOF EAVE DETAIL

EAVE DEPTH = 1’-3 1/4” 0’-8 7/16” 2’ - 4” 0’-8 5/16”

2' - 3" 2' - 4 1/8" 4' - 7 1/8" 8' - 0" SEPERATE UNIT SEPERATE UNIT 4 " / 1 2 " 4 " / 1 2 " 11'-7" TO TOP OF ROOF 18' - 5" 9' - 2 1/2" 9' - 2 1/2" 8' - 0" 1' - 1" 8' - 0" 3' - 5 7/8" 4' - 9" 2' - 3"

DETAIL A DETAIL C DETAIL D DETAIL B

2' - 2" 6' - 4 1/2" 0' - 6 1/2" 6' - 10" 1' - 8 1/2" EXTERIOR WALLS = 18'-5" 2' - 11" 2' - 6" 2' - 6" 2' - 6" 4' - 1 1/2" 8' - 6 1/2" 0' - 6 1/2" 3' - 9" 2' - 4" 2' - 5 1/2" 2' - 2" 2' - 1" EXTERIOR WALLS = 15'-4" 8' - 1" 1' - 7 1/2" 8' - 6" 8' - 6" 9' - 10 1/2" 3' - 1 1/2" 2' - 2" 3' - 3"

A A

4” exposed wood lap siding foundation hardware asphalt shingles - black 4” exposed wood lap siding foundation hardware asphalt shingles - black

• perable double hung

windows - Fibrex (Andersen) 4” exposed wood lap siding foundation hardware asphalt shingles - black

• perable double hung

windows - Fibrex (Andersen) scalloped siding

• n gable front

• ST. ANDREWS | TINY HOME VILLAGE | BATHING UNIT

page 4

4” exposed wood lap siding asphalt shingles - black 4” exposed wood lap siding foundation hardware asphalt shingles - black

FRONT ELEVATION REAR ELEVATION SIDE ELEVATION 1 PLAN SECTION B-B SIDE ELEVATION 2

2X8 RAFTERS W/R38 BATT INSULATION CONTINOUS AIR SPACE INSULATION BAFFLE 2" BUTTON VENT 2X4 RAFTER TAILS 1X FRIEZE BOARD ASPHALT SHINGLES 3/4" SPACER BLOCK WITH VENT STRIP AS INSECT SCREEN 1/2" PLYWOOD SHEATHING TIES TAIL ASSEMBLY TO ROOF FRAMING 1X3.25 V GROOVE SOFFIT TO MATCH SIDING FINISH

• MIN. #30 FELT

UNDERLAYMENT METAL DRIP EDGE 1X4 TRIM TO MATCH SIDING FINISH WEATHER RESISTIVE BARRIER 2X BLOCKING WEATHER RESISTIVE BARRIER 4" EXPOSURE WOOD LAP SIDING

• MIN. R-19 BATT INSULATION

FLOOR JOISTS HANGER PREFINISHED METAL FLASHING SKIRT BOARD FOUNDATION HARDWARE FLOOR JOISTS RE: STRUCT

WEATHER RESISTIVE BARRIER SELF ADHERED MEMBRANE FLASHING 4" EXPOSURE WOOD LAP SIDING 1X10 WOOD FRAME L-BEAD AND SEALANT WINDOW HEAD FLASHING W/ DRIP EDGE SET IN SEALANT, END DAMS, SLOPE 1/4" MIN 3x3 CONTINOUS L BRACKET L-BEAD AND SEALANT BACKER ROD AND SEALANT 1X10 WOOD FRAME 3"X3" CONTINOUS L BRAKCET SELF ADHERED FLEXIBLE FLASHING SHIM SELF ADHERED FLEXIBLE FLASHING TURN UP JAMB 6" MIN

DETAIL B | TYPICAL FOUNDATION DETAIL DETAIL C & D | TYPICAL WINDOW HEAD AND SILL DETAIL DETAIL A | ROOF EAVE DETAIL

EAVE DEPTH = 1’-3 1/4”

UP 2' - 0" 3' - 0 1/2" 7' - 4 1/2" PLANTER BOX = 12' - 6" 6' - 3" 1' - 6 1/2" 2' - 0" 2' - 9" 7' - 8" 6' - 3" 1' - 6 1/2" 2' - 9" 2' - 9" EXTERIOR WALLS = 21'-0" 8' - 3 1/2" EXTERIOR WALLS = 9'-7" 9' - 7"

TRANSFER SHOWER MECHANICAL B B

8' - 5" RE: STRUCT 1' - 6" 11-7" TO TOP OF ROOF 7" / 12" 7" / 12" 7' - 6" 8' - 10 1/16" 8' - 10 1/16" 0' - 8" 0' - 8" 2' - 4" 5' - 10" 2' - 3 3/4" 1' - 6" 2' - 4" 1' - 6"

DETAIL A FULL BATH DETAIL B

foundation hardware 4” exposed wood lap siding asphalt shingles - black wood planter box 4” exposed wood lap siding foundation hardware asphalt shingles - black wood planter box

scalloped siding

• n gable front

2’ - 4” 3’ - 4 1/2” 0’-8 7/16” 0’-8 5/16” 12’-6”

• ST. ANDREWS | TINY HOME VILLAGE | LIVING UNIT

page 5

FRONT ELEVATION REAR ELEVATION SIDE ELEVATION 1 SIDE ELEVATION 2 PLAN SECTION C-C

2X8 RAFTERS W/R38 BATT INSULATION CONTINOUS AIR SPACE INSULATION BAFFLE 2" BUTTON VENT 2X4 RAFTER TAILS 1X FRIEZE BOARD ASPHALT SHINGLES 3/4" SPACER BLOCK WITH VENT STRIP AS INSECT SCREEN 1/2" PLYWOOD SHEATHING TIES TAIL ASSEMBLY TO ROOF FRAMING 1X3.25 V GROOVE SOFFIT TO MATCH SIDING FINISH

• MIN. #30 FELT

UNDERLAYMENT METAL DRIP EDGE 1X4 TRIM TO MATCH SIDING FINISH WEATHER RESISTIVE BARRIER 2X BLOCKING WEATHER RESISTIVE BARRIER 4" EXPOSURE WOOD LAP SIDING

• MIN. R-19 BATT INSULATION

FLOOR JOISTS HANGER PREFINISHED METAL FLASHING SKIRT BOARD FOUNDATION HARDWARE FLOOR JOISTS RE: STRUCT

WEATHER RESISTIVE BARRIER SELF ADHERED MEMBRANE FLASHING 4" EXPOSURE WOOD LAP SIDING 1X10 WOOD FRAME L-BEAD AND SEALANT WINDOW HEAD FLASHING W/ DRIP EDGE SET IN SEALANT, END DAMS, SLOPE 1/4" MIN 3x3 CONTINOUS L BRACKET L-BEAD AND SEALANT BACKER ROD AND SEALANT 1X10 WOOD FRAME 3"X3" CONTINOUS L BRAKCET SELF ADHERED FLEXIBLE FLASHING SHIM SELF ADHERED FLEXIBLE FLASHING TURN UP JAMB 6" MIN

DETAIL B | TYPICAL FOUNDATION DETAIL DETAIL C & D | TYPICAL WINDOW HEAD AND SILL DETAIL DETAIL A | ROOF EAVE DETAIL

EAVE DEPTH = 1’-3 1/4”

4” exposed wood lap siding foundation hardware asphalt shingles - black 4” exposed wood lap siding wood planter box foundation hardware asphalt shingles - black 4” exposed wood lap siding wood planter box foundation hardware

• pen framing entry deck

(1x6 over 2x6 pt joists) asphalt shingles - black 4” exposed wood lap siding

• perable double hung

window - Fibrex (Andersen) foundation hardware asphalt shingles - black

8' - 6 1/2" 2' - 4" 3' - 2" EXTERIOR WALLS = 15'-4" 3' - 2" 9' - 4" 8' - 0" 8' - 10" 2' - 8" 8' - 10" 1' - 8" 6' - 4 1/2" 5' - 0 1/2" 6' - 11 1/2" 3' - 4" 5' - 2" 4' - 2" 12' - 2" 7' - 0"

C C

1' - 6" 11'-1" TO TOP OF ROOF INTERIOR WALLS = 8'-0 1/2" 7' - 11" 7" / 12" 7" / 12" 9' - 0" 4' - 9" 7' - 4" 4' - 7" 2' - 4" 2' - 3" 0' - 10" EXTERIOR WALLS = 9'-4"

DETAIL A DETAIL B

scalloped siding

• n gable front

0’-8 7/16” 0’-8 5/16” 3’ - 4 1/2” 4’ - 10” 8’-6”

• ST. ANDREWS | TINY HOME VILLAGE | EXISTING CONDITIONS

page 6

• ST. ANDREWS | TINY HOME VILLAGE | DESIGN FEATURES

GABLE (PITCHED) ROOF

[Located at 2146 Glenarm Place, Denver, CO] [Located at 2135 Tremont Place, Denver, CO] [Located at 2107 Tremont Place, Denver, CO]

EXPOSED RAFTERS TRIM BELOW ROOFLINE DOUBLE HUNG WINDOWS WOODEN PRIVACY FENCE

page 7

CLEMENTS HISTORIC DISTRICT

CHARACTER DEFINING FEATURES

[Located at 416 21st Street, Denver, CO]
