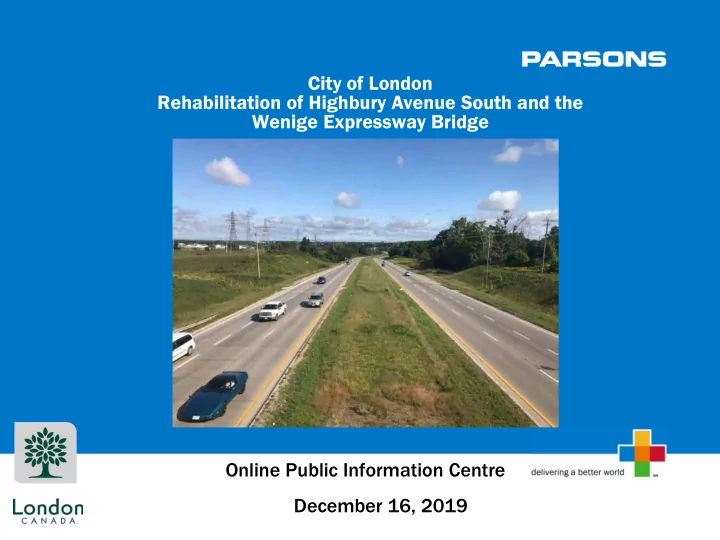

City of London Rehabilitation of Highbury Avenue South and the Wenige Expressway Bridge Online Public Information Centre December 16, 2019

Purpose

2

The purpose of this Public Information Centre is to:

• Advise you of the proposed

rehabilitation work on Highbury Avenue South & the Wenige Expressway Bridge

• Provide an overview of the Study

Area, existing and future conditions

• Provide an overview of construction

staging

• Provide an overview of existing

ecological conditions

Study Area Overview

3

Phase 1 Construction South of Wenige Expressway Bridge to Hamilton Road Phase 2 Construction From North Limit of Highway 401 to South of Wenige Expressway Bridge Overall All works will be within the Highbury Avenue Right of Way

Project Timeline

4

Phase 1 Construction (Bridge): 2020

• Wenige Bridge and Multi-use Pathway reconstruction from

approximately 220m South of Wenige Expressway Bridge to Hamilton Road Phase 2 Construction (Road): 2021 - 2022 Stage 1A & 1B : : 2 2021

• Highbury Avenue Rehabilitation from North Limit Highway

401 to the South limit of Commissioners Road Interchange Stage 2A & 2B : : 2 2022

• Highbury Avenue Rehabilitation from South limit of

Commissioners Road Interchange to South limit of Phase 1 construction

Phase 1 Construction (Bridge)

5

Wenige Bridge - Existing Conditions:

• 54 years old
• 2-span concrete deck structure on

steel plate girders

• Carries 4 lanes of traffic; AADT is

~48,000

• Last major rehabilitation was

completed in 1989

• Temporary concrete barriers were

installed on East and West sides of the bridge in 2009 and 2011 as metal railings were damaged

• Drainage improvements
• Several cracks along the existing

median barrier North of the bridge

• Invasive species (Phragmites) are

present

Phase 1 Construction (Bridge)

6

Proposed Improvements include:

• Replacement of bridge deck and bearings
• Replacement of damaged railings/barriers and abutment repair
• Pavement reconstruction
• Improve drainage by removing deck drains and adding catchbasins on

either side

• Upgrade median barrier
• Improve street-lighting
• Construct new pathway and retaining wall under bridge

Phase 1 Construction (Bridge)

7

Anticipated Timeline: Construction Start: March 2020 Completion date: May 2021 All work will be completed within the existing Right of Way.

Phase 1 Construction (Bridge)

8

Construction Staging:

• Stage 0: Median crossovers will be

constructed

• Stage 1: Construction and

rehabilitation work on the West side of the bridge.

• Stage 2: Construction and

rehabilitation work on the East side

• f the bridge.
• Stage 3: Median barrier and street-

lighting improvements

• Travelled lanes will be reduced to

1-lane in each direction for all Stages of construction

• Posted speed in the construction

zone is 60 km/h

• All lanes open over winter

shutdown months (December to March)

Pathway Construction and Detours

9

Pathway Construction:

• New pathway construction under the

Wenige Expressway bridge (South side) to accommodate a future extension of the Thames Valley Pathway (TVP) Multi-use Pathway for public benefit as per the City’s Bicycle Master Plan

• It is intended that public usage of

the trail be maintained as much as possible during construction to ensure continued pedestrian access is maintained

• Short term trail closures should be

anticipated during construction

Phase 2 Construction (Road)

10

Existing Conditions:

• 4-lane Rural Freeway Divided, Design Speed of 120 km/h
• Most of the roadway section is comprised of concrete

pavement

• Substandard speed change lanes at Bradley and

Commissioners Road Interchanges

• Substandard protection systems
• Damaged & Corroded culverts
• Poor connectivity for small wildlife under the road

Phase 2 Construction (Road)

11

Proposed Improvements Include:

• Pavement rehabilitation
• Culvert replacement and/or rehabilitation
• Upgrading speed change lane lengths to meet standards
• Upgrading roadside protection systems
• Opportunity to incorporate wildlife passages under Highbury Avenue South to

help connect wildlife habitats Construction Staging:

• Posted speed in the construction zone will be 80 km/h
• Stage 0: Median crossovers will be constructed
• Stage 1 – Highbury Avenue Rehabilitation from North Limit Highway 401 to

the South limit of Commissioners Road Interchange

• Stage 2 – Highbury Avenue Rehabilitation from South limit of Commissioners

Road Interchange to South limit of Phase 1 construction

Phase 2 Construction

12

Construction Staging:

Existing Ecological Features

13

Study Overview Map

Existing Ecological Features

14

The landscape within the general study area is residential, agricultural, and unused

• field. The Right-of-Way (ROW) is fairly open with limited mature woody vegetation.

Natural land cover is primarily limited to the watercourse crossings at the north and south ends of the study area, which include the dense riparian corridor along the South Branch of the Thames River.

Technical:

• There are 6 existing culvert crossings along Highbury Avenue South.
• 2 of these culverts convey watercourses suitable for fish habitat
• Wenige Expressway Bridge crosses South Branch of Thames River
• Existing hydrological conditions consist mainly of agricultural drainage, local road

ditches, tributaries of the South Branch of the Thames River and drainage from the Westminster Pond/ Pond Mills Wetland Complex

Natural Resources - Map 5 London Plan:

• South Branch of the Thames River
• Meadow Lily Woods Environmentally Significant Area
• Westminster Ponds/ Mills PSW Complex

Existing Ecological Features

15

Aquatic Resources:

• The South Branch of the Thames River at this location is considered a medium-sized river

containing approximately 94 fish species.

• There are slow-flowing stretches up to 4 m deep, as well as shallower, fast-following

sections over a substrate comprised of predominantly boulders and cobble, with gravel, sand, with gravel and silt.

• The river is a known warm water ecosystem containing a diverse mix of bait, forage and

game fish species.

• The river is also home to several Species at Risk including critical habitat for the Round

Pigtoe (Pleurobema sintoxia) mussel.

Terrestrial Resources:

• Located on either side of Highbury Avenue South to the north and south of the Bradley

Avenue crossing, is the Westminster Ponds/Pond Mills PSW complex.

• The area is surrounded by a Provincially Significant Wetland that potentially contains

Species at Risk. Cliff Swallow (Petrochelidon pyrrhonota) nests were observed under the Wenige Expressway Bridge, none were noted within the culverts.

• Nesting habitat for turtles is present under the Wenige Expressway Bridge, although no

nests were confirmed during the field investigations.

Existing Ecological Features

16

Invasive Species:

• Invasive European Common Reed (Phragmites australis australis) is present throughout

the project limits, particularly ditches.

• An Invasive Species Management Plan will include measures for treatment of

Phragmites and monitoring following Best Management Practices (i.e., prior to construction).

• Clean Equipment Protocol for Industry will be followed to prevent introducing or

spreading invasive species.

Vegetation Communities:

• Woodlands occur along Highbury Avenue South
• Primarily related to the southern watercourse crossings associated with the PSW and the

South Branch of the Thames River at the north end.

• There is limited mature woody vegetation within the road Right of Way.

Existing Ecological Features

17

Species of Conservation Concern:

• Seventeen species of conservation concern were identified during background

investigations and may occur within the project limits

• Critical Habitat for Round Pigtoe Mussel identified within the South Branch of the Thames

River

• A Mitigation Plan has been prepared to ensure no negative impacts including:
• Netting bridge prior to the nesting season to protect nesting birds
• Ecological mitigation measures, restoration, Barn Swallow habitat kiosk and monitoring

Existing Ecological Features

18 *THR: Threatened, SC: Special Concern, END: Endangered, CH: Critical Habitat

COMMON NAME SCIENTIFIC NAME PROVINCIAL STATUS FEDERAL STATUS

Mussels Rayed Bean

Villosa fabalis

END END Kidneyshell

Ptychobranchus fasciolaris

END END Rainbow

Villosa iris

SC END Wavy-rayed Lampmussel

Lampsilis fasciola

THR SC Round Pigtoe

Pleurobema sintoxia

END END (CH) Fish Silver Shiner

Notropis photogenis

THR THR Pugnose Minnow

Opsopoeodus emiliae

THR THR Northern Brook Lamprey

Ichthyomyzon fossor

SC SC Reptiles

Northern Map Turtle Graptemys geographica SC SC Snapping Turtle Chelydra serpentina SC SC Blanding’s Turtle Emydoidea blandingii THR THR Spiny Softshell Apalone spinifera END END

Birds

Eastern Wood-pewee Contopus virens SC SC Bank Swallow Riparia riparia THR THR Barn Swallow Hirundo rustica THR THR

Plants

Green Dragon Arisaema dracontium SC SC Butternut Juglans cinerea END END

Identified Species of concern:

Questions? Contact Us!

19

Please let us know if you have any questions or concerns about the project. Feel free to contact us at: Name Phone Number Email

Trevor Hitchon 519-661-CITY (2489) ext. 5925 THitchon@london.ca Sonia Ahluwalia 519-340-7401 Sonia.Ahluwalia@parsons.com
