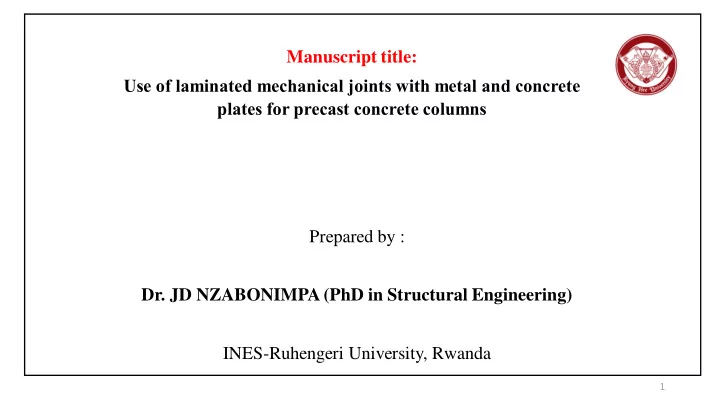

  • Dr. JD NZABONIMPA (PhD in Structural Engineering)

INES-Ruhengeri University, Rwanda

slide-2
SLIDE 2

2

TABLE OF CONTENTS

I. About the newly published manuscript

  • II. Overview of the conventional construction practices
  • Problem statement
  • III. Proposed mechanical joints for the automation of precast concrete frames
  • Necessity of our study and motivation of our research.
  • IV. Structural test, erection test, and validation of the proposed mechanical joints
  • V. Ongoing research: Modular construction in precast concrete industry
  • VI. Conclusion
slide-3
SLIDE 3

3

  • I. NEWLY PUBLISHED MANUSCRIPT
slide-4
SLIDE 4

4

Access fees

  • I. NEWLY PUBLISHED MANUSCRIPT
slide-5
SLIDE 5

5

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES

1) Column base plate connections; moment connection

(Precast concrete institute) (Elliot, 2016) Reference: https://www.pci.org/Connections Precast column Base plate Anchor bolt

slide-6
SLIDE 6

6

2) Column-to-foundation connection using grouted pocket; moment connection

(Elliot, 2016)

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES
slide-7
SLIDE 7

7

3) Column-column connections; moment-connection (Elliot, 2016)

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES
slide-8
SLIDE 8

8

5) Beam-column connections; Pin connection (Elliot, 2016)

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES

These joints are so weak, and they cannot withstand seismic forces

slide-9
SLIDE 9

9

6) Beam-column connections; moment connection (Elliot, 2016)

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES
slide-10
SLIDE 10

10

Problems statement for conventional precast frames

Construction point of view:

Traditional beam-column and column-column joints (Guan et al. 2016) Drawback (ii): These joints requires temporarily supports to cast the concrete at the joints Drawback (3): The construction period is lengthened Drawback (i): Concrete pour forms are required to cast the concrete Beam Beam Column Column

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES
slide-11
SLIDE 11

11

Traditional beam-column and column-column joints (Guan et al. 2016) Beam Column Beam Column Drawback(ii): these joints requires temporarily supports to cast the concrete at the joints

Construction point of view:

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES

Problems statement for conventional precast frames

slide-12
SLIDE 12

12

Traditional beam-column and column-column joints (Guan et al. 2016) Drawback(iii): progressive collapse of conventional precast joints

  • II. OVERVIEW OF CONVENTIONAL CONSTRUCTION PRACTICES

Problems statement for conventional precast frames

slide-13
SLIDE 13

13

  • III. Proposed mechanical joint connections (Lego-type connections)

to replace conventional construction practices

slide-14
SLIDE 14

14

Structural performance

Column-column moment connection

slide-15
SLIDE 15

15

Test preparations

Column-column moment connection

slide-16
SLIDE 16

16

Preparation of test specimens

Test preparations

slide-17
SLIDE 17

17

Preparation of test specimens

Test preparations

slide-18
SLIDE 18

18

Polishing gauge location

Test preparations

slide-19
SLIDE 19

19

Loading protocol: cyclic loadings

Column-column moment connection

slide-20
SLIDE 20

20

Strain measurements and column failure Breaking the test specimens

slide-21
SLIDE 21

21

Computer model

Numerical computation of the joint

Test set up

slide-22
SLIDE 22

22

Inputs for nonlinear analysis

Column-column moment connection

Concrete material

slide-23
SLIDE 23

23

(a) Structural performance

Column-column moment connection Steel-concrete members

Computer simulations using ABAQUS Number of elements: 300,000 Nodes: 340,000 Running time: 5 days

slide-24
SLIDE 24

24

(a) Structural performance

Column-column moment connection Steel-concrete members

slide-25
SLIDE 25

25

(a) Structural performance

Column-column moment connection Steel-concrete members

ABAQUS vs Test; Specimen C1 (20 mm thick column plates)

slide-26
SLIDE 26

26

Observations

Column-column moment connection

slide-27
SLIDE 27

27

Test results

Column-column moment connection

slide-28
SLIDE 28

28

  • IV. Structural test, erection test and validation of the proposed mechanical joints
slide-29
SLIDE 29

29

Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-30
SLIDE 30

30

To be Continued…

Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-31
SLIDE 31

31

To be Continued…

IV . Erection test and validation of the proposed mechanical joints Type A. Erection test

slide-32
SLIDE 32

32

To be Continued…

Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-33
SLIDE 33

33

To be Continued…

Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-34
SLIDE 34

34

To be Continued…

Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-35
SLIDE 35

35

To be Continued…

Upper columns Lower columns Bolted metal plates Bolted metal plates Type A. Erection test IV . Erection test and validation of the proposed mechanical joints

slide-36
SLIDE 36

36

Type B. Connections with one touch couplers Erection test IV . Erection test and validation of the proposed mechanical joints

slide-37
SLIDE 37

37

Upper column Size: 1200 x 1200 mm Lower column Size: 1200 x 1200 mm Girder Size: 1100 x 800 mm One touch coupler (D32) Coupler for connecting girder re-bars (D29) Upper plate Size: 1400 x 1400 x 10 mm Lower plate (1400 x 1400 x 10 mm) Bolts (M20) Extended end plate Size: 995 x 800 mm Slab (250 mm) Girder Welding coupler 1100 mm Erection test Type B. Connections with one touch couplers IV . Erection test and validation of the proposed mechanical joints

slide-38
SLIDE 38

38

Crane Upper column unit Upper column unit One toucher coupler (female part) Rebar (male part) Rebar inserted into one touch coupler

Sequence

1 2 3 4 Erection test Type B. Connections with one touch couplers IV . Erection test and validation of the proposed mechanical joints

slide-39
SLIDE 39

39

Upper column unit Lower column unit Upper plate Lower plate Upper column unit Lower column unit One touch coupler Upper plate Lower plate Bolt 5 6

Sequence

Erection test Type B. Connections with one touch couplers IV . Erection test and validation of the proposed mechanical joints

slide-40
SLIDE 40

40

Lifting concrete beams

IV . Erection test and validation of the proposed mechanical joints

slide-41
SLIDE 41

41

Upper column Upper column Lower column Lower column Bolt Lower Plate Upper Plate Lower Plate Upper Plate One touch coupler Type B. Connections with one touch couplers IV . Erection test and validation of the proposed mechanical joints

slide-42
SLIDE 42

42

  • IV. Structural Test [IRREGULAR L-TYPE LEGO FRAMES]
slide-43
SLIDE 43

43

Geometric configuration of test specimens

In this study, L-type column sections are introduced with the aim of replacing rectangular columns that do not fit at the corners. These columns are preferred by architects due to their architectural flexibility at the corners of the walls in residential buildings.

slide-44
SLIDE 44

Joint level 1 m 1.7 m Foundation (Size: 2.5m x 2.5m x 0.5m) Foundation support (constrained area) Foundation support (constrained area) Actuator (cyclic loads) 0.3 m 3.0 m

Push Pull

Typical test specimen layout

44

Test preparation

slide-45
SLIDE 45
  • 800
  • 600
  • 400
  • 200

200 400 600

  • 150
  • 100
  • 50

50 100 150

Load (kN) Displacement (mm)

Specimen C1: Load - displacement curve

Fracture of 2 bolts at 108 mm of stroke Load dropped due to the bolts failure (bolts fractured) Fracture of 2 bolts at 108 mm of stroke * A total of 9 bolts fractured during the test Load dropped due to the bolts failure (bolts fractured) Peak (-80 mm, -606 kN) Peak (106 mm, 520 kN)

45

Push Pull

Moment at the joint level (680 kN-m) Push Pull

Test results

slide-46
SLIDE 46

46

(a) Failure modes at the stroke of 54 mm Lateral displacement (54 mm) Deflected shape Concrete started crushing due to compression Concrete cracks initiated Failure modes for specimen C1

Test results

slide-47
SLIDE 47

Failure modes for specimen C1

(b) Failure modes at the stroke of 108 mm

47

At a stroke 81 mm, small separation between metal plates was observed At a stroke 108 mm, first bolt fractured Upper column Lower column Upper plate Filler plate Lower plate Separation between metal plates starts increasing at a stroke of 108 mm

Test results

slide-48
SLIDE 48

Failure modes for specimen C1

48

At stroke 135 mm, 9 bolts fractured; the end of the test Bolts fractured Concrete crushed due to compression (c) Failure modes at the end of the test

Test results

slide-49
SLIDE 49

Failure modes for specimen C1 (d) Metal plates deformation measured at the end of the test Upper plate Lower plate Plate deformation: 2 mm Plate deformation: 3 mm Nuts connecting rebars from lower column Nuts connecting rebars from upper column

49

Test results

slide-50
SLIDE 50

Disassemble of mechanical joint after the test Upper column unit Upper plate Nut connecting upper column rebars

50

Test results

slide-51
SLIDE 51
  • 1000
  • 800
  • 600
  • 400
  • 200

200 400 600 800 1000

  • 250
  • 200
  • 150
  • 100
  • 50

50 100 150 200 250

Load (kN) Displacement (mm)

Specimen C2: Load - displacement curve

Fracture of two interior bolts at 91 mm of stroke Load dropped due to the bolts failure Peak (-130 mm, -846 kN) Peak (89.5 mm, 699 kN) * A total of 6 bolts fractured during the test

51

Push Pull

Moment at the joint level (1,360 kN-m) Push Pull

Test results

slide-52
SLIDE 52

52

Failure modes for specimen C2

(a) Failure modes at the stroke of 81 mm Lateral displacement (81 mm) Deflected shape Concrete cracks initiated

Test results

slide-53
SLIDE 53

(b) Failure modes at the stroke of 165 mm Bolts fracture Separation of metal plates Bolts failure Upper plate Filler plate Lower plate Upper column Lower column

Failure modes for specimen C2

53

Test results

slide-54
SLIDE 54

54

(c) Failure modes and deflected shapes at the stroke of 183 mm Concrete crushed due to compression Separation of metal plates Concrete crushed due to compression Upper column Lower column Lower column Upper column Load Load

Test results

slide-55
SLIDE 55

Failure modes for specimen C2

(d) Failure modes at the end of the test Upper plate Bolts fracture Upper column Lower column Upper column Lower column Concrete crushed due to compression Concrete crushed due to compression Separation of metal plates Separation of metal plates Filler plate Lower plate

55

Test results

slide-56
SLIDE 56
  • 1200
  • 1000
  • 800
  • 600
  • 400
  • 200

200 400 600 800 1000

  • 200
  • 150
  • 100
  • 50

50 100 150 200

Load (kN) Displacement (mm)

Specimen C3: Load - displacement curve

Peak (-107 mm, -938 kN) Peak (102 mm, 800 kN)

56

Push Pull

Moment at the joint level (1,360 kN-m) Push Pull

Test results

slide-57
SLIDE 57

Failure modes for specimen C3

Failure modes at the stroke of 162 mm; end of the test Concrete crushed due to compression Rebar and L-shaped steel bent due to compressive force

57

Test results

slide-58
SLIDE 58
  • 1200
  • 1000
  • 800
  • 600
  • 400
  • 200

200 400 600 800 1000

  • 250
  • 200
  • 150
  • 100
  • 50

50 100 150 200 250

Load (kN) Displacement (mm)

Load - displacement curve

  • 1. Push : Specimen C1
  • 2. Push : Specimen C2
  • 3. Push : Specimen C3
  • 4. Pull : Specimen C1
  • 5. Pull : Specimen C2
  • 6. Pull : Specimen C3

(-98,-777) (-33,-428)

Concrete strain = 0.003

(Concrete strain for C3: did not reach 0.003, gauge malfunction) (100,600) (77,500)

58

Point A Point D Point E

Push Pull

Point C

Moment at the joint level (1,360 kN-m)

Point B Point F

Design moment (Mu= 350 kN-m)

Test results

slide-59
SLIDE 59

59

Erection test

slide-60
SLIDE 60

60

Erection test

slide-61
SLIDE 61

61

Erection test

slide-62
SLIDE 62

62

Erection test

slide-63
SLIDE 63

63

Erection test

slide-64
SLIDE 64

64

Erection test

slide-65
SLIDE 65

65

Erection test

slide-66
SLIDE 66

66

NUMERICAL INVESTIGATION; STRUCTURAL PERFORMANCE

Nonlinear finite element analysis

slide-67
SLIDE 67

67

Linear Analysis; Pushover analysis

slide-68
SLIDE 68

68

(b) FE model (a) Test set up

Loading Nonlinear analysis based on ABAQUS

slide-69
SLIDE 69

FE modeling techniques Meshing

69

Column Loading Joint Foundation

500 3000 1960

Typical specimen for L-type columns (LC1-WF) Control specimen for L-type columns (LC3-WF) [ Elements: 735,000 ] [ Elements: 453,000 ] [Unit: mm]

3000

Loading

slide-70
SLIDE 70

FE modeling techniques Meshing

70

slide-71
SLIDE 71

FE modeling techniques Meshing

71

slide-72
SLIDE 72
  • FE modeling techniques

Contacts: Column-column

72

slide-73
SLIDE 73

Plate: master Concrete: slave Interior bolts: master Plate: slave Exterior bolts: master Plate: slave Upper plate: master Lower plate: slave Re-bar and nut: master Plate: slave Upper nut: master Lower nut: slave

FE modeling techniques Contacts

73

slide-74
SLIDE 74

Plate: master Concrete: slave Interior bolts: master Plate: slave Exterior bolts: master Plate: slave Upper plate: master Lower plate: slave Re-bar and nut: master Plate: slave Upper nut: master Lower nut: slave

FE modeling techniques Contacts

74

slide-75
SLIDE 75

75

FE results

slide-76
SLIDE 76

76

  • VI. MODULAR CONSTRUCTION IN PRECAST CONCRETE INDUSTRY

Ongoing research

slide-77
SLIDE 77

77

Modular construction; Cellular-type buildings It was demonstrated that building off-site offers many advantages including better construction management, improvement of safety and security, and substantial reduction in the construction period.

Disadvantages of conventional modular structures

  • 1. Limitation in their applications;

They are not suitable for high-rise buildings 2.Inadequate structural joints to resist seismic loads Advantages of conventional modular structures

slide-78
SLIDE 78

78

Modular construction; Cellular-type buildings

slide-79
SLIDE 79

79

Modular construction; Cellular-type buildings

slide-80
SLIDE 80

80

Modular construction for high-rise buildings 25-story modular building in Wolverhampton, England, during construction (image by R. M. Lawson) Originally, these models are designed to resist only gravity loads. However, in order to have a building of 25 storeys, the stability

  • f the building under wind must be checked. Engineers uses

either steel core or concrete core to take of lateral forces. In some applications, braces within the walls of modules were used. However, these steel frames and braces are so expensive, making the modular construction unattractive for contractors.

  • 1. Corner-supported modules, in which loads are

transferred via edge beams to corner posts

  • 2. Load-bearing modules, in which loads are

transferred through the side walls of the modules

slide-81
SLIDE 81

81

Modular construction for high-rise buildings

  • 2. Corner-supported modules, in which loads are

transferred via edge beams to corner posts

  • Square hollow sections are often used due to their

high buckling resistance

  • 1. Load-bearing modules, in which loads are

transferred through the side walls of the modules

  • Light steels C sections are used with concrete

walls to resist compressive forces

Light steel module with a perimeter framework (image by R. M. Lawson)

slide-82
SLIDE 82

82

Modular construction, Construction sequence One module (1) (2) One module

  • 1. No limitation in the applications of these modular frames;

The proposed modular construction can be applied to high-rise buildings

  • 2. Adequate structural joints to resist seismic loads are guaranteed.
slide-83
SLIDE 83

83

(3)

  • 1. No limitation in the applications of these modular frames;

The proposed modular construction can be applied to high-rise buildings

  • 2. Adequate structural joints to resist seismic loads are guaranteed.

Modular construction, Construction sequence

slide-84
SLIDE 84

84

(4) (i) (ii) Modular construction, Completed structure

slide-85
SLIDE 85

85

VI: Conclusion

  • 1. Contribution to the effortless erection of moment frames, and to their rapid

assembly, similar to that accomplished using steel frames.

  • 2. Plates with thin plates were not recommended to be used for moment

frames due to their severe deformations during the test.

  • 3. Introduction of computer simulations replaced a large number of experiments
  • 4. The proposed precast structures can be used as human shelters in case of

disasters such as earthquakes and so on. This is because a complete structure can be available within a short time.

slide-86
SLIDE 86

86

Thank you for your attention
