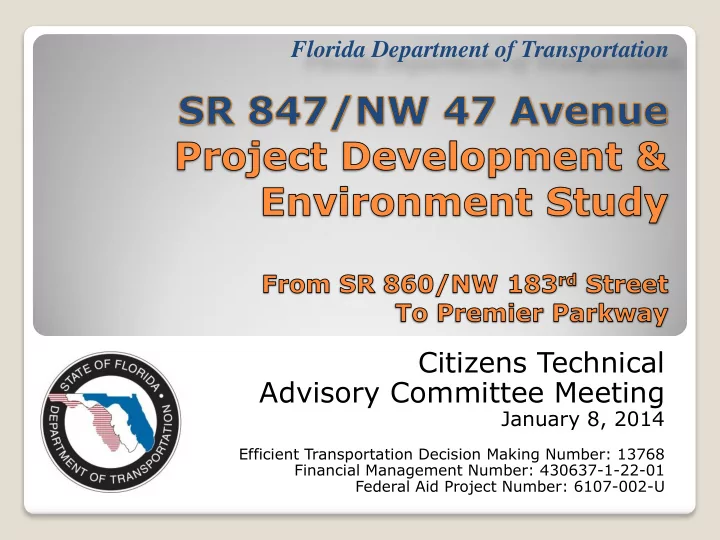

Citizens Technical Advisory Committee Meeting

January 8, 2014

Efficient Transportation Decision Making Number: 13768 Financial Management Number: 430637-1-22-01 Federal Aid Project Number: 6107-002-U

Florida Department of Transportation

Public Involvement Planning

• P. D. & E.

Public Involvement Engineering Analysis Environmental Analysis Final Design Right of Way Construction

Data Collection

• Traffic
• Engineering
• Environmental
• Public Kickoff Meeting

Develop Concepts

• No Build Alternative
• Traffic System

Management

• Build Alternatives
• Public Workshop

Select Concept

• Prepare Reports
• Compare Concepts
• Select Concept
• Public Hearing

Project Development & Environment Study

Public and Agency Involvement

 Develop and evaluate engineering and environmentally

feasible alternative solutions that meet the need determined in the Planning Phase

 Evaluate potential impacts to the social, natural, and

physical environments and determine ways to avoid or minimize impacts

 Inform and involve the public in the development of the

project alternatives

 Process is mandated by the National Environmental Policy

Act (NEPA) and state law. Represents a combined effort by technical professionals who analyze information and document the best alternative for a community’s transportation needs.

Project Limits

• Begins at NW

183rd Street

• Ends at Premier

Parkway

• Project Length

2.37 Miles

• Miami-Dade and

Broward County

Begin Project at NW 183 Street End Project at Premier Parkway

Broward County

 Provide additional roadway capacity to

accommodate projected traffic growth.

 Provide a continuous north-south 4-lane lane

divided roadway between Miami-Dade and Broward Counties.

 Enhance Safety for Pedestrians, Bicyclists, and

Transit users.

 Maintain consistency with regional transportation

plans.

Evaluation of Direct Effects

Natural Cultural Community Secondary and Cumulative Effects Air Quality Coastal and Marine Contaminated Sites Farmlands Floodplains Infrastructure Navigation Special Designations Water Quality and Quantity Wetlands Wildlife and Habitat Historic and Archaeological Sites Recreation Areas Section 4(f) Potential Aesthetics Economic Land Use Mobility Relocation Social

3 3 3 3 2 2 2 2 2 2 2 1 2 1 2 3 2

 Efficient Transportation Decision Making  Conducted by Federal, State and Local Agencies  ETDM Website: https://etdmpub.fla-etat.org/est/

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000

2 Lane Road Year 2012 4 Lane Road Year 2040

22,000 39,500

Vehicles Per Day SR 847 Average Annual Daily Traffic (AADT) and Level of Service (LOS) LOS F LOS C

 Future Traffic Conditions in Year 2035

• No Build 2 Lane Alternative

 Without Improvements LOS F  Does Not Meet LOS D Standard

• Build 4 Lane Alternative

 Achieves LOS C  Above LOS D Standard  Project Need: 4-Lane Divided Roadway

• 2 Northbound Lanes and 2 Southbound Lanes

 Cracked Pavement  Lacks Paved Shoulders  Old Drainage System  No Turn Lanes  No Bike Lanes  Missing Pedestrian

Ramps

Per Plat: The Limited Access R/W as shown at the rear of lots…are hereby designated for the express purpose of preventing the direct vehicular and pedestrian traffic to and from the adjoining arterial roads.

Per Platt: The Limited Access R/W as shown at the rear of lots ….on the attached plat are hereby designated for the express purpose of preventing the direct vehicular and pedestrian traffic to and from the adjoining arterial roads.

 250 Crashes

South of NW 199th Street

 36 Crashes

North of NW 199th Street.

100 200 300 South of NW 199 Street North of NW 199 Street

Crashes

Annual Crashes

5 Yr. Crashes

199th St. North of NW 199th St. South of NW 199th St.

 2 Mast Arm

• NW 183rd Street
• NW 199th Street

 2 Span Wire

• NW 191ST Street
• NW 195th Street

 Needed Improvements

• Pedestrian Features
• ADA Compliance
• Turn Lanes

 Missing Sidewalks at School Crossings  Streets Lack Turn Lanes for Bus Access  Nearby Schools

• Skyway Elementary School
• North Gardens High School
• Miami Gardens Elementary School
• Sandor Wiener School of Opportunity

 No Bicycle Lanes  Sidewalk and Paved

Shoulder Present on Only One Side in Areas

 Sidewalks in Poor

Condition

 Missing Pedestrian

Signals

 Pedestrian Ramps Not

Fully Compliant with Americans with Disabilities (ADA)

Active Bus Ridership Typical Transit Shelter Shelter without ADA-compliant sidewalk Transit Shelter with ADA sidewalk

 No Build or No Action alternative maintains the

existing condition and is used as a baseline to compare the build alternatives.

 Transportation Systems Management (TSM)

alternative utilizes non capacity type improvements to improve traffic flow.

 Build alternatives are major improvements that

meet the project need through the design year.

 Construct a 4 Lane Divided Roadway to be

compatible with the north and south termini.

 Improve Safety for Pedestrians, Bicyclists, and

Transit users.

 New sidewalk, bicycle lanes, street lighting,

drainage system, traffic signals, and crosswalks.

 Landscape design is concurrent with roadway

design but under a separate construction project.

 Design Speed 45 MPH  12 Ft Travel Lanes  22 Ft Median  4 Ft Bike Lanes  No U-Turns  Design Variation

 Design Speed 40 MPH  11 Ft Travel Lanes  26 Ft Median  4 Ft Bike Lanes  Allows U-Turns

 40 MPH Design Speed  11 Ft Lanes  4 Ft Bike Lanes  2 Medians Types

• 26 ft Wide
• 14 Ft Wide

 U-Turns provided at

some locations

 Lower Access Control

 40 MPH Design Speed  11 Ft Lanes  4 Ft Bike Lanes  15.5 FT Median  No U-Turns Provided  No Left Turns Out from

Property onto SR 847

Departure Route Arrival Route Homes Affected Due to Loss of U-Turns and Left Turn Out

Departure Route Arrival Route Homes Affected Due to Loss of U-Turns and Left Turn Out

 Bridge is No Long Needed  Culvert Was Placed Under The Bridge  Canal Was Backfilled

Existing Bridge

 2 Traffic Lanes  Sidewalks and

Bridge Rail Need Improvement

 Utilizes the existing pile/cap substructure  Lower cost that replacement bridge  6.75 ft Sidewalks  5.33 ft Shoulders / Bike Lanes

 2 High Risk Sites  6 Medium Risk Sites  22 Low Risk Sites  North Dade Trash and

Recycling Center

 0.04 acres of stormwater

swales

 1.31 acres of construction

activities within other surface waters.

 Impacts Will Be Minimized  Analysis and Agency

Coordination Underway

 Increase for No Build

and Build Alternatives 4 db(A) to 6 db(A)

 Noise Barrier Analysis

is Underway

 Analysis and Agency

Coordination Underway

STIP FUNDS

 Preliminary Engineering

• FY 2014 $217,328

 Right of Way

• FY 2015 $314,982

 Construction 2017

• FY 2017 $21,602,028



TIP FUNDS

 Preliminary Engineering

• FY 2014 $217,328

 Right of Way

• FY 2015 $315,000

 Construction 2017

• FY 2017 $21,602,000

To submit comments or for more information regarding the SR 847 PD&E Study please contact:
