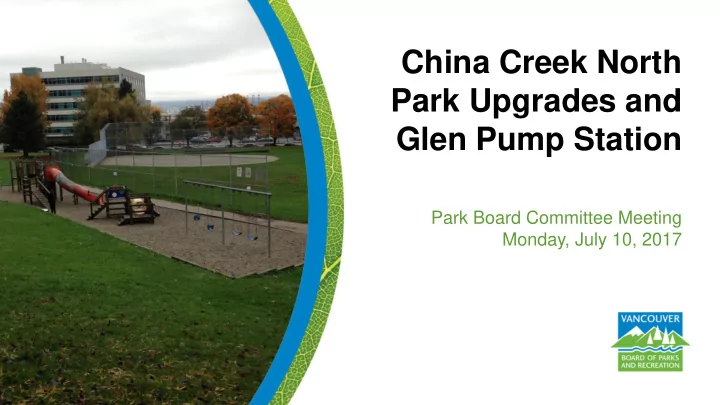

Park Board Committee Meeting Monday, July 10, 2017

China Creek North Park Upgrades and Glen Pump Station

slide-2
SLIDE 2

The purpose of this presentation is to:

  • Share the results of the public engagement processes;
  • Provide information about and seek approval for proposed

improvements in China Creek North Park, including: accessibility and circulation improvements, a playground renewal, and the Glen Pump Station renewal including a new public washroom;

  • Enable staff to progress to the detailed design stage and to meet the

proposed construction schedule.

5

Purpose

slide-3
SLIDE 3

Background

6

slide-4
SLIDE 4
  • A creek once flowed

through the site as water made its way to False Creek.

7

Background – Old Streams

slide-5
SLIDE 5

8

Background – Old Streams

  • Contamination
  • Ravines filled over
  • Creek diverted to pipe

Broadway

slide-6
SLIDE 6

9

Background – Current Conditions

MEC Head Office BC Tech Innovation Hub VCC- Clark Station Vancouver Community College Mt. Pleasant Daycare

Surrounded by:

  • Residential
  • Educational
  • Business
  • Transit
slide-7
SLIDE 7

10

Background – Current Conditions

Sports Fields:

  • Two under-

sized softball

  • Seasonal

soccer

  • All well utilized

West Softball Seasonal Soccer East Softball

slide-8
SLIDE 8

11

Background – Current Conditions

Running track and exercise stations

slide-9
SLIDE 9

Background – Current Conditions

Steep West Hill West Hill

West hill accessibility issues Recreation

  • pportunities
slide-10
SLIDE 10

13

Background – Current Conditions

“Means of Production” Community Garden

X

slide-11
SLIDE 11

14

Background – Current Conditions

Outdated playground

X

slide-12
SLIDE 12

15

Background – Current Conditions

Glen Pump Station

X

slide-13
SLIDE 13

16

Background – Current Conditions

Other:

  • Dog off-leash

issues

  • Accessibility

issues

  • Mature trees
slide-14
SLIDE 14
  • The playground and the pump station require replacement
  • Park Board Staff and City Engineering working with

consultants

  • Collaboration with REFM, Community Stakeholders

including field users, and Persons with Disabilities Advisory Committee (PWDAC)

  • Two public engagements: December 2016, May 2017

17

Background

slide-15
SLIDE 15

Public Consultation Process

18

slide-16
SLIDE 16
  • Public consultation for China Creek North Park sought

feedback on all proposed changes in the park including:

  • The playground replacement
  • The new Glen Pump Station building
  • Pedestrian connections on the west hill
  • Overall accessibility improvements
  • The process included two public open houses, two public

surveys, and review with stakeholder groups

19

Public Consultation Process

slide-17
SLIDE 17
  • Open house one held at Mt. Pleasant Community Centre on

December 8, 2016

  • Open house two held in the park on May 25, 2017
  • Advertised through signage, flyer, and webpage
  • Survey on Talk Vancouver and webpage for two weeks

following open houses

20

Public Consultation Process

slide-18
SLIDE 18
  • First engagement respondents asked to provide feedback on:
  • Playground location and types of play
  • A pedestrian connection on the west hill
  • Layout, and amenity options for the new pump station
  • Results guided conceptual plans presented at the second
  • pen house

21

Public Consultation Process

slide-19
SLIDE 19
  • Second engagement respondents asked to provide feedback
  • n:
  • Playground concept
  • New pump station and washroom building
  • Pedestrian connections on the west hill
  • Overall park accessibility improvements
  • Additional comments regarding dog off-leash issues and

potential for a creek restoration project were received

22

Public Consultation Process

slide-20
SLIDE 20

Community organizations that provided input on behalf of their membership were:

  • Vancouver Community College
  • PWDAC
  • Metro Men’s Soccer
  • Metro Women’s Soccer

23

Public Consultation Process

  • Vancouver

Recreational Softball

  • VS & E Investment

Softball

  • Method Studios

Softball

slide-21
SLIDE 21

Proposed Park Improvements

24

slide-22
SLIDE 22

25

Pedestrian & Accessibility Improvements

  • Southeast corner
  • Northeast corner
  • West hill
slide-23
SLIDE 23

26

Pedestrian & Accessibility Improvements

Public Feedback January 2017:

  • 88% of respondents supportive of creating a pedestrian

connection on west hill

slide-24
SLIDE 24

27

Pedestrian & Accessibility Improvements

West Hill

  • Concerns over loss of

recreational use

  • Need for accessible connection

to playground and down hill from St. Catherines Street

  • Coordination with community

garden

General Accessibility

  • Uneven track surfacing,

connection to washroom

  • VCC muster station
  • Accessible parking
slide-25
SLIDE 25

28

Pedestrian Connection & Accessibility

slide-26
SLIDE 26

29

Pedestrian & Accessibility Improvements Public Feedback from May 2017 was supportive of the proposed pedestrian and accessibility improvements.

slide-27
SLIDE 27

30

Pedestrian & Accessibility Improvements

Concerns include:

  • Need for double width stair and

bike runnel to support recreation

  • Bank corners of path for kids

scooters and trikes

  • Consider track surfacing carefully
  • Loss of green space
slide-28
SLIDE 28

31

Playground Replacement

  • Location
  • Outdated
  • CSA compliance
  • Accessibility
slide-29
SLIDE 29

32

Playground Replacement

Public Feedback January 2017:

  • Keep playground in current location
slide-30
SLIDE 30

33

Playground Replacement

  • Include nature play, swings, seating, hillside climbing

elements, zip-line and a slide

  • Ensure playground has inclusive, universally accessible

elements for both children and caregivers

slide-31
SLIDE 31

34

Playground Replacement

slide-32
SLIDE 32

35

Playground Replacement

Feedback from May 2017 indicated general approval

  • Detail design will modify swings

and colour of surfacing based on public feedback

slide-33
SLIDE 33

36

Dog Off-leash Issues

Additional feedback regarding dog

  • ff-leash use in the park:
  • Desire for off-leash area
  • Conflict between park uses
  • Mt. Pleasant identified as

underserved neighbourhood

  • Site specific planning to be

addressed through People, Parks and Dogs Strategy.

slide-34
SLIDE 34

37

Creek Daylighting

China Creek Park

slide-35
SLIDE 35

Early investigations into creek daylighting potential showed:

  • Sewer pipe alignments prohibitive, removal of sports fields
  • Historic contamination remains an issue, risk of leaching
  • Storm water main bisecting park can contain combined sewage

during wet weather

  • Separation of the China Creek sewer catchment will continue in

future capital plans

38

Creek Daylighting

slide-36
SLIDE 36

39

Green infrastructure Opportunities

  • “False Creek Flats Area

Plan”

  • Staff have opportunity for GI

project

  • Rain water collection at 7th

Ave high point

  • Explored during detail

design

slide-37
SLIDE 37
  • Board decision
  • Detail design - Summer & Fall 2017
  • Contract award - Winter 2018
  • Construction - Spring 2018
  • Glen Pump Station replacement on an independent timeline

40

Schedule – Proposed Park Improvements

slide-38
SLIDE 38

Glen Pump Station Replacement

41

slide-39
SLIDE 39

42

Glen Pump Station

X

slide-40
SLIDE 40

43

Purpose of the Pump Station

8th Avenue Interceptor

slide-41
SLIDE 41

44 8th Avenue Interceptor Highbury Int. Iona Treatment Plant Glen Pump Station

Purpose of the Pump Station

slide-42
SLIDE 42
  • Direct sewage towards the treatment plants
  • Eliminate discharges into the environment
  • Protect water quality
  • Protect human health
  • Enable recreational use of water bodies

45

Purpose of the Pump Station

slide-43
SLIDE 43
  • Installed in 1972 (45 yrs old)
  • Reached the end of its service life
  • Must be updated to meet WorkSafeBC requirements
  • At risk of spilling if not replaced
  • Spill/overflows would discharge into False Creek
  • Limited capacity to accommodate growth
  • Location linked to proximity of adjacent utilities

46

Glen Pump Station

slide-44
SLIDE 44

47

Utility Statutory Right of Way

slide-45
SLIDE 45
  • Minimize impacts to the ball diamond and reduce the physical

footprint of the facility

  • Integrate the pump station into the park
  • Top Desired Amenities include:
  • Washrooms
  • Water fountain
  • Seating Area (Benches, Picnic Tables)

48

Public Feedback – January 2017

slide-46
SLIDE 46

Design Response

  • Pumps, odour control, and other mechanical equipment placed

underground below the building superstructure,

  • Include public washroom facility, and
  • Improvements to southeast corner of the park (improved

accessibility, seating, water fountain, interpretive graphic display).

49

Public Feedback – January 2017

slide-47
SLIDE 47

50

Conceptual Design and Site Layout

slide-48
SLIDE 48
  • Interpretive Display

51

Interpretive Graphic Display

slide-49
SLIDE 49

Overall, community members are in favour of the concept design for new pump station, washroom and interpretive panel.

52

Public Feedback – June 2017

Pump Station & Washrooms Interpretive Panel

slide-50
SLIDE 50
  • Board decision
  • Detailed Design and Permits ~ 6 months
  • Construction Start – Spring 2018
  • Project Completion – Spring 2019

53

Schedule for Pump Station

slide-51
SLIDE 51

Financing

54

slide-52
SLIDE 52

The playground, track re-surfacing, and west hill connections will be funded through the Park Board’s capital playground, pathway and accessibility programs for parks

  • Estimated cost of the park upgrades is $800K
  • Revised at detail design phase
  • Funding is to be addressed in the 2018 budget

55

Finance

slide-53
SLIDE 53

The Glen Pump Station and associated works will be funded by Engineering's Pump Station Capital Program, including:

  • Universal washroom facility
  • Interpretive panel
  • Drinking fountain
  • Seating
  • Accessibility improvements on the southeast corner

56

Finance

slide-54
SLIDE 54

57

Strategic Plan

The proposed improvements for China Creek North Park align with the four directions and nine goals as identified in the Vancouver Park Board’s Strategic Framework.

slide-55
SLIDE 55

58

Summary

Many of the existing features in China Creek North Park have reached the end of their lifespan and require replacement

  • Playground, track, circulation and accessibility, pump station
  • Park Board will receive added amenities
  • Strong support for proposed improvements
  • Alignment with Strategic Plan
  • Proceeding to detail design phase, will allow new amenities to be

delivered on schedule.

slide-56
SLIDE 56
  • A. THAT the Vancouver Park Board approve the proposed

playground replacement, stairway and accessible pathway improvements in China Creek North Park, as described in the report;

  • B. THAT the Board approve the replacement of the Glen

Pump Station and building including a public washroom facility, in China Creek Park North as described in this report; and

59

Recommendation

slide-57
SLIDE 57
  • C. FURTHER THAT the Board authorize the establishment
  • f one or more right of way agreements for the

development and operations of the Pump Station facility and other sewerage infrastructure in form and content satisfactory to the Park Board General Manager, City Engineer, and Director of Legal Services.

60

Recommendation
