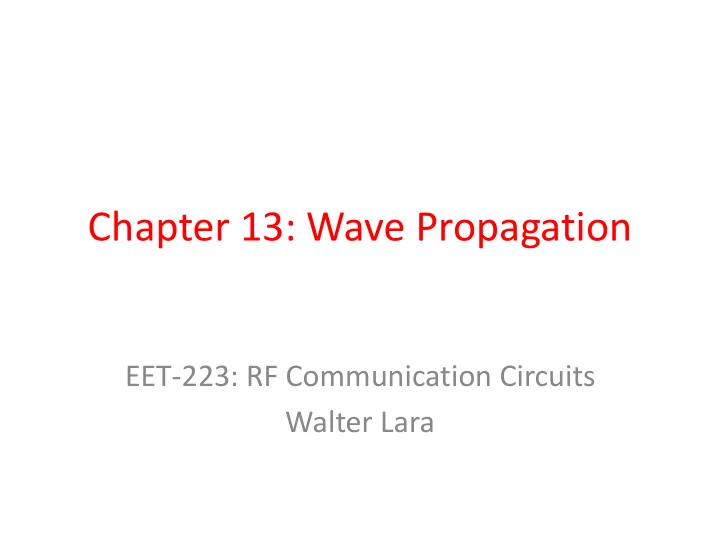

Chapter 13: Wave Propagation

EET-223: RF Communication Circuits Walter Lara

Electrical to Electromagnetic Conversion

• Since the atmosphere is not a conductor of

electrons (instead a good insulator), electrical energy must be converted into another form of energy for transmission

• It is converted into electromagnetic energy by a

transmitting antenna and back into electrical energy by a receiving antenna

– Technically speaking an antenna is a transducer – Usable radio wave are at ~1.5 x 104 Hz up to 3 x 1011 Hz – A light bulb also converts electrical energy into electromagnetic energy: light at ~5 x 1014 Hz

Electromagnetic Waves

• In free space, an oscillating electric field creates and
• scillating magnetic field, which creates an oscillating

electric field, and so on.

• These two fields contain energy:

– In circuits the energy is returned to the circuit when the fields collapse – In a radio transmitter the antenna is designed not to allow the energy to collapse back into the circuit, but instead to be radiated (or set free) into the form of an electromagnetic (EM) wave (aka radio wave)

• An EM wave electric field, magnetic field and direction
• f propagation are mutually orthogonal (see Fig 13-1)

Figure 13-1 Electromagnetic wave.

Wavefronts

• An isotropic point source is a point in space that

radiates electromagnetic radiation in all directions

• A wavefront is a surface joining all points of equal

phase in an electromagnetic wave (see Fig 13-2)

• The power density at a waveform is given by:

P = 𝑸𝒖 𝟓𝝆𝒔𝟑

Where: Pt = transmitted power (Watts) r = distance from source (meters)

Figure 13-2 Antenna wavefronts.

Waves not in Free Space

• Reflection occurs when a radio wave bounces off an
• bject or a surface of a different medium

– Similar to light waves reflected in a mirror – Angle of incidence equals angle of reflection (see Fig13-3)

• Refraction occurs when radio waves pass from a

medium of one to another of different density

– See illustration on Fig 12-4 – The angle of incidence (θ1) and the angle of refraction (θ2) are related by the Snell’s Law: n1 sin θ1 = n2 sin θ2 Where: nx: refractive index for medium x (water: 1.33, glass: 1.5)

Figure 13-3 Reflection of a wavefront.

Figure 13-4 Wave refraction and reflection.

Waves not in Free Space – Cont’d

• Diffraction is the phenomenon whereby radio

waves traveling in straight paths “bend” around an

• bstacle (see Fig. 13-5)

– Result of Huyges’s principle: each point in a wavefront may be considered as the source of a secondary spherical wavefront – Explains radio reception behind a mountain or tall building – Lower frequencies tend to bend more, higher frequencies tend to bend less, they’re more directional (that’s why a subwoofer can be anywhere, while tweeters must be aimed at listener)

Figure 13-5 Diffraction around an object.

Ground And Space Propagation

• There are four basic modes of getting a radio wave

from the transmitting to a receiving antenna:

– Ground Wave – Space Wave – Sky Wave – Satellite Communication (SATCOM)

• The frequency of the radio wave is of primary

importance in considering the performance of each type of propagation

Ground-Wave Propagation

• A Ground Wave (aka Surface Wave) is a radio wave

that travels along earth’s surface due to diffraction

• It travels better traveling over a conductive surface

such as sea water

• Losses increase with increasing frequency - not

very effective above 2 MHz

• Only way to communicate with submarines

– Extremely Low Frequencies (ELF) propagation is used – ELF range from 30 to 300 Hz

Space-Wave Propagation

• A Space Wave can be classified as a direct wave

(line-of-sight) or ground reflected wave (Fig 13-6)

• Because of diffraction, a direct space wave can

travel ~ 4/3 greater than line-of-sight. This distance is known as the radio horizon (see Fig 13-7) and can be approximated as: 𝒆 ≅ 𝟑𝒊𝒖 + 𝟑𝒊𝒔

Where: d = radio horizon (mi) ht = transmitting antenna height (ft) hr = receiving antenna height (ft)

Space-Wave Propagation – Cont’d

• Ghosting is a condition that occurs when the same

signal arrives at a TV receiver at two different times; the reflected signal travels farther and is weaker than the direct signal, resulting in double image (see Fig 13-8)

Figure 13-6 Direct and ground reflected space waves.

Figure 13-7 Radio horizon for direct space waves.

Figure 13-8 Ghost interference.

Sky-Wave Propagation

• The ionosphere is a layer of atmosphere from 25 to

250 miles above earth’s surface

– Contains charged particles

• A Sky Wave is a radio wave that is radiated from a

transmitting antenna in a direction toward the ionosphere

– One of the most frequently used methods for long- distance transmission – Waves bounce between the ionosphere via refraction and the ground via reflection (see Fig 13-9) – The alternate bouncing is known as skipping

Figure 13-9 Sky-wave propagation.

Satellite Communication (SATCOM)

• Made possible by placing satellites in geostationary
• rbit (aka geosynchronous or synchronous orbit)

– Fixed location at ~22,300 miles above equator – Keep in place by balance of gravitational forces (earth, sun & moon) and the centrifugal force (rotation around earth) – A satellite is always falling toward earth, but earth is a moving target

• Satellite communication system consists of:

– Uplink: sending signal to a satellite – Orbiting Satellite – Downlink: satellite sending signal to earth

Satellite Communication (SATCOM) – Cont’d

• Satellites require a payload that includes:

– Antennas: transmit and receive signals – Transponders: performs reception, frequency translation and re-transmission – Altitude Controls: performs orbital corrections – See example in Fig 13-16

• A satellite covers a limited area called a footprint

(see Fig 13-17)

• The orbital patterns of satellite are elliptical (see Fig

13-18)

– Perigee: closest distance of orbit to earth – Apogee: farthest distance of orbit to earth

Satellite Communication (SATCOM) – Cont’d

• Satellite Frequency Bands:

– L-Band (1-2 GHz): relatively low frequency, easier to process (less expensive RF equipment), not much bandwidth available. Used for military & mobile phones – C-band (4-8 GHz): used for cruise ships and commercial vessels (remember white domes on cruises) – Ku-Band (12-18 GHz): commonly used for TV, requires pointing accuracy of antennas, subject to rain fade – Ka-Band (26.5 – 40 GHz): requires sophisticated (expensive) RF equipment, commonly used for HDTV, requires pointing accuracy of antennas, subject to rain fade

Figure 13-16 A detailed view of the Boeing 601 satellite. (Courtesy of Boeing.)

Figure 13-17 An example of a satellite footprint.

Figure 13-18 The perigee and apogee of a satellite s orbit.
