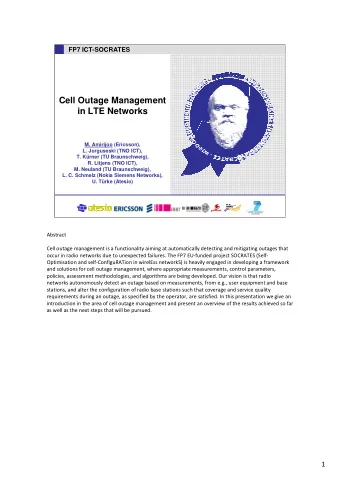

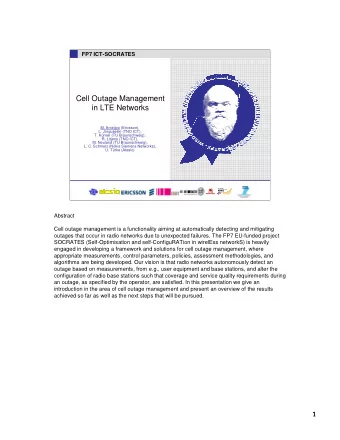

SLIDE 1

FP7 ICT-SOCRATES

Cell Outage Management in LTE Networks

COST 2100 TD(09) 941

  • M. Amirijoo (Ericsson),
  • L. Jorguseski (TNO ICT),
  • T. Kürner (TU Braunschweig),
  • R. Litjens (TNO ICT),
  • M. Neuland (TU Braunschweig),
  • L. C. Schmelz (Nokia Siemens Networks),
  • U. Türke (Atesio)
slide-2
SLIDE 2

WWW.FP7-SOCRATES.EU

2/32 2/

  • Introduction
  • Components in cell outage management
  • First Results on the Controllability Study
  • Concept of X-Map-Estimation
  • Future work

Outline

slide-3
SLIDE 3

WWW.FP7-SOCRATES.EU

3/3

  • The first release of the 3GPP Long Term Evolution (LTE) standard has been

finalized

  • Operators require significant reduction of manual network management for

LTE

  • Introduction of self-organisation functionalities in LTE

– Reduces manual network management – Enhances network performance

  • One aspect that benefits from self-organization is cell outage management

(COM), which consists of:

– Cell outage detection – Cell outage compensation

Introduction

slide-4
SLIDE 4

WWW.FP7-SOCRATES.EU

4/32

  • Reasons for outages, e.g.:

– hardware and software failures, – external failures such as power supply or network connectivity

  • Outages

– may not be detected for hours or even days – may require manual analysis and unplanned site visits

  • Outage detection function must timely inform the operator about the
  • ccurrence and the cause of an outage
  • Automatic compensation actions are triggered to alleviate performance

degradation

Introduction

slide-5
SLIDE 5

WWW.FP7-SOCRATES.EU

5/32

Components of Cell Outage Management Measurements
 Detec-on
 Compensa-on
 Operator
policy:
 Coverage,
QoS
 Control
 parameters
 Cov.
map
 es-ma-on
 Simula-on
tools
 Scenarios
 Assessment
criteria


slide-6
SLIDE 6

FP7 ICT-SOCRATES

First Results on Controllability Study

slide-7
SLIDE 7

WWW.FP7-SOCRATES.EU

7/32

Simulator

  • Monte-Carlo based static simulator

will be used for cell outage compensation due to

– Simpler modeling and – Faster execution time

  • At each iteration an eNodeB

(sector):

– Samples/gathers performance – Updates radio parameters

  • The time between two iterations is

assumed to be in the order of minutes or tens of minutes

– Small correlation between the

samples

– Correlation is ignored

UE
genera-on
 Simulate
PHY,
RRM
etc
 Sample
Performance
 Compensa-on
Algorithm
 Final

 snapshot?
 No
 Round
of
algorithm
itera-on
 Pathloss
(G‐matrix)
 Cell
Selec-on


slide-8
SLIDE 8

WWW.FP7-SOCRATES.EU

8/32

Scenarios

  • Data traffic characterised by requested data rate DL = 1 Mbps and UL = 250 kbps
  • Quality/Coverage targets

– 10th-% DL Throughput > 256 kbps – 10th-% UL Throughput > 128 kbps

  • Loads

– High load: load such that coverage/quality targets are satisfied (46 UEs/cell) – Medium load: 50 % of high load (23 UEs/cell) – Low load: 1 UE/cell

  • Capacity driven layout

– ISD = 500 m – Antenna downtilt = 15º – Consider high load, medium load, low load

  • Coverage driven layout

– ISD = such that coverage/quality targets are satisfied => ISD = 2450 m – Antenna downtilt = 5º – Consider low load

slide-9
SLIDE 9

WWW.FP7-SOCRATES.EU

9/32

Definitions

  • Assessed region = first and second tier of sectors surrounding outage site
  • Cell grouping:

– Group 1 = Blue group – Group 2 = Yellow group – Affected = 1st and 2nd tier of sectors

and outage cells

  • Considered metrics:

– Coverage (RS&DL&UL) – Quality: smallest 10-percentile DL & UL cell throughput

  • Control parameters:

– Reference signal (RS) power – Tilt – UL power control parameter P0 (target received power)

slide-10
SLIDE 10

WWW.FP7-SOCRATES.EU

10/32

Coverage Driven Layout – RS Power

Need to increase the RS power to enhance coverage

Group 1 RS power (ratio of nominal power )/ dB Group 1 RS power (ratio of nominal power )/ dB Group 2 RS power (ratio of nominal power )/ dB

slide-11
SLIDE 11

WWW.FP7-SOCRATES.EU

11/32

Coverage Driven Layout – RS Power

Need to decrease the RS power to enhance UL quality

Group 1 RS power (ratio of nominal power )/ dB Group 2 RS power (ratio of nominal power )/ dB

slide-12
SLIDE 12

WWW.FP7-SOCRATES.EU

12/32

Capacity Driven Layout – High Load

Uptiling improves coverage (nominal tilt = 15 degrees)

slide-13
SLIDE 13

WWW.FP7-SOCRATES.EU

13/32

Capacity Driven Layout – High Load

Uptiling decreases DL and UL quality

slide-14
SLIDE 14

WWW.FP7-SOCRATES.EU

14/32

Overall Summary of Simulation Results

Impact on coverage Impact on DL quality Impact on UL quality Capacity-driven, high load 87.5-94.5% 75-94% 86-99% 80-185 kbps 110-225 kbps 70-220 kbps 55-105 kbps 10-100 kbps 15-110 kbps Capacity-driven, medium load 87.5-94.5% 81-98% 86-99% 170-340 kbps 210-410 kbps 125-400 kbps 160-250 kbps 50-250 kbps 60-250 kbps Capacity-driven, low load 91.5-94.5% 75-99% 86-99% Not affected Not affected Not affected Not affected Not affected Not affected Coverage-driven, low load 92.5-96.5% 55-96% 82-96% Not affected Not affected Not affected 120-210 kbps 170-250 kbps 80-200 kbps

Control parameter = RS power, P0, Tilt

slide-15
SLIDE 15

WWW.FP7-SOCRATES.EU

15/32

Conclusion

  • RS power, P0 and tilt have impact on coverage and DL/UL quality

– Degree of impact depends on network layout and load

  • Coverage

– Tilt has highest impact – Impact of P0 depends on load – RS power has lowest impact

  • DL quality

– All parameters have impact for capacity driven and high/medium load

  • UL quality

– All parameters have impact for capacity driven and high/medium load – P0 also impacts coverage driven layout (low load)

slide-16
SLIDE 16

WWW.FP7-SOCRATES.EU

16/32

Scenario

  • Hexagonal grid, 19 sites with 3 sectors each
  • eNodeB height = 32 m, UE height = 1.5 m
  • BW = 10 MHz
  • Max BS power = 46 dBm, Max UE power = 25 dBm
  • RS power ~ 10% Ptotal
  • Noise spectral density:

– DL N0 ≈ -199 dBW/Hz – UL -195 dBW/Hz

  • Pathloss = 128.1 + 37.6 log10(r) [3GPP@2GHz]
  • Shadowing STD = 8dB
  • Shadowing correlation = 0.5 (sites), 1 (sectors)
  • Decorrelation distance = ISD / 15;
  • Minimum coupling loss = 75 dB;
  • 3GPP 3D antenna model
slide-17
SLIDE 17

WWW.FP7-SOCRATES.EU

17/32

FP7 ICT-SOCRATES

Concept of X-Map Estimation

slide-18
SLIDE 18

WWW.FP7-SOCRATES.EU

18/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Objective

– To automatically derive X-maps based on UE measurements and other sources

  • f information requiring minimal human effort
  • Main principle

– Connect UE event/measurements with estimated position – Gather UE reports to build map relating geo reference data and metric of interest

  • X-map can show, e.g.,

– Coverage related entities, e.g., pathloss, RSRP – Interference – End user perception (e.g. voice quality, throughput) – HO performance (success ratio, drop ratio)

Concept of X-Map-Estimation

slide-19
SLIDE 19

WWW.FP7-SOCRATES.EU

19/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

Concept of X-Map-Estimation cont.

  • A UE delivers a measurement entitiy, e.g.

– Reference Signal Received Power (RSRP) – CQI

  • UE position information is essential in order to derive X-maps
slide-20
SLIDE 20

WWW.FP7-SOCRATES.EU

20/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

...

Implementaion of X-Map-Estimation

UE source 1 UE source n Planning tool X-Map Est

Measurement entity, Position estimate, Confidence, (RAT) X-Map Initial condition

Localization & Measurement Manager

Measurement entity, (Position) Prediction, Confidence

slide-21
SLIDE 21

WWW.FP7-SOCRATES.EU

21/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

Accuracy of X-Map Estimation

  • Confidence of measurement depends on

– Positioning accuracy – Measurement accuracy

  • Positioning accuracy is a function of, e.g.:

– Radio environment (urban, suburban, indoor, outdoor) – Number of measured RBSs – Dynamic range of UE – Positioning technique

  • SOCRATES

– is not interested in developing positioning techniques – assumes that proper positioning techniques are in place – is interested on good position error models

slide-22
SLIDE 22

WWW.FP7-SOCRATES.EU

22/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • For LTE three different localisation methods are planned

– GPS – Observed Time Difference of Arrival (OTDOA) – Enhanced cell ID positioning methods

  • Model for the position error based on the Cramér-Rao lower bound
  • This model is based on the

– Geometry of eNodeBs / satellites and the UE – Number of measured signals – Standard deviation of the measurement error

(for GPS: 33.3 ns)

  • In the following preliminary results for GPS and OTDOA are shown

Position Error Modelling

slide-23
SLIDE 23

WWW.FP7-SOCRATES.EU

23/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Small realistic scenario of

1.5 km x 1.5 km in Braunschweig

  • Static and mobile users based on

a mobility model

  • Network information available
  • Realistic path loss information

derived from a prediction model

  • Satellite orbit for a specific date

and time

Simulation Scenario

Source: Google Earth 5.0

slide-24
SLIDE 24

WWW.FP7-SOCRATES.EU

24/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

Position Error Modelling - GPS

  • Application of Ray-Tracing to determine LOS Satellite-MS
slide-25
SLIDE 25

WWW.FP7-SOCRATES.EU

25/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Direct path between UE and satellite  satellite is visible

Position Error Modelling - GPS

number of visible satellites histogram

slide-26
SLIDE 26

WWW.FP7-SOCRATES.EU

26/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • At the moment successive positions are uncorrelated
  • Next step: applying some kind of filter to get a "flat" route

Position Error Modelling - GPS

slide-27
SLIDE 27

WWW.FP7-SOCRATES.EU

27/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Mean error: 7.4 m
  • Standard deviation: 4.9 m

Position Error Modelling - GPS

position error in m distribution function

slide-28
SLIDE 28

WWW.FP7-SOCRATES.EU

28/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

Poistion Error Modelling - OTDOA

inter-site distance in km histogram

  • Statistics on inter-site distance in simulation scenario
slide-29
SLIDE 29

WWW.FP7-SOCRATES.EU

29/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig

Position Error Modelling - OTDOA

σ = 38.9 ns 5 7 10 15 20 30 mean error 14.9 8.9 3.8 4.5 3.9 3.1 standard deviation 11.4 5.8 6.0 2.8 2.4 1.9 position error in m distribution function

slide-30
SLIDE 30

WWW.FP7-SOCRATES.EU

30/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Finalise the position error modelling

– Applying filter to get a flat route – Applying OTDOA in case of no GPS position – Determining number of measured eNodeBs based on path loss and SINR – Determining standard deviation of measurement error based on SINR

  • Modelling UE measurement accuracy
  • Applying X-Map-Estimation to SON use cases
  • Determining the required accuracy for SON

Next Steps in Position Error Modelling

slide-31
SLIDE 31

WWW.FP7-SOCRATES.EU

31/32

WWW.FP7-SOCRATES.EU

  • Prof. Dr.-Ing. Thomas Kürner, TU Braunschweig
  • Finalise the position error modelling

– Applying filter to get a flat route – Applying OTDOA in case of no GPS position – Determining number of measured eNodeBs based on path loss and SINR – Determining standard deviation of measurement error based on SINR

  • Modelling UE measurement accuracy
  • Applying X-Map-Estimation to SON use cases
  • Determining the required accuracy for SON

Next Steps in Position Error Modelling

?

slide-32
SLIDE 32

WWW.FP7-SOCRATES.EU

32/32 32/

  • M. Amirijoo (Ericsson), mehdi.amirijoo@ericsson.com
  • L. Jorguseski (TNO ICT), ljupco.jorguseski@tno.nl
  • T. Kürner (TU Braunschweig), t.kuerner@tu-bs.de

(presenting author)

  • R. Litjens (TNO ICT), remco.litjens@tno.nl
  • M. Neuland (TU Braunschweig), m.neuland@tu-bs.de
  • L. C. Schmelz (Nokia Siemens Networks), lars.schmelz@nsn.com
  • U. Türke (Atesio), tuerke@atesio.de

Contact

slide-33
SLIDE 33

Thank you very much for your attention

FP7 ICT-SOCRATES
