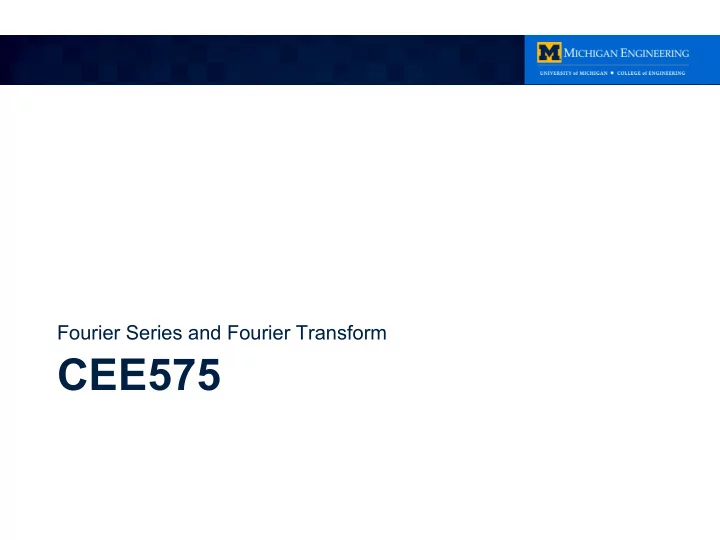

Fourier Series and Fourier Transform

Recap

• Fourier’s theorem loosely states that that every function can be completely expressed as

a sum of sines and cosines of various amplitudes and frequencies.

• The Fourier series tells you the amplitude and frequency of the sines and cosines that you

should add up to recreate your original function

Source: http://mathtools.stanford.edu/reader/Ch5_Fourier_Analysis.pdf

Signals: When time domain analysis is not enough

Once we’ve collected data using an ADC, we often need to process and analyze it. This could entail:

• Cleaning up the data/signal (Filtering)
• Extracting “interesting” parts of the data stream

Time (noisy) Frequency Example: extracting damage info from accelerometer readings

Interesting Noise Noise

Example 2: filtering out noise on agoutis signals

• Say you are recording whale noise in the ocean using

a piezo sensor.

• There is a lot of background noise, and all you want to

do is extract the the actual whale call:

Interesting

Time (noisy) Frequency

Joseph Fourier

(21 March 1768 – 16 May 1830)

Remember

Example

http://maxim.ece.illinois.edu/teaching/fall08/lec8.pdf

Animation: http://en.wikipedia.org/wiki File:Fourier_series_and_transform.gif

Power spectrum representation

• For the square wave example, you could see that not every component sine wave

contributed equally to the final summed signal. Some have higher amplitudes (are more important) than others

• Once we know the Fourier series for a square wave, the square wave can easily be

expressed in the frequency domain. This involves plotting the amplitude or the power

• spectrum. These spectrums will tells us about the relative importance of each sine

component

• dd

amplitude frequency

Power=Ampltide2

Step by step

• A nice example of Fourier’s Theorem is the creation of a

square wave by summing the appropriate component sine

• waves. Since this function is odd, the only contribution

waves will be sines (see course notes)

• In the figure below, the top panels represents a waveform

and the bottom panel represents the sine waves that are added together to form the waveform. Each column contains one more component sine wave than the previous

• panel. As you can see, as you add up more sine waves,

the resulting waveform starts to look more and more like a square wave

The frequency-, or power-spectrum, tells us how prevalent any given frequency component is etc… Notice how some frequencies are not even present in our reconstruction

Another look

The figure below is another simple example of plotting the same signal in both the time domain and frequency domain. The sine waves represented by the top two rows are summed to create the waveform in the bottom row. The right column shows how much power is in each frequency (“power spectrum”). Notice that the power is zero at most frequencies. This is because the waveforms in this example are composed of either 1 or 2 sine waves, so most frequencies are not contributing any power to the signal.

A closer look at amplitude and phase

https://engineering.purdue.edu/ME365/Textbook/chapter8.pdf

The power of the transform

Sensor Difficult to interpret Easier to interpret

The Fourier transform

See notes…

Visualizing various transforms

FT DTFT DFT/FFT Discrete Discrete Continuous Discrete Continuous Continuous t x(t) n x[n] n x[n] ω X(ω) ω X(ω) Ω X[Ω]

Visualizing various transforms

FT DTFT DFT/FFT Discrete Discrete Continuous Discrete Continuous Continuous t x(t) n x[n] n x[n] ω X(ω) ω X(ω) Ω X[Ω]

Most Useful In real world

Real-world use: a note on sampling

Sampling

Aliasing examples

Nyquist sampling rate

Reminder – to avoid aliasing, sample at twice (or more) of the expected

• frequencies. E.g. If you know your sensor gives you signals up to 200 KHz,

measure at 500-600KHz to avoid aliasing.

Harry Nyqist (1889–1976)

Gist: Sample twice as fast as you would need to capture the highest frequency you are interested in. A good rule of thumb is to actually sample 4-6 times as fast, just to be safe (more on this later). Example: If we are measuring building motion (up to 1KHz), Nyquist would tell us to measure at 2KHz, but to be safe we will measure at 5KHz.

FFT: See notes…

FFT visualized

http://www.dspguide.com/ch12/2.htm

Working with signals in MATLAB

In most real-world scenarios, for collected sensor information, your will know the following:

• Fs – The sampling frequency (Hz, or some other inverse time unit)
• delta_t (Ts) – Sampling interval (s, or some time unit)
• Note that Delta_t=1/Fs. If you know one, you know the other
• N – The number of data points
• X – the vector of signal data points (length N), in most cases the voltage read by the ADC

MATLAB

• To plot the data in reasonable units, we need to create a time vector
• t = 0:t_delta:(N-1)*t_delta;
• Then just plot the data
• plot(t,x);

Taking the FFT

We can now take the fft of our signal using the FFT function Y= fft(x); To plot this in a physically meaningful way, we need to calculate the DFT frequency vectored. Remember that for k data points, the DFT will sample the frequency spectrum at locations 2*pi*k/N. Then we can define f_delta = (Fs/N); f=0:f_delta:f_delta*(N-1); And then plot (plot only half the outputs due to symmetry): plot(f(1:N/2),abs(Y_noisy(1:N/2))); xlabel('Freqeuncy (Hz)'); ylabel('Amplitude');
