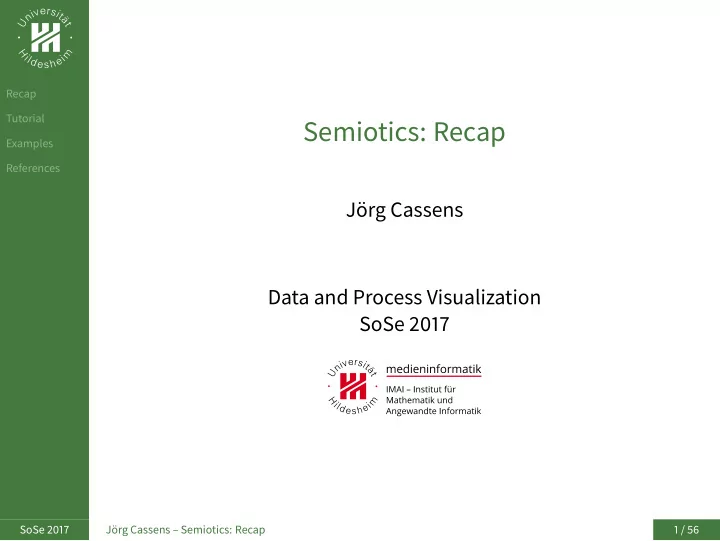

Semiotics: Recap

Jörg Cassens Data and Process Visualization SoSe 2017

SoSe 2017 Jörg Cassens – Semiotics: Recap 1 / 56

slide-2
SLIDE 2

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Outline

1

Recap History Communicate Semiotics Classification Framework

2

Tutorial

3

Examples

SoSe 2017 Jörg Cassens – Semiotics: Recap 2 / 56

slide-3
SLIDE 3

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

History

SoSe 2017 Jörg Cassens – Semiotics: Recap 3 / 56

slide-4
SLIDE 4

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

1786

Playfair – trade deficits (Source: Tufe (2001))

SoSe 2017 Jörg Cassens – Semiotics: Recap 4 / 56

slide-5
SLIDE 5

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

1845

John Snow – Cholera Epidemic of London (Source: Tufe (2001))

SoSe 2017 Jörg Cassens – Semiotics: Recap 5 / 56

slide-6
SLIDE 6

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

1845

John Snow – Cholera Epidemic of London (Detail) (Spence, 2014)

SoSe 2017 Jörg Cassens – Semiotics: Recap 6 / 56

slide-7
SLIDE 7

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

1855

Florence Nightingale – Cause of death over time (Source: Jänicke (2016))

SoSe 2017 Jörg Cassens – Semiotics: Recap 7 / 56

slide-8
SLIDE 8

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

1869

Charles Minard – Napoleon’s Russian Campaign

SoSe 2017 Jörg Cassens – Semiotics: Recap 8 / 56

slide-9
SLIDE 9

Size of Army, Location on Map (2 dimensions), Direction of Movement, Temperatures and Dates

slide-10
SLIDE 10

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Communicate

SoSe 2017 Jörg Cassens – Semiotics: Recap 10 / 56

slide-11
SLIDE 11

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Communication: Kirk

Source: Kirk (2012)

SoSe 2017 Jörg Cassens – Semiotics: Recap 11 / 56

slide-12
SLIDE 12

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Communication: Shannon & Weaver

“by telecommunications engineers” Source: Shannon & Weaver, here: Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 12 / 56

slide-13
SLIDE 13

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Communication: Riley & Riley

“by sociologists” Source: Riley & Riley, here: Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 13 / 56

slide-14
SLIDE 14

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Communication: Wegener

“by a semiotician”

Grounding Function Grounding Function Person Sign Expression Plane Content Plane Organizing Function Organizing Function Expression Plane Content Plane physical biological context socio material context

Meaner Receiver

Meaner Potential Semantics Grammar Behaviour Components Meaning Potential Interface Function Interface Function

Source: Wegener (2011, 2015)

SoSe 2017 Jörg Cassens – Semiotics: Recap 14 / 56

slide-15
SLIDE 15

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Semiotics

SoSe 2017 Jörg Cassens – Semiotics: Recap 15 / 56

slide-16
SLIDE 16

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Peirce

Introduces different types of signs in society In the end, he had something like 66, but we look at 3:

Iconic – looks like what it is meant to mean Indexical – contextual connection (smoke and fire) Symbolic – arbitrary like language

The semiotic triangle is his theory behind this model

SoSe 2017 Jörg Cassens – Semiotics: Recap 16 / 56

slide-17
SLIDE 17

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Peirce

Introduces different types of signs in society In the end, he had something like 66, but we look at 3:

Iconic – looks like what it is meant to mean Indexical – contextual connection (smoke and fire) Symbolic – arbitrary like language

The semiotic triangle is his theory behind this model Sign Object Interpretant

SoSe 2017 Jörg Cassens – Semiotics: Recap 16 / 56

slide-18
SLIDE 18

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Sign

The key notion in any semiotics is the ‘sign’ Different starting point: not descriptive like Peirce, but functional and social Drawing on next slide was made by a 3-year-old boy

Sitting on his father’s lap, he talked about the drawing as he was doing it “Do you want to watch me? I’ll make a car ...got two wheels ...and two wheels at the back ...and two wheels here ...that’s a funny wheel ...” When he had finished, he said, “This is a car.”

This was the first time he had named a drawing, and at first the name was puzzling How was this a car? He had provided the key himself: ‘Here’s a wheel.’ (Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 17 / 56

slide-19
SLIDE 19

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Sign

The key notion in any semiotics is the ‘sign’ Different starting point: not descriptive like Peirce, but functional and social Drawing on next slide was made by a 3-year-old boy

Sitting on his father’s lap, he talked about the drawing as he was doing it “Do you want to watch me? I’ll make a car ...got two wheels ...and two wheels at the back ...and two wheels here ...that’s a funny wheel ...” When he had finished, he said, “This is a car.”

This was the first time he had named a drawing, and at first the name was puzzling How was this a car? He had provided the key himself: ‘Here’s a wheel.’ (Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 17 / 56

slide-20
SLIDE 20

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

A Car

Source: Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 18 / 56

slide-21
SLIDE 21

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Car-ness

A car, for him, was defined by the criterial characteristic ‘has wheels’, and his representation focused on this aspect What he represented was, in fact, ‘wheelness’ Wheels are a plausible criterion to choose for 3-year-olds, and the wheel’s action, on toy cars as on real cars, is a readily noticed and describable feature This boy’s interest in cars was, for him, most plausibly condensed into and expressed as an interest in wheels Wheels, in turn, are most plausibly represented by circles (Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 19 / 56

slide-22
SLIDE 22

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Car-ness

A car, for him, was defined by the criterial characteristic ‘has wheels’, and his representation focused on this aspect What he represented was, in fact, ‘wheelness’ Wheels are a plausible criterion to choose for 3-year-olds, and the wheel’s action, on toy cars as on real cars, is a readily noticed and describable feature This boy’s interest in cars was, for him, most plausibly condensed into and expressed as an interest in wheels

Choosing what to represent (“the signified”)

Wheels, in turn, are most plausibly represented by circles (Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 19 / 56

slide-23
SLIDE 23

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Car-ness

A car, for him, was defined by the criterial characteristic ‘has wheels’, and his representation focused on this aspect What he represented was, in fact, ‘wheelness’ Wheels are a plausible criterion to choose for 3-year-olds, and the wheel’s action, on toy cars as on real cars, is a readily noticed and describable feature This boy’s interest in cars was, for him, most plausibly condensed into and expressed as an interest in wheels

Choosing what to represent (“the signified”)

Wheels, in turn, are most plausibly represented by circles

Choosing how to represent (“the signifier”)

(Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 19 / 56

slide-24
SLIDE 24

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-25
SLIDE 25

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-26
SLIDE 26

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-27
SLIDE 27

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-28
SLIDE 28

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-29
SLIDE 29

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-30
SLIDE 30

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-31
SLIDE 31

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Representation

Definition

Shortened version: “We see representation as a process in which the makers of signs (...) seek to make a representation of some object or entity, whether physical or semiotic, and in which their interest in the object (...) is (...) arising out of the cultural, social and psychological history of the sign-maker, and focused by the specific context in which the signmaker produces the sign. That ‘interest’ is the source of the selection

  • f what is seen as the criterial aspect of the object, and this

criterial aspect is then regarded as adequately representative of the object in a given context. In other words, it is never the ‘whole object’ but only ever its criterial aspects which are represented.” Kress and van Leeuwen (2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 20 / 56

slide-32
SLIDE 32

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Sign-Making

The criterial aspects are represented in what seems to the sign-maker the most apt and plausible fashion, and the most apt and plausible representational mode Sign-makers thus ‘have’ a meaning, the signified, which they wish to express, and then express it through the semiotic mode(s) that make(s) available the subjectively felt, most plausible, most apt form, as the signifier This means that in social semiotics the sign is not the pre-existing conjunction of a signifier and a signified, a ready-made sign to be recognized, chosen and used as it is We see signs as motivated – not as arbitrary – conjunctions

  • f signifiers (forms) and signifieds (meanings)

Signs are never arbitrary, and ‘motivation’ should be formulated in relation to the sign-maker and the context in which the sign is produced, (Kress and van Leeuwen, 2006)

SoSe 2017 Jörg Cassens – Semiotics: Recap 21 / 56

slide-33
SLIDE 33

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Classification Framework

SoSe 2017 Jörg Cassens – Semiotics: Recap 22 / 56

slide-34
SLIDE 34

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Classification

Starting with the types of questions users have, the framework supports the selection of data mining and visualization work flows as well as deployment options that answer these user questions. We look at the following aspects

Level of analysis Types of analysis Intended audience (and/or producer) Medium used

Some projects aim to answer more than one question

SoSe 2017 Jörg Cassens – Semiotics: Recap 23 / 56

slide-35
SLIDE 35

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Level of Analysis

Micro level, or the individual level

Small data sets, typically between 1 and 100 records e.g. a person and his friends

  • Meso or the group level

About 101 to 10,000 records e.g. researchers at a single university

Macro, global or population level

Typically exceeding 10,000 records e.g. pertaining an entire country

SoSe 2017 Jörg Cassens – Semiotics: Recap 24 / 56

slide-36
SLIDE 36

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Types of Analysis

Statistical Analysis/Profiling

What are the entities that are being described (e.g. persons, grants, publications)?

Temporal Analysis: When

Does the visualization show a development over time?

Geospatial Analysis: Where

Does the visualization include information about location?

≡ Topical Analysis: What

What is the topical area of the visualization?

▽ Network Analysis: With Whom

Does the visualization contain information about social networks?

SoSe 2017 Jörg Cassens – Semiotics: Recap 25 / 56

slide-37
SLIDE 37

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Audience

Gender – are we targeting a certain gender? ⑤ Age – is it intended for certain age groups? Education – is the level of education important Disability – are disabilities taken into account (for example colour blindness)? Contextual parameters, e.g.

Leisure – related to our leisure Business – related to business Scientific – related to science Religious – related to religion Any other information defining the audience

SoSe 2017 Jörg Cassens – Semiotics: Recap 26 / 56

slide-38
SLIDE 38

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Medium

✎ Printed medium Digital medium ✇ Time-based – visualizing information using time ⊙ Location-based – spatially visualizing information Modality Text – contains text ֠ Modality Sound – contains sound Interactive visualization Other – other information about the medium

SoSe 2017 Jörg Cassens – Semiotics: Recap 27 / 56

slide-39
SLIDE 39

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Framework

Level Micro level

  • Meso level

Macro level Type Profiling Temporal Geospatial ≡ Topical ▽ Network Audience Gender ⑤ Age Education Disability Context, e.g.

Leisure Business Scientific Religious Other

Medium ✎ Printed Digital ✇ Time-based ⊙ Spatial With Text ֠ With Sound Interactive Other

SoSe 2017 Jörg Cassens – Semiotics: Recap 28 / 56

slide-40
SLIDE 40

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Metafunctions

Metafunctions: The function of the communication Systemic clusters; groups of semantic systems that make meanings of a related kind

Ideational – representing ‘the world around and inside us’

Logical – logical–semantic relationships Experiential – representation of reality, experiences the meaner has

Interpersonal – enacting social interactions as social relations Textual – a coherent ‘world of the text’, organisation of ‘text’

SoSe 2017 Jörg Cassens – Semiotics: Recap 29 / 56

slide-41
SLIDE 41

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Field

Definition

“The FIELD OF DISCOURSE refers to what is happening, to the nature of the social action that is taking place: what is it that the participants are engaged in, in which the language figures as some essential component?” (Halliday and Hasan, 1985) Ideational – representing ‘the world around and inside us’ On the contextual stratum, realised as “Field of Discourse”

What is the domain? What are the long term or short term goals? What is the structure, what are the networks of interaction?

Level and type of analysis pertain to the field

SoSe 2017 Jörg Cassens – Semiotics: Recap 30 / 56

slide-42
SLIDE 42

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Tenor

Definition

“The TENOR OF DISCOURSE refers to who is taking part, to the nature of the participants, their status and roles: What kinds of role relationship obtain among the participants [...], both the types of speech role that they are taking on in the dialogue and the whole cluster of socially significant relationships in which they are involved?” (Halliday and Hasan, 1985) Interpersonal – enacting social interactions as social relations On the contextual stratum, realised as “Tenor of Discourse”

What is the power structure between actors involved? What is the agentive role? What is the competence of the actors?

The audience (and producer) pertains to the tenor

SoSe 2017 Jörg Cassens – Semiotics: Recap 31 / 56

slide-43
SLIDE 43

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Mode

Definition

“The MODE OF DISCOURSE refers to what part the language is playing, what is it that the participants are expecting to do for them in that situation: the symbolic organisation of the text, the status that it has, and its function in the context ...and also the rhetorical mode, what is being achieved by the text in terms of such categories as persuasive, expository, didactic, and the like.” (Halliday and Hasan, 1985) Textual – a coherent ‘world of the text’, organisation of ‘text’ On the contextual stratum, realised as “Mode of Discourse”

What medium is used? What is the type of interaction (dialogic, monologic)? What is the rhetorical thrust?

The medium used pertains to the mode

SoSe 2017 Jörg Cassens – Semiotics: Recap 32 / 56

slide-44
SLIDE 44

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-45
SLIDE 45

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-46
SLIDE 46

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

Communication

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-47
SLIDE 47

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

Communication Field Tenor Mode

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-48
SLIDE 48

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

Communication Field Tenor Mode

Level and Type of Analysis

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-49
SLIDE 49

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

Communication Field Tenor Mode

Level and Type of Analysis Information about Audience and Producer

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-50
SLIDE 50

Recap

History Communicate Semiotics Classification Framework

Tutorial Examples References

Categories & Metafunctions

Communication Field Tenor Mode

Level and Type of Analysis Information about Audience and Producer Information about Modality and Codality

SoSe 2017 Jörg Cassens – Semiotics: Recap 33 / 56

slide-51
SLIDE 51

Recap Tutorial Examples References

Outline

1

Recap

2

Tutorial

3

Examples

SoSe 2017 Jörg Cassens – Semiotics: Recap 34 / 56

slide-52
SLIDE 52

Recap Tutorial Examples References

Recap 2.2: Collecting Visualizations

Deliverable

For the next two weeks, you should collect interesting Visualizations you come across You should use the framework introduced to describe the different visualizations You should be able to present one or two examples of visualizations

Classification according to the framework Shortfalls of the framework

Deliverable:

Monday, 24.4., 18:00, learnweb Monday, 24.4., in the course

SoSe 2017 Jörg Cassens – Semiotics: Recap 35 / 56

slide-53
SLIDE 53

Recap Tutorial Examples References

Recap 2.3: Preparing Visualizations

Deliverable

In the course of a normal day, make notes of examples in which data is represented visually, aurally or by tactile means Aferwards, identify whether, for each example, the data has value (numeric, ordinal or categorical) or is a relation Sketch a possible visualization for this data

Classification according to the framework Shortfalls of the framework

Deliverable:

Monday, 24.4., 18:00, learnweb Monday, 24.4., in the course

SoSe 2017 Jörg Cassens – Semiotics: Recap 36 / 56

slide-54
SLIDE 54

Recap Tutorial Examples References

Assignment 3.1: Examples Revisited

Group Work

Without consulting the slides, sketch what you can remember of

Minard’s record, Nightingale’s diagram and Snow’s Soho map.

In other words, externalize your mental models of those representations. By means of sketches explore alternative ways of representing the data encoded in the representations of Minard, Nightingale, Snow and Beck.

SoSe 2017 Jörg Cassens – Semiotics: Recap 37 / 56

slide-55
SLIDE 55

Recap Tutorial Examples References

Assignment 3.2: Small Visualization Task

Group Work

A small data set is being handed out You should classify the visualization according to the framework introduced Discuss in the group how to visualize the data set Prepare a visualization and present it in class

SoSe 2017 Jörg Cassens – Semiotics: Recap 38 / 56

slide-56
SLIDE 56

Recap Tutorial Examples References

Outline

1

Recap

2

Tutorial

3

Examples

SoSe 2017 Jörg Cassens – Semiotics: Recap 39 / 56

slide-57
SLIDE 57

Recap Tutorial Examples References

Academic-Industry Collaboration I

Example by Börner and Polley (2014)

Data set of funded projects & proposals With industry and academic partners Geo-coding industry and academic institutions and

  • verlaying their positions

and collaboration network

  • n a map of Indiana

Nodes size-coded by the total dollar amount of all awards

SoSe 2017 Jörg Cassens – Semiotics: Recap 40 / 56

slide-58
SLIDE 58

Recap Tutorial Examples References

Academic-Industry Collaboration II

Example by Börner and Polley (2014)

Level and Type

– 2001-2006 – Indiana, US ▽– Acad.-Indus. Collab

Audience

Media & Politicians Businesspeople Scientists

Media

Digital representation ⊙ Spatially encoded Uses text Search Interface

SoSe 2017 Jörg Cassens – Semiotics: Recap 41 / 56

slide-59
SLIDE 59

Recap Tutorial Examples References

Activity Bursts in Publications I

Example by Börner and Polley (2014)

Data set of publications in

  • ne journal over 20 years

Detecting bursts (sudden increase in keyword use) in top 10% articles Node size relates to “suddenness” Node colour represents year Lines are co-occurances

SoSe 2017 Jörg Cassens – Semiotics: Recap 42 / 56

slide-60
SLIDE 60

Recap Tutorial Examples References

Activity Bursts in Publications II

Example by Börner and Polley (2014)

Level and Type

– 1982-2001 ≡– Biomedical ▽– Word co-occ.

Audience

Media & Politicians Scientists

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 43 / 56

slide-61
SLIDE 61

Recap Tutorial Examples References

Physical Locations Matter I

Example by Börner and Polley (2014)

Same data set Data set of publications in

  • ne journal over 20 years

Does location still matter in the internet age? Lef: Location and distance Right: log of distance (x) vs log of citations (y) Researchers cite more locally

SoSe 2017 Jörg Cassens – Semiotics: Recap 44 / 56

slide-62
SLIDE 62

Recap Tutorial Examples References

Physical Locations Matter II

Example by Börner and Polley (2014)

Level and Type

– 1982-2001 – USA ▽– Citation network & locations

Audience

Media & Politicians Scientists

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 45 / 56

slide-63
SLIDE 63

Recap Tutorial Examples References

Project Collaborations I

Example by Börner and Polley (2014)

Project collaboration for

  • ne scholar

Data on all her projects funded by NSF Nodes: projects (green) and researchers (white or photo) Node size: grant size Lines: co-investigator

SoSe 2017 Jörg Cassens – Semiotics: Recap 46 / 56

slide-64
SLIDE 64

Recap Tutorial Examples References

Project Collaborations II

Example by Börner and Polley (2014)

Level and Type

– 2001-2006 ▽– Project – co-investigator

Audience

Media & Politicians Scientists Colour-blind

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 47 / 56

slide-65
SLIDE 65

Recap Tutorial Examples References

Co-Authorship I

Example by Börner and Polley (2014)

Co-authorship in one journal Authors labelled by name Node size # publications Node colour # citations Lines size # collaborations Lines colour year of 1st collaboration

SoSe 2017 Jörg Cassens – Semiotics: Recap 48 / 56

slide-66
SLIDE 66

Recap Tutorial Examples References

Co-Authorship II

Example by Börner and Polley (2014)

Level and Type

– 1986-2004 ▽– co-author

Audience

Publishers Scientists

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 49 / 56

slide-67
SLIDE 67

Recap Tutorial Examples References

Individual Experts or Teams I

Example by Börner and Polley (2014)

Same data set Node size # papers Node colour # citations i.e. how ofen cited Lines width # co-author Lines colour first year

SoSe 2017 Jörg Cassens – Semiotics: Recap 50 / 56

slide-68
SLIDE 68

Recap Tutorial Examples References

Individual Experts or Teams II

Example by Börner and Polley (2014)

Level and Type

– 1986-2004 ▽– co-author

Audience

Politicians Scientists Colour-blind

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 51 / 56

slide-69
SLIDE 69

Recap Tutorial Examples References

Funding I

Example by Börner and Polley (2014)

Impact of different kinds

  • f funding by an agency

One graph for each of two funding types Node size denotes citations Node colour denotes funding number Links denote co-authorship

SoSe 2017 Jörg Cassens – Semiotics: Recap 52 / 56

slide-70
SLIDE 70

Recap Tutorial Examples References

Funding II

Example by Börner and Polley (2014)

Level and Type

▽– co-author

Audience

Politicians Scientists

Media

Digital representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 53 / 56

slide-71
SLIDE 71

Recap Tutorial Examples References

Chinese Collaboration I

Example by Börner and Polley (2014)

Global collaboration network of Scientists at Chinese Academy of Sciences Aggregated on country level Countries colour coded on log of # collaborations Width of flow lines also collaboration

SoSe 2017 Jörg Cassens – Semiotics: Recap 54 / 56

slide-72
SLIDE 72

Recap Tutorial Examples References

Chinese Collaboration II

Example by Börner and Polley (2014)

Level and Type

– World ▽– Collaboration network & locations

Audience

Media & Politicians Colour blind Scientists

Media

✎ Printed representation ⊙ Spatially encoded Uses text

SoSe 2017 Jörg Cassens – Semiotics: Recap 55 / 56

slide-73
SLIDE 73

Recap Tutorial Examples References

Semiotics: Recap

Jörg Cassens Data and Process Visualization SoSe 2017

SoSe 2017 Jörg Cassens – Semiotics: Recap 56 / 56

slide-74
SLIDE 74

Recap Tutorial Examples References

References I

Börner, K. and Polley, D. E. (2014). Visual Insights – A Practical Guide to Making Sense of Data. MIT Press, Cambridge, Massachussetts. Halliday, M. A. and Hasan, R. (1985). Language, Context, and Text: aspects of language in a scoial-semiotic perspective. Deakin University Pres, Geelong, Australia. Jänicke, H. (2016). Vorlesung visualisierung. online. Kirk, A. (2012). Data Visualization – A Successful Design Process. PACKT Publishing, Birmingham. Kress, G. and van Leeuwen, T. (2006). Reading Images – The Grammar of Visual Design, 2nd Edition. Routledge, London. Spence, R. (2014). Information Visualization – An Introduction, 3rd Edition. Springer, Heidelberg. Tufe, E. R. (2001). The Visual Display of Quantitative Information, 2nd Edition. Graphics Press, Cheshire, Connecticut. Wegener, R. (2011). Parameters of context: from theory to model and

  • application. PhD thesis, Department of Linguistics, Macquarie University.

Wegener, R. (2015). Continuing Discourse on Language. A functional perspective, Vol. 1, chapter Studying language in society and society through language: context and multimodal communication. Equinox.

SoSe 2017 Jörg Cassens – Semiotics: Recap 57 / 56
