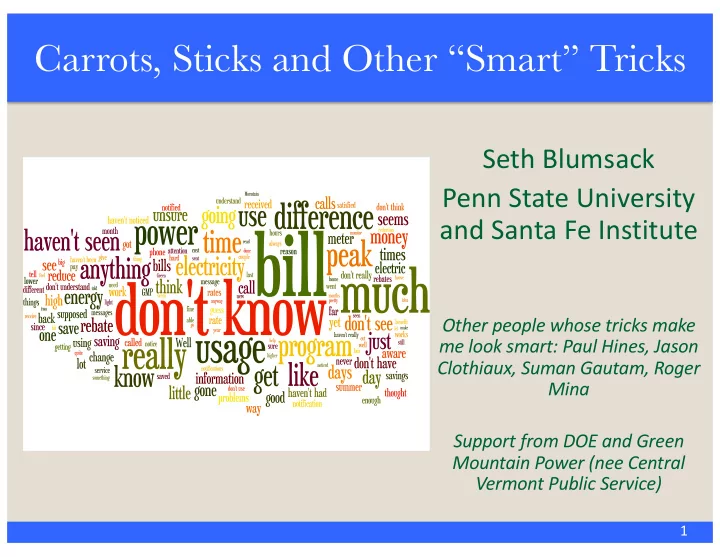

Carrots, Sticks and Other “Smart” Tricks

Seth Blumsack Penn State University and Santa Fe Institute

Other people whose tricks make me look smart: Paul Hines, Jason Clothiaux, Suman Gautam, Roger Mina Support from DOE and Green Mountain Power (nee Central Vermont Public Service)

1

Carrots for Smart Grid Tricks!

2

• Research funded through a

Smart Grid Investment Grant(SGIG) program to eEnergy Vermont, a utility consortium.

• SGIG provided substantial

ARRA funding for “smart grid” deployment, but DOE dangled carrots in front of utilities who were willing to conduct “consumer behavior studies.”

Carrots for Smart Grid Tricks!

3

Download our reports here: https://smartgrid.gov/project/vermont_transco_llc_eenergy_vermont.html

Carrots and Sticks

4 Source: Sanem Sergici, Brattle Group

eEnergy Vermont Experiment

5

eEnergy Vermont Experiment

6

• RCT involving 3,735 GMP residential customers in Rutland;
• Opt-in to enroll; opt-out at any time;
• Event-based study with 24-hour notification of “peak days,” rate

treatments: peak pricing, peak rebates and a transition group who started on a rebate and were moved to peak pricing;

• Tech and no-tech groups;
• Notification mode choices (phone, e-mail, text message);
• Detailed pre/mid/post study surveys.

eEnergy Vermont Experiment

7

eEnergy Vermont Experiment

8

Rate/Information-Treatment Technology-Treatment IHD No&IHD IHD No&IHD IHD No&IHD Flat&Rate&w/Notification No&IHD Flat&Rate&w/o&Notification No&IHD Critical&Peak&Price&(CPP) Critical&Peak&Rebate&(CPR) CPR&in&Year&1,&CPP&in&Year&2

~ 4,000 customers involved in the pilot. A “Hawthorne” group was created but no Hawthorne effect detected.

!$(0.70)! !$(0.60)! !$(0.50)! !$(0.40)! !$(0.30)! !$(0.20)! !$(0.10)! !$.!!!! !$0.10!! !$0.20!! 1! 2! 3! 4! 5! 6! 7! 8! 9! 10! 11! 12! 13! 14! 15! 16! 17! 18! 19! 20! 21! 22! 23! 24! Rate%($%per%kWh)% Regular!Rate! PTR!credit!

The Carrot: Critical Peak Rebates (CPR)

9

Consumers are given a credit for measured reductions in electricity use during declared peak periods

!$#!!!! !$0.10!! !$0.20!! !$0.30!! !$0.40!! !$0.50!! !$0.60!! !$0.70!! 1! 2! 3! 4! 5! 6! 7! 8! 9! 10! 11! 12! 13! 14! 15! 16! 17! 18! 19! 20! 21! 22! 23! 24! Rate%($%per%kWh)% Regular!Rate! CPP!Rate!

The Stick: Critical Peak Pricing (CPP)

10

Electric rate increases during declared peak periods, but is slightly lower (relative to flat- rate) during all other periods.

In Home Device (Circa the Stone Age)

11

CPR, CPP and GMP

• Some utilities have run pilot

programs that use peak-time

• rebates. Others have used

critical-peak pricing.

• GMP was convinced to do
• both. This made their state

regulator confused, and a little

• irritated. Aren’t peak prices

and peak rebates basically the same thing? Why punish the poor people of Vermont?

12

Image source: NPR

Framing Gains and Losses

“The aggravation that one experiences in losing a sum of money appears to be greater than the pleasure associated with gaining the same amount.” - Kahneman and Tversky, 1979

13 Graphic: Annika Todd, LBNL

• Avoiding a loss is

somehow preferred to achieving a gain that is identical in magnitude.

• Suggests that we should

expect larger savings from CPP than CPR

• Can ratepayers be trained

to like the stick?

Data and Estimation

14

) yit = β + β jTij

j

∑

+ βk

DBDBik k

∑

+ βk

DEDEik k

∑

+ βk

DADAik k

∑

+ β jk

DE(k) k

∑

TijDBkt + β jk

DB(k) k

∑

TijDEkt

j

∑

j

∑

+ β jk

DB(k) k

∑

TijDAkt

j

∑

+βt

CDCDt + βt HIHIt +εit

• 15-minute interval meter data for several thousand GMP

residential customers in Rutland

• Plus some socio-economic data (house size, appliance stock,

income, education, household size, etc)

Weekday Load Shapes

Blumsack, 11 Aug 2010 15

Event-Day Behavior, 2012 and 2013

16

IHD Customers, 2012 Non-IHD Customers, 2012 IHD Customers, 2013 Non-IHD Customers, 2013

Average Peak Time Load Reductions

17

!0.16& !0.14& !0.12& !0.10& !0.08& !0.06& !0.04& !0.02& 0.00&

Average'Hourly'KW'Difference'During'Event' Hours'(Treatment':'No:No<fica<on'Control)' CPR' CPR+IHD' CPP' CPP+IHD' Flat'Rate'w/ no<fica<on' 5.3%& 7.4%& 14.1%& 7.3%& 6.5%&

Before/During/After Event

18

Monetary Savings

Blumsack, 11 Aug 2010 19

So, What Did We Learn?

20 Source: Sanem Sergici, Brattle Group

Capacity Value of Retail DR

21

!50%% !40%% !30%% !20%% !10%% 0%% 10%%

1% 2% 3% 4% 5% 6% 7% 8% 9% 10% 11% 12% 13% 14%

Flat%Rate%w/No8fica8on% CPR!CPR% CPR!CPR%w/IHD% CPP!CPP% CPP!CPP%w/IHD% CPR!CPP% CPR!CPP%w/IHD% 2012%Events % % % %2013%Events% %%9/12%%%%%%%%9/21%%%%%%%%9/25%%%%%%%%%10/5%%%%%%%%7/5%%%%%%%%%%7/15%%%%%%%%7/16%%%%%%%%7/17%%%%%%%%7/18%%%%%%%%7/19%%%%%%%%8/13%%%%%%%8/21%%%%%%%%8/22%%%%%%%%%8/28% %%%%78°%%%%%%%%%%%69°%%%%%%%%%%65°%%%%%%%%%%%%70°%%%%%%%%86°%%%%%%%%%%%%88°%%%%%%%%%%87°%%%%%%%%%%%89°%%%%%%%%%%87°%%%%%%%%%%%90°%%%%%%%%%%68°%%%%%%%%%82°%%%%%%%%%%%82°%%%%%%%%%%%%83°%

How Not to be Popular!

22

100 200 300 400

• No. of customers

4/12 5/12 6/12 7/12 8/12 9/12 10/12 11/12 12/12 1/13 2/13 3/13 4/13 5/13 6/13 7/13 8/13 9/13 20 40 60 80 100 Percent Month CPR CPR+IHD CPP CPP+IHD CPRCPP CPRCPP+IHD Control

How Not to be Popular!

23

100 200 300 400

• No. of customers

4/12 5/12 6/12 7/12 8/12 9/12 10/12 11/12 12/12 1/13 2/13 3/13 4/13 5/13 6/13 7/13 8/13 9/13 20 40 60 80 100 Percent Month CPR CPR+IHD CPP CPP+IHD CPRCPP CPRCPP+IHD Control

Who dropped out???

• Receive Peak-Time

Notification by Phone

• Younger Customers
• Large Households

How Not to be Popular!

24

100 200 300 400

• No. of customers

4/12 5/12 6/12 7/12 8/12 9/12 10/12 11/12 12/12 1/13 2/13 3/13 4/13 5/13 6/13 7/13 8/13 9/13 20 40 60 80 100 Percent Month CPR CPR+IHD CPP CPP+IHD CPRCPP CPRCPP+IHD Control

Period of interim surveys

Actions Reported

25

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% CPR CPR+IHD CPP CPP+IHD Flat7Rate7 w/Notification Proportion(of(Customers(Who(Reported(Taking(Each(Action Thermostat7Settings Turn7off7Lights Appliance7Timers Delay7Laundry Delay7Cooking Adjust7Air7Conditioning

Efficacy-Popularity Frontier

26

0% 2% 4% 6% 8% 10% 12% 14% 16% 0% 5% 10% 15% 20% 25% Average Peak Time Demand Reduction Proportion Viewing Pilot Favorably CPP + IHD CPR Notification Only CPP CPR + IHD

How Do Consumers Value Smart Grids?

27

Monetary Savings 41% Like Conserving Energy 14% Like the IHD Technology 5% Improvement in Service 40%

“They knew where we were when we had power outages”

• -GMP customer

(without IHD)

Words Are Worth a Thousand Pictures

28

CPR Customers CPP Customers

Utility Lessons

Sticks work better than carrots… Customers DO respond to incentives… Information CAN be useful…

29

…but sticks are unpopular, especially after dangling carrots before customers/regulators. …but not persistently enough to have much (retail) capacity value. …but the supporting systems need to become as EASY as making coffee.

A Final Musing

30

• Why do households

care about the carrot

• r the stick?
• GMP customers each

saved tens of cents during every peak event!

• What motivates

customers? Does the penny make the conservation choice more or less complicated?

Thank You!

Seth Blumsack blumsack@psu.edu
