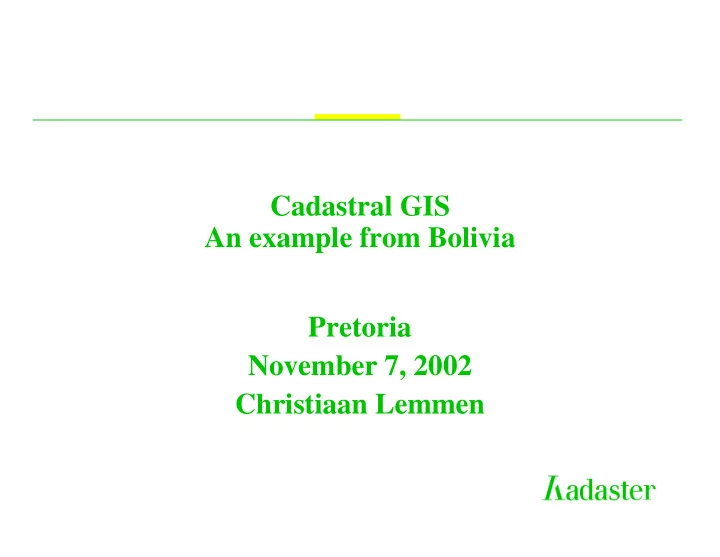

Cadastral GIS An example from Bolivia Pretoria November 7, 2002 Christiaan Lemmen

slide-2
SLIDE 2
slide-3
SLIDE 3

Foto: Edgar Dueri

slide-4
SLIDE 4

Foto: Ximena Pereira

slide-5
SLIDE 5

Foto: Eric Lawrie

slide-6
SLIDE 6

Foto: Eric Lawrie

slide-7
SLIDE 7

Foto: Raul Guarachi

slide-8
SLIDE 8

– If one buys a piece of land from someone else, how can this person be sure the other

  • ne is the real owner of all land involved?
slide-9
SLIDE 9

– If one buys a piece of land how can he or she be sure this land is not included in a TCO (Tierras Comunitarias de Origen) area? Or in a communidad?

slide-10
SLIDE 10

– If one wants to invest in new buildings or in agricultural development and wants to establish mortgage, how can the bank be sure that the person requesting the mortgage holds the ownership on the complete land?

slide-11
SLIDE 11

– If one buys a piece of land how can he or she be sure this specific piece of land is ‘free’ of mortgage?

slide-12
SLIDE 12

– 5.1 million ha – Data collection, data ‘cleaning’ – Design of a maintenance proces – Database and application

Chuquisaca Project, Bolivia

slide-13
SLIDE 13
slide-14
SLIDE 14

Information to the Public

slide-15
SLIDE 15

Aerial Photographs

slide-16
SLIDE 16

Data Collection: Field Office

slide-17
SLIDE 17

Data Collection

slide-18
SLIDE 18

Data Collection

slide-19
SLIDE 19

Data Collection

slide-20
SLIDE 20

Data Collection

slide-21
SLIDE 21

Data Model

Right Object Subject

Ownership Usofruct Use Mortgage

Other

NP NNP Parcel Apartment

Informal Rights

slide-22
SLIDE 22

Right Object Subject

Cadastre

Input Feedback Throughput Output

Model of Maintenance

slide-23
SLIDE 23

Right Object Subject

Cadastre

Input Feedback Throughput Output

Model of Maintenance

Users Users

slide-24
SLIDE 24

CentralGovernment Provinces Municipalities Brokers Companies for Public Services National Bureau of Statistics Insurance Companies Citizens Notary Surveyors Banks

Cadastre

Users

slide-25
SLIDE 25

Cadastre Public Registers Field Sketches Cadastral Register Cadastral Map Deeds

Basic Components

slide-26
SLIDE 26

Right Subject Object Parcel 1 20 ha Ownership 1/1 NP Juan

Relations

slide-27
SLIDE 27

Right Subject Object Ownership 1/2 NP Juanita Parcel 2 0.2 ha Ownership 1/2 NP Carlos

Relations

slide-28
SLIDE 28

Right Subject Object Parcel 3 4500 ha Ownership 1/1 NNP TCO

Relations

slide-29
SLIDE 29

Ownership 1/1 NNP Municipality Parcel 5 10 ha Ownership 1/1 Parcel 4 70 ha Right Subject Object

Relations

slide-30
SLIDE 30

Ownership 1/2 NP Johanna Parcel 6 50 ha Ownership 1/2 NP Javier Usufruct NNP TCO Right Subject Object

Relations

slide-31
SLIDE 31

Relations

Right Subject Object Parcel 7 20 ha Informal NP Peter

slide-32
SLIDE 32

Right Subject Object Ownership 1/2 NP Jan Parcel 8 1 ha Ownership 1/2 NP Leo Apartment Parcel 8 =>Part 1 Apartment Parcel 8 =>Part 2

Relations

slide-33
SLIDE 33

Foto: Raul Guarachi

slide-34
SLIDE 34

Foto: Eric Lawrie

slide-35
SLIDE 35

Transaction: Establishment of Mortgage

Right Subject Object Parcel 9 1 ha Ownership 1/1 NP Jan Mortgage $ 10.000 NNP Bank Parcel 9 1 ha Ownership 1/1 NP Jan

slide-36
SLIDE 36

Right Subject Object Ownership 1/2 NP Juanita Parcel 10 5 ha Ownership 1/2 NP Pedro Mortgage $ 8.000 NNP Bank Ownership 1/2 NP Juanita Parcel 10 5 ha Ownership 1/2 NP Pedro

Transacción: Constitución de Hipoteca

slide-37
SLIDE 37

Transaction: Division

Right Subject Object Parcel 11 5 ha Ownership 1/1 NP Maria Ownership 1/1 NNP Municip Parcel 12 3 ha Ownership 1/1 NP Maria Parcel 13 2 ha

slide-38
SLIDE 38

Cadastral Map

slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42

Platform

Windows 2000 Windows 2000 (Microsoft) (Microsoft) Oracle 8i Oracle 8i (Oracle) (Oracle) GeoMedia GeoMedia Professional Professional (Intergraph) (Intergraph) Visual Basic Visual Basic (Microsoft) (Microsoft) Industrial Standards

slide-43
SLIDE 43

SAC (Automated Cadastral System) – Urban and rural cadastre – Transparent – Simple structure – First System to maintain cadastral data in Bolivia

slide-44
SLIDE 44

Funcionality of the SAC

– Cadastral maintenance (object, subject, right) – Information supply – Geometric data and topology – Parcel identifiers + area calculation – Cadastral certificate – Application at national level – Data security, authorisation – Data conversion from other projects

slide-45
SLIDE 45

Processes – Alfa-numerical maintenance – Graphical maintenance, surveying – Information supply – Quality improvement – Management analyses – Notification

slide-46
SLIDE 46

Field survey

01-1 02-3 03-4 04-3 05-2 06-7 29-7 28-7 100 99-7 (orientation) 10-1 21-5 22-2 23-2 24-2 25-2 26-2 12-2 11-2 15-1 16-2 17-2 18-2 19-2 20-8 14-2

T L M

T: tacheometer L: measuring line M: distance-series

slide-47
SLIDE 47

Remarks – It’s very easy to make a cadastral infrastructure very complex, it’s very complex to make it easy – Cadastre is there for it’s users - not the

  • ther way around...
slide-48
SLIDE 48

Thank you
