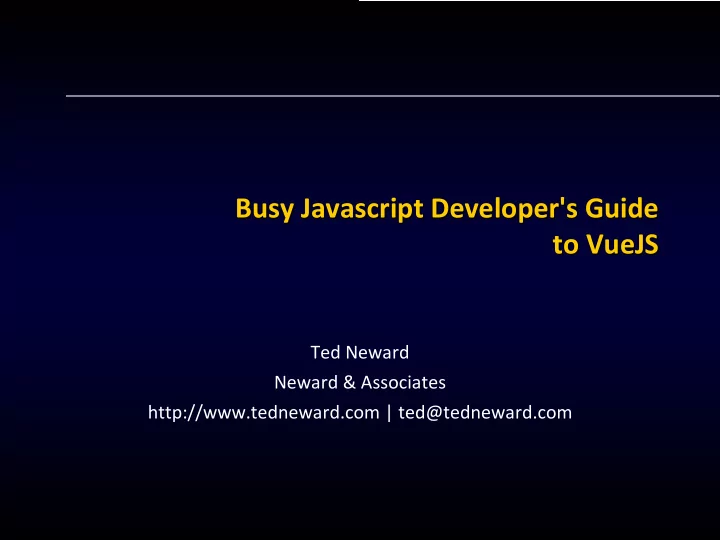

SLIDE 1

Busy Javascript Developer's Guide to VueJS

Ted Neward Neward & Associates http://www.tedneward.com | ted@tedneward.com

SLIDE 2

VueJS: An Overview

SLIDE 3

VueJS

What is VueJS?

"An incrementally adoptable ecosystem that scales between a library and a full-featured framework." "Vue is a progressive framework for building user interfaces. ... Vue is designed from the ground up to be incrementally

adoptable. The core library is focused on the view layer
nly, and is easy to pick up and integrate with other

libraries or existing projects. On the other hand, Vue is also perfectly capable of powering sophisticated Single-Page Applications when used in combination with modern tooling and supporting libraries."

SLIDE 4

VueJS

But how is it like....?

– React:

runtime perf is a wash (for the most part)
in React, everything is JS; Vue "embraces classic [Web]

technologies"

Vue supports JSX (but suggests it's a touch simpler)
both scale up (code-wise) well; Vue "scales down" better
native rendering (ReactNative) doesn't really match well to

Vue (yet)

React has larger/richer ecosystem (for now)

SLIDE 5

VueJS

But how is it like....?

– Angular:

Angular is much more opinionated than Vue
Angular's learning curve is much steeper
Angular requires TypeScript; Vue can use it or not as you

choose

SLIDE 6

Objectives

In this presentation, we want to:

– take a quick pass through VueJS – see how it differs from React or Angular

SLIDE 7

Getting Started

Bringing VueJS into your life

SLIDE 8

Getting Started

For the simplest use possible...

– incorporate Vue directly as a script-tag href – this brings Vue onto the page on a per-page basis

SLIDE 9

Getting Started

Simplest Vue usage

<html> <head><title>VueJS simple HTML use</title></head> <script src="https://cdn.jsdelivr.net/npm/vue/dist/vue.js"></script> <body> <h1>This is a straight HTML page!</h1> <div id="app"> {{ message }} </div> <script> var app = new Vue({ el: '#app', data: { message: 'Hello Vue!' } }) </script> </body> </html>

SLIDE 10

Getting Started

If you know you want to do Vue as a SPA...

– ensure you have Node v8.x (or later) installed – install the Vue CLI tool

npm install -g @vue/cli vue --version (should be 3.x or newer)

– NOTE: vue-cli tool (2.x and older) uses different npm package

uninstall vue-cli before installing @vue/cli
these slides assume @vue/cli (3.x and newer) only

SLIDE 11

Getting Started

Use the CLI to scaffold out your project

– vue create {project-name}

follow the interactive prompts

– vue ui

use the launched web GUI to create the project

– each has "presets" of configurations for the project

r you can make manual choices, and save those as a preset

SLIDE 12

Getting Started

Vue CLI

– vue serve: compiles and hot-reloads

particularly useful for per-component execution

– vue build: compiles and minifies for production – vue inspect: inspect the resolved configuration/build – fully documented at https://cli.vuejs.org

SLIDE 13

Getting Started

App.vue

<template> <div id="app"> <img alt="Vue logo" src="./assets/logo.png"> <HelloWorld msg="Welcome to Your Vue.js App"/> </div> </template> <script> import HelloWorld from './components/HelloWorld.vue' export default { name: 'app', components: { HelloWorld } } </script>

SLIDE 14

Getting Started

App.vue styling (CSS)

webkit-font-smoothing: antialiased;
moz-osx-font-smoothing: grayscale;

text-align: center; color: #2c3e50; margin-top: 60px; } </style>

SLIDE 15

Getting Started

HelloWorld.vue

<template> <div class="hello"> <h1>{{ msg }}</h1> </div> </template> <script> export default { name: 'HelloWorld', props: { msg: String } } </script>

SLIDE 16

Getting Started

HelloWorld.vue styling (CSS)

<style scoped> h3 { margin: 40px 0 0; } ul { list-style-type: none; padding: 0; } li { display: inline-block; margin: 0 10px; } a { color: #42b983; } </style>

SLIDE 17

Vue Template Syntax

Vue Views

SLIDE 18

Templates

Two means of providing views

– HTML templates

this is the usual path

– hand-written render functions

for those familiar with Virtual DOM concepts and the raw power of code

SLIDE 19

Templates

Declarative rendering

<div id="app"> {{ message }} </div> <script> var app = new Vue({ el: '#app', data: { message: 'Hello Vue!' } }) </script>

SLIDE 20

Templates

Declarative rendering

– use {{ }} to declaratively render data – binds to a Javascript data element (object, variable, etc) – reactive: if the data changes, the rendering will as well

SLIDE 21

Templates

Binding attributes

<div id="app-2"> <span v-bind:title="message"> Hover your mouse over me for a few seconds </span> </div> <script> var app2 = new Vue({ el: '#app-2', data: { message: 'You loaded this page on ' + new Date().toLocaleString() } }) </script>

SLIDE 22

Templates

Binding attributes

– mustaches ("{{ }}") cannot be used inside of HTML attributes – use v-bind: to bind an attribute to a Javascript expression

without this, can't determine literal value from expressions

– also reactive – v-bind is a directive

all directives are prefixed with "v-"

– some directives take an "argument"

denoted by a colon after the directive name
for example, v-bind:href="..."

SLIDE 23

Templates

Conditional

SLIDE 24

Templates

Conditionals (v-if)

– v-if binds to a Javascript expression

if true, displays the attached element
if false, hides/removes the attached element

– again, reactive, so changes after definition are rendered – v-else-if provides "else-if" functionality

must immediately follow v-if

– v-else provides "else" block

must immediately follow v-if or v-else-if

SLIDE 25

Templates

Iteration

<div id="app-4"> <ol> <li v-for="todo in todos"> {{ todo.text }} </li> </ol> </div> <script> var app4 = new Vue({ el: '#app-4', data: { todos: [ { text: 'Learn JavaScript' }, { text: 'Learn Vue' }, { text: 'Build something awesome' } ] } }) </script>

SLIDE 26

Templates

Iteration (v-for)

– v-for binds to a Javascript expression

typically a "for-in" expression

– element is repeated for each element in the iteration – frequently combined with v-bind:key to obtain key for loop – or use tuple-style syntax v-for='(item, index) in collection' – also works to iterate properties of an object

SLIDE 27

Templates

Event-handling

<div id="app-5"> <p>{{ message }}</p> <button v-on:click="reverseMessage">Reverse Message</button> </div> <script> var app5 = new Vue({ el: '#app-5', data: { message: 'Hello Vue.js!' }, methods: { reverseMessage: function () { this.message = this.message.split('').reverse().join('') } } }) </script>

SLIDE 28

Templates

Events

– v-on directive binds events to Javascript expression

expression can either be inline or call to a Javascript method

– original DOM event can be accessible via $event object – v-on:keyup has suffixes to track only specific key codes

".enter", ".tab", ".delete", ".esc", ".space", ".up", ".down", ".left", ".right" or the numeric key code

SLIDE 29

Templates

Form input

<div id="app-6"> <p>{{ message }}</p><input v-model="message"><br/> <input type="checkbox" id="jack" value="Jack" v-model="checkedNames"> <label for="jack">Jack</label> <input type="checkbox" id="john" value="John" v-model="checkedNames"> <label for="john">John</label> <input type="checkbox" id="mike" value="Mike" v-model="checkedNames"> <label for="mike">Mike</label> <br> <span>Checked names: {{ checkedNames }}</span> </div> <script> var app6 = new Vue({ el: '#app-6', data: { message: 'Hello Vue!', checkedNames: [] } }) </script>

SLIDE 30

Templates

Forms and models

– v-model binds object to user input – the Javascript object/property as the single-source-of-truth – most of the time, this will "do the right thing"

but in cases where strings aren't desired, Vue has customizations

SLIDE 31

Templates

Raw HTML binding

<div id="app-7"> <p>Using mustaches: {{ rawHtml }}</p> <p>Using v-html directive: <span v-html="rawHtml"></span></p> </div> <script> var app7 = new Vue({ el: '#app-7', data: { rawHtml: `<span style="color:red">This shold be red</span>` } }) </script>

SLIDE 32

Templates

"Raw" HTML binding

– v-html informs Vue to interpret expression as HTML – without it, HTML is just displayed as raw text

SLIDE 33

Vue Components

How Vue views the world

SLIDE 34

Components

VueJS suggests organizing concerns into components

– a Vue component has:

a template
code
style

– organized into a single named concept – instantiatable into distinct/separate instances

reusable Vue instances

– often organized into ".vue" files for convenience – ... or define using Vue.component() method

SLIDE 35

Components

Defining a component

– three sections

template: HTML layout and organization
script: Javascript code/structure definition
style: CSS styling

– component must be registered before use

SLIDE 36

Components

Defining a component: .vue file

– typically lives in src/components – <template> section

uses template syntax for HTML "extensions" and declarative syntax

– <script> section

exports JSON object with predefined names

– <style> section

SLIDE 37

Components

ButtonCounter component: src/components/ButtonCounter.vue

<template> <button v-on:click="count++">You clicked me {{ count }} times.</button> </template> <script> export default { name: 'ButtonCounter', data: function() { return { count: 0 } } } </script> <style scoped></style>

SLIDE 38

Components

ButtonCounter component: usage from src/App.vue

<template> <div id="app"> <Message msg="Welcome to VueJS Components"/> <button-counter></button-counter> </div> </template> <script> import Message from './components/Message.vue' import ButtonCounter from './components/ButtonCounter.vue' export default { name: 'app', components: { Message, ButtonCounter } } </script>  <style> #app {

SLIDE 39

Components

Defining a component: Vue.component() method

– typically used for non-scaffolded Vue apps – Vue.component() takes a name and JSON object

name: the 'kebab-named' name to use in the HTML
object: anonymous JSON object with named properties

defining the component's behavior

– object property names

data: function returning a data object used for the

component instance

template: HTML template for display

SLIDE 40

Components

ButtonCounter component: Vue.component registration

Vue.component('button-counter', { data: function() { return { count: 0 } }, template: `<button v-on:click="count++">You clicked me {{ count }} times.</button>` }) var app = new Vue({ el: '#app', data: { message: 'Hello Vue!' } })

SLIDE 41

Components

ButtonCounter component: Usage

<div id="app"> {{ message }} <button-counter></button-counter> </div>

SLIDE 42

Components

Components form a parent-child relationship

– App component uses components, which each use components, which...

this is how we decompose an application into smaller, manageable parts

– parent components need to pass data to child components

through props

– child components need to pass events back up to parent components

through custom events

SLIDE 43

Components

Initial component state: Props

– custom attributes registered for a component – passed in on instantiation (usually in HTML template) – can be of any Javascript type (strings, objects, or others)

Vue recommends the more detail and typing, the better
user-defined types are acceptable here too

– becomes part of the component's data

do not attempt to modify props, however; Vue will warn if you do

SLIDE 44

Components

Content body: Slots

– "body" of the component tag can be obtained as a "slot" – the template will replace "<slot></slot>" with the body inside the usage – slots can be named if it's important to distinguish different content types

think "header", "body", "footer" in certain HTML elements

SLIDE 45

Components

BlogPost component: Definition

<template> <div> <h3>{{ title }}</h3> <slot></slot> </div> </template> <script> export default { name: 'BlogPost', props: { title: { type: String, required: true } }, data: function() { return { } } } </script>

SLIDE 46

Components

Usage (template)

<template> <div id="app"> <Message msg="Welcome to VueJS Components"/> <blog-post v-for='post in posts' v-bind:key="post" v-bind:title="post.title">{{ post.content }}</blog-post> <blog-post>You should not see this since title was missing</blog- post> </div> </template>

SLIDE 47

Components

Usage (script)

SLIDE 48

Components

Custom events

– use $emit() function (of each Vue instance) to emit an event

first parameter is the name, second is any value for the event

– parents can then capture the event using v-on:

SLIDE 49

Summary

Wrapping up

SLIDE 50

Summary

VueJS is...

– a progressive Web framework – slightly opinionated – scalable both up and down (in terms of code size)

SLIDE 51

Summary

Some additional VueJS resources

– https://vuejs.org

canonical reference for VueJS

SLIDE 52

Credentials

Who is this guy?

– Principal -- Neward & Associates – Director, Smartsheet.com

Developer Relations
Solutions Engineering

– Microsoft MVP; Java Expert – Author

Professional F# 2.0 (w/Erickson, et al; Wrox, 2010) Effective Enterprise Java (Addison-Wesley, 2004) SSCLI Essentials (w/Stutz, et al; OReilly, 2003) Server-Based Java Programming (Manning, 2000)
