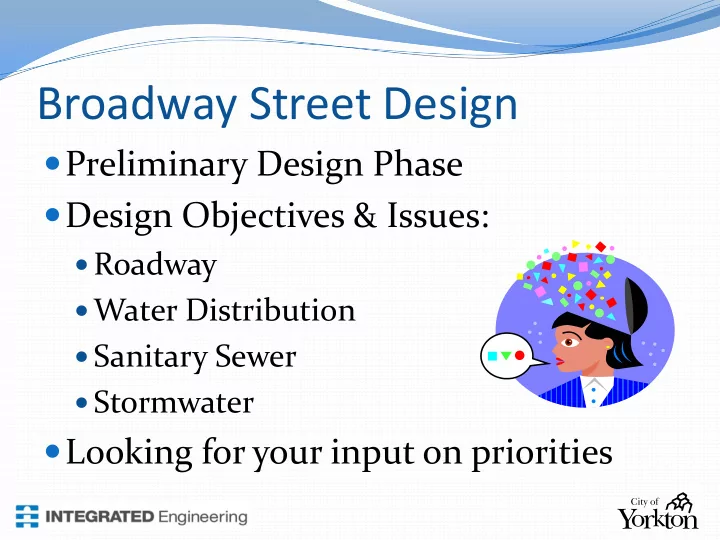

Broadway Street Design Preliminary Design Phase Design Objectives & Issues: Roadway Water Distribution Sanitary Sewer Stormwater Looking for your input on priorities Design Phasing Current - Preliminary Design

SLIDE 1

Broadway Street Design

Preliminary Design Phase Design Objectives & Issues:

Roadway Water Distribution Sanitary Sewer Stormwater

Looking for your input on priorities

SLIDE 2

Design Phasing

Current - Preliminary Design

General Framework to build project Past studies & Stakeholder input Early project configuration

Next – Detailed Design

Details - street by street Project drawings and specifications

SLIDE 3

Project Limits

Yorkton City Limits

SLIDE 4

Road – Dracup to Myrtle

SLIDE 5

Broadway Road Design Objectives

Dracup to Myrtle

Improve pavement structure and sidewalks Similar layout – Lanes/Parking Update roadway geometry current

standards

Transportation Master Plan – Bulb out Increase aesthetic appeal – Landscape Arch No property purchase

SLIDE 6

Road Cross Section

SLIDE 7

Project Limits

Yorkton City Limits

SLIDE 8

Road – Myrtle to Hwy 10

SLIDE 9

Broadway Road Design Objectives

Myrtle to Hwy 10

Improve pavement structure and sidewalks Similar layout – Lanes & TWLTL Gladstone Ave – add N-S left turn lane Bradbrooke Ave – redesign Review sidewalk widths - bikes Maintain mature trees, where possible Increase aesthetic appeal

SLIDE 10

Road Cross Section

SLIDE 11

Roadway Summary

Broadway Revitalization Stronger Pavement Standard driving and parking lanes Intersection improvements Challenges with competing priorities

SLIDE 12

Water and Sewer Infrastructure

General Issues: Age and Capacity

 Main breaks: O & M costs and damaged roadways  Insufficient fire flows: Property insurance and public safety  Sewer main flow restriction: Main cleaning cost and

reduced capacity

 Inflow/infiltration and cross connections: WWTP loading  Sewer backups  Flooding

SLIDE 13

Water and Sewer Infrastructure

SLIDE 14

Water and Sewer Infrastructure

Replace and upsize all:

 Water mains;  Sanitary sewer mains;  Storm sewer mains; and  Service connections

SLIDE 15

Water and Sewer Infrastructure

SLIDE 16

Water and Sewer Infrastructure

General Benefits of Proposed Water and Sewer Changes

More reliable services
Reduced O&M costs
Improved public safety
Future growth of City

Specific Examples:

Reduced water main breaks and associated disruption
Reduced storm water flooding
Reduce sanitary sewer backups
Improved fire flows
