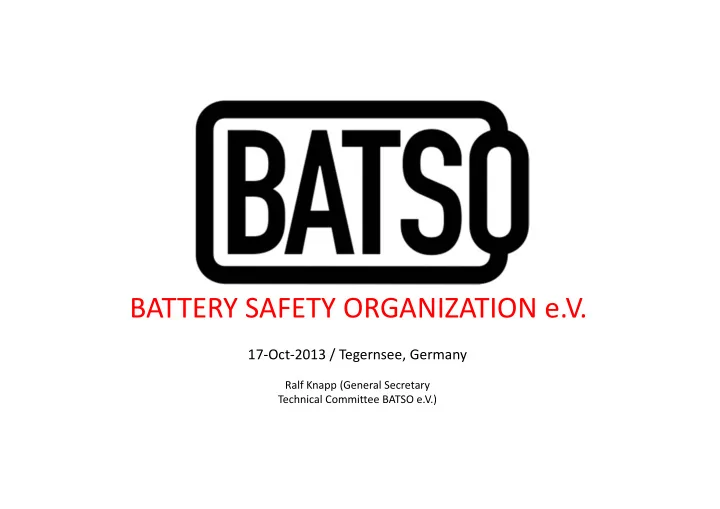

BATTERY SAFETY ORGANIZATION e.V.

17‐Oct‐2013 / Tegernsee, Germany

Ralf Knapp (General Secretary Technical Committee BATSO e.V.)

Stages of BATSO 01 Test Manual Changes in 3rd edition of BATSO 01 Certification of the new BATSO 01

3 4 8

BATSO e.V. Member Meeting 2013 Topic 4 ‐ Table of Content

2 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Stages of BATSO 01 Test Manual

Working Group: 2007 (April) until 2008 (February) First edition: 2008 (March) Second edition: 2011 (March) → new (5th) edition of UN‐T Third edition: 2013 (October) → amendment (A1) of UN‐T

3 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Changes in 3rd edition of BATSO 01

Summary of all changes between 2nd and 3rd editions can be found in a chapter (Annex J) of the new BATSO 01 Test Manual Updates resulting from Amendment 1 of UN‐T Decisions taken and published by BATSO Other corrections and updates

4 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Changes in 3rd edition of BATSO 01

Subsystem Requirements (subclause 1.3) Critical components must be separately certified, and must be applied according to their specified ratings. Tests for Alternative / New Designs (subclause 3.5) A change that would lead to failure of any of the tests described in this Manual requires re‐evaluation (re‐testing). Moreover, all tests have to be conducted with all alternative sources of cells. Test Sequences (subclause 4.4.2) For all sequences of test option 2, it is acceptable to use a new sample for each test item, and to change the order of sequences, and the order of tests within each sequence.

5 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Changes in 3rd edition of BATSO 01

Vibration Endurance Test (subclause 5.1.3 c) Clarification: After completion of each cycle the battery shall be fully charged. Partial Short Circuit Test (subclause 5.1.4) Clarification: location of short circuit for designs with parallel strings. Observation Period (subclause 6.2) For all sequences of test option 2, tested samples shall be

• bserved for (at least) five days after test to check for abnormal

situations in a defined period after the testing sequence.

6 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Changes in 3rd edition of BATSO 01

Overview Transport Regulations (Annex A) Completely revised information with reference to UN, IATA, IMDG. Marking Requirements (Annex C.1) Battery marking requirements were updated: rated capacity without preferance to “Wh”, nominal voltage was added.

7 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.

Certification of the new BATSO 01

Proposed timeline for BATSO‐logo certification procedure: Publication of 3rd edition: October 21st, 2013 Availability for certification: December 1st, 2013* Expiry of 2nd edition: May 31st, 2014 * TRF will be available latest by then; projects applied on December 1st, 2013 or later shall be tested according to BATSO 01:2013‐10.

8 17‐Oct‐2013 BATSO‐ Battery Safety Organization e.V.
