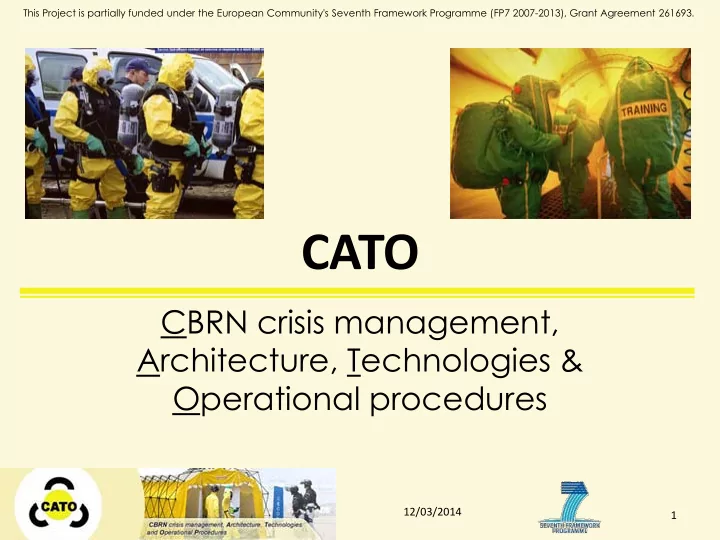

CATO

CBRN crisis management, Architecture, Technologies & Operational procedures

1 12/03/2014

This Project is partially funded under the European Community's Seventh Framework Programme (FP7 2007-2013), Grant Agreement 261693.

A Major initiative on CBRN Preparedness & Response

2 12/03/2014

FP7 Security Call (2009), awarded in 2011, started 01/01/2012 36 months €15m budget, €10m EC funding 25 partners forming a consortia of end users, academics, governments and supplier organisations A Community open to organisations from across Europe involved in CBRN preparedness, planning, exercising, response or recovery Coordination by NESS Technologies and Systems Group CATO aims at developing a comprehensive open toolbox for dealing with CBRN crises due to terrorist attacks using non-conventional weapons or on facilities with CBRN material

Comprehensive & Complementary Expertise

3 12/03/2014

,

CBRN emergency management and first responder Health and pharmaceutical response Broad CBRN expertise Dissemination DSS for crisis handling Ethical expertise Communication strategies Project management

The challenge: fragmented preparedness & response to CBRN threats

4 12/03/2014

National, regional and local authorities lack common CBRN doctrines & SOPs to coordinate preparation and response effectively Numerous independent systems co-exist with little or no interoperability in CBRN preparedness, planning, exercising, response and recovery Knowledge, processes and systems in CBRN incident management are fragmented across agencies and member states

An overall approach to CRBN preparedness and resilience

• The comprehensive

CATO Toolbox addresses the needs

• f all stakeholders

with flexibility and innovation

• The CATO Decision

Support System architecture focuses

• n users and
• rganisational

learning

5 12/03/2014

Preparedness Response n s Integrated Decision & Management Detection Recovery Incident Coordinators Integrated situation assessment CBRN expertise Policy Makers

CATO key deliverables to date - 1 -

• CATO Open Toolbox: first version available
• CATO Lab V1: first integration of a virtual version

6 12/03/2014

CATO Decision Support Systems

Built by combining CBRN expertise, planning & response know-how

7 12/03/2014

Operations officer, Expert, Supervisor, Trainer, General Public, Administration First Responders, Healthcare Agencies, External Organizations, Social Networks, Electronic media Models, Assessments, Optimization, Decision support Entities, Procedures, Algorithm Descriptions, Scenarios, Plans, Guidelines

The CATO Toolbox

8 12/03/2014

• Two types of generic user interfaces - Operational User Interface

and the General Public Interface

User interface

• Core Applications guide the users in the main usage situations -

Planning, Simulation, Response and Debriefing

Core

• DSS can be parameterised with templates for entities, procedures,

algorithms, scenarios and plans in the CATO Knowledge Base

Knowledge Base

• Algorithms tailored to the requirements of specific users and

evolve over time

Algorithms

• Interaction with the systems of the different involved agencies and

the different public media

System interfaces

CATO User Interface

9 12/03/2014

CATO Knowledge Base (Browser)

08/10/2013 10

Stakeholders

CATO Knowledge base (integrated into user interfaces)

11 12/03/2014

CATO Simulation

12 12/03/2014

Shortest passenger cordon around Liverpool Street Station

Example: Cordon Algorithm I

 Cordon calculation output:

• Minimal barrier points at street crossing preventing cars to enter
• Shortest tight cordon along streets covering all road blocking points

12/03/2014

Multi-Agency Systems Interfaces

14

Agency 2 Agency 3 Agency 4 Agency 1 CATO Agency 5

Point to Point (Lots of connections)

Hub Agency 2 Agency 3 Agency 4 Agency 1 CATO Agency 5

Hub and Spoke (Simple Connectivity)

Learning about CBRN attacks: the CATO Laboratory

The CATO Lab is both an example of a prototype implementation of a DSS using the CATO Toolbox and a tool for user dialogue Physical CATO Lab

• CATO equipped facility to support discussions between

policy makers and senior incident commanders

Virtual CATO Lab

• Used for simulation, training and demo purposes
• Accessed via the Internet (www.cato-project.eu)

(for CATO Community members)

• “Trial” versions of technology components
• Designed to
• Encourage stakeholder feedback on work in progress,
• Provide a real capability for practitioners to execute

CBRN exercises during the CATO project lifetime

15 12/03/2014

CATO key deliverables to date - 2 -

• First CBRN response guidelines drafted
• Different stakeholder perspectives
• policy and decision makers
• incident commanders
• first responders
• health responders
• communication strategists and public authorities
• ethics
• Developed through interaction with stakeholders
• C, B, R, N knowledge and guidelines fed into CATO

Knowledge base

16 12/03/2014

Geared for impact

• Toolbox being trialled in several responder agencies
• Demonstrations scheduled with major EU bodies
• DG ENTR,
• DG ECHO (Emergency Response Coordination Centre)
• European Defence Agency
• …
• Interactive events: Conferences, Workshops, Webinars
• Active end-user and expert community of +250 end-

users, subject matter experts, PDMs

• Membership in CATO community gives:
• Access to the CATO Lab and other online resources
• Inclusion in requirements capture and refinement processes
• Invitations to the project major events
• Open to organisations in CBRN preparedness, planning,

exercising, response, recovery …

17 12/03/2014

www.cato-project.eu

An iterative development cycle

18 12/03/2014

Stakeholder & Expert Input

• Requirements
• CBRN knowledge
• Communication & Human Behaviour
• CBRN Scenarios, Models & Algorithms
• CATO Guidelines (Plans & SOPs)

Systems

• CATO Core
• CATO User Interface
• CATO Knowledge Base
• CATO Algorithms
• CATO System Interfaces

Dissemination & Feedback

• MRDD Demo
• CATO Laboratory
• CATO Conferences
• User Advisory Group & User Workshops
• Best Practices
• Training

2nd User Workshop 12-14 March 2014 – Berlin

Project planning

20 12/03/2014

01/01/2012

Project launch

Mid-2012

• System

requirements specification + expert input

• Technical

specifications + design

Autumn 2012

1st CATO User Workshop

Mid 2013

• CATO Lab Opening
• V1 Toolbox implementation

and release

Autumn 2013

1st CATO Conference (9-10th Oct. 2013 – Bonn)

Mid 2014

V2 Toolbox implementation and release

Project end

• V3 Toolbox release

Autumn 2014

Proof of concept / MRDD

24-28 November

FINAL CONFERENCE in Brussels

SAVE THE DATE!!

Announcement

• Upcoming Webinars
• Updating the community members on the toolbox

enhancements

• Providing tutorials on how to familiarise with the lab

interface…

• Contact cato-conference@eurtd.com
• Conferences
• Final Conference between 24-28 November 2014 in Brussels
• Register in CATO Community: www.cato-project.eu

21 12/03/2014

Contact us for further information

CATO Coordinator

cato-coordinator@eurtd.com

NESS Atidim, POB 58180 Tel Aviv 61581, Israel

CATO Project Office

cato-po@eurtd.com

ARTTIC 58A Rue du Dessous des Berges Paris 75013 France
