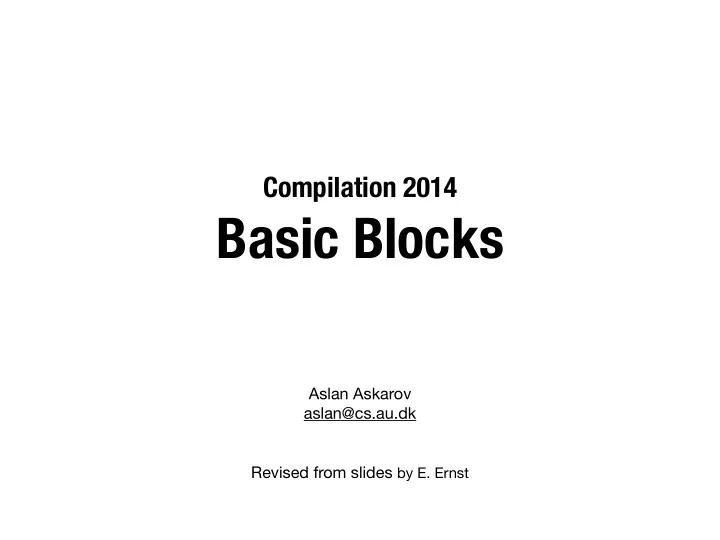

Basic Blocks

Aslan Askarov aslan@cs.au.dk


 Revised from slides by E. Ernst

IR = Intermediate …

• IR does not match either end perfectly
• Source:
• Translation non-trivial, e.g., using the static link
• Target:
• ESEQ & CALL enable side-effects in expressions
• CJUMP has 2 targets, machine instructions fall through
• CALL puts returned value in specific register (RV)
• Why not just drop them?
• CALL in expression: needed for function
• ESEQ: very convenient
• Strategy: Remove ESEQ, move CALL

Idea: Require ‘well-formed’ IR Trees

Type Correct

MOVE(TEMP t, ESEQ…) MOVE(BINOP…, TEMP s)

Satisfies Constraints

MOVE(MEM…,CALL…) ESEQ(MOVE…, TEMP t) SEQ(MEM…,SEQ(…,SEQ…))

Only a subset of type correct terms used

Canonical IR Trees

• Just ordinary IR trees, but well-formed
• Requirements:
• SEQ only topmost (will be removed using exp list)
• ESEQ never used
• Parent of CALL is EXP(…) or MOVE(TEMP t, …)
• Created in module ‘Canon’

signature CANON = sig val linearize: stm -> stm list val basicBlocks: stm list -> (stm list list * Temp.label) val traceSchedule: stm list list Temp.label -> stm list end structure Canon: CANON = struct ... end

Technique: Rewriting

• Goal of linearize achieved by repeated rewrite
• Rewriting rules:
• Specify a ‘from’ pattern, to be matched
• Specify a ‘to’ pattern, to construct from match
• Correctness requirement:
• Every possible rewrite preserves the semantics
• ne

tree IR will be replaced by another tree IR

Rewriting 1

• Purpose: Eliminate one ESEQ node
• Matching: For given IR tree matching concrete

nodes, bind subtrees to metavariables

• Construction: replace metavariables by their values

ESEQ ESEQ s1 s2 e ESEQ SEQ e s2 s1

Rewriting 2

• Purpose: Move ESEQ up

BINOP ESEQ e2 s e1 ESEQ BINOP s e2

• p
• p

e1 MEM(ESEQ(s,e1)) ESEQ(s,MEM(e1)) JUMP(ESEQ(s,e1)) ESEQ(s,JUMP(e1)) CJUMP(op,ESEQ(s,e1) ,e2,l1,l2) SEQ(s,CJUMP(op,e1,e2 ,l1,l2))

Rewriting 3

• Purpose: Pull ESEQ over operand

BINOP ESEQ e1 s e2

• p

ESEQ BINOP MOVE e2

• p

TEMP TEMP t e1 t ESEQ s CJUMP(op,e1 ,ESEQ(s,e2) ,l1,l2) SEQ(MOVE(TEMP t,e1) ,SEQ(s ,CJUMP(op,TEMP t ,e2,l1,l2)

Rewriting 4

• Purpose: Pull ESEQ over operand for free!

BINOP ESEQ e1 s e2

• p

BINOP e2

• p

e1 ESEQ s CJUMP(op,e1 ,ESEQ(s,e2) ,l1,l2) SEQ(s,CJUMP(op,e1,e2 ,l1,l2)) s,e1 commute s,e1 commute

Algorithm Doing the Rewriting

• Functions do… handle deconstruct/reconstruct
• Functions reorder… perform subtree transforms

val reorderStm: exp list * (exp list -> stm) -> stm val reorderExp: exp list * (exp list -> exp) -> (stm*exp) fun doStm (T.JUMP(e,labs)) = reorderStm ([e], fn [e] => T.JUMP(e,labs)) | doStm (T.CJUMP(p,a,b,t,f)) = reorderStm ([a,b], fn [a,b] => T.CJUMP(p,a,b,t,f)) | doStm (T.MOVE(T.TEMP t, b)) = reorderStm ([b], fn [b] => T.MOVE(T.TEMP t, b)) ... and doExp (T.BINOP(p,a,b)) = reorderExp ([a,b], fn [a,b] => T.BINOP(p,a,b)) | doExp (T.MEM(a)) = reorderExp ([a], fn [a] => T.MEM(a)) ...

On CALL

• Problem: A CALL returns result in register RV
• Why does CALL(f, CALL(…),CALL(…)) not work?
• (unless we are careful)
• Why does this solve the problem?

CALL(f,args)) ESEQ(MOVE(TEMP t ,CALL(f,args)) ,TEMP t)

After Rewriting 1-4 Stabilizes

• Eliminate SEQ:
• First rewrite SEQ to enforce list structure
• Then replace SEQ by list constructor

SEQ(SEQ(a,b),c)) SEQ(a,SEQ(b,c)) a::(b::c) SEQ(a,SEQ(b,c))

fun linearize (stm0: stm): stm list = let definitions of reorderExp, reorderStm, doExp, … fun linear (T.SEQ(a,b),l) = linear(a,linear(b,l)) | linear (s,l) = s::l in linear(doStm stm0, nil) end

Basic Blocks

• Control flow: Studying program behavior with no regard to

values, just “movement” (*JUMP , step)

• Basic block: Sequence of instructions w/o JUMP
• First statement: LABEL
• Last statement: [C]JUMP
• No other LABELs or [C]JUMPs
• Simple algorithm:
• at [C]JUMP: end current block; at LABEL: start new block
• fixup: add ‘blocks’ label at very beginning, JUMP to

‘done’ label at very end

• Result: basic blocks can be freely reordered

Traces

• Trace: instruction sequence that could be executed

consecutively (choice: CJUMP)

• We reorder such that CJUMP is followed by its

‘false’ label, thus enabling fall through

• Pseudo-code algorithm:

Put all blocks of the program into a list Q. while Q is not empty Start a new (empty) trace, call it T Remove the head element b from Q. while b is not marked Mark b; append b to the end of the current trace T. Examine the successors of b; if there is any unmarked successor c b := c end current trace T.

Traces May be Optimized

• All these are correct tracings for the same function
• Count instructions for the loop!
• Optimal traces: not this compiler

prologue statements JUMP (NAME test) LABEL test CJUMP (>,i,N,done,body) LABEL body loop body statements JUMP(NAME test) LABEL done epilogue statements prologue statements JUMP (NAME test) LABEL test CJUMP(<=,i,N,done,body) LABEL done epilogue statements LABEL body loop body statements JUMP(NAME test) prologue statements JUMP (NAME test) LABEL body loop body statements JUMP(NAME test) LABEL test CJUMP (>,i,N,done,body) LABEL done epilogue statements

Implementation

• File ‘canon.sml’ available, fully implemented
• Has signature CANON (including linearize,

basicBlocks, traceSchedule)

• Note warnings during compilation:
• Not a problem! ;-) Caused by using well-formed

subset of type correct trees, carefully..

canon.sml:81.30-81.54 Warning: match nonexhaustive e :: nil => ... canon.sml:83.32-83.62 Warning: match nonexhaustive a :: b :: nil => ...

Summary

• IR trees really intermediate: Not a perfect fit for

source, nor for target

• For target: Eliminate ESEQ & SEQ, move CALL,

ensure parent EXP(…) or MOVE(TEMP t, …)

• Transformations: Move ESEQ up, eliminate an

ESEQ, pull ESEQ over expression, ditto for free

• Tricky algorithm: note deconstruct/reconstruct
• Protect register RV: Transform CALL
• Move CALL up to EXP/MOVE
• Basic blocks: find, then reorder into traces
