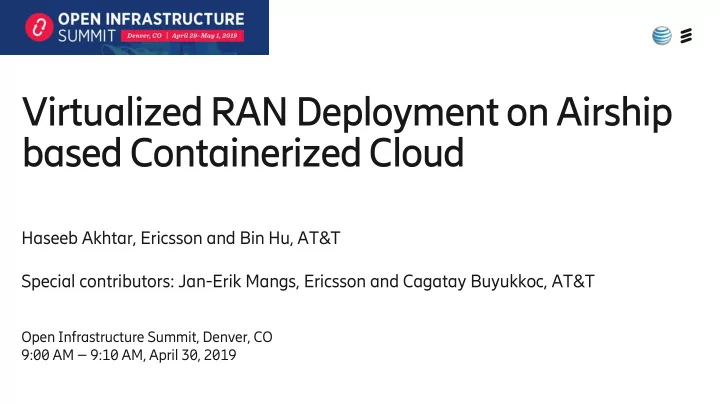

Virtualized RAN Deployment on Airship based Containerized Cloud Haseeb Akhtar, Ericsson and Bin Hu, AT&T Special contributors: Jan-Erik Mangs, Ericsson and Cagatay Buyukkoc, AT&T Open Infrastructure Summit, Denver, CO 9:00 AM 9:10


slide-1
SLIDE 1

Ericsson Internal | 2018-02-21

Virtualized RAN Deployment on Airship based Containerized Cloud

Haseeb Akhtar, Ericsson and Bin Hu, AT&T Special contributors: Jan-Erik Mangs, Ericsson and Cagatay Buyukkoc, AT&T

Open Infrastructure Summit, Denver, CO 9:00 AM – 9:10 AM, April 30, 2019

slide-2
SLIDE 2

Ericsson Internal | 2018-02-21

Page-2

“Airship is a collection of loosely coupled, but interoperable, open source tools that declaratively automate cloud provisioning.”

Overview

  • Orchestration: Batteries

included

  • Singular Deployment Method
  • Predictable Upgrades
  • Repeatable Multi-site

Deployments

  • Resiliency
  • Enterprise-Grade Security

Motivations

slide-3
SLIDE 3

Ericsson Internal | 2018-02-21

Page-3

slide-4
SLIDE 4

Ericsson Internal | 2018-02-21

Page-4

slide-5
SLIDE 5

Ericsson Internal | 2018-02-21

Page-5

5G RAN -HLS (Higher Layer Split) architecture

eCPRI S1-U 4G Baseband CU-UP EPC RRU S1-C eCPRI F1-U 5G Baseband 5GC RRU F1-C CU-CP E1 N2 N3

DU CU Distributed Cloud Custom Hardware 4G RAN Custom Hardware 5G RAN (HLS) Custom Hardware Custom Hardware

5GC 5G Core eCPRI evolved Common Public Radio Interface CU Central Unit CU-CP Central Unit-Control Plane CU-UP Central Unit-User Plane DU Distributed Unit EPC Evolved Packet Core RAN Radio Access Network RRU Remote Radio Unit

slide-6
SLIDE 6

Ericsson Internal | 2018-02-21

Page-6

Demo overview

Hardware

Container Run Time Containerized OpenStack

Deploy

vCU-UP vSD R-VNFM

Traffic Generator

  • Airship deploys Container Run Time and Containerized OpenStack utilizing declarative YAML
  • vCU-UP (virtualized CU-UP) and virtualized Service Discovery (vSD) form the core of vRAN
  • Traffic Generator simulates RN (Radio Node) and vCU-UP processes the packets

5GC 5G Core 5GEPC 5G Evolved Packet Core CU-CP Central Unit-Control Plane CU-UP Central Unit-User Plane EPC Evolved Packet Core RAN Radio Access Network R-VNFM RAN VNF Manager VNF Virtualized Network Function vSD virtualized Service Discovery

slide-7
SLIDE 7

Ericsson Internal | 2018-02-21

Page-7

slide-8
SLIDE 8

Ericsson Internal | 2018-02-21

Page-8

  • Visit Ericsson booth (C-16) to see the live demo
  • Don’t forget to drop by the 5G Lounge
