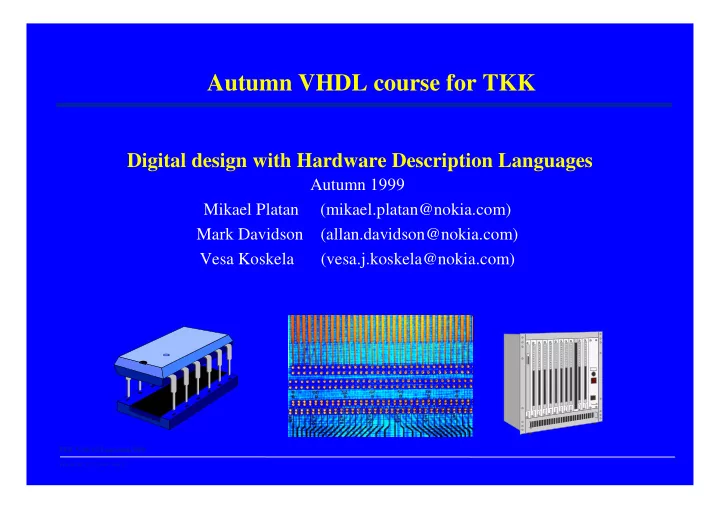

Autumn VHDL course for TKK Digital design with Hardware Description Languages Autumn 1999 Mikael Platan (mikael.platan@nokia.com) Mark Davidson (allan.davidson@nokia.com) Vesa Koskela (vesa.j.koskela@nokia.com) TKK S-88.133 autumn1999


slide-1
SLIDE 1

Vko,MDa, 27.9.1999 OH 1

TKK S-88.133 autumn1999

Digital design with Hardware Description Languages

Autumn 1999 Mikael Platan (mikael.platan@nokia.com) Mark Davidson (allan.davidson@nokia.com) Vesa Koskela (vesa.j.koskela@nokia.com)

Autumn VHDL course for TKK

slide-2
SLIDE 2

Vko,MDa, 27.9.1999 OH 2

TKK S-88.133 autumn1999

VHDL = VHSIC Hardware Description Language

This course will cover two main topics: 1.) The VHDL language and it constraints. 2.) Why one would want to use the language in digital design. However, other questions will be answered such as

  • Where does it fit on the “world map” of hardware design?
  • Why is it here?
  • Why ever use VHDL?
slide-3
SLIDE 3

Vko,MDa, 27.9.1999 OH 3

TKK S-88.133 autumn1999

VHDL

VHSIC Hardware Description Language VHSIC = Very High Speed Integrated Circuit

slide-4
SLIDE 4

Vko,MDa, 27.9.1999 OH 4

TKK S-88.133 autumn1999

Hardware Description Languages

There are many HDLs with different features and goals:

  • VHDL: U.S. Department of Defense sponsored project (first standard 1987)

Most wide spread in Europe

  • VERILOG: Proprietary language first then opened to the public (late 80’s)

Most wide spread in the USA

  • UDL/I: Unified Design Language for IC:s. Developed in Japan for common

interchange format between CAD tools.

  • SILAGE: Suited for DSP application.

VHDL and VERILOG are the most common!

slide-5
SLIDE 5

Vko,MDa, 27.9.1999 OH 5

TKK S-88.133 autumn1999

VHDL History

  • Originated from the US Government VHSIC program

A need was seen for a method in which to describe a digital circuit in such a manner that it was free from any technical constraints. This would allow the Department of Defense to replace an obsolete component with a new one without large amounts of re-design work.

  • Further developed by Institute of Electrical and Electronics Engineers

(IEEE)

  • Adopted as an IEEE STANDARD1076 in 1987 Hence VHDL-87!
  • All IEEE standards are subject to a review every 5 years

This is where VHDL-93 comes from!

slide-6
SLIDE 6

Vko,MDa, 27.9.1999 OH 6

TKK S-88.133 autumn1999

VHDL - language

  • IEEE standard hardware

description language 1076-1987 VHDL-87

  • Is based on the ADA language
  • VHDL’s “worst” competitor is

VERILOG

  • New VHDL version was approved

in 1993. VHDL-93

  • New VHDL version to be

approved early this year. It contains analog signal support.

  • For digital design/modeling Also a

AHDL (Analog HDL) is being

  • developed. This is due to the

growing importance of mixed signal systems.

  • Most important application is in

ASIC (Application Specific Integrated Circuit) design

  • It is used for modeling, simulation,

logic synthesis and testing

  • Common method of modeling

between designers and design tools

slide-7
SLIDE 7

Vko,MDa, 27.9.1999 OH 7

TKK S-88.133 autumn1999

VHDL features

  • Parallelisms. Different processes

can be active independently of each other. This is fundamentally an accurate model for a digital system.

  • Supports hierarchical design, top-

down or bottom-up.

  • Supports reuse through its

library/package functions where functions and components can be collected

  • Strongly typed language. This is

similar to Pascal and other Software programming languages. It means that operands must be of the correct type for a operator to be called

  • Dynamic types and their use with

e.g. attributes: FOR i IN j’range LOOP ... where the variable j’s range can dynamically changed.

  • Overloading. E.g. the same

function can be called with different types of parameters. This is related to typing. To use the same function (operator) on different types of objects (operand)

  • ne must define it multiply to be

compatible with all the required types.

slide-8
SLIDE 8

Vko,MDa, 27.9.1999 OH 8

TKK S-88.133 autumn1999

VHDL - world

  • Good overview from Internet:

http://vhdl.org

  • FAQ, Frequently Asked Questions,

in VHDL: http://vhdl.org/vi/comp.lang.vhdl/

  • VHDL International organizations

e.g. standardization

  • Usenet news groups:

comp.lang.vhdl

  • Tutorials on the net, VHDL

models, libraries, news etc

  • Many conferences. e.g. DAC
  • http://www.mkp.com
  • Documents: “1076-1987 Standard

VHDL Language Reference Manual”, “IEEE standard VHDL... (-93)”

  • Numerous books: e.g. Perry -

“VHDL”, Bhasker - “A VHDL primer”

  • Numerous VHDL products, also

some Public Domain.

  • The most known manufacturers:

Synopsys, Mentor, Cadence, Summit, Renoir, TransEDA

  • Design, Lecturing, Consulting,

Subcontracting

slide-9
SLIDE 9

Vko,MDa, 27.9.1999 OH 9

TKK S-88.133 autumn1999

Modeling Digital Systems

  • Digital system = Any digital circuit that processes or stores

information

  • These systems are complex: We need to recognize them as complex

and have to find ways to deal with the complexity

  • The most important way is to adopt a systematic methodology of

design

  • The term MODEL will refer to our understanding of a system. A

model should allow us to make predictions about the system.

  • There can be several models of one system!
slide-10
SLIDE 10

Vko,MDa, 27.9.1999 OH 10

TKK S-88.133 autumn1999

Why MODELs

1) Formal model to communicate requirements. 2) Communicate and enhance the understanding of the function of a system 3) Models will allow testing and verification of a design using

  • simulation. Thus allowing for the correction of errors before the

system is manufactured. 4) Formal verification of the “correctness” of a design 5) To allow SYNTHESIS of circuits

slide-11
SLIDE 11

Vko,MDa, 27.9.1999 OH 11

TKK S-88.133 autumn1999

Why use Hardware Description Language for modeling

  • To model the design
  • To verify the model
  • To implement the model in hardware (synthesizing)
  • Using a language to do this allows for more levels of abstraction.

Giving the designer more freedom to implement “ideas”, rather than specifics, results in higher quality designs in a shorter time.

slide-12
SLIDE 12

Vko,MDa, 27.9.1999 OH 12

TKK S-88.133 autumn1999

Remember!

The idea behind all of these arguments is that: We want to achieve maximum reliability in the design process for a minimum cost and design time!!

slide-13
SLIDE 13

Vko,MDa, 27.9.1999 OH 13

TKK S-88.133 autumn1999

Domains and Levels of Modeling

slide-14
SLIDE 14

Vko,MDa, 27.9.1999 OH 14

TKK S-88.133 autumn1999

Functional

At the most abstract level the system may be described in terms of ALGORITHMS NOTE! This is often called “BEHAVIOURAL MODELING” Example: loop for each data input loop read the value on this input; scale the value using the current scale factor for this input convert and write.... end loop; wait for 10ms; end loop;

slide-15
SLIDE 15

Vko,MDa, 27.9.1999 OH 15

TKK S-88.133 autumn1999

Structural

The system may be described as an interconnection of components like processors, memories and i/o devices. Sometimes called as the Processor Memory Switch, PMS, level. Example:

slide-16
SLIDE 16

Vko,MDa, 27.9.1999 OH 16

TKK S-88.133 autumn1999

Geometric

Top level abstraction: How the components described in the structural model are organized on the silicon die. Pad frame

slide-17
SLIDE 17

Vko,MDa, 27.9.1999 OH 17

TKK S-88.133 autumn1999

Next level in abstraction: REGISTER TRANSFER LEVEL

Register Transfer Level: Structural model: Example:

slide-18
SLIDE 18

Vko,MDa, 27.9.1999 OH 18

TKK S-88.133 autumn1999

Register Transfer Language (RTL)

In the functional domain a Register Transfer Language is used to specify the operation of a system at the Register Transfer Level: Example: MAR <- PC, memory_read <- 1 PC <- PC + 1 wait until ready = 1 IR <- memory_data memory_read <- 0

slide-19
SLIDE 19

Vko,MDa, 27.9.1999 OH 19

TKK S-88.133 autumn1999

Most designers work more and more away from the center

Tools help designers work away from the center

slide-20
SLIDE 20

Vko,MDa, 27.9.1999 OH 20

TKK S-88.133 autumn1999

Why VHDL as modeling language?

  • Includes facilities to describe structure and function at VARIOUS

levels of abstraction (above gate level)

  • Has an attribute mechanism to annotate information from the

geometric domain.

  • It can be used for specification, simulation and hardware synthesis
  • It is widely supported by CAD tool vendors.
  • It is a standard being continuously reviewed.
slide-21
SLIDE 21

Vko,MDa, 27.9.1999 OH 21

TKK S-88.133 autumn1999

Graphical Entry tools - need anymore to learn VHDL?!

  • Today many Graphical Entry tools that automatically generate VHDL

code exist (Summit, Renoir)

  • They are becoming so good that they are already being used in

production The need for writing actual code may have been reduced due to GE tools but: 1) the need to understand what was auto generated is still there 2) we still have to manage large amounts of vhdl blocks 3) VHDL is still the descriptive part 4) Many of the GE tools are not producing correct or optimized code in all situations. GE tools should be viewed as a complement not a replacement to VHDL.

slide-22
SLIDE 22

Vko,MDa, 27.9.1999 OH 22

TKK S-88.133 autumn1999

VHDL Modeling Concepts

We have discussed three domains of modeling: 1) Function 2) Structure 3) Geometry We will now introduce VHDL elements to describe the basic modeling concept in each of the above 3 domains. NB: The objective is to GET A FEEL for VHDL as a description language - All these will be discussed in detail later.

slide-23
SLIDE 23

Vko,MDa, 27.9.1999 OH 23

TKK S-88.133 autumn1999

Entity

slide-24
SLIDE 24

Vko,MDa, 27.9.1999 OH 24

TKK S-88.133 autumn1999

Elements of Behavior

  • Internal function of an entity is called ARCHITECTURE
  • An architecture can have a number of alternative functions
  • A behavioral architecture of an entity consists of Process statements
  • Process statements are a collection of actions executed in sequence

(sequential statements) Example:

slide-25
SLIDE 25

Vko,MDa, 27.9.1999 OH 25

TKK S-88.133 autumn1999

architecture behav of reg4 is begin storage : process is variable stored_d0, stored_d1, stored_d2, stored_d3 : bit; begin if en = '1' and clk = '1' then stored_d0 := d0; stored_d1 := d1; stored_d2 := d2; stored_d3 := d3; end if; q0 <= stored_d0 after 5 ns; q1 <= stored_d1 after 5 ns; q2 <= stored_d2 after 5 ns; q3 <= stored_d3 after 5 ns; wait on d0, d1, d2, d3, en, clk; end process storage; end architecture behav;

slide-26
SLIDE 26

Vko,MDa, 27.9.1999 OH 26

TKK S-88.133 autumn1999

Elements of Structure

  • An implementation of an entity can be viewed as being composed of

subsystems

  • An architecture body that only has interconnected subsystems is

called an structural architecture body Example:

slide-27
SLIDE 27

Vko,MDa, 27.9.1999 OH 27

TKK S-88.133 autumn1999

Structural composition

slide-28
SLIDE 28

Vko,MDa, 27.9.1999 OH 28

TKK S-88.133 autumn1999

Subsystem description

entity d_latch is port ( d, clk : in bit; q : out bit ); end d_latch; architecture basic of d_latch is begin latch_behavior : process is begin if clk = '1' then q <= d after 2 ns; end if; wait on clk, d; end process latch_behavior; end architecture basic; entity and2 is port ( a, b : in bit; y : out bit ); end and2; architecture basic of and2 is begin and2_behavior : process is begin y <= a and b after 2 ns; wait on a, b; end process and2_behavior; end architecture basic;

slide-29
SLIDE 29

Vko,MDa, 27.9.1999 OH 29

TKK S-88.133 autumn1999

Structural architecture

architecture struct of reg4 is signal int_clk : bit; begin bit0 : entity work.d_latch(basic) port map (d0, int_clk, q0); bit1 : entity work.d_latch(basic) port map (d1, int_clk, q1); bit2 : entity work.d_latch(basic) port map (d2, int_clk, q2); bit3 : entity work.d_latch(basic) port map (d3, int_clk, q3); gate : entity work.and2(basic) port map (en, clk, int_clk); end architecture struct;

slide-30
SLIDE 30

Vko,MDa, 27.9.1999 OH 30

TKK S-88.133 autumn1999

Mixed Models

In models it can be and is often useful to mix structural and behavioral models One of the strengths of VHDL is the amount of freedom it gives to the designer. Good design is using the appropriate method of modeling.

slide-31
SLIDE 31

Vko,MDa, 27.9.1999 OH 31

TKK S-88.133 autumn1999

Test benches

  • It is an entirely self-contained entity, with no port list, that stimulates

the VHDL block under test.

  • The block under test is instantiated as a component in the test bench

and structurally connected to the test bench.

  • Test benches will be covered more in detail in lecture #6.
slide-32
SLIDE 32

Vko,MDa, 27.9.1999 OH 32

TKK S-88.133 autumn1999

Analysis, Elaboration and Execution

Analysis: The process of checking the syntax and semantics of the code Elaboration: Going through the design hierarchy and creating all of the

  • bjects defined in the declarations.

Execution: The passage of time is simulated in discrete steps.

slide-33
SLIDE 33

Vko,MDa, 27.9.1999 OH 33

TKK S-88.133 autumn1999

Reserved Words in VHDL -93

slide-34
SLIDE 34

Vko,MDa, 27.9.1999 OH 34

TKK S-88.133 autumn1999

Extended Backus-Naur Format (EBNF)

For syntax description EBNF is used throughout the book.
