Assessment of Vulnerability to Sea Level Rise and Recommended Mitigation Strategies for Pasquotank County Bobby Harris, Radha Patel, Neil Sullivan, Molly Fisher, and Cassy Karlsson Professor David Salvesen Vulnerability Mitigation

slide-1
SLIDE 1

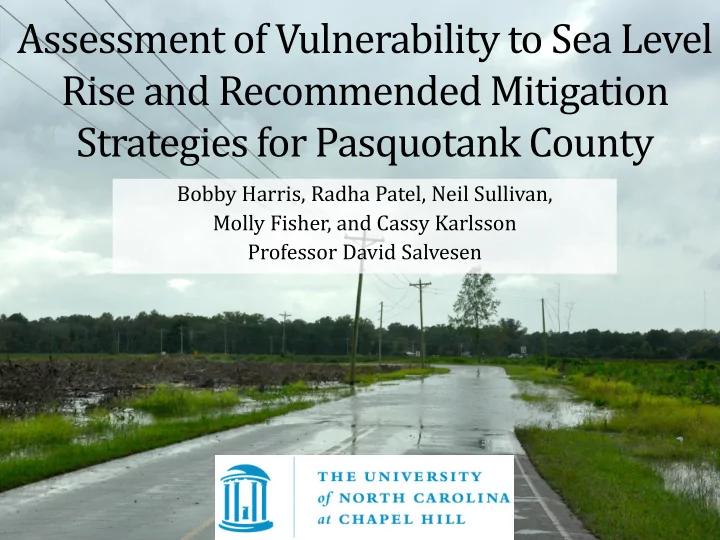

Assessment of Vulnerability to Sea Level Rise and Recommended Mitigation Strategies for Pasquotank County

Bobby Harris, Radha Patel, Neil Sullivan, Molly Fisher, and Cassy Karlsson Professor David Salvesen

slide-2
SLIDE 2
  • Vulnerability
  • Mitigation Strategies
  • Community Rating System (CRS)
slide-3
SLIDE 3

Global Mean Sea Level Rise

slide-4
SLIDE 4

Relative Sea Level Rise Projections (in feet) for Pasquotank County

slide-5
SLIDE 5

Sea Level Rise Vulnerability for Pasquotank County from Climate Central

Unit < 1 ft < 2 ft < 3 ft < 4 ft Property value $ Million 51 139 270 394 Population Count 1,644 3,188 6,082 10,351 Roads Miles 27 52 93 146 Land Acres 17,698 23,860 31,246 39,372

slide-6
SLIDE 6
slide-7
SLIDE 7

1 foot Sea Level Rise 2 feet Sea Level Rise

slide-8
SLIDE 8

3 feet Sea Level Rise 4 feet Sea Level Rise

slide-9
SLIDE 9

Southern Pasquotank County by 2100

slide-10
SLIDE 10

Glen Cove by 2050 1 foot SLR

slide-11
SLIDE 11

Glen Cove by ~2070 2 feet SLR

slide-12
SLIDE 12

Glen Cove by ~2100 3 feet SLR

slide-13
SLIDE 13

Bray’s Estates Flood Zones

slide-14
SLIDE 14

Bray’s Estates by 2050

slide-15
SLIDE 15

Bray’s Estates by ~2070

slide-16
SLIDE 16

Bray’s Estates by 2100

slide-17
SLIDE 17

Bray’s Estates by 2100

slide-18
SLIDE 18

Elizabeth City

slide-19
SLIDE 19

Elizabeth City

slide-20
SLIDE 20

Increased Flooding

By 2050:

  • 100-year flood

event will occur every 5 years.

  • Half of county will

be within 100- year floodplain

slide-21
SLIDE 21

Mitigation

slide-22
SLIDE 22
slide-23
SLIDE 23

(1) Limit Development in Flood-Prone Areas

  • Increase lot size in new

developments

slide-24
SLIDE 24

Raise freeboard requirements

slide-25
SLIDE 25

(2) Preserve Natural Buffers

  • Establish parks in flood prone areas
slide-26
SLIDE 26

(3) Build Community Awareness

  • Create a Community Flood Awareness Forum
slide-27
SLIDE 27
  • Create signage

(3) Build Community Awareness

slide-28
SLIDE 28
  • 4. Protect Critical Infrastructure

Elevation of Knobbs Creek Road

slide-29
SLIDE 29

Joining the Community Rating System

slide-30
SLIDE 30

National Flood Insurance Program

Annual Flood Premiums

  • Pasquotank County: $725,335
  • Elizabeth City: $966,782
  • Combined $1,692,117
  • As of 2014, subsidies slowly being

removed, predicted price increases

slide-31
SLIDE 31

Community Rating System

  • Participating in CRS gives discounts to

insurance premiums

  • Activities  Points  Discounts
  • CRS communities: Class 10  Class 1
  • 81 communities in North Carolina have

adopted the CRS

  • Prediction of Class 9 or Class 8 for Pasquotank
slide-32
SLIDE 32

CRS Activities

Categories:

  • Public Information
  • Mapping and Regulations
  • Flood Damage Reduction
  • Flood Preparedness

Community Rating System Rate Class Requirements and Discounts Rate Class SFHA* Discounts Credit Points Required 1 45% 4,500 + 2 40% 4,000 – 4,499 3 35% 3,500 – 3,999 4 30% 3,000 – 3,499 5 25% 2,500 – 2,999 6 20% 2,000 – 2,499 7 15% 1,500 – 1,999 8 10% 1,000 – 1,499 9 5% 500 - 999 10 0% 0 - 499

slide-33
SLIDE 33

Class 9 Activity Recommendations

Implemented Activities (Class 9) Activity # Estimated Points Morehead City Points Cost Indication (Free, Low, Med, High) 310 Elevation Certificates ~46-56 56 Already Implemented 320 Map Information Service ~60-140 140 Already Implemented 340 Hazard Disclosure ~10-15 10 Already Implemented 360 Flood Protection Assistance ~50 Already Implemented 440 Flood Data Maintenance ~50-90 86 Already Implemented 450 Storm-Water Management ~30-120 33 Already Implemented 630 Dam Safety ~58 58 Already Implemented No-Cost Points: ~304 – 529 383

slide-34
SLIDE 34

Class 9 Recommendations (cont.)

Recommended Activities (Class 9) Activity # Estimated Points Morehead City Points Cost Indication (Free, Low, Med, High) 330 Outreach Projects ~100-200 212 Low Cost 350 Flood Protection Information ~40-60 56 Low Cost 540 Drainage System Maintenance ~100-170 170 Medium Cost Total: ~544 – 959 821

slide-35
SLIDE 35

Class 9 Annual Savings

Elizabeth City: $48,339 Pasquotank County: $36,267 Combined: $84,706

slide-36
SLIDE 36

Class 8 Recommended Activities

Recommended Activities for Class 8 Certification Activity # Estimated Points Morehead City Points Cost Indication (Free, Low, Med, High) 410 Additional Flood Data ~10-60 11 Low 420 Open Space Preservation ~40-150 48 Medium 430 Higher Regulatory Standards ~120-215 165 Medium 510 Floodplain Management Planning ~70-125 99 Medium 610 Flood Warning Program ~40-140 60 Medium 530 Flood Protection ~60-160 High Total Class 8: ~340-850 383 Grand Total ~884-1809 1204

slide-37
SLIDE 37

Class 8 Annual Savings

Elizabeth City: $96,678 Pasquotank County: $84,606 Combined: $181,284

slide-38
SLIDE 38

Acknowledgements

  • Shelley Cox
  • Julie Stamper
  • Christy Saunders
  • Rich Olson
  • Amy Durden
  • Wayne Harris
  • David Salvesen
slide-39
SLIDE 39

Questions?

slide-40
SLIDE 40

Thank You!
