SLIDE 1
www.glenelgorthopaedics.com.au

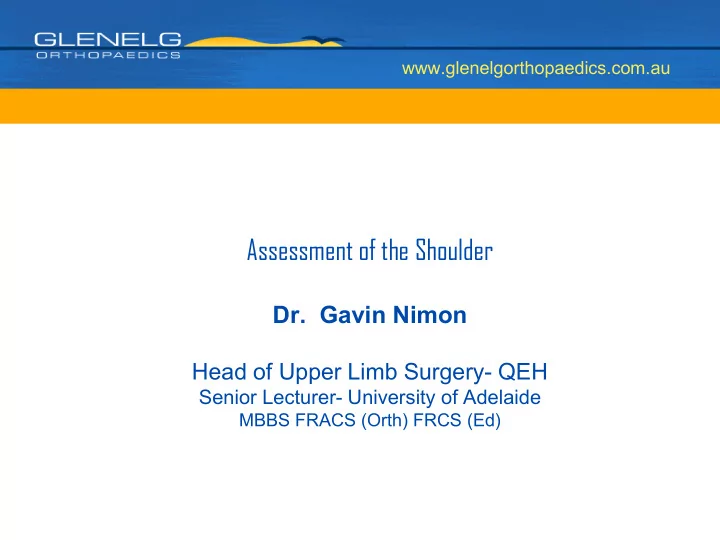

Assessment of the Shoulder
- Dr. Gavin Nimon
Assessment of the Shoulder Dr. Gavin Nimon Head of Upper Limb - - PowerPoint PPT Presentation
Assessment of the Shoulder Dr. Gavin Nimon Head of Upper Limb - - PowerPoint PPT Presentation
www.glenelgorthopaedics.com.au Assessment of the Shoulder Dr. Gavin Nimon Head of Upper Limb Surgery- QEH Senior Lecturer- University of Adelaide MBBS FRACS (Orth) FRCS (Ed) www.glenelgorthopaedics.com.au Profile Gavin Anthony Nimon
SLIDE 2
SLIDE 3
www.glenelgorthopaedics.com.au My Approach to Assessing and treating Orthopaedic Issues
SLIDE 4
www.glenelgorthopaedics.com.au
SLIDE 5
www.glenelgorthopaedics.com.au
History
SLIDE 6
www.glenelgorthopaedics.com.au
SLIDE 7
www.glenelgorthopaedics.com.au
SLIDE 8
www.glenelgorthopaedics.com.au
Spur Os acromiale
Secondary bony Abnormalities
SLIDE 9
www.glenelgorthopaedics.com.au
Assessing The Non-Traumatic Shoulder Pain
SLIDE 10
www.glenelgorthopaedics.com.au
Factors leading to Cuff Tendinopathy
SLIDE 11
www.glenelgorthopaedics.com.au Normal Cuff
Degenerative cuff ( smoker )
Cuff Degeneration
SLIDE 12
www.glenelgorthopaedics.com.au
- Dr. Gavin Nimon
Facts about Rotator Cuff Disease
- Degeneration is Normal
- Increases with age, relates to genetics, smoking , ? Overhead work
- Most tears asymptomatic
- Repair Does not guarantee won’t retear
- Asymptomatic tears, can be made symptomatic with treatment
- Do not know natural history of tear
- Evidence that surgery for impingement has no benefit
( but study flawed and surgery often involves Tx of ac joint or cuff)
Thus as in OA of hip
- Treat symptoms ( unless traumatic tear in young)
- Increase treatment as conservative options fail
SLIDE 13
www.glenelgorthopaedics.com.au
- Dr. Gavin Nimon
Rotator Cuff Treatment
- Physiotherapy
- Internal/ external Theraband exercises
- Hydrotherapy
- Cortisone Injections
Controversial ( could lead to greater tear) maximum 2-3
- Surgery
Arthroscopic vs Open Cuff repair vs debridement In severe cuff disease, ( degenerate) with massive tear ( and atrophy) = Reverse Shoulder Replacement ( ?? Causation in this scenario, and timing)
SLIDE 14
www.glenelgorthopaedics.com.au
Shoulder Arthroscopic Decompression
SLIDE 15
www.glenelgorthopaedics.com.au
Acromioplasty- Decompression
Side on view demonstrating Subacromial Spur Spur excised, bone now flat Spur being excised
SLIDE 16
www.glenelgorthopaedics.com.au
Post-op Surgery X-rays
AC joint excised arthroscopically Opposite AC joint- Not Normal Spur excised, not flat undersurface of acromion
SLIDE 17
www.glenelgorthopaedics.com.au
Arthroscopic Cuff Repair
SLIDE 18
www.glenelgorthopaedics.com.au
Arthroscopic techniques allow repair of small tears that may have previously been not treated with open techniques
SLIDE 19
www.glenelgorthopaedics.com.au
Factors influencing the recovery after Surgery
SLIDE 20
www.glenelgorthopaedics.com.au Arthroscopic cuff Repair
SLIDE 21
www.glenelgorthopaedics.com.au
Frozen Shoulder
SLIDE 22
www.glenelgorthopaedics.com.au
- Dr. Gavin Nimon
Frozen Shoulder- Causation
- 1. ???? (Idiopathic)
- 2. Post –Traumatic
- 3. Diabetic
- 4. Often first pain may be when reaching behind, but does not
mean that is cause
SLIDE 23
www.glenelgorthopaedics.com.au
Diagnosis
- Initial Pain (often mistaken for bursitis)
- Pain is severe – look miserable
- Stiffness (ER =0 degrees)
- Age group (20-50)
- More common in diabetics, radiotherapy, post breast cancer
Treatment:-
- Time (longer wait, better outcome in all options)
- Hydrotherapy
- Corticosteroid injection (+/- hydrodilation)
- MUA and injection (risk of fracture)
- Arthroscopic release (risk of nerve injury)
SLIDE 24
www.glenelgorthopaedics.com.au
Anatomic Cuff Deficiency
Arthritis and shoulder replacement
Reverse Total Shoulder Replacement Anatomic Total Shoulder Replacement
SLIDE 25
www.glenelgorthopaedics.com.au
Its very important to be aware of the implant being recommended and that its long term results are within recommended result
SLIDE 26
www.glenelgorthopaedics.com.au
Shoulder Fractures
Reverse Total Shoulder Replacement In older patient Shoulder Fixation
SLIDE 27
www.glenelgorthopaedics.com.au
Shoulder Dislocations
- Fall on arm ? Abducted and externally rotated
- Needs Reduction Kocher/ Hippocratic etc
- Sling but then regain ROM
- 1st dislocation (Hovelius study)
- Multiple dislocation ( 2 or more – surgery)
Hovelius Study- scandinavia (35 years or less) 1st time dislocator – 85% chance of redislocation
Injury Primary Surgical Repair Open Bankart Repair ? Arthroscopic Bankart Repair
Prospective RCT Non-op vs scope repair 75% recurrent instability vs 11%
SLIDE 28
www.glenelgorthopaedics.com.au
Shoulder Stabilisation
Non- Anatomic (latarjet)
Arthroscopic Labral Repair
SLIDE 29
www.glenelgorthopaedics.com.au Labral SLAP Repairs
- Over diagnosed
- Often incidental finding
- Not usually cause of pain ( but can be in some cases)
- Treatment labral repair vs biceps tenotomy/ tenodesis
SLIDE 30
www.glenelgorthopaedics.com.au
Clavicle Fractures
- Very Common (Cyclists particularly)
- Often Treated Non-operatively
- Can accept 1-2 cm shortening and displacement
- Surgery- plating
- Risks of N/V injury
SLIDE 31
www.glen-orth.com Type to enter text
- Dr. Gavin Nimon
www.glen-orth.com
27/11/09
- Dr. Gavin Nimon
AC Joint injuries
Grade 1-6
– Really “sprain” or “out” – Grade >4 (?3) do better with surgery – Surgery best < 2 weeks – 3-6 months off sport
SLIDE 32
www.glen-orth.com Type to enter text
- Dr. Gavin Nimon
www.glen-orth.com
27/11/09
- Dr. Gavin Nimon
Grades of ac joint Injury
SLIDE 33
www.glen-orth.com Type to enter text
- Dr. Gavin Nimon
www.glen-orth.com
27/11/09
- Dr. Gavin Nimon
SLIDE 34
www.glen-orth.com Type to enter text
- Dr. Gavin Nimon
www.glen-orth.com
27/11/09
- Dr. Gavin Nimon
A-C Joint injury
Fall on tip of shoulder or force transmitted through arm (straight)
SLIDE 35
www.glen-orth.com Type to enter text
- Dr. Gavin Nimon
www.glen-orth.com
27/11/09
- Dr. Gavin Nimon
