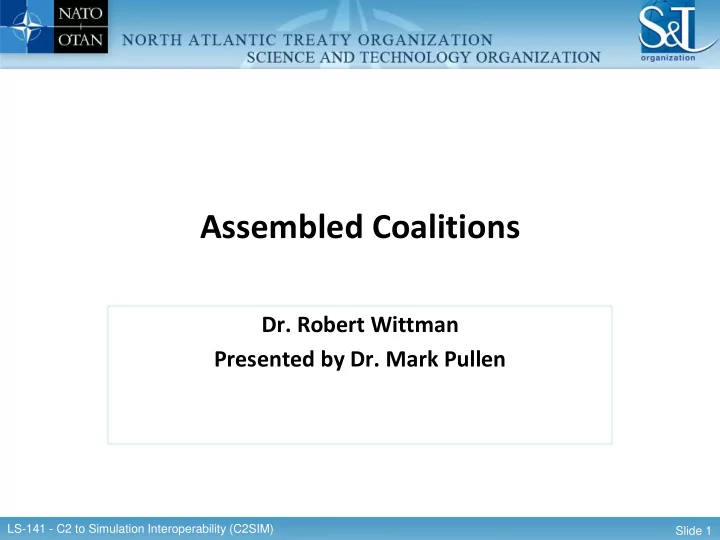

Assembled Coalitions Dr. Robert Wittman Presented by Dr. Mark Pullen LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 1 C2SIM Coalition Activities NATO MSG-048 Final Experimentation NATO MSG-085 Coalition Initialization


slide-1
SLIDE 1

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 1

Assembled Coalitions

  • Dr. Robert Wittman

Presented by Dr. Mark Pullen

slide-2
SLIDE 2

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 2

C2SIM Coalition Activities

  • NATO MSG-048 Final Experimentation
  • NATO MSG-085 Coalition Initialization Demonstrations
  • ITEC 2011
  • German-French COMELEC Experiments
  • Ottobrunn 2011
  • NATO MSG-085 Coalition C2SIM Demonstrations
  • I/ITSEC 2011, 2012
  • ITEC 2013
  • I/ITSEC 2013
  • Ft Leavenworth Final Demo Dec 2013
slide-3
SLIDE 3

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 3

MSG-048 2009 Final Experiment Architecture

slide-4
SLIDE 4

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 4

  • Command and Control
  • Canada BattleView: Fielded workstation - JC3IEDM Compliant
  • France SICF: Land forces C2 for French Division and Brigade CP
  • Netherlands ISIS: Army staff C2 system; served as OPFOR C2
  • Norway NORTaC-C2IS: Tactical army operations - Bn Cdr Planning
  • UK ICC/JADOCS: Air planning tool for ACO and ATO and BML reporting
  • US ABCS: Army Maneuver Control System (MCS)
  • Simulation Systems
  • Canada UAV-SIM: UAV-agents with UAV system simulation
  • France APLET: CoAA tool in conjunction with SICF
  • Spain SIMBAD: Constructive simulator for battalion-level task for CP training
  • UK JSAF: air element representation
  • US OneSAF: US ground maneuver simulation
  • US and German Supporting Softer
  • US Scripted BML Server from GMU
  • Germany C2LG BML GUI/Editor from Fraunhofer FKIE

MSG-048 National Systems

slide-5
SLIDE 5

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 5

ITEC 2011

Cologne, Germany May 2011

slide-6
SLIDE 6

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 6

Scemanta VR-Forces APLET JSAF OneSAF Common MSDL File

Able to initialize multiple systems with common MSDL file. Need more tools to support and manage MSDL data. Some nations considering the use of MSDL to initialize C2 systems. Military Scenario Definition Language (MSDL) for simulation initialization

ITEC 2011 Demonstration

slide-7
SLIDE 7

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 7

The German French COMELEC Experiments

Ottobrunn, Germany December 2011

slide-8
SLIDE 8

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 8

Ottobrunn 2011 COMELEC

Goals

  • Task Synchronization using

BML

  • Automated execution of C2

generated orders

  • Logistic report

enhancements

  • Improved C2 & Sim

initialization consistency

slide-9
SLIDE 9

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 9

I/ITSEC 2011

Orlando, FL 28 Nov – 1 Dec 2011

slide-10
SLIDE 10

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 10 MSDL

Merged MSDL

MSDL consumed by each component system as appropriate National C2/M&S systems create MSDL for their own Units, Equipment & Overlays

Canada Norway UK I/ITSEC Router

ICC/JADOCS Clients JSAF GUI OneSAF US C2 UAV Sim (3D viewer) UAV Controller & JSAF

Internet

ICC/JADOCS Servers JSAF UK C-BML Translators NorTAC VRForces

C-BML C-BML C-BML C-BML + DIS C-BML C-BML DIS C-BML + DIS C-BML + DIS DIS C-BML + DIS C-BML

BCIP

C-BML GMU WS 2.5 Status Server VPN server VPN Tunnel

Canada Norway UK I/ITSEC Router

ICC/JADOCS Clients JSAF GUI OneSAF US C2 UAV Sim (3D viewer) UAV Controller & JSAF

Internet

ICC/JADOCS Servers JSAF UK C-BML Translators NorTAC VRForces

C-BML C-BML C-BML C-BML + DIS C-BML C-BML DIS C-BML + DIS C-BML + DIS DIS C-BML + DIS C-BML

BCIP

C-BML GMU WS 2.5 Status Server VPN server VPN Tunnel

Coherency and message management by SBML MSDL MSDL MSDL

I/ITSEC 2011 Air/Ground Reconnaissance Vignette

slide-11
SLIDE 11

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 11

I/ITSEC 2011 Combined Operations and Logistics Vignette

slide-12
SLIDE 12

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 12

MSDL: Common Task Org; Tactical Graphics; Playbox; C-BML: Planned Tasking Set

Operational Overview Technical View

DEMO HARNESS 2 CBMS WEB SERVER Serves MSDL and C-BML Initialization Data

  • ver standard TCP/IP Network to interested

C2 Systems, Simulations, and Tools

Sim C2 CBMS Web Server

(MSDL/C-BML) MSG Server

OneSAF (USA) C2 Proxy VR- Forces (ESP)

I/ITSEC 2011 Ground Maneuver Vignette

slide-13
SLIDE 13

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 13

I/ITSEC 2012

Orlando, FL 3 Dec – 6 Dec 2012

slide-14
SLIDE 14

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 14

I/ITSEC 2012 BML-Enabled Air Ops Architecture

slide-15
SLIDE 15

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 15

I/ITSEC 2012 Land Ops Demo Architecture

slide-16
SLIDE 16

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 16

I/ITSEC 2012 – ITEC 2013 Air/Ground Reconnaissance Vignette

slide-17
SLIDE 17

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 17

I/ITSEC 2013

Orlando, FL 1 Dec – 5 Dec 2013

slide-18
SLIDE 18

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 18

I/ITSEC 2013 Demonstration

slide-19
SLIDE 19

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 19

I/ITSEC 2013 Combined Bogaland Demonstration

slide-20
SLIDE 20

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 20

MSG-085 Final Demonstration

Ft Leavenworth, Kansas 12 Dec 2012

slide-21
SLIDE 21

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 21

MSG-085 Final Demonstration Ft Leavenworth December 2013

  • Joint Task Force
  • SICF/APLET
  • JTF Subordinate Battalions and Companies COA refinements
  • Alpha (Norway): NorCCiS/NorSIM
  • Bravo (Multi-National):SIR–SITAWARE–C2LG/SWORD–VR-Forces
  • Charlie (Sweden): 9LandBMS/OneSAF
  • JTF estimates subordinates COA refinements
  • SICF/SWORD
  • JTF Mission Rehearsal
  • Alpha: NorTAC/OneSAF
  • Bravo: SIR-SITAWARE-C2LG/OneSAF
  • Charlie: 9LandBMS/OneSAF
  • Air: ICC/JSAF
  • Navy: C2LG/JSAF
slide-22
SLIDE 22

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 22

Ft Leavenworth Final Joint & Combined Mission Planning Demonstration Architecture December 2013

slide-23
SLIDE 23

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 23

WISE SBML

WIS E

FKIE SIR SITAWARE C2LG 9LAND BMS NORCCiS FKIE SICF APLET

1) JTF COA Cdr issues COA to subordinates Cdr develops COA and estimates success or failure

SICF

ORDERS

ALPHA

ORDERS REPORTS

CHARLIE BRAVO

ORDERS ORDERS REPORTS ORDERS ORDERS

MSG-085 Final Demonstration 2013 Technical Architecture

slide-24
SLIDE 24

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 24

WISE SBML

WISE

FKIE SIR SITAWARE C2LG OneSAF 9LAND BMS NORCCiS VR-Forces Sword NORSim

2) JTF Subordinates Battalions and Companies COA refinements

distributed planning & parallel planning

ESRI/COP

ALPHA CHARLIE BRAVO

ORDERS REPORTS REPORTS REPORTS ORDERS REPORTS

MSG-085 Final Demonstration 2013 Technical Architecture

slide-25
SLIDE 25

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 25

3) JTF estimates Battalions and Companies COA refinements WISE SBML

WIS E

FKIE SIR SITAWARE C2LG 9LAND BMS NORCCiS SICF

ORDERS

ALPHA CHARLIE BRAVO

ORDERS ORDERS ORDERS

FKIE SICF SWORD

ORDERS REPORTS ORDERS REPORTS

Subordinates issues COA to Cdr Cdr reviews combat power & Strengths and Weaknesses

MSG-085 Final Demonstration 2013 Technical Architecture

slide-26
SLIDE 26

LS-141 - C2 to Simulation Interoperability (C2SIM) Slide 26

WISE SBML

WISE

FKIE SIR SITAWARE C2LG JSAF OneSAF ICC JADOCS 9LAND BMS NORCCiS VR-Forces Sword NORSim

4) JTF Mission Rehearsal

C2LG

AIR NAV

ESRI/COP

REPORTS

ALPHA CHARLIE BRAVO

REPORTS ORDERS REPORTS ORDERS REPORTS

Mobile BML GUI

MSG-085 Final Demonstration 2013 Technical Architecture
