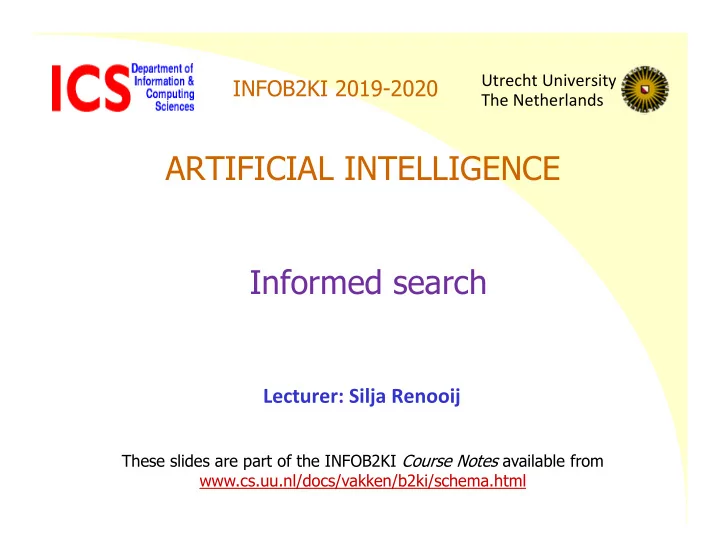

ARTIFICIAL INTELLIGENCE

Lecturer: Silja Renooij

Informed search

Utrecht University The Netherlands

These slides are part of the INFOB2KI Course Notes available from www.cs.uu.nl/docs/vakken/b2ki/schema.html

INFOB2KI 2019-2020

Shakey (1966-1972)

Shakey is a robot which navigates using? a) Dijkstra’s algorithm b) A1 c) A2 d) A*

2

Recap: Search

• Search problem:
• States (configurations of the world)
• Actions and costs
• Successor function
• Start state and goal test
• Search tree:
• Nodes represent how to reach states
• Cost of reaching state = sum of action costs
• Search algorithm:
• Systematically builds a search tree
• Chooses an ordering of the fringe
• Optimal: find least‐cost plans

3

A heuristic is:

• a function that estimates how close a state is to a goal
• non‐trivial (trivial == no real further search required)
• designed for a particular search problem

Search Heuristics

Examples:

• Manhatten distance
• Euclidean distance

4

Search Heuristics

A heuristic is:

• easy to compute, ‘on the fly’: otherwise overhead
• f computing the heuristic could outweigh time

saved by reducing search! Why not pre‐compute and store?

• huge state space
• dynamic goal state

5

Heuristic search (outline)

• Best‐first search

– GREEDY SEARCH – A* search

• Heuristic functions
• Local search algorithms

– Hill‐climbing search – Simulated annealing search – Local beam search – Genetic algorithms

6

Best-first search

• TREE/GRAPH‐SEARCH with an evaluation function f(n) for

each node n

– estimate of "desirability" Expand most desirable unexpanded node Should direct search toward goal

• Implementation:

Order the nodes in fringe in decreasing order of desirability f(n)  Finds best solution, according to evaluation function Special cases:

– GREEDY SEARCH – A* search

7

Both also use heuristic h(n) with

• h(n) ≥ 0 for all n
• h(n) = 0 for state[n] = goal

Romania with step costs in km

and straight‐line distances between city map‐coordinates

8

GREEDY SEARCH

• Evaluation function f(n) = h(n) where

– heuristic h(n) = estimated cost from n to goal

• e.g., hSLD(n) = straight‐line distance from n to

Bucharest Note: hSLD(n) ≥ 0 for all n; hSLD(Bucharest) = 0

• GREEDY SEARCH expands the node that appears to

be closest to goal

• Goal‐test: upon generation == upon expansion

9

GREEDY SEARCH example

f(Arad) = hsld(Arad) = 366

 Expand Arad

10

GREEDY SEARCH example

11

GREEDY SEARCH example

12

GREEDY SEARCH example

Done, or continue? Resembles DFS?

13

Properties of GREEDY SEARCH

• Complete? TREE‐SEARCH: No; 1

GRAPH‐SEARCH: Yes (in finite state spaces)

• Optimal? No
• Time? O(bm) (but a good heuristic can give dramatic improvement)
• Space? O(bm) (keeps all nodes in memory)

Properties similar to DFS without space benefit; behaviour not necessarily

1 consider e.g. finding a path from Neamt to Fagaras with SLD

heuristic, then Iasi  Neamt  Iasi  Neamt … since from Iasi neighbour Neamt is closer to Fagaras than neighbour Vaslui

14

GREEDY SEARCH

Note(!) GREEDY SEARCH is a variant of best‐first search; it is indeed a very greedy search algorithm, but not every greedy approach to searching is the same as GREEDY SEARCH.

15

A* search

• Combines benefits of greedy best‐first search and

uniform‐cost search

• Evaluation function f(n) = g(n) + h(n)

where

– g(n) = cost so far to reach n (= path cost; dynamic) – h(n) = estimated cost from n to goal (= static heuristic)  f(n) = estimated total cost of path through n to goal

• A* search avoids expanding paths that are already

expensive

• Goal‐test upon expansion!

16

A* search example

f(Arad) = g(Arad) + hsld(Arad) = 0 + 366

 Expand Arad

17

A* search example

Expand n with minimal f(n)

18

min g(n)

A* search example

19

min g(n)

Expand n with minimal f(n)

A* search example

20

Expand n with minimal f(n)

min g(n)

A* search example

Done, or continue?

21

For Bucharest: f(n) <> min f(n) g(n) <> min g(n) h(n) = 0 min g(n)

A* search example

Done, or continue?

22

min g(n) For Bucharest: f(n) = min f(n) g(n) <> min g(n) h(n) = 0

A* vs Dijkstra: https://www.youtube.com/watch?v=g024lzsknDo

Admissible heuristics

• Definition: a heuristic h(n) is admissible if

h(n) ≤ h*(n) for every node n where h*(n) is the optimal heuristic, i.e. gives true cost to reach the goal state from n.

• An admissible heuristic never overestimates the actual cost to

reach the goal, i.e., it is optimistic (property transfers to f(n))

• Example: hSLD(n) (never overestimates the actual road distance)
• Theorem: If h(n) is admissible then A* using TREE‐SEARCH is
• ptimal

23

Optimality of A* (proof tree)

Consider:

• Optimal goal G
• A fringe with (generated, but not yet expanded):

– suboptimal goal G2

– node n, on a shortest path to G To prove: G2 will never be expanded before n. First we show that f(G2) > f(G): 1) f(G) = g(G) since h(G) = 0 2) f(G2) = g(G2) since h(G2) = 0 3) g(G2) > g(G) G2 suboptimal, so higher (path) costs  f(G2) > f(G) from 1—3)

24

Optimality of A* (proof-cntd)

Recall: G optimal; fringe with suboptimal G2 and n on shortest path to G To prove: G2 will never be expanded before n. Established: f(G2) > f(G) Next we show that f(G2) > f(n): 1) h(n) ≤ h*(n) assumption h is admissible ↔ h(n) + g(n) ≤ h*(n) + g(n) add g(n) to both sides ↔ f(n) ≤ g(G) n on shortest path to G; def f 2) f(G) = g(G) + 0 h(G) = 0; def f  f(G) ≥ f(n) 1,2 Hence f(G2) > f(n), and A* will never select G2 for expansion

25

Consistent heuristics

• A heuristic is consistent (or monotonic) if for every node n

and every successor n' of n, generated by any action a : h(n) ≤ c(n,a,n') + h(n') where c(n,a,n') is the step cost

• If h is consistent, we have

f(n') = g(n') + h(n') (def) = g(n) + c(n,a,n') + h(n') ≥ g(n) + h(n) (consistent) = f(n) (def) i.e., f(n) is non‐decreasing along any path. Intuition: h should be optimistic, but not to the extent that total costs f can drop by taking a next step

26

Optimality of A* (again)

Theorem: If h(n) is consistent, A* using GRAPH‐SEARCH is optimal

• A* expands nodes in order of increasing f value
• Gradually adds "f‐contours" of nodes
• Contour fc has all nodes n with f(n) ≤ c

Contours f380 f400 f420

27

Properties of A*

• Complete? Yes

(unless there are infinitely many nodes with f ≤ f(G) = f *)

• Optimal? Yes

(if heuristic is consistent (GRAPH) /admissible (TREE) )

• Time? Exponential in d
• Space? Keeps all nodes in memory

28

Admissible heuristics

Recall the properties of (admissible) heuristic h:

• h(goal node) = 0
• 0 ≤ h(n) ≤ h*(n) for every node n

(admissible: should never overestimate!)

E.g., two common heuristics for the 8‐puzzle:

• h1(n) = number of misplaced tiles
• h2(n) = total Manhattan distance (i.e., no. of squares from

desired location of each tile (only horizontal and vertical moves!!)))

• h1(Start) = ?
• h2(Start) = ?

29

Admissible heuristics

E.g., two common heuristics for the 8‐puzzle:

• h1(n) = number of misplaced tiles
• h2(n) = total Manhattan distance
• h1(Start) = 8
• h2(Start) = 3+1+2+2+2+3+3+2 = 18

30

Which is better? - Dominance

• If h2(n) ≥ h1(n) for all n (and both admissible)

then h2 dominates h1  h2 is better for search

• Typical search costs (average number of nodes expanded
• ver 100 instances of 8‐puzzle per solution length d ):
• d=12

IDS = 3,644,035 nodes A*(h1) = 227 nodes A*(h2) = 73 nodes

• d=24

IDS = too many nodes A*(h1) = 39,135 nodes A*(h2) = 1,641 nodes

31

Good heuristics

• h*(n) ≥ h(n) ≥ 0 for all n (h is admissible)
• The closer h is to h*, the less nodes are kept open for

search (more efficient)

• If h(n)=h(n)* for all n then A* leads direct to optimal

solution without search

• If h(n)=0 for all n then A* is uniform cost search

(= Dijkstra’s algorithm + goal test)

• However, if h is not admissible then optimal solution can

be missed!

32

Relaxed problems

Relaxed problem: a problem with fewer restrictions on the actions E.g. allow moves to occupied slots in 8‐puzzle The cost of an optimal solution to a relaxed problem is an admissible heuristic for the original problem If the rules of the 8‐puzzle are further relaxed so that

• a tile can move anywhere in one step

 h1(n) gives the best (shortest) solution

• a tile can move to any adjacent square

 h2(n) gives the shortest solution

33

Variations on A*

• Hierarchical A*
• IDA* (Iterative Deepening A*)
• SMA* (Simplified Memory‐bounded A*)

Specific for dynamic environments:

• LPA* (Lifelong Planning A*)
• D* (A* for dynamic goals)

34

35

Summary best-first search

• Similar to uninformed search:
• TREE/GRAPH‐SEARCH
• goal‐test
• step & path costs
• solution = (least‐cost) path through state‐

space

• more problem specific ingredients

(beyond definition of problem):

• Heuristic function h(n)

 Evaluation function f(n)

Local search algorithms

In many optimization problems, the path to the goal is irrelevant; the goal state itself is the solution State space = set of "complete‐state” configurations

(rather than partial/incremental)

 Search: find configuration satisfying constraints

36

Example: TSP

Which is the shortest route that visits all cities exactly once, and returns at the starting point?

A B C D E

37

Local search algorithms

In many optimization problems, the path to the goal is irrelevant; the goal state itself is the solution State space = set of "complete‐state” configurations

(rather than partial/incremental)

Search: find configuration satisfying constraints e.g. n‐queens In such cases, we can use local search algorithms keep a single "current" state, and try to improve it by moving to neighboring states find goal state, or state that optimizes some

• bjective function (an evaluation function)

38

8-queens problem

• Evaluation function f: # of pairs of queens that attack each
• ther, either directly or indirectly
• Objective: f=0 (minimization)

39

• State s, with f(s) = 17
• neighbour/successor state of s:

any state n where 1 queen is moved to different position in her own column

• f(n) shown in squares

Hill-climbing search

• No search tree
• Terminates when it reaches “peak”

(steepest‐ascent for maximization; for minimization use gradient descent version)

• No look‐ahead beyond immediate neighbors (greedy)

"Like climbing Everest in thick fog with amnesia"

VALUE = value from objective function

40

Hill-climbing search

• Problem: depending on initial state, can

easily get stuck in local optima

• 41

Hill-climbing: 8-queens problem

• A local minimum with f = 1

(every neighbor has higher cost)

42

Simulated annealing search

• Combines hill‐climbing with random walk
• Idea: escape local max/min by allowing some “random"

moves (‘shake’) but gradually decrease their frequency and ‘intensity’

43

Simulated annealing search

• Property: if T decreases slowly enough, a global optimum is

found with probability approaching 1

• Widely used in VLSI layout, airline scheduling, etc

# instead of best # possibly try worse anyway # T decreases over time! # go if better

44

Local beam search

• Keep track of k states in memory rather than just one
• Start with k randomly generated states
• At each iteration, all the successors of all k states are

generated

• If any one is a goal state, stop; else select the k best

successors from the complete list and repeat.

“Come on over here, the grass is greener!”

45

Genetic algorithms

• A successor state is generated by combining two parent

states

• Start with k randomly generated states (population)
• A state (or, individual) is represented as a string over a

finite alphabet (often a string of 0s and 1s)

• Objective function (or, fitness function): higher values for

better states.

• Produce the next generation of states by selection,

crossover, and mutation

46

Summary Informed Search

• Use domain knowledge to guide search

towards goal.

• If path to goal is relevant:

– best first search

• If only finding the goal is relevant:

– local search

• What about ?:

search vs optimization vs learning

47

Shakey (1966-1972)

Shakey is a robot which navigates using? a) Dijkstra’s algorithm b) A1 c) A2 d) A*
