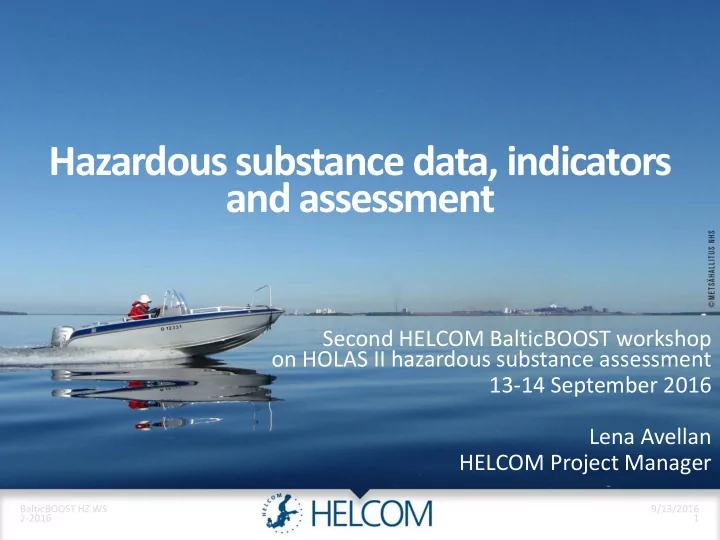

Hazardous substance data, indicators and assessment

Second HELCOM BalticBOOST workshop

• n HOLAS II hazardous substance assessment

13-14 September 2016 Lena Avellan HELCOM Project Manager

BalticBOOST HZ WS 2-2016 9/13/2016 1

HOLAS II hazardous substance assessment

BalticBOOST HZ WS 2-2016 9/13/2016 2

HOLAS I conclusions and consecutive work

• HELCOM concluded based on the HOLAS I that a

regionally coherent assessment requires regionally developed core indicators

• Agreement to develop core indicators
• CORESET I (2011-2013)

CORESET II (2013-2015)

• Core indicator porposals have been developed for with

the aim to cover all assessment elements

Lena Avellan HELCOM 9/13/2016 3

Core indicator definitions

(HELCOM MONAS 2012)

• Core indicator

– commonly agreed indicator – GES boundary allowing follow-up of progress towards reaching GES – Build on coordinated monitoring data when possible

• Pre-core indicator

– Agreed in principle to be used as a core indicator, however some critical component of the indicator is still under development

• Candidate indicator

– Living list of new proposals for core indicators being developed furhter by experts

Lena Avellan HELCOM 9/13/2016 4

Core indicators and assessment units

• Core indicators evaluation results are displayed for

assessment units defined in HELCOM Monitoing and Assessment Strategy (2013), four spatial scales;

• 1. Whole Baltic Sea
• 2. Sub-basins
• 3. Sub-basins with coastal area
• 4. Sub-basins with coastal area split into WFD

waterbodies or –types

• Accounting for ecological differences in different

regions may require assessment unit specific GES boundaries

Lena Avellan HELCOM 9/13/2016 5

HOLAS II hazardous substance assessment

BalticBOOST HZ WS 2-2016 9/13/2016 6

Data

• ther national/regional data

Indicators GES criteria COMBINE HBCDD PBDE

Etc

Criteria 1 concentrations Criteria 2 Bio-effects Descriptor 8 PFOS Metals TBT and imposex WtE productivity

Step 2 Step 1

compartments

Core indicators process

• All indicators, including their GES-boundaries, to be

included in HOLAS II are to be agreed by HELCOM HOD 51-2016 in December, thus proposals to be submitted for endorsement to State and Conservation 5-2016 by 14 October

• Study reservations in place by Denmark, Germany,

Poland and Sweden on GES-boundaries of the current set of core indicators to be clarified by in the same timeline

• Indicator assessment protocols to be finalize

EN-HZ 3-2016 agreed that leads are to test the proposed approach (so called MIME R-script)

BalticBOOST HZ WS 2-2016 9/13/2016 7

BalticBOOST HZ WS 2-2016 9/13/2016 8

Core indictors GES boundary Clarifying comment Source Hexabromocyclo- dodecane (HBCDD) 167 µg/kg ww normalized to 5% lipid and adjusted to TL 4.5 EQS biota secondary

poisoning

Secondary GES boundary: sediment Polybrominated biphenyl ethers (PBDE) 0.0085 µg/kg ww fish liver and muscle normalized to 5% lipid and adjusted to TL 4 EQS biota human

health 1

Secondary boundary: sediment Perfluorooctane sulphonate (PFOS) 9.1 µg/kg ww fish muscle Normalized to 26% dw and adjusted to TL 4. Potential use of conversion factor between liver and muscle EQS biota human

health 1

Secondary GES boundary: 1.3 10-4 μg/l EQS water (AA) 1

[1] 2008/105/EC

Agreed core indicators and GES boundaries

BalticBOOST HZ WS 2-2016 9/13/2016 9

Core indicators GES boundary Clarifying comment Source Study reservation in place on GES boundary Metals Cd Coastal assessment unit 0.2 μg/l EQS water (AA)1 Secondary GES boundary: 2.3 mg/kg dw sediment QS Secondary GES boundary: 960 μg/kg dw blue mussel BAC Offshore assessment unit 50 μg/kg ww fish muscle 1000 μg/kg ww mussels EC 1881/2006 Poland Sweden (use of values for fish

muscle under Descriptor 8)

Denmark Pb Coastal assessment unit 1.3 μg/l EQS water (AA)1 Secondary GES boundary 120 mg/kg dw sediment QS 1300 μg/kg dw blue mussel BAC 26 μg/kg ww fish liver BAC5 Offshore assessment unit 300 μg/kg ww fish muscle 1500 μg/kg ww mussels EC 1881/2006 Poland Sweden (use of values for fish

muscle under Descriptor 8)

Denmark Hg 20 μg/kg ww fish muscle Normalized to 26% dw and adjusted to TL 4 EQS biota secondary

poisoning 1

[1] EU 2005. Substance Data Sheet Cadmium [2] EU 2011. Substance Data Sheet Lead

[3] OSPAR 2010. Background Document on CEMP assessment criteria for the QSR 2010 (proxy BACs derived at MON in 2007)

BalticBOOST HZ WS 2-2016 9/13/2016 10

Core indicator GES boundary Clarifying comment Source Study reservation Polyaromatic hydrocarbons (PAH) and their metabolites benzo(a)pyren e 5 μg/kg ww crustaceans and molluscs EQS biota human

health 1

Metabolite: 1- hydroxypyrene 483 ng/g fish bile Davies & Vethaak, 2012 Denmark Secondary GES boundary: Fluoranthene 30 μg/kg ww crustaceans and molluscs EQS biota human

health 1

2000 ug/kg dw sediment normalized to 5% TOC QS Denmark Secondary GES boundary: Anthracene 24 ug/kg dw sediment normalized to 5% TOC QS

[1] EU 2011. Substance Data Sheet Fluoranthene. [2] EU 2011. Substance Data Sheet Anthracene.

BalticBOOST HZ WS 2-2016 9/13/2016 11

Core indicator GES boundary Clarifying comment Source Study reser- vation Polychlorina ted biphenyls (PCB) and dioxins and furans Dioxin and dioxin-like PCBs 0.0065 TEQ/kg ww fish liver and muscle, crustaceans or molluscs normalized to 5% lipid and adjusted to TL 4 EQS biota

human health 1

Secondary GES boundary: CB-118 24 µg/kg lw fish liver and muscle: EACpassive5 Denmark Non-dioxin like PCBs sum of congeners (28, 52, 101, 138, 153, 180) 75 µg/kg ww fish muscle EC 1881/2006 Denmark

BalticBOOST HZ WS 2-2016 9/13/2016 12

Core indicator GES boundary Clarifying comment Source Study reser- vation TBT and imposex TBT 1.6 µg /kg dw sediment normalized to 5% TOC QS Denmark Secondary GES boundary: 0.2 ng/l water EQS water (AA)1 Secondary GES boundary: 12 µg/kg dw mussel EAC Denmark Imposex Peringia ulvae: 0.1 VDSI Nucella lapillus: 2.0 VDSI Neptunea antiqua: 2.0 VDSI Hinia reticulata: 0.3 VDSI Buccinum undatum: 0.3 VDSI Littorina littorea: <0.3 ISI HELCOM 2016 OSPAR EcoQO Denmark

[1] HELCOM 2016. Draft core indicator report on TBT and imposex [2] OSPAR 2008. Document 379. CEMP Assessment Manual Co-ordinated Environmental Monitoring Programme Assessment Manual for contaminants in sediment and biota [3] HELCOM 2016. Draft core indicator report on TBT and imposex [4] OSPAR 2010. EcoQO on imposex in dogwhelks and other selected gastropods. QUALITY STATUS REPORT 2010

Evaluation of the OSPAR system of EcoQOs for the North Sea, http://qsr2010.ospar.org/media/assessments/p00406_supplements/p00406_suppl_6_imposex_dogwhelks.pdf

BalticBOOST HZ WS 2-2016 9/13/2016 13

Core indicator GES bounadry Clarifying comment Source Study reservation White-tailed eagle productivity Productivity: 0.97 nestlings Brood size: 1.71 nestlings Breeding success: 0.59 (59%) HELCOM 2016 Denmark

[1] HELCOM 2016. Draft core indicator report white-tailed eagle productivity

BalticBOOST HZ WS 2-2016 9/13/2016 14

Pre-core (PC) or candidate indicator (cand) Proposal for GES boundary Reproductive disorders: Malformed eelpout and amphipod embryos (PC) Monoporeia affinis proportion of malformed embryos < 3.8% proportion of females with >1 malformed embryo <22% Gammarids Proportion of females with >1 malformed embryo <20% Eelpout Malformed fry <2% Late dead fry <4% Early dead fry <5% Lysosomal membrane stability (LMS) (PC) Histochemical method Herring and eelpout (liver) 8 min (EAC) Perch and flounder (liver) 10 min (EAC) All other species studied (liver, digestive gland)10 min (EAC) Neutral Red retention test Mytilus spp. (haemocytes) 50 min (EAC) Diclofenac concentration (PC) QS biota <1 µg kg-1 ww Secondary: EQS water 0.01 µg L-1 (AA) Estrogenic-like chemicals and effects (PC) <0.18 ng/l ethinyl estradiol equivalents (EEQ) EROD activity (cand) activities below 0.1 nmol/mg*min in microsomal fraction and 10 nmol/mg*min for S9 liver fraction

COMBINE data

• Core indicators have been developed with the

aim to be based on COMBINE data

• For HOLAS II purposes hazardous substances

data needs to be delivered to COMBINE during the regular reporting proceedure, i.e. by end

• f September 2016

BalticBOOST HZ WS 2-2016 9/13/2016 15

COMBINE data

• ICES developing data views through BalticBOOST WP 2.2
• Data view builds on core indicator based extraction table

that specifying substances, congeners, matrices, conversions etc

• Widget provided (recently updated) to view available

stations

• Excel file with the data summaries also uploaded:

https://portal.helcom.fi/meetings/BalticBOOST%20HZ%20 WS%202-2016- 373/MeetingDocuments/Data%20summary%20BalticBoost %202011-16_20160909.xlsx.

BalticBOOST HZ WS 2-2016 9/13/2016 16

Other national/regional data

• COMBINE does currently not hold all relevant data

for the core indicators, e.g. White-tailed eagle productivity data is harvested from national sources

• To be concluded if other national datasets in addition

to core indicator data is to be included in HOLAS II, e.g. National WFD second cycle assessment details

BalticBOOST HZ WS 2-2016 9/13/2016 17

http://gis.ices.dk/sf/index.html?widget=boost

BalticBOOST HZ WS 2-2016 9/13/2016 18
