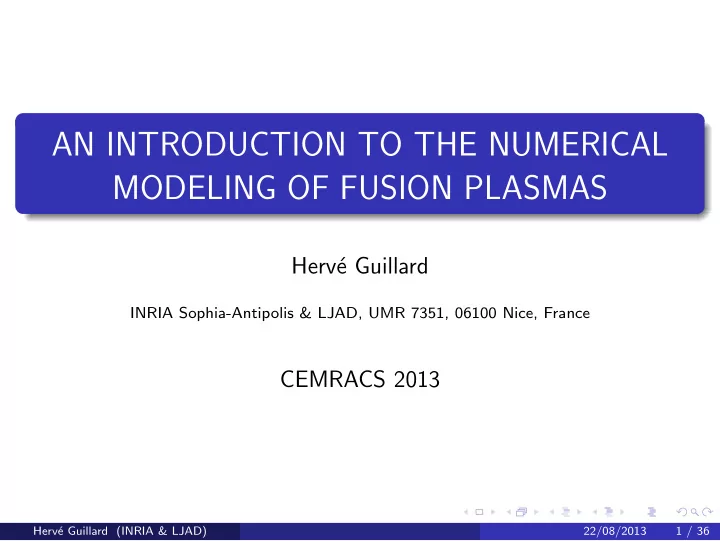

SLIDE 1

AN INTRODUCTION TO THE NUMERICAL MODELING OF FUSION PLASMAS

Herv´ e Guillard

INRIA Sophia-Antipolis & LJAD, UMR 7351, 06100 Nice, France

CEMRACS 2013

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 1 / 36

SLIDE 2

Outline

1

Fusion Plasmas

2

Kinetic Models

3

Fluid models

4

The MHD limit

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 2 / 36

SLIDE 3

Outline

1

Fusion Plasmas

2

Kinetic Models

3

Fluid models

4

The MHD limit

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 3 / 36

SLIDE 4

Deuterium-Tritium Reaction

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 4 / 36

SLIDE 5

Nuclear reactions

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 5 / 36

SLIDE 6

Fusion on earth ???

Essentially two studied technologies : Inertial confinement Magnetic confinement

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 6 / 36

SLIDE 7

Inertial confinement technology

relies on fast and violent heating of fusion targets.

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 7 / 36

SLIDE 8

Target Ablator heating

Ablator is illuminated by powerful - X rays and reaches a plasma state

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 8 / 36

SLIDE 9

Ablator expansion & DT Compression

Ablator is accelerated outwards By rocket effect DT is accelerated inwards (v ∼ 300 km/s)

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 9 / 36

SLIDE 10

Deuterium - Tritium Compression

DT ice is compressed up to 1000 times its initial density ( 20 time lead density)

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 10 / 36

SLIDE 11

Hot spot Ignition

Central gas is heated up to several 106 of degrees When ρR ∼ 0.3g/cm2 the gas is self heated by alpha particles Fusion reactions start and propa- gate into DT ice Note : 1 mg D-T → 340 MJ : Fu- sion is equivalent to combustion of 10 kg coal

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 11 / 36

SLIDE 12

The other way to fusion : magnetic confinement

Objective : confine hot D-T plasma by strong magnetic fields Toroidal coils Poloidal coils

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 12 / 36

SLIDE 13

Tokamaks :

magnetic field lines vacuum chamber Tokamaks design in the 1950s by Igor Tamm and Andrei Sakharov

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 13 / 36

SLIDE 14

ITER Tokamak

ITER (International Thermonuclear Experimental Reactor) in construction in Cadarache, construction begins in 2010, first plasma in 2020, first fusion plasma in 2027 840 m3 150M OK 13 Tesla = 200 000 x earth magnetic field

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 14 / 36

SLIDE 15

Numerical simulations

Necessary for Equilibrium computation : steady state and control of the machines prediction of the possible occurrence of instabilities

magnetic instabilities hydrodynamic instabilities

determination of the value of key parameters e.g transport coefficients due to turbulence understand and explain physical phenomena Very large number of different numerical models

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 15 / 36

SLIDE 16

Outline

1

Fusion Plasmas

2

Kinetic Models

3

Fluid models

4

The MHD limit

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 16 / 36

SLIDE 17

Kinetic models

Vlasov or Boltzmann eq for each particle (ions, electrons, neutral) ∂fs ∂t + divx(vfs) + divv(Ffs) = Cs =

Css′

Force field F = es

ms [E + v × B] (note divvF = 0)

E, B given by Maxwell equations: ∂B ∂t + curl E = 0 Υ = es

fs(x, v, t)dv3

− 1 c2 ∂E ∂t + curl B = µ0J J = es

fsv(x, v, t)dv3

ε0 div E = Υ div B = 0

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 17 / 36

SLIDE 18

Kinetic models

Self-consistent and closed model extremely heavy from computational point of view

6 D model : 3 space dimensions, 3 velocity dimensions covers huge range of time and space scales

some simplifications possible : Ampere law, Quasi-Neutral assumption, Electrostatic assumption, gyrokinetic theory Used for some very specific tasks

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 18 / 36

SLIDE 19

Kinetic models : one example of applications

Anomalous transport in tokamaks

Radial diffusion of mass and tem- perature exceed by order of magni- tude “laminar” values due to micro-turbulence and micro- instabilities : Estimate the value of turbulent transport coefficients by direct sim- ulation Development of gyrokinetic codes (e.g GYSELA code of CEA)

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 19 / 36

SLIDE 20

Outline

1

Fusion Plasmas

2

Kinetic Models

3

Fluid models

4

The MHD limit

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 20 / 36

SLIDE 21

From kinetic to fluid

Idea of fluid models : instead of computing the whole distribution function fs compute only a small number of its moments, i.e : Fluid variables are moments of the distribution function fs

fluid density

ns(x, t) =

fs(x, v, t)dv 3
fluid velocity

ns(x, t)us(x, t) =

fs(x, v, t)vdv 3

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 21 / 36

SLIDE 22

From kinetic to fluid

Pressure tensor

Ps(x, t) = ms

fs(x, v, t)(v − us) ⊗ (v − us)dv 3
scalar pressure = 1/3 trace of pressure tensor

ps(x, t) = ms 3

fs(x, v, t)|(v − us)|2dv 3
temperature

Ts(x, t) = ps(x, t) ns(x, t)

Energy flux

Qs(x, t) = ms 2

fs(x, v, t)|v|2vdv 3

More complex fluid models, e.g 14 Moment closure by D. Levermore

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 22 / 36

SLIDE 23

From kinetic to fluid

Mass conservation

First velocity moment of the Boltzmann (Vlasov) equation

[∂fs

∂t + divx(vfs) + divv(Ffs) = Cs] gives

fsdv 3 def

= ns

vfsdv 3 def

= nsus

divv(Ffs) = 0
Csdv 3 = 0

∂ns ∂t + divx(nsus) = 0

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 23 / 36

SLIDE 24

Fluid models

proceeding in the same way for the other moments :

msv× Boltzmann and integrating, gives momentum (velocity) equation

1 2ms|v|2× Boltzmann and integrating, gives energy (temperature) equation

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 24 / 36

SLIDE 25

Fluid models

s ∈ ion, electron, neutral particle

∂ns ∂t + div(nsus) = 0 ms(∂nsus ∂t + div(nus ⊗ us)) + ∇ps + divxΠs − nses(E + us × B) =

s′=s

Rss′ ∂ ∂t (ms ns 2 |us|2 + 3 2ps) + divQ − esus.E = Qs

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 25 / 36

SLIDE 26

The 2-fluid model

Much simpler than kinetic model (3D) Clear mathematical structure (1 compressible Navier-Stokes system per species coupled by force terms) But needs closure assumptions Questionable in tokamaks very large disparity in length and time scales still costly e.g for a ion-electron model 10 dof per mesh point not really used but good starting point for subsequent approximations

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 26 / 36

SLIDE 27

From 2-fluid to one Fluid models

Normalization units

time τobs velocity u∗ lenght L∗ = u∗τobs ion gyro-period τci = mi/ZieB electron gyro-period τce = me/eB plasma period τpe = (ε0me/nee2)1/2 τce/τpe ∼ 1 collision τcoll ∝ (Λ/lnΛ)τpe Non dimensional parameters εi = τci/τobs Mi = u∗/νTi, Λ = 4π 3 nλ3

D,

µ = me/mi Relevant asymptotic regimes εi → 0 Λ → ∞ µ = me/mi → 0 etc Give a huge set of one fluid models

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 27 / 36

SLIDE 28

Outline

1

Fusion Plasmas

2

Kinetic Models

3

Fluid models

4

The MHD limit

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 28 / 36

SLIDE 29

From 2-fluid to one Fluid models

The MHD scalings

MHD : violent instabilities affecting the whole plasma region : x∗ = e.ga minor radius fast event : speed of MHD waves : Alfen velocity vA = B √µ0ρ u∗ = O(νTi) ∼ O(vA)

MHD asymptotic limit

εi = τci τ → 0, Mi = O(1)

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 29 / 36

SLIDE 30

THE MHD MODELS

Ideal MHD

Zero order model in εi (εi = 0)

∂ ∂t ρ + div(ρu) = 0 ∂ ∂t ρu + div(ρu ⊗ u) + ∇p − (J × B) = 0 E + u × B = 0 need the current J → Ampere’s law J = curl B need the magnetic field B → Faraday’s law ∂B ∂t + curl E = 0 ⇒ autonomous system for a One Fluid model

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 30 / 36

SLIDE 31

THE MHD MODELS

Ideal MHD - summary

∂ ∂t ρ + div(ρu) = 0 ∂ ∂t ρu + div(ρu ⊗ u) + ∇p + 1 µ0 (B × curl B) = 0 ∂B ∂t − curl (u × B) = 0

+ energy equation

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 31 / 36

SLIDE 32

One example of hydrodynamic instabilities in magnetized plasmas

2 scalar variables : ion density n; ion parallel velocity u|| u = u||b + u⊥ ∂ ∂t ρ + div(ρu) = 0 ∂ ∂t ρu|| + divρu||u + ∇||p = ρu.Db Dt with (this is the ideal Ohms law solved for the ⊥ velocity) u⊥ = E × B B2 B given, E computed by the adiabatic assumption

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 32 / 36

SLIDE 33

Hydrodynamic instabilities

In the core plasma (white region) the plasma rotate counterclockwise In the edge region, the plasma touches the limiter Due to electric charging of the wall (Bohm’s BC) the plasma enters the wall → intense shear near the wall Development of hydrodynamical in- stabilities (Kelvin-Helmholtz like) ? momentum plot at t=0

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 33 / 36

SLIDE 34

Hydrodynamic instabilities

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 34 / 36

SLIDE 35

Hydrodynamic instabilities

Oscillation of the plasma boundary

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 35 / 36

SLIDE 36

Conclusions

large number of unsolved phenomena requiring the development

f

numerical models numerical methods parallel algorithms

short overview of numerical simulations for fusion plasmas See you next year in Cemracs2014

Herv´ e Guillard (INRIA & LJAD) 22/08/2013 36 / 36
