Fusion Nothing But The Truth Fusion Orbotech s True Commitment To - - PowerPoint PPT Presentation

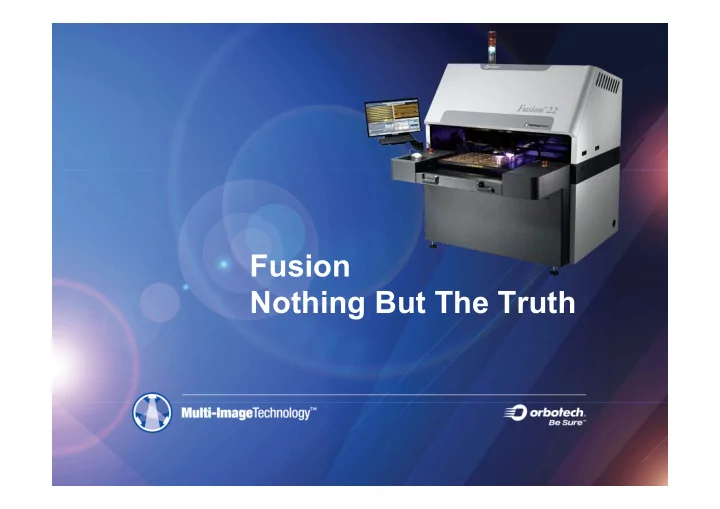

Fusion Nothing But The Truth

Confidential - PCB Production Solutions 2

Spiron

Overall Performance

Discovery 6/8

Fusion

Discovery 8xxx Discovery 9000

Fusion

Orbotech’s True Commitment To The PCB Industry

2004 2005 2006

£ AOI – Invented by Orbotech 25 years ago

2008 2010 2007 2009 2011

£ Discovery – launched in 2004, sold more than 2,000 units £ Fusion – launch in 2010, with the Multi-Image Technology

Confidential - PCB Production Solutions 3

PCB Makers Face higher Challenges

£ Higher Needed Capabilities

¤ Line / Space Miniaturization ¤ HDI Layers Increase

£ Higher Needed Efficiency

¤ Raw Materials Costs Increase ¤ Labor Costs & Turnover Increase

Fusion

Addresses PCB Production True Challenges

Fusion creates a true revolution in PCB inspection with unparallel detection accuracy and overall performance for maximum PCB production efficiency

Confidential - PCB Production Solutions 4

£ True Technology

¤ 4 Registered Patents

£ True Enabling Capabilities

¤ All-round product

£ True Value to PCB Makers

¤ Maximize your bottom line

Technology

Multi Image Optical Head Smart Setup Vacuum Table

• Fusion. Nothing But The Truth.

Capabilities

Detection Accuracy Intuitive Operation Performance Running Cost Saving

Value

Productivity Yield Enabling Tech Ease of Use

Confidential - PCB Production Solutions 5

True Detection Accuracy True Performance True Running Cost Saving True Intuitive Operation

• Fusion. Nothing But The Truth.

Confidential - PCB Production Solutions 6

True Detection Accuracy True Performance True Running Cost Savings True Intuitive Operation

• Fusion. Nothing But The Truth.

Confidential - PCB Production Solutions 7

£ Super-power custom made illumination

module

¤ Includes multiple independent illumination

sources £ Innovative light diffusing lens

¤ State-of-the-art light concentrator and

• ptimizer

¤ Dome-shaped, wide-angle light coverage

£ Specially-designed image capturing lens £ Larger, faster and more sensitive CCD

camera

Fusion – Optical Head Technology

Confidential - PCB Production Solutions 8

£ Challenge

¤ Increasing detection accuracy by breaking the traditional trade off

between detection and false alarms £ Solution

¤ Acquiring and analyzing multiple independent images

Fusion – Multi-Image Technology

Revolutionary Results in PCB Inspection

Different wave lengths Different light angles

The Result – Revealing Details Unseen Before

Confidential - PCB Production Solutions 9

£ Fusion simultaneously inspects each PCB panel under different

lights and from different angles

¤ Each illumination source provides different detection and FA

performance

¤ Combining the results reveals information that cannot be detected

using any single image £ Illumination sources

¤ Different wave lengths accurately classifies materials such as copper,

• xidized copper, contamination, dirt, particles, laminate and others

¤ Different illumination angles reveals the patterning features and defects

geometry

Fusion – Multi-Image Technology

Revolutionary Results in PCB Inspection

The Result – True Detection Accuracy

Confidential - PCB Production Solutions 10

Fusion – Multi-Image Technology

Revealing Details Unseen By Other Systems

Confidential - PCB Production Solutions 11

Fusion – Multi-Image Technology

Is It Protrusion or Dust? Multi-Image Reveals The Truth

Microscope Image Channel 1 Channel 2

Confidential - PCB Production Solutions 12

Fusion – Multi-Image Technology

Is It Dish-Down or Oxidation? Multi-Image Reveals The Truth

Microscope Image Channel 1 Channel 2

Confidential - PCB Production Solutions 13

Fusion – Multi-Image Technology

Is It Nick or Oxidation? Multi-Image Reveals The Truth

Microscope Image Channel 1 Channel 2

Confidential - PCB Production Solutions 14

Fusion – Multi-Image Technology

Is It Nick or Dust? Multi-Image Reveals The Truth

Microscope Image Channel 1 Channel 2

Confidential - PCB Production Solutions 15

Dish down Connection Protrusion& Fine Short Covered copper

Fusion – Multi-Image Technology

Superb detection of the finest features

Superb detection enabled by

£ Superior image acquisition with Innovative

• ptical head

£ Revolutionary analysis with multi image

technology

Confidential - PCB Production Solutions 16

Fusion – Widest Range of Materials

Inspect Every Job

OL panel – 2 laminates Channel 1 Channel 2 Microscope Image Channel 1 Channel 2

Confidential - PCB Production Solutions 17

£ Successful field trials in 5 leading PCB makers in the Pacific

¤ Major FA reduction of 70% and above ¤ Significant detection improvement Average F/A Reduction Detection Improvement

Fusion – True Detection Accuracy

Excellent Results in Industry Leading Productions

68 74 47 70 81 63 55 70 10 20 30 40 50 60 70 80 90 Customer A (SEA) Jan-Mar/10 Customer B (TW) Apr-Jun/10 Customer C (TW) Jul-Aug/10 Customer D (KR) Jul-Aug/10 Customer E (CH) Sep-Oct/10 % Outers Inners

15 22 18 10 6 20 20 10 20 30

%

Confidential - PCB Production Solutions 18

True Detection Accuracy True Performance True Running Cost Savings True Intuitive Operation

• Fusion. Nothing But The Truth.

Confidential - PCB Production Solutions 19

Fusion – Smart Setup

From “Push-to-Scan” to Smart Setup

Push-to-Scan

Job-independent setup process automation

£ Guided completion of

missing parameters

£ Auto etch calculation £ Auto optical adjustment £ Auto alignment

Smart-Setup

Job-specific setup process automation

£ Auto classification into

defect groups

£ Visual categorization £ Auto generation of setup

parameters

Confidential - PCB Production Solutions 20 20

Total Defects £ Complex

¤ Mastering numerous parameters require highly

trained AOI experts that speak the “AOI language” £ Time Consuming

¤ Iterative trial-and-error process

£ Sub Optimal results

¤ The process ends once the setup is adequate,

while parameters are not accurately set

Fusion – Smart Setup

Trial-and-Error Process Using traditional AOI

Confidential - PCB Production Solutions 21 21

£ Intuitive

¤ Visual categorization of true and false defects

£ Short

¤ A single cycle process (non-iterative)

£ Optimal

¤ Automatic and accurate generation of all

setup parameters Total Defects

Fusion – Smart Setup

Single Cycle Process Using Smart Setup

Group 1 Group 2

Confidential - PCB Production Solutions 22

Nominal line 2 Nominal line 1 Circular Pad Drill P&G Pad 2 Pad 1 Pad 3

£ Smart setup is enabled by Orbotech’s field-proven panel

understanding technology (SIP Technology)

£ For classifying all PCB features

¤ Future drills ¤ Drill layers ¤ Solder mask layers

Fusion – Smart Setup

Enabled by Panel Understanding Technology

Panel Understanding is Crucial for Correct Defect Classification

Confidential - PCB Production Solutions 23

£ Intuitive è Shorter training time £ Short è Higher effective throughput £ Optimal è Higher detection accuracy

7 12 3 6 5 10 2 4 6 8 10 12 Customer A Customer B Customer C

Fusion Other AOI

Fusion – Smart Setup

Intuitive, Short, Optimal

Average setup time

For batch of 120 panels at 3mil 5 minutes difference equals to 15% throughput

Confidential - PCB Production Solutions 24

True Detection Accuracy True Performance True Running Cost Savings True Intuitive Operation

• Fusion. Nothing But The Truth.

Confidential - PCB Production Solutions 25

Fusion

High Resolution At High Throughput

Fusion 20 Fusion 22 Res (mil) 1.2 (30µm) 1.0 (25µm) 1.0mil (25µm) 1.2mil (30µm) 1.5mil (37.5µm) 2.0mil (50µm) 3.0mil (75µm) 4.0mil (100µm) N/A 110 150 180 210 220 105 120 175 200 220 240

Confidential - PCB Production Solutions 26

£ Patented vacuum mask

dynamically fits to 5 predefined standard panel sizes

¤ 16” x 21” ¤ 18” x 24” ¤ 21” x 24” ¤ Eliminate the need for taping

panels £ Blocks uncovered vacuum holes

¤ Optimal vacuum efficiency for firm

grip of bent and thin panels £ Can be easily replaced

¤ Protects the table from permanent

scratches

¤ 24” x 26” ¤ 26” x 30”

Fusion – Innovative Vacuum Table

Optimal Vacuum Efficiency

Confidential - PCB Production Solutions 27

£ New concept design enables online

verification

¤ Fast and easy access to the defect area ¤ 4 configurable verification buttons ¤ Dedicated user interface

£ Clear value

¤ Lower handling damages ¤ Support flip mode and automation

Fusion – Online Verification

Reduces Panel Handling

Confidential - PCB Production Solutions 28

True Detection Accuracy True Performance True Running Cost Savings True Intuitive Operation

• Fusion. Nothing But The Truth.

Confidential - PCB Production Solutions 29

£ Designed for Running cost saving

¤ Lower power consumption ¤ Almost zero air consumption ¤ No lamps (service includes illumination) ¤ Lower floor space ¤ Reduced verification operations

Fusion Value Proposition

Lowest running cost

Confidential - PCB Production Solutions 30

The Value of Yield Improvement Using Fusion’s Excellent Detection Accuracy

$0 $100,000 $200,000 $300,000 $400,000 $500,000 $600,000 $700,000 0.50% 0.75% 1.00% 1.25% 1.50% 1.75% 2.00% 2.25% 2.50% 2.75% 3.00% Yield improvement Value of saving $8 PCB $4 PCB $2 PCB

Annual value of lower scrap saving (percentage of yield improvement)

(Assumptions: 2 true defects per panel, L/S 2mil)

0.5% of yield improvement, for $4 PCBs, saves $54,000 every year

Confidential - PCB Production Solutions 31

0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 VRS ratio difference (1+x) Annual OPEX saving ($K) $20,000 $10,000 $5,000

The Value of Verification Minimization Using Fusion’s Excellent Detection Accuracy

Annual value of verifications operation saving

Lower VRS ratio saves thousands of dollars every year

Annual labor cost

Confidential - PCB Production Solutions 32

£ The following results were provided by a leading PCB maker who

conducted an extensive comparison between Fusion and another AOI

Fusion – Lowest Cost-Per-Scan

Costs Analysis of Leading Customer in China

Average True Defects Average Critical defects (shorts that impact yield) Average F/As Setup time [min] Fusion 3.2 1.00 4.9 5 Competition 2.4 0.98 25.7 15 36% 2%

• 81%
• 67%

Bottom line – ROI on Fusion premium price < 1 year

Total Annual Cost of Ownership

$- $50,000 $100,000 $150,000 $200,000 $250,000

Fusion - 22 Competition

Annual mis-detection costs Annual verification operations costs Annual AOI operations costs Annual capital costs (Depreciation)

Confidential - PCB Production Solutions 33

Productivity

§

Significant F/A reduction

(Multi image) §

Shorter Setup and training Time

(Smart Setup) §

Increased T/P

§

Minimum running cost

(no bulbs, lower power and floor space)

Enabling Technologies

§

Finer L/S Resolution

(1mil) §

Advanced & Niche Materials

(New Vacuum table, Multi image)

Ease of Use

§

Intuitive Operation

(Smart setup) §

Online Verification

(Short distance to panel)

Fusion – True Value

Maximizes your bottom line

Yield

§

Higher Detection Level

(Multi image) §

Lower Handling Damages

(Online verification)

Confidential - PCB Production Solutions 34

Thank You!
