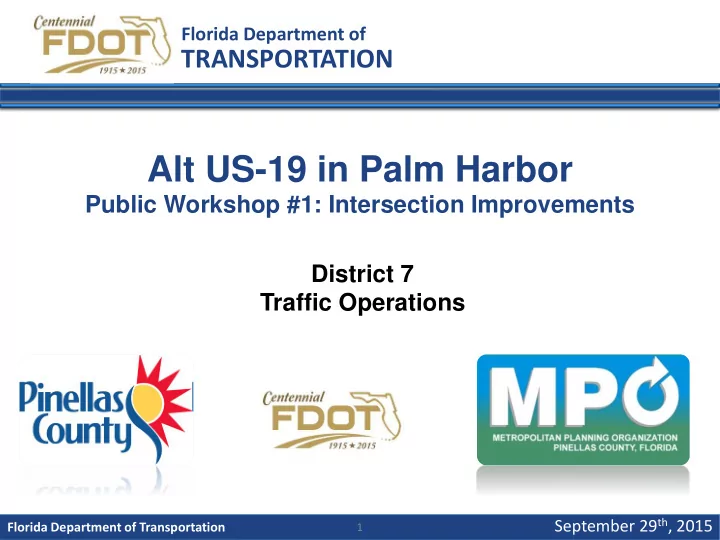

slide-1
SLIDE 1

Florida Department of Transportation

1

Florida Department of

TRANSPORTATION

Alt US-19 in Palm Harbor

Public Workshop #1: Intersection Improvements District 7 Traffic Operations

September 29th, 2015

slide-2
SLIDE 2

Florida Department of Transportation

2

Meeting Agenda

  • Opening Remarks and Welcome
  • Introduction to Elected Officials
  • Presentation
  • Question and Answer Session

Please reserve questions for the Q&A session

slide-3
SLIDE 3

Florida Department of Transportation

3

Alt-19 & Florida Avenue

Florida Avenue Florida Avenue Nebraska Avenue Georgia Avenue Pinellas Trail Pinellas Trail Source: Google Earth

  • 21,000 vehicles per day (2014)
  • Two 11’ through lanes
  • Two way center left turn lane
  • Pinellas trail to the west
  • Bike Lanes in both directions
slide-4
SLIDE 4

Florida Department of Transportation

4

Average Annual Daily Traffic

5,000 10,000 15,000 20,000 25,000 30,000 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014

Historical Average Annual Daily Traffic (AADT)

Source: ALT US 19 at Florida Avenue Roundabout Feasibility Study

Average Annual Daily Traffic on Alt US-19 (Northbound and Southbound)

1998-2007 (Average) 2008-2014 (Average) 2035 (Projection) 25,000 21,500 23,880

slide-5
SLIDE 5

Florida Department of Transportation

5

Alt-19 Intersection Options

Florida Avenue Florida Avenue Nebraska Avenue Georgia Avenue Pinellas Trail Pinellas Trail Source: Google Earth

1.Current Stop Signs (Florida & Nebraska Ave.) 2.Traffic Signal (Nebraska Avenue) 3.Roundabout (Florida Avenue)

slide-6
SLIDE 6

Florida Department of Transportation

6

Objectives

  • 1. Pedestrian/Cyclist Safety
  • 2. Motorist Safety
  • 3. Side Street Access to Alt US-19
  • 4. Efficient Traffic Flow Along Alt-19
  • 5. Gateway to Historic Downtown Palm Harbor

Source: Historic Downtown Palm Harbor Master Plan

slide-7
SLIDE 7

Florida Department of Transportation

7

Objectives

  • 1. Pedestrian/Cyclist Safety
  • 2. Motorist Safety
  • 3. Side Street Access to Alt US-19
  • 4. Efficient Traffic Flow Along Alt-19
  • 5. Gateway to Historic Downtown Palm Harbor

Source: Historic Downtown Palm Harbor Master Plan Page 11

slide-8
SLIDE 8

Florida Department of Transportation

8

Objectives

  • 1. Pedestrian/Cyclist Safety
  • 2. Motorist Safety
  • 3. Side Street Access to Alt US-19
  • 4. Efficient Traffic Flow Along Alt-19
  • 5. Gateway to Historic Downtown Palm Harbor

Source: Historic Downtown Palm Harbor Master Plan Pg. 11

slide-9
SLIDE 9

Florida Department of Transportation

9

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-10
SLIDE 10

Florida Department of Transportation

10

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-11
SLIDE 11

Florida Department of Transportation

11

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-12
SLIDE 12

Florida Department of Transportation

12

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-13
SLIDE 13

Florida Department of Transportation

13

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-14
SLIDE 14

Florida Department of Transportation

14

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-15
SLIDE 15

Florida Department of Transportation

15

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-16
SLIDE 16

Florida Department of Transportation

16

Stop Signs

Pedestrian/Cyclist Safety

  • Lacks controlled

crossing across Alt-19

  • Crosswalks

available across Florida Ave

Alt-19 & Florida Looking East

slide-17
SLIDE 17

Florida Department of Transportation

17

  • 1. Controlled pedestrian crossing at Nebraska Ave.

Traffic Signal: Nebraska

Pedestrian/Cyclist Safety

slide-18
SLIDE 18

Florida Department of Transportation

18

  • 1. Controlled pedestrian crossing at Nebraska Ave
  • 2. Risk from turning vehicles

Traffic Signal: Nebraska

Pedestrian/Cyclist Safety

slide-19
SLIDE 19

Florida Department of Transportation

19

Roundabout: Florida Ave

Pedestrian/Cyclist Safety 90% Survive 50% Survive 10% Survive

Speed & Safety

slide-20
SLIDE 20

Florida Department of Transportation

20

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

slide-21
SLIDE 21

Florida Department of Transportation

21

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

slide-22
SLIDE 22

Florida Department of Transportation

22

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

slide-23
SLIDE 23

Florida Department of Transportation

23

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

slide-24
SLIDE 24

Florida Department of Transportation

24

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

slide-25
SLIDE 25

Florida Department of Transportation

25

Roundabout: Florida Ave

Pedestrian/Cyclist Safety

  • 40th St – 3 intersections

Hillsborough Ave to Busch Blvd

  • 1995 – 2 Lanes with 3 Traffic Signals
  • 2014 – 4 Lanes with 3 Roundabouts

All 3 Intersection Yearly Average Crashes Traffic Signal

(2005-2009)

Roundabout

(2012-2015*)

Pedestrian 2.4 per year 0 per year Bicycle 0.8 per year 0 per year Before After *From 2012 through Aug 2015 All 3 Intersection Yearly Average Crashes Traffic Signal

(2005-2009)

Roundabout

(2012-2015*)

Pedestrian 2.4 per year ZERO Bicycle 0.8 per year ZERO

slide-26
SLIDE 26

Florida Department of Transportation

26

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-27
SLIDE 27

Florida Department of Transportation

27

Stop Signs

Motorist Safety

  • Greatest threat is

“Angle” and “Left-Turn” crash types.

  • No fatalities within the

last 6 years

Angle Crash & Left Turn Crashes

Crash Types Represent 85.5% of Fatal Unsignalized Intersection Crashes

slide-28
SLIDE 28

Florida Department of Transportation

28

77% Reduction Angle Left-Turn Rear-End

Traffic Signal: Nebraska Ave

Motorist Safety

60% Reduction 58% Increase

slide-29
SLIDE 29

Florida Department of Transportation

29

Roundabout: Florida Ave

Motorist Safety

Sideswipe Crash Roundabout

Low Speed

Angle Crash & Left Turn Crashes Stop Signs or Traffic Signal

90% Reduction in Fatal & Serious Injury Crashes

(vs. Stop Signs & Traffic Signals) Source: Insurance Institute for Highway Safety

slide-30
SLIDE 30

Florida Department of Transportation

30

Sideswipe Crash Roundabout Angle Crash & Left Turn Crashes Stop Signs or Traffic Signal

Roundabout: Florida Ave

Motorist Safety

90% Reduction in Fatal & Serious Injury Crashes

(vs. Stop Signs & Traffic Signals) Source: Insurance Institute for Highway Safety Low Speed

slide-31
SLIDE 31

Florida Department of Transportation

31

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-32
SLIDE 32

Florida Department of Transportation

32

Stop Signs

Side Street Access/Delay

  • Crossing and

turning traffic must wait for gaps in traffic along Alt-19

  • Off-peak, no delay

after stop

slide-33
SLIDE 33

Florida Department of Transportation

33

Traffic Signal: Nebraska Ave

Side Street Access/Delay

Expected Delay

Stop Sign: Nebraska Ave Traffic Signal: Nebraska Ave

Wait Difference

AM Delay 20 Seconds 16 Seconds

4 Seconds Less

PM Delay 27 Seconds 18 Seconds

9 Seconds Less

slide-34
SLIDE 34

Florida Department of Transportation

34

Roundabout: Florida Ave

Side Street Access/Delay

Expected Delay Westbound

Stop Sign: Florida Ave Roundabout: Florida Ave Difference

AM Delay 24 Seconds 6 Seconds 18 Seconds Less PM Delay 31 Seconds 8 Seconds 23 Seconds Less

slide-35
SLIDE 35

Florida Department of Transportation

35

Roundabout: Florida Ave

Side Street Access/Delay

Expected Delay Eastbound

Stop Sign: Florida Ave Roundabout: Florida Ave Difference

AM Delay 24 Seconds 8 Seconds 16 Seconds Less PM Delay 31 Seconds 8 Seconds 23 Seconds Less

slide-36
SLIDE 36

Florida Department of Transportation

36

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-37
SLIDE 37

Florida Department of Transportation

37

Stop Signs

Efficient Traffic Flow Along Alt-19

  • Currently, no delay for

traffic along Alt-19

  • This condition may

contribute to speeding along Alt-19

slide-38
SLIDE 38

Florida Department of Transportation

38

  • Great when green
  • Delay when red
  • may encourage speeding

to “beat the light.”

  • Traffic slow to start up

when it turns green.

Traffic Signal: Nebraska

Efficient Traffic Flow Along Alt-19

slide-39
SLIDE 39

Florida Department of Transportation

39

Expected Delay

(Northbound & Southbound Average)

Roundabout: Florida Ave Traffic Signal: Nebraska Ave

Wait Difference

AM Delay 10 Seconds 11 Seconds 1 Second PM Delay 13 Seconds 12 Seconds 1 Second

Roundabout: Florida Ave

Efficient Alt- 19 Traffic Flow

slide-40
SLIDE 40

Florida Department of Transportation

40

Florida Department of Transportation

Roundabout Simulation

Audience, Please Focus on: Pedestrian Traffic, 18-Wheeler, & Delay on Southbound Alt-19

Click Image to Begin Video

slide-41
SLIDE 41

Florida Department of Transportation

41

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-42
SLIDE 42

Florida Department of Transportation

42

Stop Signs

Gateway Potential

  • Limited opportunities

to make intersection more attractive

slide-43
SLIDE 43

Florida Department of Transportation

43

  • Custom signals make intersections more attractive.
  • Aesthetics funded by local agencies
  • Located at Nebraska Avenue

Traffic Signal: Nebraska Ave

Aesthetic Downtown Gateway

slide-44
SLIDE 44

Florida Department of Transportation

44

  • Provides more room for landscaping/hardscaping
  • Aesthetics funded by local agency

Roundabout: Florida Ave

Gateway Potential

Edison Landing: Muskegon, MI Five Points: Sarasota, FL

slide-45
SLIDE 45

Florida Department of Transportation

45

Intersection Options

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

INTERSECTION OPTIONS OBJECTIVES

Pedestrian/ Cyclist Safety Motorist Safety Side-Street Access to Alt 19 Efficient Traffic Flow Along Alt 19 Aesthetic Downtown Gateway

Stop Signs Traffic Signal At Nebraska Ave Modern Roundabout at Florida Ave

slide-46
SLIDE 46

Florida Department of Transportation

46

Florida Department of Transportation

City of Clearwater Roundabout

Good Design = Good Results Bad Design = Bad Results

slide-47
SLIDE 47

Florida Department of Transportation

47

Florida Department of Transportation

City of Clearwater Roundabout

Traffic Signals

Prior to 1999

  • 9 Total intersections
  • Congestion
slide-48
SLIDE 48

Florida Department of Transportation

48

Florida Department of Transportation

City of Clearwater Roundabout

Fountain Roundabout 1999 - 2002

  • 9 Intersections replaced

with Roundabout

  • Fountain added
  • Crashes Doubled
slide-49
SLIDE 49

Florida Department of Transportation

49

Florida Department of Transportation

City of Clearwater Roundabout

Modern Roundabout 2002 – Present What Was Changed?

  • Fountain spray eliminated
  • Horizontal obstructions

removed

  • Entrance/exit alignment fixed
  • Pavement striping improved
slide-50
SLIDE 50

Florida Department of Transportation

50

Florida Department of Transportation

City of Clearwater Roundabout

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 CRASHES PER WEEK YEAR

Average Crashes Per Week

Modern Roundabout 0.07/wk 9 Intersections 2.25/wk Fountain Roundabout 4.5/wk

82% reduction

(vs fountain roundabout)

slide-51
SLIDE 51

Florida Department of Transportation

51

Florida Department of Transportation

City of Clearwater Roundabout

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 CRASHES PER WEEK YEAR

Average Crashes Per Week

Modern Roundabout 0.07/wk 9 Intersections 2.25/wk Fountain Roundabout 4.5/wk

82% reduction

(vs fountain roundabout)

slide-52
SLIDE 52

Florida Department of Transportation

52

Florida Department of Transportation

City of Clearwater Roundabout

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 CRASHES PER WEEK YEAR

Average Crashes Per Week

Modern Roundabout 0.07/wk 9 Intersections 2.25/wk Fountain Roundabout 4.5/wk

82% reduction

(vs. fountain roundabout)

slide-53
SLIDE 53

Florida Department of Transportation

53

Thank You. Question & Answer
