Graz University of Technology Advances and Trends in Augmented Reality Systems Dieter Schmalstieg Graz University of Technology Advances and Trends in Augmented Reality Systems Dieter Schmalstieg 1 Graz University of Technology Lets Start

slide-1
SLIDE 1

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 1

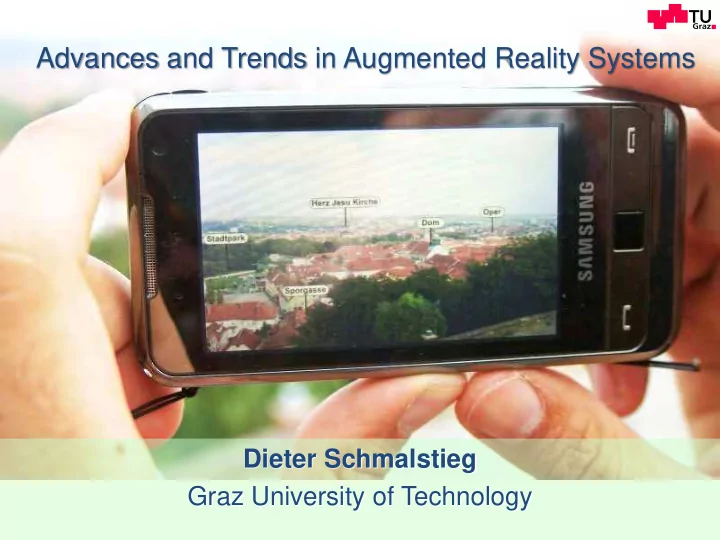

Advances and Trends in Augmented Reality Systems

Dieter Schmalstieg Graz University of Technology

slide-2
SLIDE 2

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 2

Let’s Start With A Quiz

  • Who knows the name of this device?

Microsoft Hololens, a head-worn device for Augmented Reality

slide-3
SLIDE 3

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 3

A Strong Disturbance in the Force

  • 1990s: 1st wave of excitement about

Virtual Reality (VR) and Augmented Reality (AR)

– But remains a niche market

  • 2010s: Massive investments by industrial players

– Microsoft releases HoloLens – Facebook acquires Oculus Rift – Apple acquires PrimeSense, Metaio etc. – Valve, Sony, Samsung launch VR gaming platforms

  • What is the application area of AR?
slide-4
SLIDE 4

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 4

AR as Multimedia System Loop

Situated visualization User input Pose tracking Registration

  • f virtual

content

Virtual content SPATIAL MODEL Real world model

slide-5
SLIDE 5

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 5

Microsoft HoloLens

  • Per eye-microprojectors
  • Holographic reflection screen

– Fresnel-type microlenses – Conventional (rather narrow) field of view

  • Two wide-field-of view cameras
  • Kinect-type sensor

– Infrared laser projector + 2 infrared cameras

  • Dedicated acceleration chip, probably for

– Simultaneous localization and mapping (SLAM) – Sensor fusion

slide-6
SLIDE 6

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 6

What the HoloLens Will Bring

  • Tracking is solved now?
  • Many years of 3D computer vision research

(including my own)

now obsolete?

  • Not quite…

– Infrared does not work outdoors – SLAM does not solve global localization problem

slide-7
SLIDE 7

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 7

Global Localization with 2D Maps

  • Problem: City-scale 3D scans are costly
  • Localization with existing data

– 2D map with building footprints and roof height – 3D objects extruded from 2D map

  • Sensors (GPS, IMU, compass) give prior
  • Detect facade outline in camera image
slide-8
SLIDE 8

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 8

But Enough About Tracking…

Situated visualization

  • f virtual

content User input Pose tracking Registration

  • f virtual

content

Virtual content SPATIAL MODEL Real world model

….what about the content?

slide-9
SLIDE 9

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 9

Where Does Digital Content Originate?

  • Digital artefacts are free from physical constraints
  • Moore’s law applies to many kinds of phenomena

– 1980’s: Digital office work – 1990’s: Digital private life (email, photography, music) – 2000’s: Social and mobile computing – 2010’s: Cloud (hardware irrelevant), IoT, Ubicomp

  • But: not calm computing

– App for every aspect of life? – AR can provide situated, less obstrusive interface

slide-10
SLIDE 10

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 10

AR as an Interface

  • Internet of things allows control over physical

environment

  • But physical objects have no input or output
  • AR can provide direct manipulation of the

parameters

slide-11
SLIDE 11

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 11

AR as a Dramatic Medium

  • AR progresses from technology to dramatic medium
  • New medium has new characteristics

– Before “Citizen Kane”, movies were like stage recordings

  • Characteristics of AR as a medium

– Combines real+virtual  can display content anywhere – Spatially registered  free chooce of viewpoint – Interactive in real time  always interacting with physical space

  • Requires new conventions

– E.g., narrative focus vs free camera control – No cut scenes as in games – AR is more like a theater stage

slide-12
SLIDE 12

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 12

AR as a Communication Medium

  • AR as a medium for communication
  • Content provided by

– Professionals (entertainment, journalists etc.) – Authorities (traffic etc.) – Individuals  social

  • Not geo-location, but precise spatial annotation

(part of an object)

  • Linking (like web links) between virtual and real
  • Channels (like blogs) to organize content
  • Always-on, context-driven, non-linear streams
slide-13
SLIDE 13

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 13

Example: AR Instructions

Maintenance Process data visualization and control

slide-14
SLIDE 14

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 14

What Content is Required for AR Instructions?

  • A sensor (Kinect) for tracking
  • 3D model of the real object
  • Decomposition of model into parts
  • Sequence of parts

– Disassembling: remove parts – Assembling: add parts – Maintenance: remove, manipulate, add

  • Representation of the necessary motions
  • Visualizations that convey the actions well
slide-15
SLIDE 15

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 15

How Can We Generate AR Instructions?

  • Manually

– Use 3D modeling tools + (maybe) scripting – Tedious, requires expert modeling knowledge

  • From existing printed instruction manuals
  • From existing videos
slide-16
SLIDE 16

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 16

How Can We Generate AR Instructions?

  • Manually

– Use 3D modeling tools + (maybe) scripting – Tedious, requires expert modeling knowledge

  • From existing printed instruction manuals
  • From existing videos
slide-17
SLIDE 17

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 17

What are the Elements of a Manual?

  • Labels
  • Directional arrows
  • Before-after sequences
  • Explosion diagrams
slide-18
SLIDE 18

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 18

Retargeting from 2D to 3D

  • Problem 1

– Where is every part located in real world?

  • Approach

– Must be able to find parts (semi-)automatically

  • Problem 2

– What intent does the illustration have?

  • Approach

– Synthesize animation of the parts to communicate the intent

slide-19
SLIDE 19

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 19

Preparations

  • Scan 2D manual (or download PDF)
  • Obtain 3D model of the machine

– Get CAD data from vendor – Alternatively, use 3D scanner (Kinect again)

  • Register 3D model with illustration

– Same problems as 3D tracking-by-detection – For just a few camera poses, this is an easy task

slide-20
SLIDE 20

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 20

Labels

  • Read labels with optical character recognition
  • Generate ID buffer

– Every pixel refers to the part underneath

  • Search line

– Look up endpoint of line in ID buffer – Points to the part

slide-21
SLIDE 21

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 24

Multiple Moving Parts

slide-22
SLIDE 22

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 25

Results

slide-23
SLIDE 23

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 26

How Can We Generate AR Instructions?

  • Manually

– Use 3D modeling tools + (maybe) scripting – Tedious, requires expert modeling knowledge

  • From existing printed instruction manuals
  • From existing videos
slide-24
SLIDE 24

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 27

Cooking as a Video Game

“Sight” (short film by Eran May-raz and Daniel Lazo, Israel, 2012) Note: These images are created offline by an animation artist!

slide-25
SLIDE 25

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 28

Here is our version 

Knife skills video Knife skills AR tutorial

slide-26
SLIDE 26

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 29

Your Whole Life Is Alreasy On Youtube

We can use these videos!

slide-27
SLIDE 27

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 30

Overview of the Approach

Edit motion Temporal segmentation 3D registration Extract from input video Visualize Track objects 3D glyph synthesis Reconstruct 3D motion Ghosted rendering

1 2 3

slide-28
SLIDE 28

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 31

Motion Extraction of Unknown Rigid Objects

  • Unknown object in video  no 3D model
  • Input video material usually not good enough for

structure from motion

  • Scan a similar object with a Kinect
  • Create a simple rigging
  • Automatically deform

by skinning

  • Deformed object can

be tracked 1

slide-29
SLIDE 29

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 32

Motion Extraction of Tools on Surfaces

  • Track the tooltip and map trajectory to atlas
  • Can retarget motion to any surface with same atlas

1

slide-30
SLIDE 30

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 33

Motion Segmentation

  • Segment the motion by combining

– Path: only unique motions – Curvature: separate orientation change from jitter – Velocity: cut, if no motion for a certain time

  • Can be extended to skeleton tracking

– Greedy segmentation based on all bones

  • Can be used as input to synthesize arrow glyphs

2

slide-31
SLIDE 31

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 34

Motion Registration to Target Object

  • Attach to source of motion

– Guide user to source object

  • Attach to target motion

– Guide user to destination object

  • Attach to both source and target

– Rarely needed – Must scale the motion

2

slide-32
SLIDE 32

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 35

Visualization

Ghosted objects Arrow glyphs 3

slide-33
SLIDE 33

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 36

More Realistic Visualization of AR Content

  • Geometric scanning is easy now (depth sensors)
  • Realistic lighting for AR also needs photometry

– Surface reflectance (material properties) – Incident illumination (light sources)

  • Photometric scanning not yet easy

– Ambiguous problem – Mostly done in special studios: lightstage, lightprobe…

  • Can you do-it-yourself?

– Consumer hardware – Scan your own real content for AR

slide-34
SLIDE 34

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 37

Photometric Reconstruction from Images

  • Solve a linear system T * l = r
  • Output:

– l … incident light

  • Input:

– r … reflected light, as seen in video – T … radiance transfer, computed from scene geometry

T l r

slide-35
SLIDE 35

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 38

Material Segmentation and Specularities

slide-36
SLIDE 36

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 39

Summary and Outlook

  • We will see the rise of new media: VR, AR
  • New media will need content

– For drama, narrative – For communication

  • Re-use of existing sources

– Printed manuals, video tutorials, 3D photometric scans

  • The future

– Authoring by demonstration – AR Telepresence – Augmented Humans?

slide-37
SLIDE 37

Graz University of Technology Dieter Schmalstieg Advances and Trends in Augmented Reality Systems 40

Questions?

Find answers in this book!  OUT 21 June 2016 www.augmentedrealitybook.org
