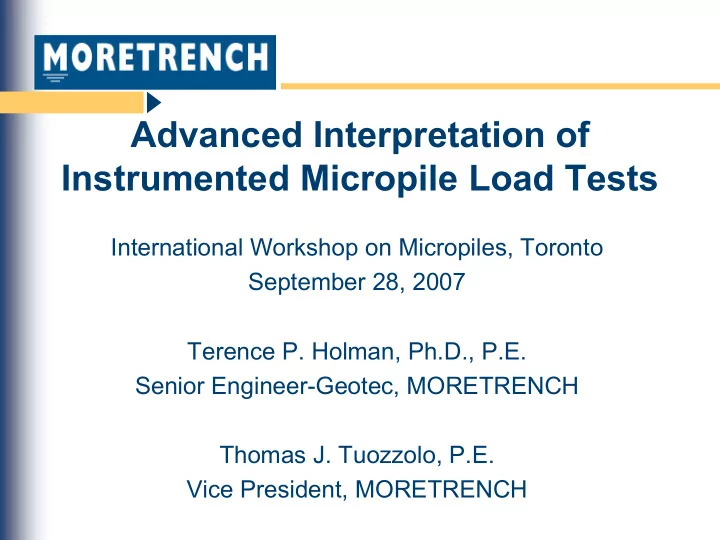

Advanced Interpretation of Instrumented Micropile Load Tests

International Workshop on Micropiles, Toronto September 28, 2007 Terence P. Holman, Ph.D., P.E. Senior Engineer-Geotec, MORETRENCH Thomas J. Tuozzolo, P.E. Vice President, MORETRENCH

slide-2
SLIDE 2

Introduction

  • Two case histories of strain gauge

instrumented micropile load tests

– Case History No. 1 – 167 Johnson Street – Case History No. 2 – Dublin Road Pump Station (DRPS) – All piles Type B pressure grouted with typically developed pressures of 345 kPa

  • Highlight aspects of pile mechanics

– Degradation of secant pile modulus – Nonuniform load distribution – Generation of micropile tip resistance and shaft resistance

slide-3
SLIDE 3

Case History No. 1-167 Johnson St

Dense to v. dense m/c SAND (NYCBC 7-65) δv

  • 40+ story residential high

rise on mixed mat/spread footing foundations

  • Dense to v. dense sand

and sand/gravel deposits

  • Excessive δv beneath

heavily loaded elevator core

  • Minimize δvincorporate

micropiles to create “piled raft” effect

– Allow high δ and low F.S.

  • 2 strain gauge

instrumented load tests

– 14 gauges per pile

slide-4
SLIDE 4

Ground Conditions and Pile Design

SW Strain Gauge

0 m 6.1 m 9.1 m 12.2 m 13.7 m 15.2 m 17.8 m

384 mm Isolation Casing EB Strain Gauge

SR-2 SR-1 SG-1 SG-2 SG-3 SG-4 SG-5 SG-1 SG-2 SG-3 SG-4 SG-5

273 mm Casing

DL=1112 kN, TL=2224 kN

25 50 75 100 125 150 Uncorrected SPT N-value (blows/0.3 m) 24 21 18 15 12 9 6 3 Depth below Ground Surface (m)

LB-1 LB-2 LB-3 LB-4 LB-5 LB-6 LB-7 LB-8 LB-9

URBAN FILL SAND, SM TO TR GRAVEL (SP)

slide-5
SLIDE 5

Instrumentation

  • Spot-weldable gauges on bar (10 ea.)

– Accuracy=15 µε, Sensitivity=0.4 µε

  • Embedment gauges in grout (4 ea.)

– Accuracy=15 µε, Resolution=1.0 µε

  • Grout strength and unconfined modulus testing

– E=13.5 to 14.5 GPa (Unconfined secant at ε=0.11%) – f’c=44.8 MPa (cylinders) to 62.1 MPa (cubes)

slide-6
SLIDE 6

Test Pile Installation

Left - Installation of 273 mm test element (pile) Top – Installation of 194 mm diameter reaction anchor, 1334 kN capacity

slide-7
SLIDE 7

Test Pile Construction

Left - Installation of 273 mm test element (pile) Top – Buried old foundation wall and

  • bstructions
slide-8
SLIDE 8

Load Testing Data

1000 2000 3000 Applied Pile Top Load (kN) 50 40 30 20 10 Pile Butt Settlement (mm)

SR-1 (6.1 m Bond) SR-2 (9.1 m Bond) Net Permanent Settlement=29 mm Net Permanent Settlement=8 mm Plunging Failure at 2224 kN

  • Max. Test

Load= 2669 kN

200 400 600 800 1000 Measured Strain (µε) 18 16 14 12 10 8 6 4 2 Depth below Ground Surface (m)

P=556 kN P=1112 kN P=1669 kN P=2224 kN Post Failure (1771 kN) Residual Tip Isolation Casing Geometry Change Tip Pile Casing Geometry Change

400 800 1200 1600 2000 Measured Strain (µε) 18 16 14 12 10 8 6 4 2 Depth below Ground Surface (m)

P=556 kN P=1112 kN P=1669 kN P=2224 kN P=2669 kN Tip Isolation Casing Geometry Change Tip Pile Casing Geometry Change

SR-1 SR-2

slide-9
SLIDE 9

Case History No. 2-DRPS

  • Ground loss, heave,

and settlement around 3 pump station structures following excavation and pile driving

  • Complex ground

conditions

– Excess head/high groundwater levels – Marine glauconitic silty fine sand deposits

PUMP CHAMBER WET WELL INLET CHAMBER

SILT, SAND, AND CLAY FILL GLAUCONITIC F/M SAND SHEET PILES

(BUILT) (NOT BUILT) (NOT BUILT)

slide-10
SLIDE 10

Ground Conditions and Pile Design

10 20 30 40 50 60 Uncorrected SPT N-value (blows/0.3 m) 24 21 18 15 12 9 6 3 Depth below Ground Surface (m)

B-1 (pre-failure) B-2 (pre-failure) B-3 B-4 B-5 B-6

SILTY SAND (SM)

GLAUCONITIC F/M SAND

SAND, SILT, AND CLAY (SM, ML, CL)

Zone of Ground Loss/Disturbance

SW Strain Gauges 0 m 13.6 m 16.8 m 20.3 m

DL=534 kN, TL=1067 kN

Isolation Casing 194mm OD Casing 1.5 m

slide-11
SLIDE 11

Load Testing Data

200 400 600 800 1000 Applied Pile Top Load (kN) 50 40 30 20 10 Pile Butt Settlement (mm)

Net Permanent Settlement=26 mm Plunging Failure at 933 kN

200 400 600 800 1000 Measured Strain (µε) 21 20 19 18 17 16 15 14 13 Depth below Ground Surface (m)

P=267 kN P=534 kN P=801 kN P=934 kN Post Failure Full Unload

SG-3 Level SG-2 Level SG-1 Level

slide-12
SLIDE 12

Analysis and Interpretation

  • Nonlinear σ−ε behavior of composite pile

section

  • Calculated load distribution along bond

length

  • Deformation-based generation of micropile

tip resistance and bond resistance

slide-13
SLIDE 13

Composite Micropile Behavior

200 400 600 800 1000 Measured Strain (µε) 20 22 24 26 28 Estimated Secant Modulus (GPa)

Esec (MPa)= -0.0063ε + 27.46

200 400 600 800 1000 1200 Measured Strain (µε) 10 20 30 40 50 60 70 Estimated Secant Modulus (GPa)

Cased Zone Secant Modulus

  • Approx. Secant Modulus (Field Data)

Bond Zone Secant Modulus

Esec (GPa)= -0.0081ε + 42.89 (Cased) Esec (GPa)= -0.0104ε + 26.32 (Bond)

SR-1 DRPS-Bond Zone

  • Interpretation of load

distribution

– P=εApEp

  • Composite pile has

complex σ−ε behavior

  • Secant modulus of

composite pile degrades with increasing strain

– Linear degradation model invoked

  • Calculate Esec as f(ε)
slide-14
SLIDE 14

Load Distribution

200 400 600 800 1000 Interpreted Load (kN) 21 20 19 18 17 16 15 14 13 Depth below Ground Surface (m)

P=267 kN P=534 kN P=801 kN P=934 kN Post Failure Full Unload

DRPS

400 800 1200 1600 2000 2400 Interpreted Load (kN) 18 16 14 12 10 8 6 4 2 Depth below Ground Surface (m)

P=556 kN P=1112 kN P=1669 kN P=2224 kN Post Failure (1771 kN) Residual

SR-1

500 1000 1500 2000 2500 3000 Interpreted Load (kN) 18 16 14 12 10 8 6 4 2 Depth below Ground Surface (m)

P=556 kN P=1112 kN P=1669 kN P=2224 kN P=2669 kN

SR-2

  • Non-constant mobilized bond stress for piles with short

bond length (SR-1 and DRPS)

– Approaches constant value near failure – 16-23 kN/m for SR-1, 25-28.5 kN/m for SR-2, 8.5-12.1 kN/m for DRPS

  • Significant ultimate tip resistance for SR-1 and DRPS

– 19-25% of total ultimate capacity (300-700 kN)

slide-15
SLIDE 15

Generation of Tip Resistance

  • Total pile deformation
  • Tip resistance mobilizes

nonlinearly for piles with short bond length

– Initial yield at settlement ratio

  • f 0.01 to 0.02

– Limiting values at settlement ratio of 0.08 to 0.10

  • Small tip resistance

developed for SR-2

– No failure condition – Denser soils at pile tip

  • Trends similar to larger

deep foundations

10 20 30 40

  • Calc. Pile Tip Settlement (mm)

200 400 600 800 Mobilized Tip Load (kN)

SR-1 SR-2 DRPS

0.02 0.04 0.06 0.08 0.1 0.12 Normalized Tip Settlement δt/Db 0.2 0.4 0.6 0.8 1 1.2 Normalized Tip Load Qt/Qtmax

SR-1 SR-2 DRPS

t b c

δ δ δ δ + + =

∫

= +

L b c

εdz ) δ (δ

slide-16
SLIDE 16

Generation of Bond Resistance

10 20 30 40

  • Calc. Shaft Compression

and Tip Settlement (mm) 100 200 300 Average Bond Shear Stress (kPa)

SR-1 SR-2 DRPS

  • Develops with compression of bond zone and tip

displacement (δb+δt)

  • 6 to 8 mm of deformation required to initiate failure for

short bond length piles (≈0.1% Lb)

  • Ultimate τ reached between 10 and 20 mm (≈ 0.2% Lb)
  • No failure for SR-2 with long bond length
slide-17
SLIDE 17

Summary and Conclusions

  • Strain gauges can point out changes in

pile geometry

  • Composite, nonlinear nature of micropiles

complicates stress-strain response

  • Resistance distribution is nonuniform

along bond length

  • Significant micropile tip resistance may be

mobilized for shorter bond length piles

  • Instrument for better understanding!!
slide-18
SLIDE 18

Summary and Conclusions

  • Implications for analysis and design

– Structural assessment of micropile response should account for real σ−ε behavior (i.e. nonlinear material behavior) – For controllable design scenarios micropile tip resistance could be considered – Short bond lengths for micropiles should be used cautiously due to the relatively small bond movement/compression required to reach ultimate capacity
