San Antonio Malta Istanbul Lagos Ackerman Aviation Group Bombardier Learjet 45XR Serial Number 375 Aircraft Specification San Antonio Malta Istanbul Lagos Low Total Time Two Owners Since New MSP Engines and APU

slide-1
SLIDE 1

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

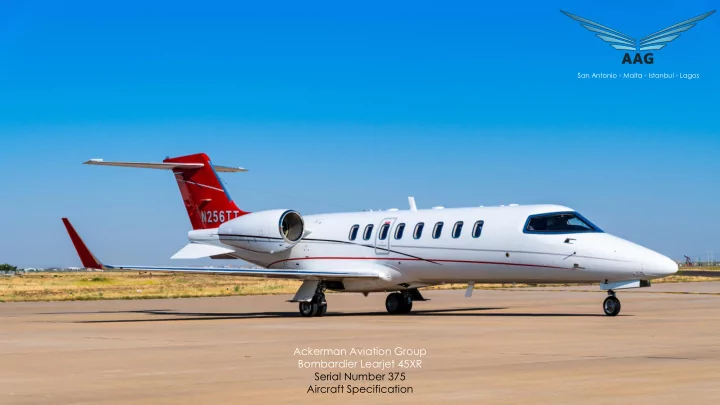

Ackerman Aviation Group Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

slide-2
SLIDE 2

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Low Total Time Two Owners Since New MSP Engines and APU Bombardier Learjet 45XR Serial Number 375

slide-3
SLIDE 3

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 45XR Serial Number 375 ADS-B Out Compliant (2020) FAR Part 135 Ready CAMP Maintenance Tracking

slide-4
SLIDE 4

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 45XR Serial Number 375 Excellent Maintenance History Recent Phase A Inspection

slide-5
SLIDE 5

Primus 1000 Avionics Suite Dual UNS-1Ew with WAAS/LPV Runway Awareness and Advisory System EGPWS Flight Data Recorder

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Avionics

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375

slide-6
SLIDE 6

Interior Configuration

Nine (9) Passenger Interior in a Double Club Configuration with Belted Side Facing Single Lavatory Seat. Internal Coat Coat/Baggage Area and Main External Baggage Area. Forward Galley and Refreshment Center with Storage, Ice Drawers, Coffee and Water Dispenser. Four Executive Card Tables.

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 45XR Serial Number 375

slide-7
SLIDE 7

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Main Cabin Aft View

slide-8
SLIDE 8

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Main Cabin Aft View

slide-9
SLIDE 9

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Mid Cabin Forward View

slide-10
SLIDE 10

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Mid Cabin Aft View

slide-11
SLIDE 11

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Forward Cabin Aft View

slide-12
SLIDE 12

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375

slide-13
SLIDE 13

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Forward Galley

slide-14
SLIDE 14

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aft Lavatory Vanity And Storage

slide-15
SLIDE 15

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aft Lavatory

slide-16
SLIDE 16

Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Engines:

  • Two Honeywell TFE731-20BR-1B - 6000 Hour TBO
  • Left Engine:

3641 Total Time Since New

  • Left Engine: 2602 Cycles Since New
  • Right Engine: 3641 Total Time Since New
  • Right Engine: 2602 Cycles Since New
  • Enrolled on Honeywell MSP

Airframe:

  • Year Model 2008
  • 3641 Hours Total Time Since New
  • 2602 Total Landings Since New
  • CAMP Maintenance Tracking

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

APU:

  • Honeywell RE100(LJ)
  • 1217 Time Since New
  • Enrolled on Honeywell MSP

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

slide-17
SLIDE 17
  • EFIS (Electronic Flight Instrument System)

: Four Honeywell DU-870 EFIS/MFD Display Units (8 Inch x 7 Inch)

  • A/P/F/D (Autopilot/Flight Director)

: Honeywell Autopilot with Dual IC-600 Flight Guidance Computers

  • ISIS (Integrated Standby Instrument System)

: Integrated Standby Instruments

  • FMS (Flight Management System)

: Dual Universal UNS-1Ew WAAS/LPV Flight Management Systems

  • GPS (Global Position System)

: Dual Universal GPS Receivers

  • VHF COMM (Very High Freq. Communications) : Dual Honeywell RCZ-833 COMM w/ 8.33 Spacing
  • NAV (Navigation Radio)

: Dual Honeywell RNZ-851 NAV w/ FM Immunity

  • DME (Distance Measuring Equipment)

: Dual Honeywell RNZ-850 DME

  • ADF (Automatic Direction Finder)

: Honeywell RNZ-851ADF

  • HF COMM

: Honeywell HF-1050 HF with Selcal

  • RADAR

: Honeywell Primus WU-660 Color Radar

  • RADAR ALT (Radar Altimeter)

: Honeywell RT-300 Radar Altimeter

  • XPNDR (Transponder)

: Dual Honeywell RCZ-833 Transponders

  • ADC (Air Data Computer)

: Dual Honeywell AZ-950 Air Data Computers

  • AHRS (Attitude and Heading Reference System) : Dual Honeywell AHZ-800 AHRS Attitude Heading Computers
  • GPWS (Ground Proximity Warning System)

: Honeywell Mark V EGPWS w/TAWS and Wind Shear Alert

  • TCAS (Traffic Collision Avoidance System)

: Honeywell TCAS 2000 w/ Change 7

  • CVR (Cockpit Voice Recorder)

: Honeywell SSCVR (Two Hours)

  • FDR (Flight Data Recorder)

: L3 FA2100 SSFDR Avionics:

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

Honeywell Primus 1000 Avionics System with Primus II Integrated Radio System to include:

slide-18
SLIDE 18

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

Maintenance

  • Phase A – 300 Hour /12 Month Inspection c/w at 3641 Hours / 09 Aug 2019
  • Phase B – 600 Hour /24 Month Inspection c/w at 3432 Hours / 29 Aug 2018
  • Phase C – 1200 Hour/36 Month Inspection c/w at 3432 Hours / 29 Aug 2018
  • Phase D – 2400 Hour/96 Month Inspection c/w at 2421 Hours / 23 Jul 2012

Additional Equipment

  • ADS-B Out Compliant (2020)
  • RVSM
  • Nordam Thrust Reversers
  • Runway Alert and Advisory System (RAAS)
  • Engine Instrument/Crew Alerting System (EICAS)
  • Universal DTU-100 Data Transfer Unit
  • ICS-100 Iridium Phone w/ Two (2) Handsets
  • ARTEX C406-2 406 MHz ELT with NAV Interface
  • Tail Recognition Light
  • Concorde Lead Acid Battery
  • Pulse Recognition Lights
slide-19
SLIDE 19

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Interior:

  • Nine (9) Passenger Interior in a Double Club Configuration with Belted Side Facing Single

Lavatory Seat. Aft External Baggage Area with additional Internal Lavatory Coat/Baggage

  • Storage. Forward Galley and Refreshment Center with Storage, Ice Drawers, Coffee and Water
  • Dispenser. Four Executive Card Tables.
  • Interior appointed in Ivory Royal Leather Seats with Dark Bittersweet Inserts, Wheat Ceremony

Carpet and Ivory/Dark Bittersweet Leather Side Panels, Almond Ultra Leather Window Reveals and Headliner. Terra Brown Carpet Runner. Complemented by Sapele Pommele High Gloss Cabinets and Brushed Nickel Hardware. Smoke Gray Sheepskin Pilot Seats. Fire Blocked.

  • Airshow 410 with Forward and Aft 10.4 Inch Monitors. DVD/CD Player. Six (6) 110 Volt AC Outlets

– Five (5) in the Cabin Area and One (1) in Aft Lavatory . Exterior:

  • Overall Matterhorn White with Gamma Gray, Sunfast Red and Black Trim.

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

slide-20
SLIDE 20

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Bombardier Learjet 45XR Serial Number 375 Aircraft Specification

Weights

  • Gross Weight:

21,750 lbs.

  • Max Take Off Weight:

21,500 lbs.

  • Max Landing Weight:

19,200 lbs.

  • Max Zero Fuel Weight:

16,000 lbs.

  • Empty Weight:

13,835 lbs.

  • Basic Operating Weight: 14,305 lbs.
