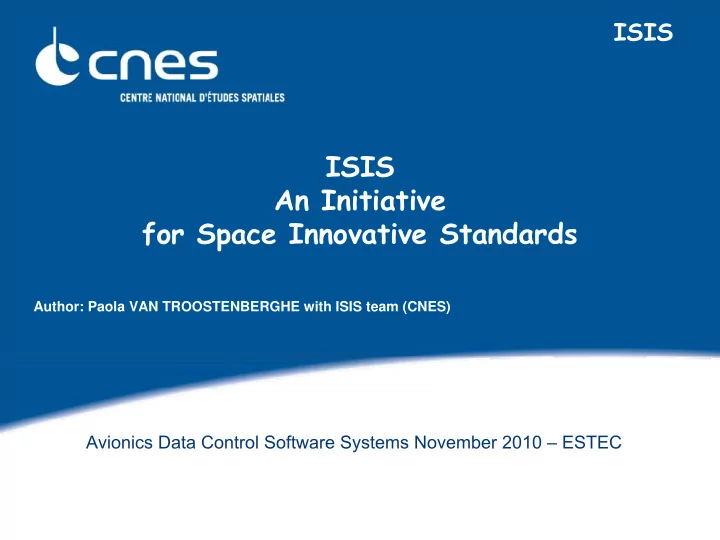

ISIS ISIS An Initiative for Space Innovative Standards Author: Paola VAN TROOSTENBERGHE with ISIS team (CNES) Avionics Data Control Software Systems November 2010 ESTEC ISIS Presentations summary Status ISIS content ESA

slide-1
SLIDE 1

ISIS

ISIS An Initiative for Space Innovative Standards

Avionics Data Control Software Systems November 2010 – ESTEC

Author: Paola VAN TROOSTENBERGHE with ISIS team (CNES)

slide-2
SLIDE 2

ISIS

  • 2 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Presentation’s summary

■Status ■ISIS content ■ESA SAVOIR / CNES ISIS links ■Conclusion

slide-3
SLIDE 3

ISIS

  • 3 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

STATUS

■Institutional missions

 PROTEUS and MYRIADE line of products

 Product line approach efficiency demonstrated (institutional and industrial missions )  On going obsolescence

 Standard and regulation evolutions  Exploitation costs growing : CNES currently operating 25 in orbit satellites belonging to different product families (SPOT, Proteus, Myriade)

■Industrial missions

 Existing multi mission industrial platform product lines  LEO missions market growth  But a small market which leads to important non recurring and maintenance effort

slide-4
SLIDE 4

ISIS

  • 4 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Common opportunity

Both institutional and industrial needs lead to :

 Rationalizing operational concept and system architecture, making the most of lessons learned from previous product families experience  Making a “reasonable” step forward in innovation and performance, to fit future missions requirements and to limit operation costs  Deriving a long term development strategy  Taking into account new standards and regulations (French Space Operations and Debris Mitigation Law)  Mastering procurement conditions: costs, schedules, risks

=> Opportunity to a common approach between institutional and export missions to share development and maintenance costs

slide-5
SLIDE 5

ISIS

  • 5 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS ? Initiative for Space Innovative Standards

■Born from a convergence between CNES and Industrial partners

 Same conclusions about the context  Needs of more standardisation in the product lines  Needs of a better sharing of non recurring development and maintenance costs

■To define a standard based on state of the art technology and a good vision on both institutional and export needs

 Allows a smooth transition from existing product lines  Is more appropriate than developing a new generic product line from scratch in economical terms

=> A partnership between CNES and primes (EADS and TAS) to commonly define and promote such rationalisation

slide-6
SLIDE 6

ISIS

  • 6 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Main drivers from lessons learnt

■New Standards and technical state available

 Board to ground interface (Packet Utilization Standard, CCSDS)  ECSS batch C  French law on space operations and debris mitigation  Autonomy driving more operation automation and system validation simplification

■Rationalisation of Space Services and Operations (interoperability) ■Reuse of products involved in space services: Platform, Command & Control Ground Segment, Simulators, System Data Base ■Improve rationalisation of processes involved throughout the Missions life, from early mission sizing to operations and maintenance

slide-7
SLIDE 7

ISIS

  • 7 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS : area of concern

■A technical standard allowing rationalisation of :

 Space Services in terms of operations & payload services  Products involved in space services: Platform, Command & Control Ground Segment, Simulators, System Data Base

■A rationalisation of processes involved throughout the Space Missions life

 Early mission sizing  Mission Specifications writing  Development and Validation (System and Satellite)  Operations and Maintenance

■A dedicated organisation with CNES and Primes in charge of

 Defining the standard  Deploying the standard  Maintaining the standard

slide-8
SLIDE 8

ISIS

  • 8 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Technical standardization axes

■Mission control : Interfaces between mission control center and satellite control center ■Operations

 Reuse of ground control segment components  Board / ground interface  Operability, TM & TC: modes, monitoring…

■Payload units

 Requires heavy interface management  Standardization of the platform resources and interfaces used by the payload

■Platform equipment (OBC, TTC, sensors, power units, I/O…) : General interface and environment specifications

Mission Control Center Satellite Control Center

slide-9
SLIDE 9

ISIS

  • 9 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS framework

Platform Payload CNES

Multi missions Ground Systems

Ground Ctrl segment

Mission ground segment

Launcher PF EGSE Simulator PL EGSE

Space segment Ground segment

Com PF/CU I/O EMC Thermal ctl SLE Debris … CGS/MGS I/F Launcher I/F B/G RF I/F

  • perability

PUS Model std I/F Simu PF PL computer X band TM Mass memory PL model

Specific Generic

PF/Equipment I/F

Interface Multi mission

Reusable components

ISIS

STD axis

Mission Data Exchange

slide-10
SLIDE 10

ISIS

  • 10 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

REUSABILITY ■Product and interfaces identification is not the only driver for reuse ■Flexibility is also a key issue for reuse of a product line (platform, command & control ground segment components) ■ISIS standards provide driving technical requirements in terms of:

 Modularity (battery, power distribution, I/O…)  Options (ciphering / authentication, payload data management…)  Segmentation of performances (pointing, propellant, agility…)

slide-11
SLIDE 11

ISIS

  • 11 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Main processes standardisation axes

■Generic documents rationalizing processes:

 Initial missions sizing: based on standardised data and method from primes product lines  PA specs, based on ECSS tailoring  Operation concept  Development (SOW, standard deliveries & development plan…)  Requirement management & traceability

■Improvement of exchanges between entities involved in the mission

slide-12
SLIDE 12

ISIS

  • 12 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS standard specification

Design Spec segments/design Spec Design Spec

SYSTEM SATELLITE GROUND

Missionisation Guide Requirements/conf. Mgt Generic System Spec Generic Sat Spec Generic CCC Spec System AIV Plan Syst Data Mgt Satellite AIV Plan System and OnBoard/Ground IF Specs SOW template

ISIS Documentation

PF/CU IF Specs Specs IF sol/sol Data model Nomenclature GDIR CC design STB CC PA Syst Referential PA Ground Referential PA Satellite Referential

OPS SIMU (TOMS)

Generic TOMS specification IF Specs TOMS/CCC Standard Spec for Sim° Models

Rationalise the products Rationalise the processes

Product Trees

slide-13
SLIDE 13

ISIS

  • 13 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

The opportunistic deployment process

■Status:

 Existing product lines  Limited number of short term missions  Permanent evolution: obsolescence, ITAR, regulations, standards, geo-return…

■Deployment process:

 Developing new product lines only for standardization does not make sense  A mid term convergence process seems preferable:

 ISIS standards will be progressively applied in the frame of missions  Every time new developments are required due to the “natural” evolution process, ISIS specifications will be promoted

 Needs to well define which target to converge to => reason why the ISIS standard must be clearly visible

slide-14
SLIDE 14

ISIS

  • 14 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Relationship with other standards

■ISIS is not a new European standard but is complementary to others :

 More a « rationalized » way of expressing CNES missions requirements  As close as possible to ECSS, CCSDS…  Complementary to SAVOIR (system interfaces, operability)  Oriented towards short term applications

■As far as they can help, ISIS standards will be proposed as input for other standardization

slide-15
SLIDE 15

ISIS

  • 15 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS main schedule

2007 CNES initial study 2008 2009 2010 2011 ISIS preliminary definition ISIS high level specs ISIS detailed specs Beginning of partnership First specs available for missions

slide-16
SLIDE 16

ISIS

  • 16 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Preliminary lessons learned after 2 years work

■ Rationalization is difficult on topics subject to competition and has to be limited to basic services ■ Primes product lines are not so different as far as basic services are concerned ■ Standardization should be focussed on topics involving separate entities:

 Primes  PF equipment suppliers  Payload suppliers  Operational teams

■ On the opposite, standardization should not address matters local to one entity, and limit design constraints as much as possible ■ Standardization requires a leading authority, able to make a choice between equivalent solutions. In ISIS case: the CNES.

slide-17
SLIDE 17

ISIS

  • 17 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ESA SAVOIR and CNES ISIS on going relationship ■Existing exchanges on SAVOIR process and CNES ISIS initiative ■Documentation exchanges ■On going analysis to confirm what could benefit to each

  • thers from the 2 different approaches
slide-18
SLIDE 18

ISIS

  • 18 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Conclusion

■ ISIS is a great opportunity:

 A complete, suitable and coherent set of specifications dedicated to a wide range of LEO missions, close to finalization  Compatible with up to date technology, standards and regulations  Will contribute to significant system costs and risks reduction  To standardise as much as possible a way of developping, validating and

  • perating space systems

■ Beyond the formal documentation, the standardization process is on the way, and is already progressively introduced in missions:

 PUS tailoring  PA specifications  Board / ground interface specifications  in the future GDIR, PF/payload interfaces

slide-19
SLIDE 19

ISIS

  • 19 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Thanks for your attention

slide-20
SLIDE 20

ISIS

  • 20 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

The mission point of view

Mission management

ISIS STANDARD SERVICES TO THE MISSION Mission planning PL commands PAYLOAD System data: orbit, events… Payload HK data Payload mission data (opt)

slide-21
SLIDE 21

ISIS

  • 21 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

Interoperability : The ground segment point of view

Satellite operators

ISIS standard C&C Ground Segment

Station network services

Mission Satellites OPS Simulator PF / PL PF / PL Mission Missions OPS Simulator PF / PL OPS Simulators PF / PL Satellites PF / PL Satellites PF / PL

slide-22
SLIDE 22

ISIS

  • 22 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

ISIS: the spacecraft point of view

PAYLOAD ISIS standard platform OBC PF Units PF Units PF Units

Satellite

  • perators

PF & PL services

  • perability

PL services:

  • Power
  • Thermal Control
  • I/O
  • FDIR
  • Data bus
  • Data storage & X

band Launcher Envt Specs

slide-23
SLIDE 23

ISIS

  • 23 -

November 2010 Avionics Data Control Software Systems 2010 – ESTEC

=> Better system data exchanges to improve development, validation and maintenance processes

OBCP

BDsat

Mimics PF models

Prime

OBCP

BDsys

Mimics PF Models

CNES

Exchanged Files Standard formats Meta- models

DATA EXCHANGES
