Ackerman Aviation Group Bombardier Learjet 60 Serial Number 007 San Antonio Malta Istanbul Lagos Aircraft Specification San Antonio Malta Istanbul Lagos ADS-B Out (2020 Compliant) CAMP FAR Part 135 Ready Excellent

slide-1
SLIDE 1

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

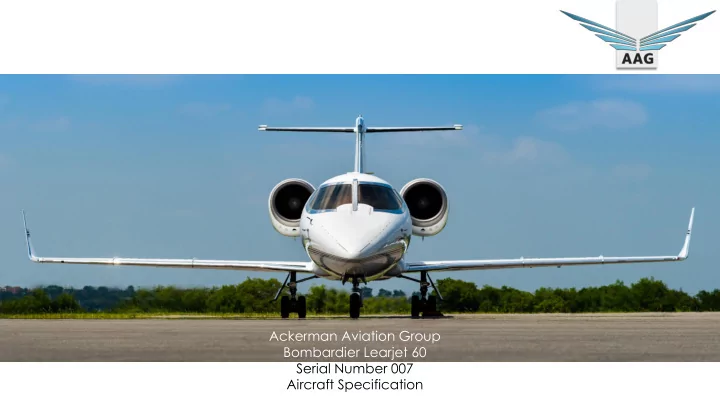

Ackerman Aviation Group Bombardier Learjet 60 Serial Number 007 Aircraft Specification

slide-2
SLIDE 2

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

ADS-B Out (2020 Compliant) CAMP FAR Part 135 Ready Excellent Maintenance History and Records Airshow 400 with DVD/CD Entertainment System with VIP and Individual Lighting and Volume Controls

Bombardier Learjet 60 Serial Number 007

slide-3
SLIDE 3

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 60 Serial Number 007

Custom Interior and Paint 2017 12 Year/12000 Inspection c/w Feb 2017 Phase A and B Inspection c/w May 2019 Flap AD 2018-19-04 c/w Nov 2018 Upper Flap Sector Brackets c/w May 2019

slide-4
SLIDE 4

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 60 Serial Number 007

slide-5
SLIDE 5

Pro Line 4 Avionics Suite Dual UNS-1E with GPS Dual Garmin 3000 Transponders Dual MD93 Digital Clocks w/USB Outlets TCAS II EGPWS with Class B TAWS

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Avionics

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Bombardier Learjet 60 Serial Number 007

slide-6
SLIDE 6

Interior Configuration

Eight (8) Passenger Interior Configuration with Forward Two-Place Divan, Aft Double Club with Belted Side Facing Single Lavatory Seat. Internal and External Baggage Area. Forward Galley and Refreshment Center with Storage, Warming Oven, Ice Drawers, Coffee and Water Dispenser. Two Executive Card Tables (Club Seating) and Two Forward Fold Out Work Tables (Forward Single Seat and Divan).

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 60 Serial Number 007

slide-7
SLIDE 7

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Main Cabin Forward View Bombardier Learjet 60 Serial Number 007

slide-8
SLIDE 8

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Main Cabin Aft View Bombardier Learjet 60 Serial Number 007

slide-9
SLIDE 9

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Main Cabin Aft View

slide-10
SLIDE 10

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Mid Cabin Forward View Bombardier Learjet 60 Serial Number 007

slide-11
SLIDE 11

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Forward Divan Bombardier Learjet 60 Serial Number 007

slide-12
SLIDE 12

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Mid Cabin Aft View Bombardier Learjet 60 Serial Number 007

slide-13
SLIDE 13

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Cabin Control Unit Bombardier Learjet 60 Serial Number 007

slide-14
SLIDE 14

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Forward Galley Bombardier Learjet 60 Serial Number 007

slide-15
SLIDE 15

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Forward Galley Bombardier Learjet 60 Serial Number 007

slide-16
SLIDE 16

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Aft Lavatory Vanity And Storage Bombardier Learjet 60 Serial Number 007

slide-17
SLIDE 17

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Ackerman Aviation Group +1 (210) 377-2717 mark@acavgroup.com www.acavgroup.com

Aft Lavatory Bombardier Learjet 60 Serial Number 007

slide-18
SLIDE 18

Bombardier Learjet 60 Serial Number 007 Aircraft Specification

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

Specifications and/or descriptions are provided as introductory information. They do not constitute representations or warranties of Southern Star Trading Co. dba Ackerman Aviation Group. You should rely on your own inspection of the aircraft.

Engines:

  • Two Pratt & Whitney PW305A - 7200 Hour TBO
  • Left Engine:

6514 Total Time Since New

  • Left Engine: 4473 Cycles Since New
  • Right Engine: 6615 Total Time Since New
  • Right Engine: 4574 Cycles Since New

Airframe:

  • Year Model 1993
  • 10766 Hours Total Time Since New
  • 7451 Total Landings Since New
  • CAMP Maintenance Tracking

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Weights

  • Gross Weight:

23,750 lbs.

  • Max Take Off Weight:

23,500 lbs.

  • Max Landing Weight:

19,500 lbs.

  • Max Zero Fuel Weight:

17,000 lbs.

  • Empty Weight:

14,375 lbs.

slide-19
SLIDE 19
  • EFIS (Electronic Flight Instrument System)

: Four Collins 871 EFD/MFD EFIS Display Units

  • IFCS(Integrated Flight Guidance System)

: Dual Collins FCC-850A IFCS/Autopilot

  • ISIS (Integrated Standby Instrument System)

: Integrated Standby Instruments

  • FMS (Flight Management System)

: Dual Universal UNS-1E Flight Management Systems

  • GPS (Global Position System)

: Dual Universal GPS Receivers

  • VHF COMM (Very High Freq. Communications) : Dual Collins VHF-422A COMM w/ 8.33 Spacing
  • NAV (Navigation Radio)

: Dual Collins VIR-432 NAV w/ FM Immunity

  • DME (Distance Measuring Equipment)

: Dual Collins DME-442 DME

  • ADF (Automatic Direction Finder)

: Dual Collins ADF-462 ADF

  • HF COMM

: King HF-950 HF with Selcal

  • RADAR

: Collins TWR-840 Turbulence Weather Radar System

  • RADAR ALT (Radar Altimeter)

: Collins ALT-55B Radar Altimeter

  • XPNDR (Transponder)

: Dual Garmin GTX-3000 Transponders

  • ADC (Air Data Computer)

: Dual Honeywell ADS-850 Air Data Computers

  • AHRS (Attitude and Heading Reference System) : Dual Collins AHS-35 Attitude Heading Computers
  • GPWS (Ground Proximity Warning System)

: Honeywell KGP 860 EGPWS w/ Class B TAWS

  • TCAS (Traffic Collision Avoidance System)

: Collins TCAS-94 TCAS II w/ Change 7

  • CVR (Cockpit Voice Recorder)

: Universal CVR-30 CVR Avionics:

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Bombardier Learjet 60 Serial Number 007 Aircraft Specification

Collins Pro Line 4 Avionics Suite to include:

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

slide-20
SLIDE 20

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Bombardier Learjet 60 Serial Number 007 Aircraft Specification

Maintenance

  • Phase A – 300 Hour /12 Month Inspection c/w 02 May 2019
  • Phase B – 600 Hour /24 Month Inspection c/w 02 May 2019
  • Phase C – 1200 Hour/36 Month Inspection c/w 26 Feb 2017
  • Phase D – 2400 Hour/96 Month Inspection c/w 26 Feb 2017
  • 12 Year Inspection c/w 26 Feb 2017
  • 12000 Hour Inspection c/w 26 Feb 2017 @ 10,356
  • Flap AD – AD 2018-19-04 c/w 18 Nov 2018 (SB 60-27-39)
  • 91.411/91.413/RVSM – c/w 09 Apr 2019
  • LH and RH Upper Flap Sector Brackets c/w 02 May 2019

Additional Equipment

  • ADS-B Out (2020 Compliant)
  • Garmin GDL-88 Datalink (UAT) ADS-B In Ready
  • Complete Provisions for ATG-2000/5000 Wi-Fi
  • Dual MD93 Digital Clocks with USB Outlets
  • Safran Starter/Generators
  • ARTEX C406-1 406 MHz ELT
  • Concord Lead Acid Batteries
  • Pylon Convenience Lights
  • Rohr Thrust Reversers
  • EROS O2 Crew Masks
  • Dual Bose Headset Interface
  • Freon Air

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com

slide-21
SLIDE 21

Specifications and/or descriptions are provided as introductory information and do not constitute representations or warranties of Southern Star Trading Company dba Ackerman Aviation Group. Verification remain the sole responsibility of the purchaser.

Interior:

  • Eight (8) Passenger Interior Configuration with Forward Two-Place Divan, Aft Double Club with

Belted Side Facing Single Lavatory Seat. Internal and External Baggage Area. Forward Galley and Refreshment Center with Storage, Warming Oven, Ice Drawers, Coffee and Water

  • Dispenser. Two Executive Card Tables (Club Seating) and Two Forward Fold Out Work Tables

(Forward Single Seat and Divan).

  • Interior appointed in Diamond Cross Thatch Stitching in Berkshire Black and Ivory Leather Seats,

Obsidian Carpet, Ivory Side Panels, Midnight Leather Drink Rails, Eggshell Ultra Leather Window Reveals and Headliner. Complemented by Madagascar Maple High Gloss Cabinets and Brushed Nickel Hardware. IPECO Crews Seat with Light Gray Sheepskin Pilot Seats. Fire Blocked.

  • Airshow 400 with Forward and Aft Boland Communications ViewPoint 15 Inch Monitors. DVD/CD

Player with Baker Audio System Amplifier.110 Volt AC Outlet in Lavatory.

  • Custom Mercedes G Wagon Style Interior, Complete 2017.

Exterior:

  • Overall Matterhorn White with Super Jet Black and Platinum Trim, Completed 2017.

San Antonio ◦ Malta ◦ Istanbul ◦ Lagos

Bombardier Learjet 60 Serial Number 007 Aircraft Specification

Ackerman Aviation Group • +1 (210) 377-2717 • mark@acavgroup.com • www.acavgroup.com
