ACI D RAI N MONI TORI NG I N THE ADI RONDACKS AND CATSKI LLS Garry Boynton New York State Department of Environmental Conservation Albany, New York 11/9/2005 1 2 SO 4 , NO 3 AND pH Trends SI TE LOCATI ONS DATA SOURCES OUTLI NE

SLIDE 1

11/9/2005 1

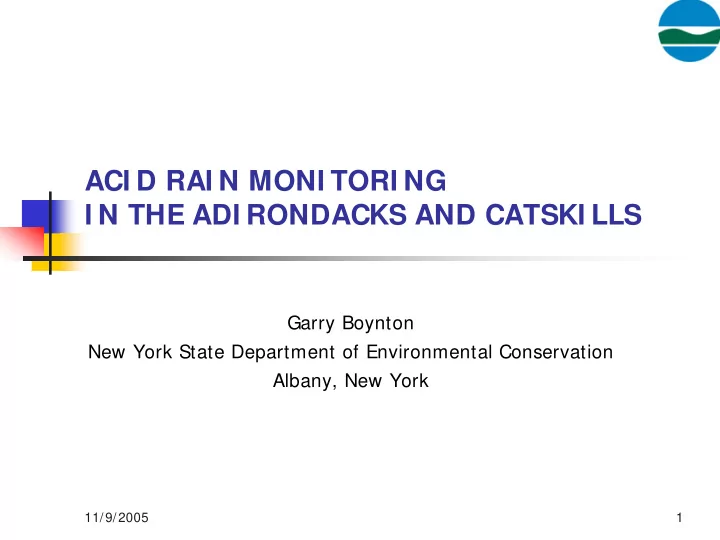

ACI D RAI N MONI TORI NG I N THE ADI RONDACKS AND CATSKI LLS

Garry Boynton New York State Department of Environmental Conservation Albany, New York

SLIDE 2

11/9/2005 2

OUTLI NE

DATA SOURCES SI TE LOCATI ONS SO4, NO3 AND pH Trends SUMMARY

SLIDE 3

11/9/2005 3

WHY DOES DEC MONI TOR ACI D RAI N?

STATE ACID DEPOSITION CONTROL ACT (SADCA) MANDATE
INCREASED SPATIAL ACID RAIN MONITORING COVERAGE

ACROSS THE STATE ESPECIALLY IN ECOLOGICALLY SENSITIVE REGIONS, SUCH AS THE ADIRONDACKS.

MORE THAN HALF OF DEC ACID RAIN SITES MONITOR OTHER

POLLUTANTS INCLUDING SO2, O3, PM2.5 AND METEOROLOGICAL PARAMETERS.

DEC MONITORS ARE LOCATED IN SUBURBAN, URBAN AND

RURAL AREAS.

SLIDE 4

11/9/2005 4

NEW YORK DATA SOURCES

DEC - 20 SITES COLLECTING SINCE

1986 – SIX ARE IN THE ADIRONDACKS AND CATSKILLS.

http:/ / www.dec.state.ny.us/ website/ dar/ baqs/ acidrain/ index.html

NADP - 11 SITES COLLECTING SINCE

1978 – FOUR ARE IN THE ADIRONDACKS AND CATSKILLS.

http:/ / nadp.sws.uiuc.edu/ sites/ sitemap.asp?state= ny

SLIDE 5

11/9/2005 5

MAP OF SI TES

SLIDE 6

11/9/2005 6

BELFORT RAIN GAUGE and VIKING HYETOMETER

SLIDE 7

11/9/2005 7

WHI TEFACE SULFATE

0.5 1 1.5 2 2.5 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004

YEAR M G/L

NYSDEC NADP

SLIDE 8

11/9/2005 8

WHI TEFACE NI TRATE

0.5 1 1.5 2 1 9 8 4 1 9 8 6 1 9 8 8 1 9 9 1 9 9 2 1 9 9 4 1 9 9 6 1 9 9 8 2 2 2 2 4 YEAR MG/L

NYSDEC NADP

SLIDE 9

11/9/2005 9

WHI TEFACE - pH

4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 1 9 8 4 1 9 8 6 1 9 8 8 1 9 9 1 9 9 2 1 9 9 4 1 9 9 6 1 9 9 8 2 2 2 2 4

YEAR pH

NYSDEC NADP

SLIDE 10

11/9/2005 10

SULFATE

ADIRONDACKS SULFATE

y = -0.0465x + 94.346 R2 = 0.5117 0.5 1 1.5 2 2.5 3 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR M G /L w t YR SO4 Linear (YR SO4)

CATSKILLS SULFATE

y = -0.057x + 115.4 R2 = 0.6512 0.5 1 1.5 2 2.5 3 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR M G /L w t YR SO4 Linear (YR SO4)

SLIDE 11

11/9/2005 11

NI TRATE

ADIRONDACKS

y = -0.0118x + 24.842 R2 = 0.1037 0.5 1 1.5 2 2.5 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR M G /L w t YR NO3 Linear (YR NO3)

CATSKILLS

y = -0.018x + 37.211 R2 = 0.2663 0.5 1 1.5 2 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR M G /L w t YR NO3 Linear (YR NO3)

SLIDE 12

11/9/2005 12

pH

ADIRONCACKS

y = 0.0119x - 19.243 R2 = 0.4393 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR p H w t YR pH Linear (YR pH)

CATSKILLS

y = 0.0126x - 20.834 R2 = 0.5885 4.1 4.2 4.3 4.4 4.5 4.6 4.7 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 YEAR p H w t YR pH Linear (YR pH)

SLIDE 13

11/9/2005 13

ALL NYS SI TES – SULFATE

y = -0.0546x + 3.5703 R2 = 0.7134 1 1.5 2 2.5 3 3.5 4 4.5 5

1970 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004

YEAR MG/L wt 5,000 10,000 15,000 20,000 25,000 30,000 35,000 1,000 TPY SO2 ALL SITES US SO2 EMISSIONS Linear (ALL SITES)

SLIDE 14

11/9/2005 14

SULFATE – ALL SI TES

SLIDE 15

11/9/2005 15

ALL NYS SI TES – NI TRATE

y = -0.0114x + 1.9695 R2 = 0.2228 1.00 1.50 2.00 2.50 3.00 3.50 4.00

1970 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004

YEAR MG/L wt 10,000 12,000 14,000 16,000 18,000 20,000 22,000 24,000 26,000 28,000 30,000 1,000 TPY SO2 ALL SITES US NOx EMISSIONS Linear (ALL SITES)

SLIDE 16

11/9/2005 16

NI TRATE – ALL SI TES

SLIDE 17

11/9/2005 17

ALL NYS SI TES - pH

ALL NYS SITES - pH

y = 0.0133x + 4.2059 R2 = 0.7772 4 4.1 4.2 4.3 4.4 4.5 4.6 1 9 8 4 1 9 8 6 1 9 8 8 1 9 9 1 9 9 2 1 9 9 4 1 9 9 6 1 9 9 8 2 2 2 2 4 YEAR pH wt all sites Linear (all sites)

SLIDE 18

11/9/2005 18

pH – ALL SI TES

SLIDE 19

11/9/2005 19

SUMMARY

SO4 CONCENTRATI ONS HAVE DECREASED

SUBSTANTI ALLY DURI NG PAST 20 YEARS.

NO3 CONCENTRATI ONS HAVE DECREASED. pH HAS SHOWN SUBSTANTI AL

I MPROVEMENT.

THE DEPARTMENT PLANS TO CONTI NUE THI S

MONI TORI NG PROGRAM.

SLIDE 20

11/9/2005 20

ACKNOWLEDGEMENTS

Many thanks to the following individuals that contributed to this presentation:

Robert Baker, Richard Dickinson, Joan Fleser, Brian

Lay, Preston Lewis, Pat Lavin, Paul Sierzenga and James Trossbach – NYSDEC – Bureau of Air Quality

Surveillance

Kevin Civerolo and Gopal Sistla, NYSDEC – Bureau of Air

Quality Analysis and Research
