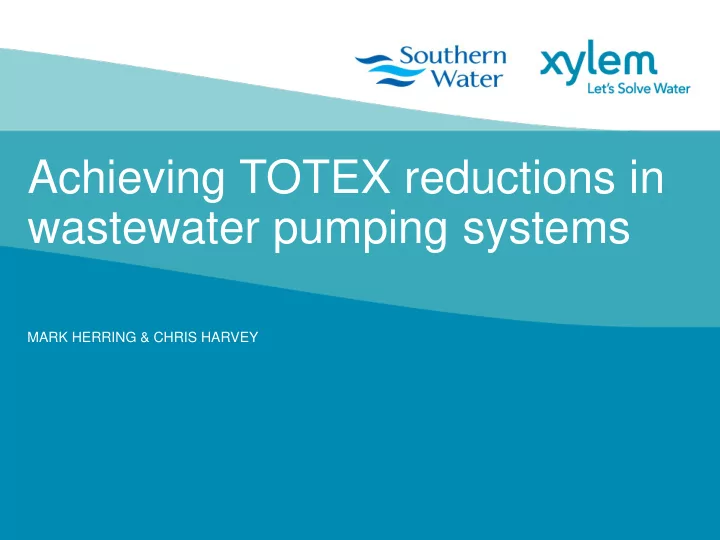

Achieving TOTEX reductions in wastewater pumping systems MARK HERRING & CHRIS HARVEY Introduction Achieving the challenges of TOTEX reduction in wastewater pumping systems using innovative integrated intelligent technology Mark Herring

slide-1
SLIDE 1

Achieving TOTEX reductions in wastewater pumping systems

MARK HERRING & CHRIS HARVEY

slide-2
SLIDE 2

Achieving the challenges of TOTEX reduction in wastewater pumping systems using innovative integrated intelligent technology

Mark Herring Mechanical Engineer Southern Water Chris Harvey Marketing Development Manager Xylem Water Solutions

Introduction

slide-3
SLIDE 3

3

“ •

Water customers getting the best deal for the long term

  • Planning for climate change and population growth
  • Incentives for outcome delivery being more powerful
  • Common performance (measures for) resilience
  • Increased transparency and asset integrity
  • Avoiding paying twice for asset resilience
  • Scope to manage future uncertainty

Mr David Black - Director of OFWAT 2020 Presentation at WWT Conference Tuesday 31st January 2017

”

Key takeaways from OFWAT presentation

slide-4
SLIDE 4

4

Water industry challenges in wastewater handling

  • Wastewater network used

as a general disposal system for non-biological solids by end user

  • Escalating electrical costs
  • Increasing fuel costs
  • Growing and ageing asset

base

  • Legal liabilities for failure to

protect environment

  • Pressures to

reduce customer bills

slide-5
SLIDE 5

5

Water industry requirements

TROUBLE FREE PUMPING EFFICIENT ASSET MANAGEMENT ENERGY SAVINGS REDUCED INVESTMENT COST

TOTEX

slide-6
SLIDE 6

6

Capital Cost

UK wastewater pumping stations

Above 8.1kW Between 2-8kW

Total number of municipal wastewater pumping stations in UK 37,253 (of which 20,116 < 8kW approx ) Around 64 % of the assets < 8kW will require 3.1 visits per annum purely for unblocking pumps Considering round distance to site of 40 miles The industry covers 1,596,405 miles per year

  • consumes 53,346 gallons diesel
  • produces 762.84 tons of Co2
  • risking 39,910 of overflow
slide-7
SLIDE 7

Wastewater utility challenges

slide-8
SLIDE 8

Wastewater utility challenges Asset diversity and selection

8

complex selection…

Southern Water Challenge

4357 sq. miles 3240 sewage pump stations 1490 below 8kW 47 different wastewater pump manufacturers + all the variants

Supply Chain Solution

Wide range of motor/impeller combinations

slide-9
SLIDE 9

Wastewater utility challenges Reactive operational requirement – blockages

10

Water Company Challenge Supply Chain Solution Non-biological solids Leading edge blockage Plug blockage

Clean leading edge impeller design Improved uniform through-let velocity Variable speed drives pre-block detection/reversing functionality

slide-10
SLIDE 10

Impeller design to improve blockages

11

slide-11
SLIDE 11

Operational challenges Reactive operational requirement – sump cleaning

12

Water Company Challenge Solutions

Collection of in-organic solids in the wet well New station

  • Good wet well civil and controls

design promoted by specification

  • Retrospective solutions to existing

and adopted asset

  • Pump activated

sump automatic flushing valves

  • Control system

technology to use, lowering the wet well level to draw floating solids through the pump Frequent tankering visits Disruption to the public Odours

slide-12
SLIDE 12

13

Water Company Challenge Solutions

Uncontrollable costs

£

2007 – 5.15 p/kWh 2017 – 9.07 p/kWh

Figures courtesy ;- UK Gov. Dept. for Business, Energy and Industrial Strategy

Diesel 2007 – 0.97 per litre 2017 – 1.21 per litre 2013 – 1.44 per litre

slide-13
SLIDE 13

Calculating the costs

14

slide-14
SLIDE 14

15

Water Company Challenge Supply Chain Solutions

Operational challenges Well intended adjustments - Fiddly Fingers

Stronger engineering Password protection Training support

slide-15
SLIDE 15

16

Water Company Challenge Solutions

Environmental changes

Growth Climate change

slide-16
SLIDE 16

17

To truly deliver on TOTEX, reduction in wastewater pumping stations requires a completely different approach; a different way of thinking; one that takes on and beats the challenges holistically.

slide-17
SLIDE 17

Existing solutions

18

Existing Supply chain Solutions

Premium eff motors Improved Impeller design Devices to snore pumps to clear solids Drives that run an anti-block routine Drives that combine anti-blocking routines, sump cleaning, and energy minimiser function Integrated Control & Automation systems Flush valves for sump cleaning Massive range of motor impeller combinations Seal leakage detection

  • A new level of thinking, a new level of

technology

  • Integrated control system
  • IE4 motor efficiency
  • Adaptive N-hydraulics

 Senses operating conditions  Adapts performance  Built-in pump protection  Provides feedback  Clog detection & pump cleaning  Self learning energy minimizer  Sump and pipe cleaning  Soft start and soft stop  Always correct impeller rotation  Abuse ‘fiddly fingers’ resistant

slide-18
SLIDE 18

19

Flygt Concertor™

The world’s first wastewater pumping system with integrated intelligence

slide-19
SLIDE 19

20

Flygt Concertor™

150mm 100mm 80mm

slide-20
SLIDE 20

21

Southern Water supplies water and treats wastewater, covering a total of some 10,530km² extending from East Kent through parts of Sussex, to Hampshire and the Isle of Wight.

  • Approximately 3240 wastewater pumping stations
  • 46% some 1490 dual pump pumping stations below 8kW
  • 47 different wastewater pump manufacturers and more than 338 different variants

Southern Water

slide-21
SLIDE 21

Southern Water Birdham SPS

22

Rural village West Sussex Foul flows from the village and caravan park Historical issues with rag and blockages

slide-22
SLIDE 22

Southern Water Birdham SPS – Trial Site

23

 Intelligent wastewater pumping system trial

slide-23
SLIDE 23

Southern Water Birdham SPS – Trial Site

24

Trial duration 15 April – 8 June 2016 Caravan park - two Bank Holiday weekends The intelligent wastewater pump system ran the station in its entirety Zero blockages Performed an average of 2 pump cleaning cycles per day

slide-24
SLIDE 24

Heathrow Airport

Customer pain points

  • To deliver clog-free pumping of aircraft wastewater – some of the

most challenging wastewater to pump

  • Reduce the frequency of tankers to clean wet well

Solutions

  • Clog-free pumping with no emergency call outs
  • Energy consumption reduced by 53%
  • No extra investment in enlarged cabinets was required

25

slide-25
SLIDE 25

Heathrow Airport

26

Since installing Concertor we have had absolutely no clogging and the sump remains clean. As well as peace of mind the savings are approximately 87.5% of the annual costs in cleaning and servicing.

Ian Jolly Heathrow Airport Water Services Department

’ ‘

slide-26
SLIDE 26

Concertor Installations at Dec 2015

slide-27
SLIDE 27

Duty points covered by one single version

28

All pumps end up running here

One single version covers all duty points

slide-28
SLIDE 28

29

Thank you for listening and welcome to Flygt Concertor™

The world’s first wastewater pumping system with integrated intelligence
