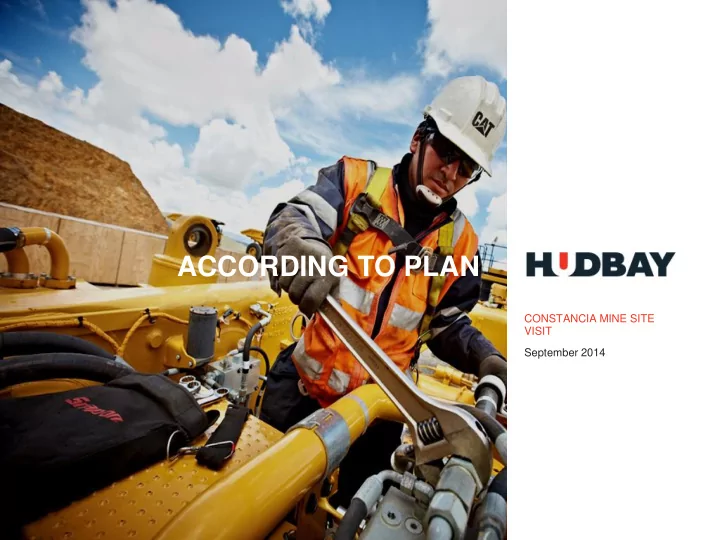

ACCORDING TO PLAN
CONSTANCIA MINE SITE VISIT September 2014
ACCORDING TO PLAN CONSTANCIA MINE SITE VISIT September 2014 - - PowerPoint PPT Presentation
ACCORDING TO PLAN CONSTANCIA MINE SITE VISIT September 2014 Cautionary Information Forward Looking Information This presentation contains forward -looking statements and forward -looking information (collectively, forward
CONSTANCIA MINE SITE VISIT September 2014
CONSTANCIA PRESENTATION l 2
Forward Looking Information This presentation contains “forward-looking statements” and “forward-looking information” (collectively, “forward-looking information”) within the meaning of applicable Canadian and United States securities legislation. All information contained in this presentation, other than statements of current and historical fact, is forward-looking
“estimates”, “forecasts”, “strategy”, “target”, “intends”, “objective”, “goal”, “understands”, “anticipates” and “believes” (and variations of these or similar words) and statements that certain actions, events or results “may”, “could”, “would”, “should”, “might” “occur” or “be achieved” or “will be taken” (and variations of these or similar expressions). All of the forward-looking information in this presentation is qualified by this cautionary note. Forward looking information includes, but is not limited to, statements with respect to the anticipated timing, mechanics, completion of the subsequent acquisition transaction to acquire the remaining shares of Augusta Resource Corporation (“Augusta”) the permitting, development and financing of Augusta’s Rosemont copper project (the “Rosemont project”), Hudbay’s objectives, strategies, intentions, expectations and guidance and future financial and operating performance and prospects, production at Hudbay’s 777, Lalor and Reed mines and initial production from the Constancia project, continued processing at Hudbay’s Flin Flon concentrator, Snow Lake concentrator and Flin Flon zinc plant, Hudbay’s ability to complete the development of Hudbay’s Lalor and Constancia projects and the anticipated scope and cost
Silver Wheaton Corp. (“Silver Wheaton”) and that additional funding will be available if needed under Hudbay’s standby credit facility for Constancia, the anticipated effect of external factors on revenue, such as commodity prices, anticipated exploration and development expenditures and activities and the possible success of such activities, estimation of mineral reserves and resources, mine life projections, timing and amount of estimated future production, reclamation costs, economic outlook, government regulation of mining operations, and business and acquisition strategies. Forward-looking information is not, and cannot be, a guarantee of future results or events. Forward-looking information is based on, among other things, opinions, assumptions, estimates and analyses that, while considered reasonable by us at the date the forward-looking information is provided, inherently are subject to significant risks, uncertainties, contingencies and other factors that may cause actual results and events to be materially different from those expressed or implied by the forward-looking information. The material factors or assumptions that Hudbay identified and were applied by the company in drawing conclusions or making forecasts or projections set out in the forward looking information include, but are not limited to: the success of mining, processing, exploration and development activities; the accuracy of geological, mining and metallurgical estimates; the costs of production; the supply and demand for metals Hudbay produces; no significant and continuing adverse changes in financial markets, including commodity prices and foreign exchange rates; the supply and availability of reagents for Hudbay’s concentrators; the supply and availability of concentrate for Hudbay’s processing facilities for the company’s concentrate; the supply and the availability of third party processing facilities for Hudbay’s concentrate; the supply and availability of all forms of energy and fuels at reasonable prices; the availability of transportation services at reasonable prices; no significant unanticipated operational or technical difficulties; the execution of Hudbay’s business and growth strategies, including the success of Hudbay’s strategic investments and initiatives; the availability of financing for Hudbay’s exploration and development projects and activities; the ability to complete project targets on time and on budget and other events that may affect Hudbay’s ability to develop Hudbay’s projects; the timing and receipt of various regulatory and governmental approvals; the availability of personnel for Hudbay’s exploration, development and operational projects and ongoing employee relations; Hudbay’s ability to secure required land rights to complete its Constancia project; maintaining good relations with the communities in which Hudbay operates, including the communities surrounding the Constancia project and First Nations communities surrounding the Lalor project and Reed mine; no significant unanticipated challenges with stakeholders at Hudbay’s various projects, including the company’s newly acquired Rosemont project; no significant unanticipated events or changes relating to regulatory, environmental, health and safety matters; no contests over title to Hudbay’s properties, including as a result of rights or claimed rights of aboriginal peoples; the timing and possible outcome of pending litigation and no significant unanticipated litigation; certain tax matters, including, but not limited to current tax laws and regulations and the refund of certain value added taxes from the Canadian and Peruvian governments; no significant and continuing adverse changes in general economic conditions or conditions in the financial markets; and the timing and completion of a subsequent acquisition transaction in connection with Hudbay’s acquisition of Augusta.
CONSTANCIA PRESENTATION l 3
Forward Looking Information (continued) The risks, uncertainties, contingencies and other factors that may cause actual results to differ materially from those expressed or implied by the forward-looking information may include, but are not limited to, the development of the Rosemont project not occurring as planned, the exercising of dissent and appraisal rights by Augusta shareholders should a subsequent acquisition transaction be undertaken in connection with Hudbay’s acquisition of Augusta, Augusta continuing as a majority-owned subsidiary of Hudbay should a subsequent acquisition transaction not be completed, the inaccuracy of Augusta’s public disclosure and representations in the support agreement upon which Hudbay’s
risks generally associated with the mining industry, such as economic factors (including future commodity prices, currency fluctuations, energy prices and general cost escalation), uncertainties related to the development and operation of Hudbay’s projects (including the impact on project cost and schedule of construction delays and unforeseen risks and other factors beyond the company’s control), depletion of Hudbay’s reserves, risks related to political or social unrest or change and those in respect of aboriginal and community relations, rights and title claims,
insure against all risks, failure of plant, equipment, processes, transportation and other infrastructure to operate as anticipated, compliance with government and environmental regulations, including permitting requirements and anti-bribery legislation, dependence on key personnel and employee relations, volatile financial markets that may affect Hudbay’s ability to obtain financing on acceptable terms, uncertainties related to the geology, continuity, grade and estimates of mineral reserves and resources and the potential for variations in grade and recovery rates, uncertain costs of reclamation activities, Hudbay’s ability to comply with its pension and other post-retirement obligations, the company’s ability to abide by the covenants in Hudbay’s debt instruments or other material contracts, tax refunds, hedging transactions, as well as the risks discussed under the heading “Risk Factors” in this presentation and Hudbay’s most recent Annual Information Form. Should one or more risk, uncertainty, contingency or other factor materialize or should any factor or assumption prove incorrect, actual results could vary materially from those expressed or implied in the forward-looking information. Accordingly, you should not place undue reliance on forward-looking information. Hudbay does not assume any obligation to update or revise any forward-looking information after the date of this presentation or to explain any material difference between subsequent actual events and any forward-looking information, except as required by applicable law.
CONSTANCIA PRESENTATION l 4
The scientific and technical information in respect of Hudbay contained in this presentation related to the Constancia project has been prepared by or under the supervision of Cashel Meagher, P.Geo., Hudbay’s Vice President, South America Business Unit. The scientific and technical information related to all other sites and projects of Hudbay contained in this presentation has been prepared by or under the supervision of Robert Carter, P.Eng., Hudbay’s Director, Technical Services. Messrs. Meagher and Carter are Qualified Persons for the purposes of NI 43-101 – Standards of Disclosure for Mineral Projects. (“NI 43-101”). The mineral reserve and resource estimates included in
Metallurgy and Petroleum Standards on Mineral Resources and Reserves: Definitions and Guidelines. Mineral resources that are not mineral reserves do not have demonstrated economic viability. For a description of the key assumptions, parameters and methods used to estimate mineral reserves and resources, as well as data verification procedures and a general discussion of the extent to which the estimates may be affected by any known environmental, permitting, legal, title, taxation, socio-political, marketing or other relevant factors, please see the Technical Reports for each of Hudbay’s properties as filed on SEDAR at www.sedar.com. The disclosure in this presentation uses mineral resource classification terms and mineral resource estimates that comply with NI 43-101. NI 43-101 establishes standards for all public disclosure a Canadian issuer makes of scientific and technical information concerning mineral
These standards differ significantly from the mineral reserve disclosure requirements of the SEC set forth in Industry Guide 7. Consequently, reserve and resource information contained herein is not comparable to similar information that would generally be disclosed by U.S. companies in accordance with the rules of the SEC. In particular, the SEC’s Industry Guide 7 applies different standards in order to classify mineralization as a reserve. As a result, the definitions
may not be classified as a “reserve” unless the determination has been made that the mineralization could be economically and legally produced or extracted at the time the reserve determination is made. Among other things, all necessary permits would be required to be in hand or their issuance imminent in order to classify mineralized material as reserves under the SEC standards. Accordingly, mineral reserve estimates referred to herein may not qualify as “reserves” under SEC standards. In addition, the terms “measured mineral resources,” “indicated mineral resources” and “inferred mineral resources” are used to comply with the reporting standards in Canada. The SEC’s Industry Guide 7 does not recognize mineral resources and U.S. companies are generally not permitted to disclose resources in documents they file with the SEC. Investors are specifically cautioned not to assume that any part or all of the mineral deposits in these categories will ever be converted into SEC defined mineral reserves. Further, “inferred resources” have a great amount of uncertainty as to their existence and as to whether they can be mined legally or economically. Therefore, investors are also cautioned not to assume that all or any part of an inferred resource exists. It cannot be assumed that all or any part of “measured mineral resources,” “indicated mineral resources,” or “inferred mineral resources” will ever be upgraded to a higher category. Investors are cautioned not to assume that any part of the reported “measured mineral resources,” “indicated mineral resources,” or “inferred mineral resources” contained herein is economically or legally mineable. For the above reasons, information contained herein containing descriptions of mineral reserve and resource estimates is not comparable to similar information made public by U.S. companies subject to the reporting and disclosure requirements of the SEC.
Appendix
CONSTANCIA PRESENTATION l 5
CONSTANCIA PRESENTATION l 6
CONSTANCIA PRESENTATION l 7
2010 2011 2012 2013 2014 2015
ESIA permit received
Nov 2010
Note: All timelines are estimates
US$116mm Constancia pre- construction program begins
Mar 2011
Initial resource announced at higher grade Pampacancha deposit
Apr 2012
Neighbouring community agreements reached
H1 2012
Beneficiation concession permit received
Jun 2012
Updated capital cost estimate indicates increase of ~10%
Aug 2013
ESIA Modification 1 approved
Sep 2013
Hudbay’s board approves construction of Constancia
Aug 2012
All critical path families resettled
Apr 2014
Pre-stripping commences
Mar 2014
Powerline energized
Aug 2014
Hudbay acquires Constancia
Jul 2011
Expected first
Q4 2014
Expected commercial production
Q2 2015
CONSTANCIA PRESENTATION l 8
Lima
PERU
Constancia
2013 Over 16 million man- hours without lost time accident recently achieved Project ~85% complete as at June 30, 2014 On track for first production in Q4 2014, commercial production in Q2 2015 2014
Infrastructure & power expected to be available to meet Constancia project schedule
CONSTANCIA PRESENTATION l 9
83km access road from Yauri
>
Upgraded for concentrate haulage post commissioning
Tintaya power substation 70km away
>
Construction of power transmission line from Tintaya complete and was energized in August 2014
>
Socabaya to Tintaya 220kV transmission line upgrade is complete and was energized in April 2014
Rail-head at Imata 150km away
>
Pursuing bi-modal transportation solution
~475km from Matarani Port by road Port access and power supply secured under 10-year contracts
CONSTANCIA PRESENTATION l 10
Ownership 100% Mine life 22 years Daily ore throughput 80k tpd Mine and mill unit cost1,2 US$7.48/tonne Years 1-51 Years 6-221 Life of Mine1
116k tonnes 71k tonnes 82k tonnes Cash cost per Cu lb4 US$0.98/lb US$1.37/lb US$1.25/lb
US$80 million US$38 million US$47 million
Source: Hudbay company disclosure
include: Molybdenum 2014-US$12/lb, 2015-US$13/lb, 2016-US$13/lb, LT-US$13.50/lb; Gold 2014-US$1,350/oz, 2015-US$1,325/oz, 2016-US$1,300/oz, 2017-US$1,275/oz, LT-US$1,250/oz. Excludes profit sharing
>
The March 2014 reserve update incorporated an expected tailings facility expansion allowing for the conversion of a portion of the mineral resources into reserves, resulting in a mine life extension to 22 years (from 16 years)
CONSTANCIA PRESENTATION l 11
CONSTANCIA PRESENTATION l 12
Constancia project has over 30 M man-hours worked with only 13 LTI´s and has completed over 16 million man-hours since the last LTI
CONSTANCIA PRESENTATION l 13
Lightning Protection at Constancia Richard Kithil, President, National Lightning Safety Institute (NLSI) LIGHTNING PROTECTION FOR FACILITIES, OPERATIONS & PERSONNEL
>
NLSI Lightning Protection Defenses Template
>
Grounding, Bonding & Surge Protection
>
Air Terminals, other forms of protection
>
Safe Shelter Details
>
Alert methods & protocol
Lima
PERU
Constancia Lima
PERU
Constancia
CONSTANCIA PRESENTATION l 14
Project has US$1.4 billion incurred and has committed an additional US$0.2 billion as of June 30, 2014 Highlights:
>
Project approximately 85% complete as at June 30, 2014
>
Structures in place for water capture, 2015 dry season
>
Mine pre-stripping started in March 2014
>
All 4 mills in place with drives; alignment in progress
>
Flotation cells in place, concentrate filters placed, thickener under construction
>
Power transmission line energized in August 2014
AREA 4 TEMASEK PRESENTATION l 15
1 2 3 4
CONSTANCIA PRESENTATION l 15
CONSTANCIA PRESENTATION l 16
Stratcon GyM – Mining Contractor and Major Earth Works
>
Established labour force and operating team
>
Experience operating in Peru (Toromocho, El Brocal, Marcona, La Arena)
>
Constancia earth works responsibilities include: bog dam, TMF East and West, WRF and ponds, main sediment pond, haul road, construction roads, access roads, diversion channels, Cunahuiri reservoir
Ausenco – Plant Construction
>
Constructed and delivered similar plants in remote locations (Lumwana, Phu Kham, Cadia East)
>
Assembled sizable team in Latin America
Knight Piesold – Engineering
>
Detailed engineering design
>
Permit modification assistance (environmental compliance)
TEMASEK PRESENTATION l 17
CONSTANCIA PRESENTATION l 17
CONSTANCIA PRESENTATION l 18
>
Tailing liner well under way and toe dam in progress
>
Water capture initiated Dec 2013 in main sediment pond
>
Mine pre stripping started in Mar 2014, on schedule for Q4 start-up
Main sediment pond Pre-stripping activities
CONSTANCIA PRESENTATION l 19
>
Approximately 19 million tonnes of material moved to-date
>
Approximately 400k tonnes of ore on the ROM pad
Month Waste (tons) Ore (tons) Total (tons) March 531,976 531,976 April 2,357,194 2,357,194 May 3,479,965 3,479,965 June 4,305,408 4,305,408 July 3,848,495 434,205 4,282,700 August 3,779,699 3,779,699 18,302,737 434,205 18,736,942 Total Pre-Strip Requirement 26 Million
Current ore stockpile at ROM pad
TEMASEK PRESENTATION l 20
Facilities List
CONSTANCIA PRESENTATION l 20
TEMASEK PRESENTATION l 21 CONSTANCIA PRESENTATION l 21
TEMASEK PRESENTATION l 22
CONSTANCIA PRESENTATION l 22
TEMASEK PRESENTATION l 23
Man-hours Time
CONSTANCIA PRESENTATION l 23
>
Engineering is substantially complete and procurement is at 93% complete
>
In the primary crusher area, crusher and the modules of the reclaim conveyors to the grinding area are being completed
>
SAG and ball mill shells and heads are 100% assembled, including trunnion installation, pinion and girth gears, currently under alignment
>
In the flotation area, all rougher cells are assembled as well as all cleaning cells and internal equipment installation
TEMASEK PRESENTATION l 24
CONSTANCIA PRESENTATION l 24
TEMASEK PRESENTATION l 25 CONSTANCIA PRESENTATION l 25
Power Transmission Line
>
Engineering and procurement are 100% complete, tie in to high voltage side of substation was completed in April, tower construction is 100% complete
>
Successful negotiations with Glencore Tintaya for ROW agreement
>
System was energized in August 2014
Power Supply
>
Signed 10-year power purchase contract, with 5 year extension right
>
Costs are in-line with expectations
TEMASEK PRESENTATION l 26 CONSTANCIA PRESENTATION l 26
>
Route from Constancia to Matarani is 460 kms total
>
Proposals have been received and reviewed 4 transport companies – trucking firms have lowest rate
>
Final contract negotiations underway and contract expected to be awarded in Q3 2014
>
Service start date of Dec 2014
>
Potential for bimodal transportation in long-term
Imata
TEMASEK PRESENTATION l 27 CONSTANCIA PRESENTATION l 27
TISUR – Port Operator Under concession from the State Facilities & Expansion plans TISUR Grain Warehouse A5
>
Enclose for concentrate service to capacity of 25,000 wmt
Expansion Options
>
Discussions with Ares warehouse for addition capacity
TEMASEK PRESENTATION l 28
CONSTANCIA PRESENTATION l 28
TEMASEK PRESENTATION l 29
Responsibility Construction Team C0 Verification of Plant and Equipment Verification by the construction team that the installation of an individual item of plant or equipment meets the design intent.
CONSTANCIA PRESENTATION l 29
TEMASEK PRESENTATION l 30
Responsibility Construction Team C0 Verification of Plant and Equipment Inspection and no-load energisation of an item of plant or equipment by the commissioning team to verify conformance with design. C1 Dry Commissioning
C0 Checksheets + Punch lists
CONSTANCIA PRESENTATION l 30
TEMASEK PRESENTATION l 31
Responsibility Construction Team C0 Verification of Plant and Equipment Testing of an individual or group of integrated items of plant or equipment under benign load (air or water) ultimately demonstrating stable operation of a process commissioning module under this load. C1 Dry Commissioning C2 Wet Commissioning
C0 Checksheets + Punch lists C1 Checksheets + Punch lists
CONSTANCIA PRESENTATION l 31
Responsibility Construction Team Commissioning Team C0 Verification of Plant and Equipment Initial introduction of ore and process fluids and testing of an individual or group
modules to demonstrate stable operation at pre-determined operation parameters. C1 Dry Commissioning C2 Wet Commissioning C3 Ore Commissioning
C0 Checksheets + Punch lists C1 Checksheets + Punch lists C2 Checksheets + Practical Completion Certificate
CONSTANCIA PRESENTATION l 32
Responsibility Construction Team Commissioning Team Client Operation Team C0 Verification of Plant and Equipment Completion of all commissioning activities including preparation of a Commissioning Closeout Report and handover of agreed commissioning documentation deliverables to the Client C1 Dry Commissioning C2 Wet Commissioning C3 Ore Commissioning C4 Performance Verification C5 Area Acceptance C6 Commissioning Closeout
C0 Checksheets + Punch lists C1 Checksheets + Punch lists C2 Checksheets + Practical Completion Certificate
CONSTANCIA PRESENTATION l 33
>
The near-by Antapaccay mine recently commenced production and has similar size and flowsheet to Constancia (direct comparable)
>
Projected 9-month ramp-up at Constancia is more conservative than actual ramp- up achieved at Antapaccay
CONSTANCIA PRESENTATION l 34
100 92 92 92 79 79 66 66 45 90 104 104 63 86 92 85 48 24 20 40 60 80 100 120 (% Design) Month
Ore Grinding Ramp-up
CONSTANCIA ANTAPACCAY
CONSTANCIA PRESENTATION l 35
>
Effective and efficient handover of documentation – data > information > knowledge
>
Closeout of punch lists – defects, warranty issues, early life failures and incomplete work
>
Commissioning and operational ramp-up – roles and responsibilities
>
Multiple systems in commissioning, early operations complexity – steep learning curve
>
Post contract support
>
Integration with Hudbay’s IT systems and ERP
>
Progressive closeout
>
Asset protection – security assessment and implementation
>
Post closeout reviews
CONSTANCIA PRESENTATION l 36
10,000,000 20,000,000 30,000,000 40,000,000 50,000,000 60,000,000 70,000,000 80,000,000 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 2036
Annual Total Movement
Crusher Waste Dump Rehandle
CONSTANCIA PRESENTATION l 37
Tonnage
Hi Zn SP
Constancia Pit Pampacancha Pit
MG SP HG SP WRF PAG/NAG
NAG SP
Legend
Direct Movement Rehandle Movement Aternative: Pampacancha as Backfill
Process Plant
Copper Concentrate Molybdenum Concentrate
PORT
4.4 Km 2.9 Km 2.5 Km 2.5 Km 2.5 Km 7.0 Km 6.6 Km 4.5 Km 5.0 Km 5.6Km 9.3 Km 6.7Km 3.3 Km 2.4 Km 2.4 Km 2.4 Km
CONSTANCIA PRESENTATION l 38
10 20 30 40 50 60 70 80 90 5 10 15 20 25 30 35 40
2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 2036
Mine Equipment Requirement
Truck - CAT 793F Drill Rig - Pit Viper 271 - RCS Shovel, Hirachi EX5600 - 6 Loader - CAT 994H P13DEC, Tonnage Movement, Mt
T
n a g e x m i l l
U n i t s
E q u i p m e n t
CONSTANCIA PRESENTATION l 39
CONSTANCIA PRESENTATION l 40
the presence of water and the strength of the rock)
Pit Viper 271
blast hole length (m): 15.8
hole diameter (inch): 9 7/8
Drilling Speed (m/h): 81
Drilling Speed (m/h): 55
Availability (%): 95
CONSTANCIA PRESENTATION l 41
Hitachi EX-5600
performance (tph): 3,364
CAT 994 H
performance (tph): 1,764
CONSTANCIA PRESENTATION l 42
CAT 793 F
510
CONSTANCIA PRESENTATION l 43
Mine Geology: Ore Control Routine – Sampling & Logging BH
Blasthole Sampling Blasthole logging Pit Face Mapping Database Validation
CONSTANCIA PRESENTATION l 44
MATPS: Pre-Stripping Material
4335 4350
CONSTANCIA PRESENTATION l 45
MIÉ JUE VIE SÁB DOM LUN MAR 20 21 22 23 24 25 26
EQUIPOS DE OPERACIÓN
1
PE-C0001
250 12 Horas 8 Horas
2
PE-C0002
125 1 Horas 1.5 Horas
6
CF-C0001
125 1 Horas 0 Horas
7
PH-C0001
125 6 Horas 10 Horas
8
PH-C0002
125 2 Horas 2.5 Horas
12
CM-C0001
125 1 Horas 1 Horas
13
CM-C0002
125 1 Horas 0 Horas
14
CM-C0003
250 8 Horas 0 Horas
15
CM-C0004
2000 24 Horas 19.7 Horas
k
CM-C0005
125 1 Horas 1 Horas
18
CM-C0007
125 1 Horas 1 Horas
CM-C0008
125 1 Horas 0 Horas
22
CM-C0011
250 12 Horas 16.7 Horas
23
CM-C0012
2000 24 Horas 24.5 Horas
24
CM-C0013
500 8 Horas 11.5 Horas
25
CM-C0014
500 10 Horas 19 Horas
26
CM-C0015
125 1 Horas 1 Horas
28
CM-C0017
125 1 Horas 0 Horas
29
CM-C0018
125 1 Horas 0 Horas
35
TO-C0001
125 1 Horas 1.6 Horas
36
TO-C0002
125 1 Horas 1 Horas
37
TR-C0001
125 1 Horas 0 Horas
38
MO-C0001
125 1 Horas 0 Horas
MO-C0002
250 5 Horas 8.5 Horas
3 2 1 1 2 2 3 125 Horas 128.5 Horas 103% TIEMPO (Hrs) 3 3 3 3 4 4 4 24 16 67% CANT. (PMs Ejecutados) 21.0 26.0 33.0 13.0 2.0 2.0 2.0 125 Horas
HORAS DE INTERVENCION HORAS REALES
OK
OK se aprovecha euna parada correctiva Se reprograma por horas de trabajo Demora en la prueba de hermeticidad OK Demora en la evaluacion de parametros Equipo en stand by por produccion se re- Se aprovecha el stand by del equipo OK
DETALLE DE LAS DESVIACIONES
Se reprograma el cambio de parabrisas OK TODOS
Item CODIGO EQUIPO AMT
OK Se reprograma por horas de trabajo
Inoperativo por recarga del sistema contra
Demoras en las pruebas de OK Se reprograma por horas de trabajo
Inoperativo por recarga del sistema contra
Se reprograma por horas de trabajo Se aprovecha el stand by del equipo OK OK Se reprograma por horas de trabajo
CONSTANCIA PRESENTATION l 46
CONSTANCIA PRESENTATION l 47
A
Section A–A: View
achieved angles versus design angles. The achieved angles are 60°.
PIT OPERATIONAL WORK NAG OPERATIONAL WORK
The current discharge
been developed to form the final lifts 4140 and 4160, and to form the lift 4180. Panoramic view of bench 4425 – 4410, Constancia Pit.
CONSTANCIA PRESENTATION l 48
Panoramic View Actual - WRF
CONSTANCIA PRESENTATION l 49
CONSTANCIA PRESENTATION l 50
Operations Director
Eric Caba 23 yrs / Metallurgical Engineer
Process Plant Manager
Hugo Granados 35 yrs/ Metallurgical Engineer
Mine Manager
John Gutierrez 40 yrs / Mining
Technical Services Manager
Javier Toro 17 yrs/ Mining Engineer
Health & Safety Manager
Felix Galvez 12 yrs / Work Relations
Logistics & Admin Manager
John Cederberg 24 yrs / Public Accountant
HR Superintendent
Jose Bandini 19 yrs / Bussiness Administration
Environmental Manager
Julio Roncal 21 yrs / Civil Engineer
Total HC 269
Operations Management Technical Services Process Plant Mine HSE Logistics & Administration Other Functional Support Finance HR
Operations
2 26 149 3 17 37 16 10 9
CONSTANCIA PRESENTATION l 51
Production Superintendent
Oscar Alvarez 27 yrs/ Chemical Engineer
Electrical/Instrumental Superintendent
Carlos Herrera 32 yrs / Mechanical & Electrical Engineer
Metallurgical Superintendent
Marcial Medina 13 yrs / Metallurgical Engineer
Mechanical Maintenance Superintendent
Manuel Sanchez 30 yrs / Mechanical Eng
Process Plant Manager
Hugo Granados 35 yrs/ Metallurgical Engineer
Administrative Assistant Vacant Operations Director
Eric Caba 23 yrs / Metallurgical Engineer
Tailing Superintendent Vacant
Total HC 149
Admin Ope Maintenance Metallurgical Electrical / Instrumental Production Tailing Operations
2 41 16 32 42 16
CONSTANCIA PRESENTATION l 52
“The objective is to have the right person for the right
job at the right time, and well trained”
TRAINING
train staff in safety, technical and leadership competences.
Technicians
Workers from Communities STAFFING FOR SAP
colleagues for SAP Maintenance
Ausenco-Rylson in SAP maintenance STAFFING FOR COMMISSIONING
support the pre- commissioning and commissioning phase.
involved in Commissioning. READY TO START
duly fit
duly trained.
JAN 2014
NOV 2014
STAFFING FOR OPERATIONS
Recruit colleagues for Operations phase, based on recruitment and training planning.
CONSTANCIA PRESENTATION l 53
28 28 28 28 28 28 28 28 28 59 70 76 89 91 93 105 109 134 195 250 11 6 13 2 2 12 4 25 61 27 19 98 104 117 119 121 133 137 162 223 250 269 20 40 60 80 100 120 140 160 180 200 220 240 260 280 Jan '14 P0 Feb '14 P0a Mar '14 P1 Apr '14 P2 May '14 P3 Jun '14 P4 Jul '14 P5 Aug '14 P6 Sep '14 P7 Oct '14 P8 y P8-C Nov '14 P9
HeadCount Planning Forecast
September 2014
Current HC Lima Current HC Campsite # of HC to Recruit Total HC
CONSTANCIA PRESENTATION l 54
CONSTANCIA PRESENTATION l 55
Manpower will significantly decline over the coming months as contractors are being demobilized
2,000 3,000 4,000 5,000 6,000
Total Site Staffing
(*) Priority P8-C: 17 positions that will be filled by communities’ members, whom were trained by CETEMIN.
Area / Positions Priority Start Recruitment Process Effective Hire Month # of Colleagues to Recruit
Technical Services & Commissioning P0 Nov-13 Jan-14 11 Superintendent / Commissioning P0a Dec-13 Feb-14 6 SAP & Commissioning P1 Dec-13 Mar-14 13 Supervisors P2 Jan-14 Apr-14 2 Superintendent / Supervisor P3 Jan-14 May-14 2 Supervisors / Senior / Auxiliary / Commissioning P4 Feb-14 Jun-14 12 Managers / Technicians P5 Mar-14 Jul-14 4 Supervisors / Senior / Technicians / Auxiliaries P6 Mar-14 Aug-14 25 Supervisors / Operators P7 Apr-14 Sep-14 61 Superintendent / Seniors / Operators P8 y P8-C (*) Apr-14 Oct-14 27 Administratives P9 Jun-14 Nov-14 19
182
Current Positions for Operations - Support Areas 87
269 Total HC Total to Recruit
75
CONSTANCIA PRESENTATION l 56
Ensure the successful of the start up of the plant process, training our colleagues since the beginning, using our own resources, their knowledge, and giving the opportunity to develop our people, and creating our own Hudbay mind-set
> Focus in safety, technical & leadership skills:
(TECSUP)
> Tools
CONSTANCIA PRESENTATION l 57
Jan - May June July Aug Sep Oct Nov
Training for Commissioning Siemens
Electrical / Instrumental Lima
Training for Workers & Community Workers
Sep '14
Process Plant Construction Completed
Hire for Commissioning Phase (2) Hire for Commissioning & SAP Maintenance Phase (3)
Training for Engineers & Technicians
Aug - Sep'14
Hire for Commissioning & SAP Maintenance Phase (13) Hire for Commissioning Phase (14)
CETEMIN Training Nov ‘13 – May ’14
To fill 17 positions: 2 Mechanical Workshop 6 Samplers operators 6 Tailing Dump Operator 3 Crusher Conveyor Operator
Start the hiring for Operations (115), based on the schedule
Training for Commissioning Siemens
Electrical / Instrumental Site Aug – Sep ‘14
Tecsup
Supervisors Arequipa Jul – Aug ‘14
Mills & Primary Crusher FLSmidth
Supervisors / Engineers Arequipa
Simulator - Tecsup
Supervisors / Ctrl Room Ope Site
Train the Trainers
Jul - Aug ‘14
Training under Scope of Work of the PO
Outotec
Supervisors Lima Sep – Oct ‘14
Done
Training in Gold Fields La Cima
Aug - Sep ‘14
CONSTANCIA PRESENTATION l 58
CONSTANCIA PRESENTATION l 59
CONSTRUCTION
MSP, WRF and collection and retention ponds, NAG stockpile, topsoil stockpiles, sediment ponds, haul and access roads and Cunahuiri reservoir.
permits, fuel permits, water treatment plant permits, permits for power generation and environmental certifications.
OPERATIONS
DEPOSIT EXPLOITATION ARE IN PLACE
to use explosives and permanent magazines and warehouses.
PROCESS PLANT
CONSTANCIA PRESENTATION l 60
76% 10% 10% 4% Obtained Pending (not required for operation) Pending (required for operations - not critical) Pending (required for operations - critical)
RISK DESCRIPTION / ACTIONS
CUNAHUIRI CONTINGENCY PLAN
DEVELOPED IN ORDER TO MITIGATE the lack of the Cunahuiri reservoir and the possibility to capture water therein for operations and compensation.
technical report or to include the CP during the round of observations of the ESIA´s second amendment.
channel), Hudbay has included the CP within the surface water license (Stages 2 and 3). It was approved on April, 2014. CRITICAL PERMITS TIED TO CONSTRUCTION SCHEDULE
corresponding facility must be completed and ready to operate in order to be inspected by the authority.
CONSTANCIA PRESENTATION l 61
NEGOTIATION PROCESS # of families Public deed signed 34 In negotiation 2 Total: 36 HOUSING STATUS # of houses Delivered-To-Owner 32 Pending Delivery Total: 32
CONSTANCIA PRESENTATION l 62
CONSTANCIA PRESENTATION l 63
LABOR FORCE
CONTRACT OF RENTAL EQUIPMENT BY COMMUNITIES
FOOD SUPPLIERS IN OPERATION CONTRACT SERVICE
Chilloroya Uchuccarcco S/. 30,703,201 S/. 10,022,381 S/. 2,988,900 S/. 2,443,488 Rent a Car Food Services
Rent a Car- Equipment and Heavy Equipment
CONSTANCIA PRESENTATION l 64
S/. 0 S/. 1,000,000 S/. 2,000,000 S/. 3,000,000 S/. 4,000,000 S/. 5,000,000 S/. 6,000,000 Jan Feb Mar Apr
Rent a Car- Equipment and Heavy Equipment
Chilloroya Uchuccarcco
CONSTANCIA PRESENTATION l 65
S/. 0 S/. 50,000 S/. 100,000 S/. 150,000 S/. 200,000 S/. 250,000 S/. 300,000 S/. 350,000 S/. 400,000 S/. 450,000 Jan Feb Mar Apr May Jun
Food Services
Chilloroya Uchuccarcco
CONSTANCIA PRESENTATION l 66
local workers have been demobilized
(January – August 2014)
Owned Rented Un- registered External TOTAL Heavy equipment 9 16 7 77
Light equipment 22 10 7 34
Machinery- yellow line 5 4 4 25
EQUIPMENT AND MACHINERY DEMOBILIZED
CONSTANCIA PRESENTATION l 67
CONSTANCIA PRESENTATION l 68
Closed case
92%
Closed/ Permanent monitoring
3%
Processing
5% 5% Grievance Management
Count of status (percentage)
Grand Total: 337 337
76 52 209
Risk of Harm
Number of complaints and grievances
With Cusco Regional Government and Provincial Municipality of Chumbivilcas
To finance the new Hospital of Chumbivilcas’ feasibility studies
With District of Chamaca
To finance three projects approved as a conclusion of the Dialogue & Development Roundtable
With District of Velille
To support the project “Sierra Productiva” (agricultural sector)
With District of Livitaca
To co - finance the improvement and expansion of the service of basic sanitation, together with the district municipality and the community of Chilloroya, as well as to equip the Technologic Institute of Livitaca
CONSTANCIA PRESENTATION l 69
Ministry of Development & Social Inclusion, and Cusco Regional Government
To fully finance the “Development of Competences for Young People in Chumbivilcas” project, to support them to improve their capacities in the transition stage between secondary education and insertion into the productive world
Ministry of Energy & Mines
To support the delivery of kitchens that use liquefied petroleum gas, and to support the distribution and installation of photovoltaic systems -solar panels- in our area of influence
Ministry of Labor
To cooperate in training, bonding and employability of the vulnerable population in our area of influence, in
Ministry of Agriculture
To develop the program of agricultural development in Chumbivilcas, seeking sustainable development promoting and boosting the economy of its inhabitants through the use of modernized irrigation systems, cultivation of pastures, breeding of livestock (cattle and sheep), and implementation of dairy plants
CONSTANCIA PRESENTATION l 70
Asociación Vida Peru
To manage donations of medicines, medical equipment, educational materials and other goods, and to finance all the logistics that is necessary for the distribution of these goods among the poorest health centers and communities of our area of influence
Universidad Nacional San Antonio Abad del Cusco (UNSAAC)
To jointly develop projects for education and training in cultural and productive research in the area
the International Centre for the mining production and regional development
Universidad Nacional San Agustín de Arequipa” (UNSA)
To develop joint education and training projects with the participation and resources that both institutions have to promote professional development, infrastructure improvement, and knowledge exchange, and implement the Hudbay scholarship and the “classroom Hudbay"
Others
In addition to the above mentioned agreements, periodically we carry out medical campaigns and solid waste collection campaigns for the benefit of the population of adjacent districts and communities
CONSTANCIA PRESENTATION l 71
CONSTANCIA PRESENTATION l 72
CONSTANCIA PRESENTATION l 73
CONSTANCIA PRESENTATION l 74
CONSTANCIA PRESENTATION l 75
Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4
Permitting Front End Engineering Design Construction Camp Procurement Community Agreements Board Approval Power Line TMF and WRF Plant Commissioning and Ramp Up 2011 2012 2013 2014 2015 Mine Permit
Commercial Production Q2 2015
CONSTANCIA PRESENTATION l 76
CONSTANCIA PRESENTATION l 77
Hudbay access road Las Bambas access road
Constancia Mineral Reserves
Category Ore (M tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Proven 483 0.32 93 0.040 3.04 Probable 94 0.22 61 0.036 2.77
Pampacancha Mineral Reserves
Category Ore (M tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Proven 23 0.52 142 0.298 4.28 Probable 20 0.44 159 0.252 3.74 As at January 1, 2014
Total Mineral Reserves
Category Ore (M tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Total Proven 506 0.33 95 0.052 3.09 Total Probable 114 0.26 78 0.074 2.94 Total Reserves 620 0.32 92 0.056 3.07
Note: totals may not add up correctly due to rounding
CONSTANCIA PRESENTATION l 78
Constancia Mineral Resources
Category M (tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Measured 68 0.22 59 0.036 2.17 Indicated 293 0.20 58 0.033 1.96 Inferred 200 0.19 51 0.031 1.86
Pampacancha Mineral Resources
Category M (tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Measured 5 0.41 69 0.243 5.46 Indicated 6 0.34 98 0.211 4.68
Total Mineral Resources
Category M (tonnes) Cu (%) Mo (g/t) Au (g/t) Ag (g/t)
Measured + Indicated 372 0.20 59 0.039 2.09 Inferred 200 0.19 51 0.031 1.86 As at September 30, 2013
Note: totals may not add up correctly due to rounding
CONSTANCIA PRESENTATION l 79
For additional details relating to the estimates of mineral reserves and resources at the Constancia project, including data verification and quality assurance/quality control processes refer to “The Constancia Project, National Instrument 43-101 Technical Report” as filed on SEDAR by Hudbay on November 6, 2012.
The Constancia and Pampacancha mineral reserves are based on a Peruvian Sole: US Dollar exchange rate of 2.85:1 and the following long term metals prices: copper price of US$3.00 per pound; silver price of US$25.00 per ounce; gold price of US$1,250.00 per ounce; and molybdenum price of US$13.50 per pound.
The Constancia and Pampacancha mineral resources correspond to a resources pit shell. A pit optimization to delimit the portion of the block model having reasonable prospects for economic extraction was performed.
The Constancia resource pit consists of a non-operational pit of Measured, Indicated and Inferred resources diluted to a 10x10x15m full block size using a 0.12% copper cut-off based on a copper price of US$2.88 per pound and a molybdenum price of US$16.00 per pound, copper recovery of 89%, molybdenum recovery of 60%, processing costs of US$5.50 per tonne and mining costs of US$1.30 per tonne.
The Pampacancha resource pit consists of a non-operational pit of Measured, Indicated and Inferred resources diluted to a 10x10x15m full block size using a 0.1% copper cut-off based on a copper price of US$3.00 per pound, a molybdenum price of US$13.50 per pound, silver price of US$25.00 per ounce, gold price of US$1,250 per ounce, copper recovery of 85%, molybdenum recovery of 40%, gold and silver recovery of 65%; processing costs of US$4.72 per tonne and mining costs of US$1.90 per tonne.
The primary consideration to accommodate the increased Constancia mineral reserve in the Constancia life of mine plan (“LOM”) was the confirmation through pre-feasibility investigation to increase the tailings dam height to accommodate this extra tonnage and the waste rock facility configuration. The resulting LOM has increased to 22 years from 16 years. In this process some of the major cost components have been updated to reflect some known actual costs such as energy, fuel, concentrate transport and port charges. The resulting change is an average cost of US$0.72 per pound of copper produced net of by product credits from a previously disclosed US$0.66 per pound of copper in the first full five years of production. Contained copper metal in concentrate is expected to average 116,000 tonnes per year over the first five full years versus 118,000 tonnes as previously disclosed. Over the remaining years, the cost per pound of copper net of by product credits has increased to US$1.14 per pound from US$1.11 per pound; and the contained copper metal in concentrate is expected to average 67,000 tonnes per year versus 77,000 tonnes per year as previously disclosed. The cost per pound of copper net of by product credits does not include the impact of the precious metals streaming transactions.
Measured and indicated mineral resources were estimated in house. The process includes determination of the integrity and validation of the data collected, including confirmation of specific gravity, assay results and methods of data recording. The process also includes determining the appropriate geological model, selection of data and the application of statistical models including probability plots to establish continuity and model validation.
CONSTANCIA PRESENTATION l 80
US$750 million in upfront deposit payments from Silver Wheaton for delivery of:
100% of payable gold and silver from 777 mine until the end of 2016; and 50% of payable gold and 100% of payable silver thereafter for the remainder of
life of mine
100% of payable silver from Constancia project Along with upfront payments, Hudbay will receive US$400 per ounce for gold and
US$5.90 per ounce of silver1 Additional US$135 million deposit payment from Silver Wheaton against delivery of:
50% of payable gold from the Constancia project In addition to the deposit payment, Hudbay will receive the lesser of the market
price and US$400 per ounce for gold delivered to Silver Wheaton2 Precious metals stream transaction preserves precious metals upside potential for Hudbay shareholders
Precious metals production from Lalor excluded Excludes land package outside of Constancia and Pampacancha, including
Chilloroya
1Subject to 1% annual escalation starting 2015 2 Subject to 1% annual escalation starting 2016
CONSTANCIA PRESENTATION l 81
CONSTANCIA MINE SITE VISIT September 2014
