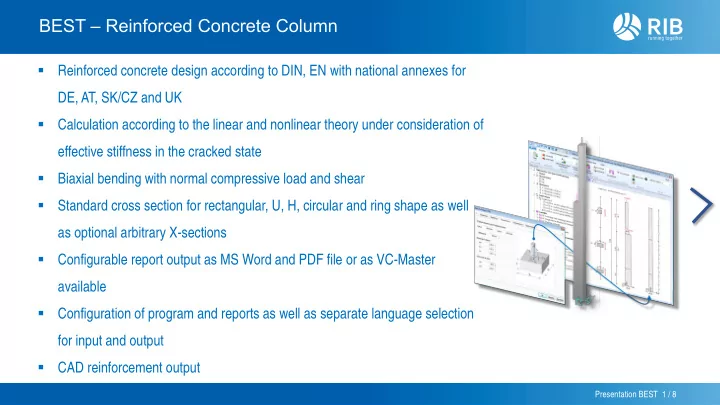

BEST – Reinforced Concrete Column

▪ Reinforced concrete design according to DIN, EN with national annexes for DE, AT, SK/CZ and UK ▪ Calculation according to the linear and nonlinear theory under consideration of effective stiffness in the cracked state ▪ Biaxial bending with normal compressive load and shear ▪ Standard cross section for rectangular, U, H, circular and ring shape as well as optional arbitrary X-sections ▪ Configurable report output as MS Word and PDF file or as VC-Master available ▪ Configuration of program and reports as well as separate language selection for input and output ▪ CAD reinforcement output

Presentation BEST 1 / 8

ZWAX 2

BEST - Efficient solution for complex engineering tasks

Different reinforced concrete cross-sections Modern and efficient working environment Table of properties

Presentation BEST 2 / 8

ZWAX 3

BEST - Load types and support conditions

Supports in both directions or

• nly one direction (optionally

with spring constants) Load Cases Information Load Combinations

Presentation BEST 3 / 8

ZWAX 4

BEST - Fire protection verification and structural fire design

Thermal Analysis, Thermal Deformation and Mechanical Analysis Proofs according to Zilch, Müller & Reitmeyer based on EN 1992-1-2 as well as recommendations

• f the German

National Annexes

Presentation BEST 4 / 8

ZWAX 5

BEST - Transfer of non-linear load combinations to FUNDA

Quick calculation of the foundations by direct import of the column loads in the program FUNDA

Presentation BEST 5 / 8

ZWAX 6

BEST EXPERT - Powerful extension for general cross-sections

Variable cross-sections Polygonal cross-sections with rectangular, circular

• r polygonal recesses

Presentation BEST 6 / 8

ZWAX 7

BEST - Configurable result output

The report can be easily configured using the markers in the table of contents Office specific results

Presentation BEST 7 / 8

ZWAX 8

BEST - Clear and verifiable result list with graphics

Clear and comprehensible

• utput of results

Output and diagrams of internal forces

Presentation BEST 8 / 8
